Vogels Motion MOMO 2237W Dual Monitor Desk Mount, white
Highlights
- For 2 monitors, 10 - 34 inches
- Load capacity up to 20 kg total
- 3 pivot points per arm
- TÜV and IGR certified
- 10-year manufacturer's warranty
Dual monitor arm for two screens with infinitely adjustable positioning
The Vogels Motion MOMO 2237W dual monitor desk mount, white (7122371) is the ideal solution for workspaces with two monitors. Thanks to three pivot points per arm, both displays can be adjusted independently and continuously in height, depth and tilt. The maximum load capacity is 20 kg in total, with each arm securely holding monitors up to 10 kg. The swivel range of up to 180° and the tilt from -20° to +105° allow individual positioning of each screen.
This 2-way swivel arm for the desk is suitable for monitors from 10" to 34". The versatile desk clamp offers two mounting options: clamped to the desk or bolted through. An integrated Allen key makes additional tools unnecessary. The VESA-compatible double mount supports the hole patterns 50 x 50, 75 x 75 and 100 x 100 mm. Integrated cable management keeps the workspace tidy even with two monitors. Perfect for offices, trading desks, graphic workstations and control rooms.
Technical details Vogels MOMO dual monitor mount with swivel arm
- Suitable for 2 monitors from 10" to 34"
- Maximum total load capacity: 20 kg (10 kg per arm)
- Max. weight for curved display: 10 kg
- VESA standard: 50 x 50, 75 x 75, 100 x 100 mm
- Tilt: -20° / +105°
- Swivel range: up to 180°
- Number of pivot points: 3 per arm

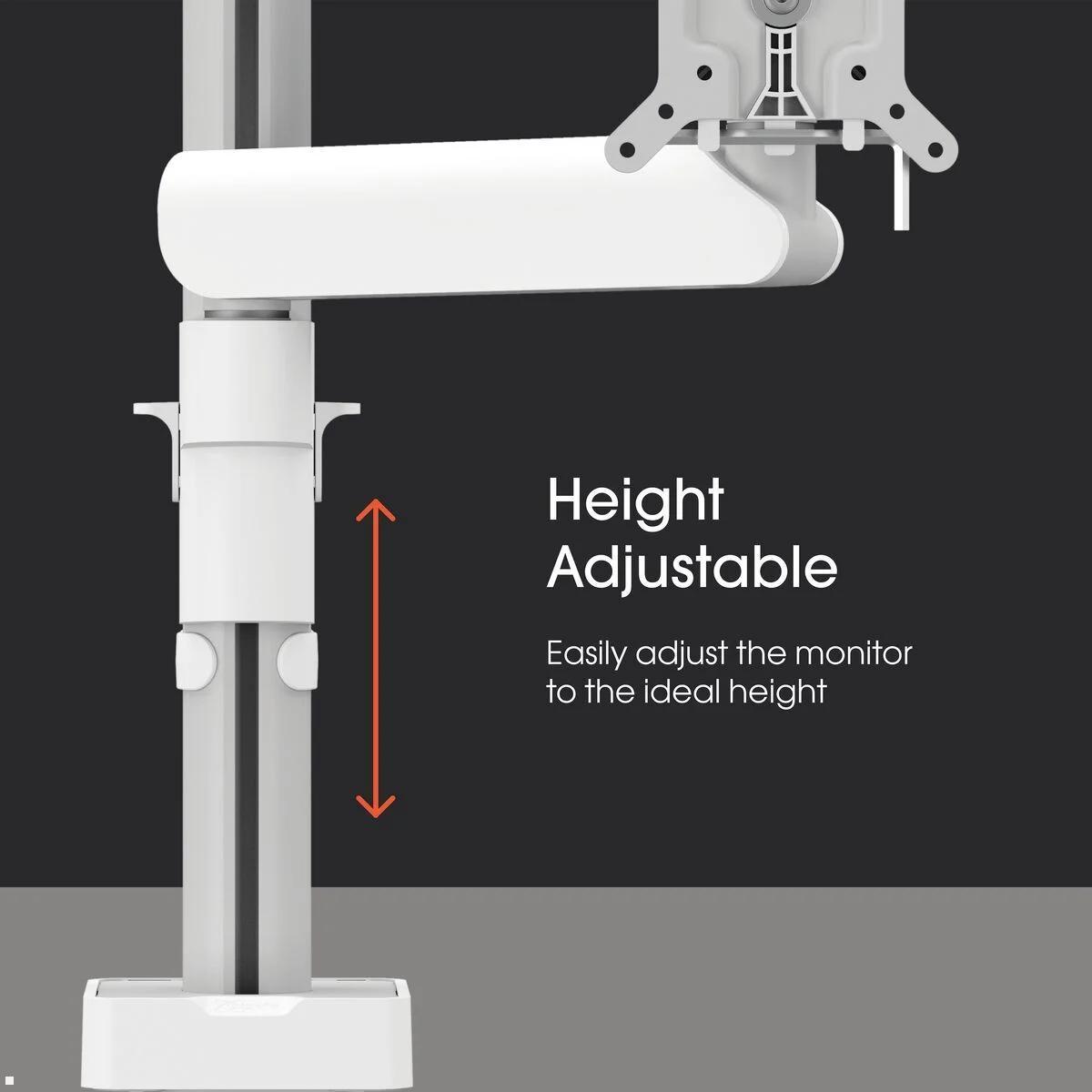

- Height adjustment: 250 mm (manual)
- Adjustable depth: Yes

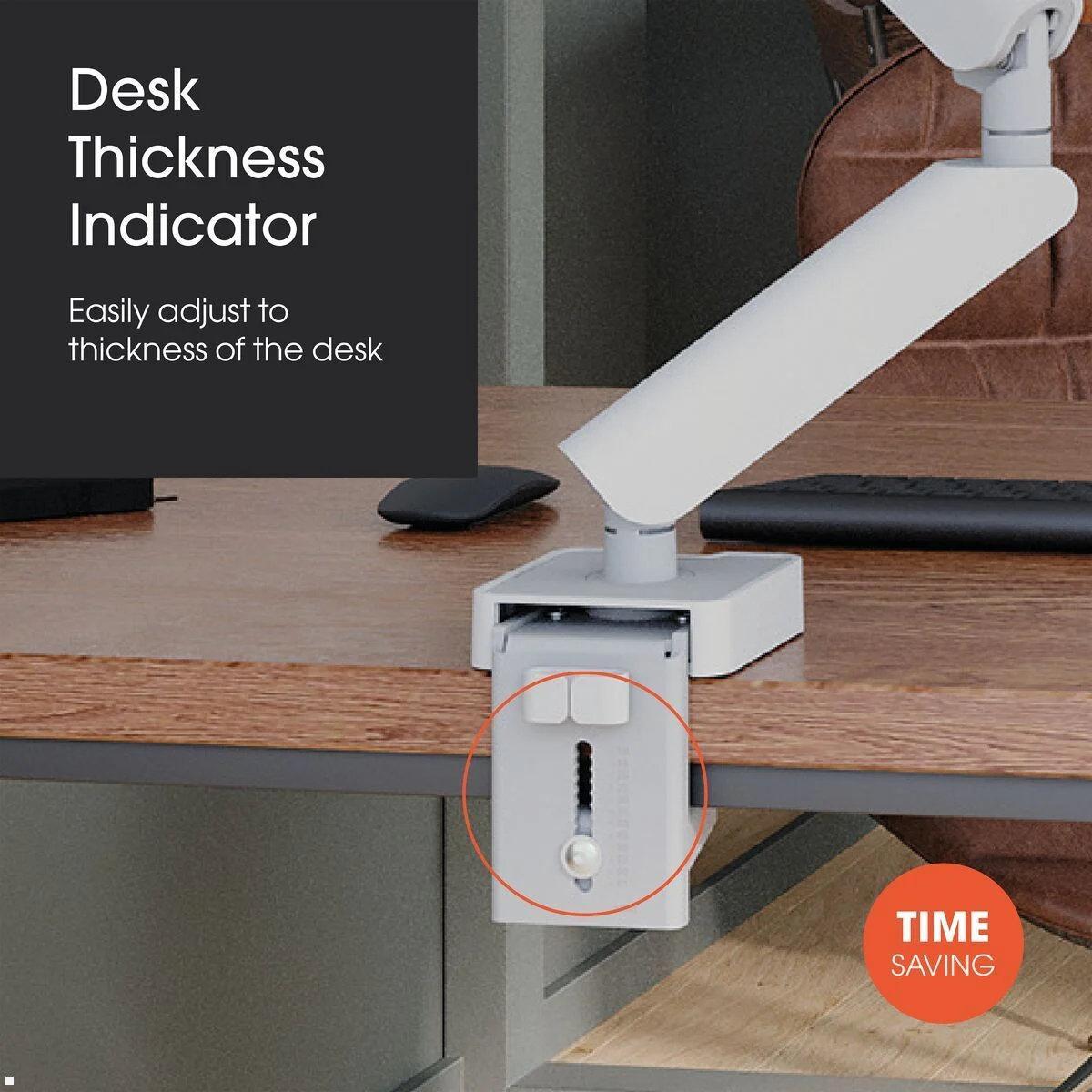

- Maximum desk thickness: 66 mm
- Mounting: desk clamp or through-bolt mounting
- Color: White
- Warranty: 10 years
- Certifications: TÜV, IGR
| Product sheet: |  [pdf] |
|---|---|

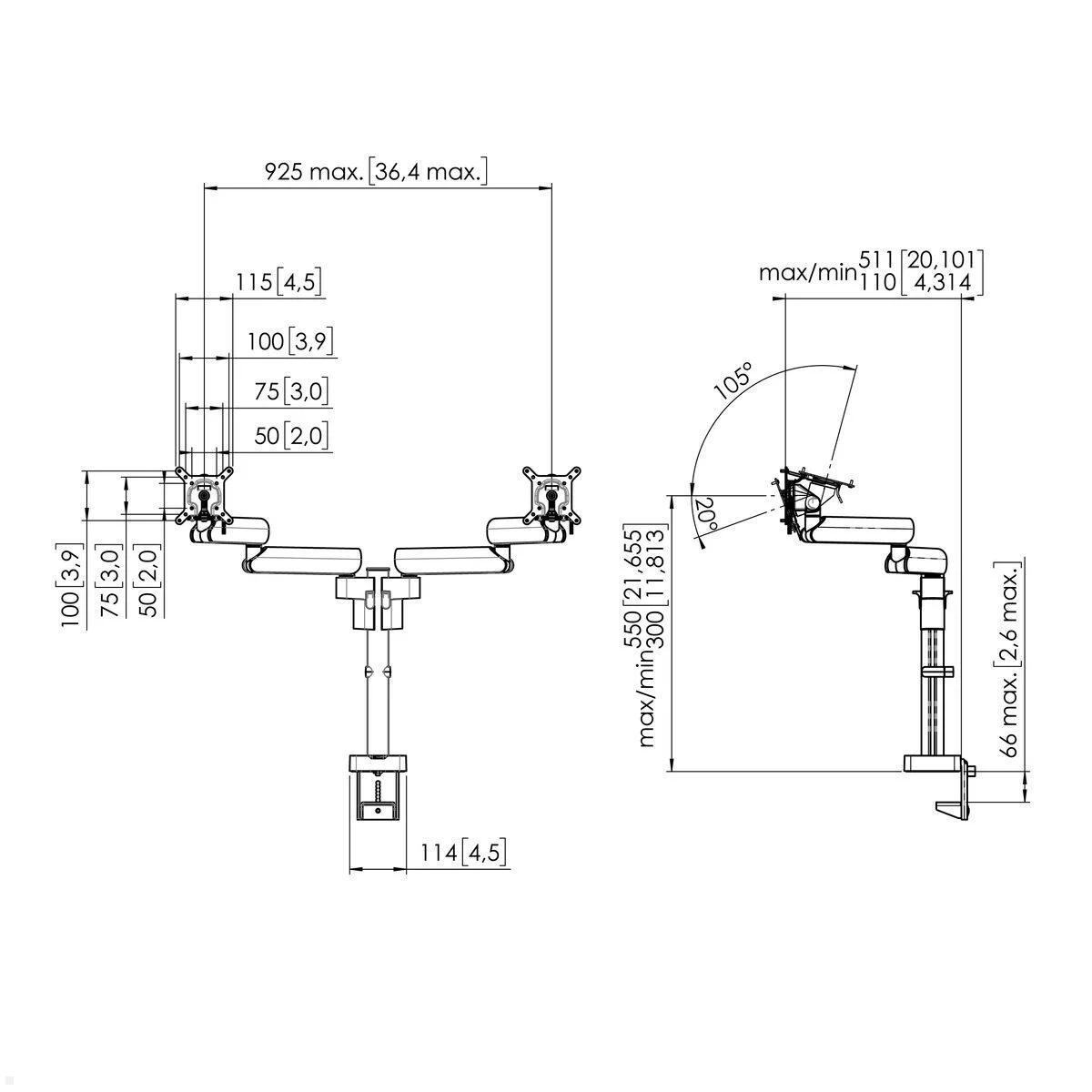

| Technical drawing: | [pdf] |
| Others: | [pdf] |
| Installation manual: | [pdf] |
| Minimum weight: | 1 kg |
| Capacity: | 20 kg |
| Tilt: | -20°/+105° |
| Height range (mm): | 250 |
| Swivelling range: | 180° |
| Screen size: | 10" - 34" |
| Thickness of table (mm): | max. 66 mm |
| VESA Standard: | 50x50,75x75, 100x100 mm (www.vesa-standard.com) |
| Contains installation material: | + |
| Warranty: | 10 years |
| Manufacturer/Importer: | Vogel's Products BV, Hondsruglaan 93, 5628 DB Eindhoven, info.de@vogels.com |
| Inch size: | 14 inch, 15 inch, 17 inch, 18 inch, 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch, 28 inch, 29 inch, 30 inch, 31 inch, 32 inch, 33 Zoll, 34 inch |
| Mobility: | height adjustable , swivelling, tilting |
| Mounting type: | desk - clamp, desk - drill screw fastening |
| Multi-monitor mount: | 2 monitors side by side |
| color: | Weiß |
| VESA (in mm): | 50 x 50, 75 x 75, 100 x 100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What monitors is the Vogels Motion MOMO 2237W suitable for?
It suits two monitors from 10 to 34 inches and supports VESA patterns 50x50, 75x75, and 100x100 mm.
-
How much weight can the mount support?
The maximum total load is 20 kg (10 kg per arm).
-
What range of movement does each arm offer?
Each arm has three pivot points for independent height, depth and tilt adjustment; swivel range up to 180°, tilt from -20° to +105°.
-
What mounting options are available?
Desk clamp or through-bolted mounting, suitable for desk thickness up to 66 mm.
-

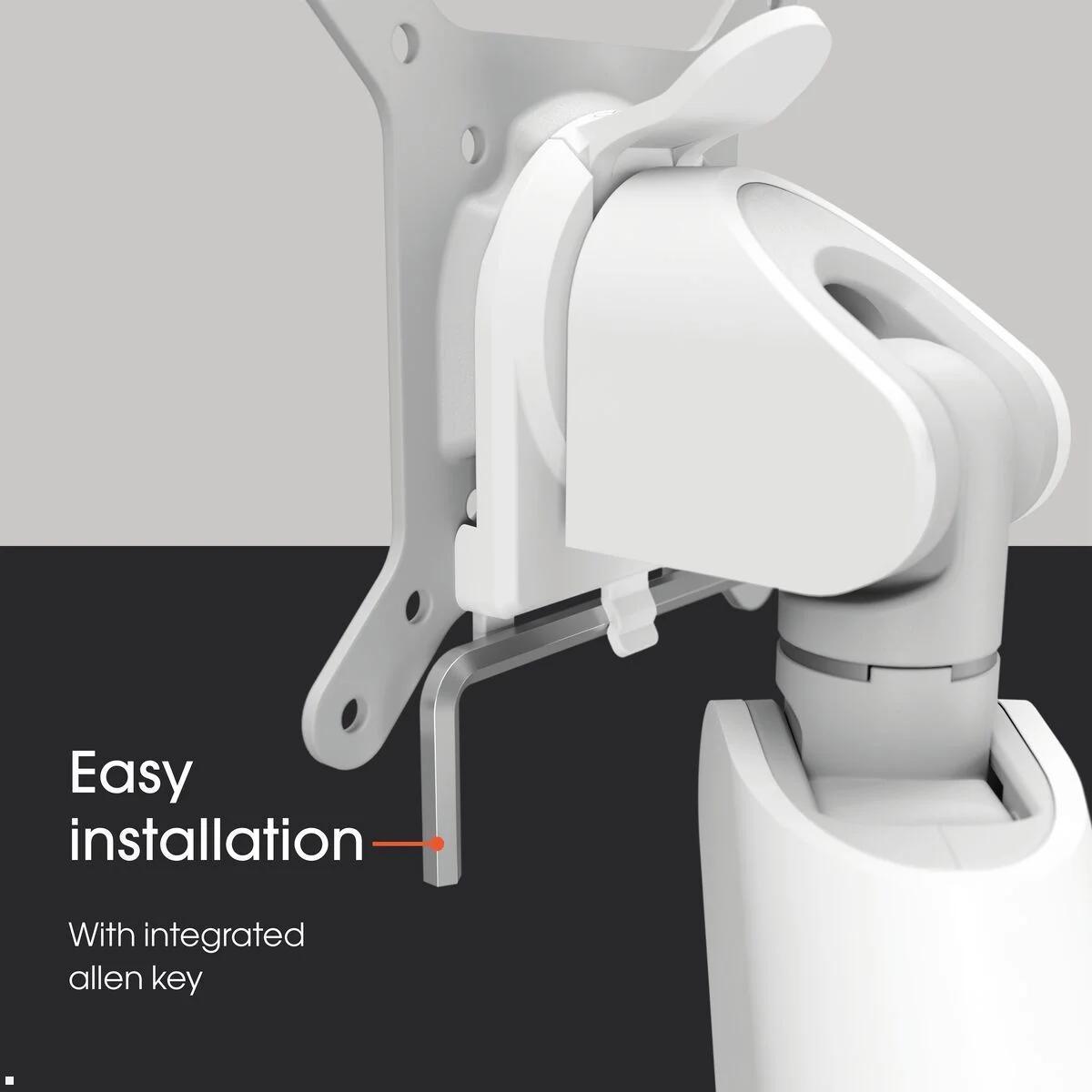

Is any tool included?
Yes, an integrated hex key eliminates the need for extra tools.
-
What other features does the mount have?
It includes integrated cable management, is white, and comes with a 10-year warranty plus TÜV and IGR certifications.
-
What environments is it ideal for?

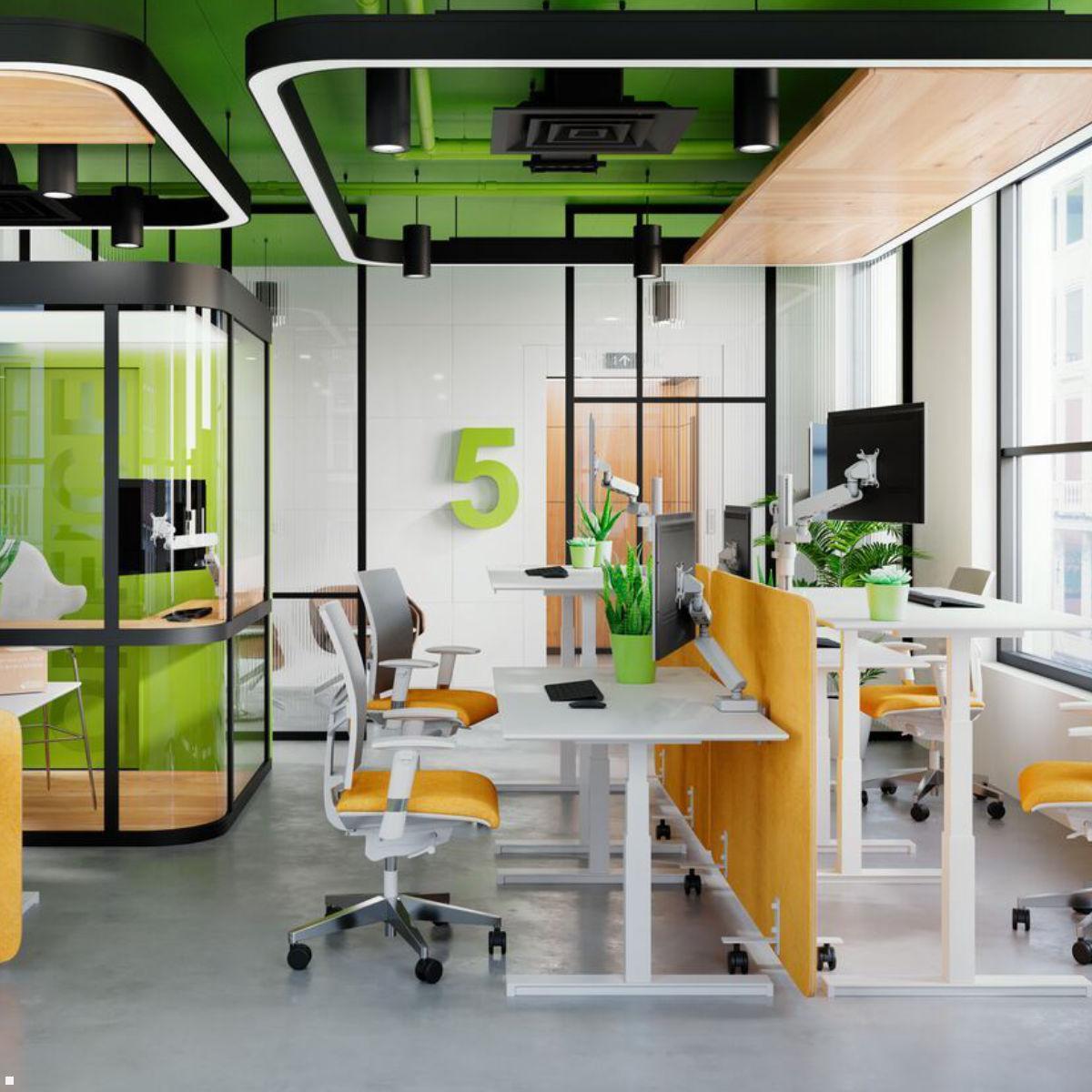

Ideal for offices, trading desks, graphic workstations and control rooms.
-
What color is the mount?
It is white.
Why is the Vogels MOMO 2237W the optimal dual monitor mount for productive work?
Two monitors at the workplace have been proven to increase productivity. The Vogels Motion MOMO 2237W dual monitor desk mount, white, was specially designed for use with two screens and offers maximum ergonomics with minimal desk footprint. Each of the two arms features 3 pivot points, allowing the monitors to be infinitely adjusted independently in height, depth and tilt. The total load capacity of 20 kg is distributed across two arms with a capacity of 10 kg each. Both monitors can be between 10 and 34 inches in size; curved displays up to 10 kg are also securely supported. The VESA mount supports the common hole patterns 50 x 50, 75 x 75 and 100 x 100 mm for broad device compatibility. The compact single column with two arms takes up significantly less space than two separate monitor mounts.
How is the Vogels MOMO dual monitor mount attached to the desk?
Assembly is straightforward and quick despite the dual configuration. The supplied desk clamp offers two flexible mounting options: clamped to the desk edge or securely screwed through a hole in the desktop. Tabletops up to 66 mm thick are supported without problem. An integrated Allen key makes additional tools unnecessary. Each arm has a built-in weight indicator that allows precise balancing of the individual monitors. The entire assembly is carried out from above, without awkward handling under the desk.
What advantages does the dual-joint articulated arm offer compared to two separate monitor stands?
The main advantage of the MOMO 2237W is the space-saving single column, which serves as a common base for both arms. Instead of two desk clamps, the dual mount occupies only a single fastening point, creating significantly more free workspace. The swivel range of up to 180 degrees and the tilt of -20 to +105 degrees per arm allow maximum adaptability of both screens independently of each other. An integrated rotation-stop mechanism reliably prevents cable breakage as well as damage to the monitors. Concealed cable sleeves keep all cables of both monitors neatly hidden. TÜV and IGR certification confirms compliance with the strictest safety standards even under the increased load of a dual configuration. With a 10-year manufacturer’s warranty, Vogels sends a clear signal for durability. Whether in open-plan offices, home offices, trading desks or control rooms, the MOMO 2237W is the professional solution for ergonomic work with two monitors.
