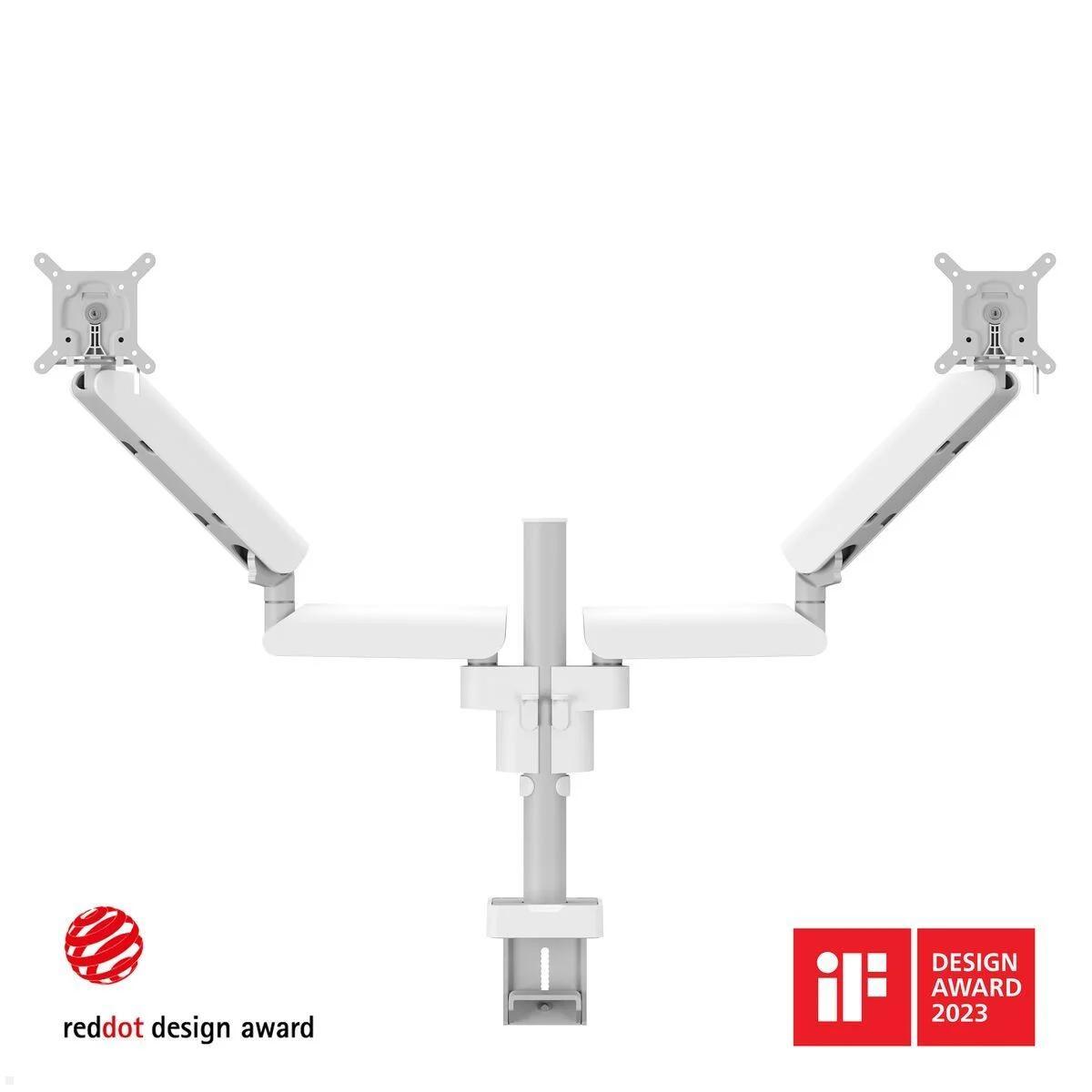

Vogels Motion Plus MOMO 4237W Dual Monitor desk mount, white
Highlights
- For 2 monitors, 10 - 34 inches
- Load capacity up to 20 kg total
- 3 pivot points per arm
- TÜV- and IGR-certified
- 10 years manufacturer's warranty
Dual monitor arm for two screens with stepless height adjustment
The Vogels Motion Plus MOMO 4237W dual monitor desk mount, white (7142371) is the ideal solution for workspaces with two monitors. Thanks to 3 pivot points per arm and the innovative OneFinger Movement spring system, both screens can be adjusted independently of each other steplessly in height, depth and tilt. The maximum load capacity is a total of 20 kg, with each arm securely holding monitors up to 10 kg. The swivel range of up to 180° and the tilt from -20° to +105° allow individual positioning of each screen.
This 2-arm swivel mount for the desk is suitable for monitors from 10 to 34 inches. The versatile desk clamp offers two mounting options: clamped to the desk or bolt-through. An integrated Allen key additionally makes extra tools unnecessary. The VESA-compatible dual bracket supports the hole patterns 50 x 50, 75 x 75 and 100 x 100 mm. The integrated cable management with stainless steel clips keeps a tidy workspace even with two monitors. Perfect for offices, trading desks, graphic workstations and control rooms.

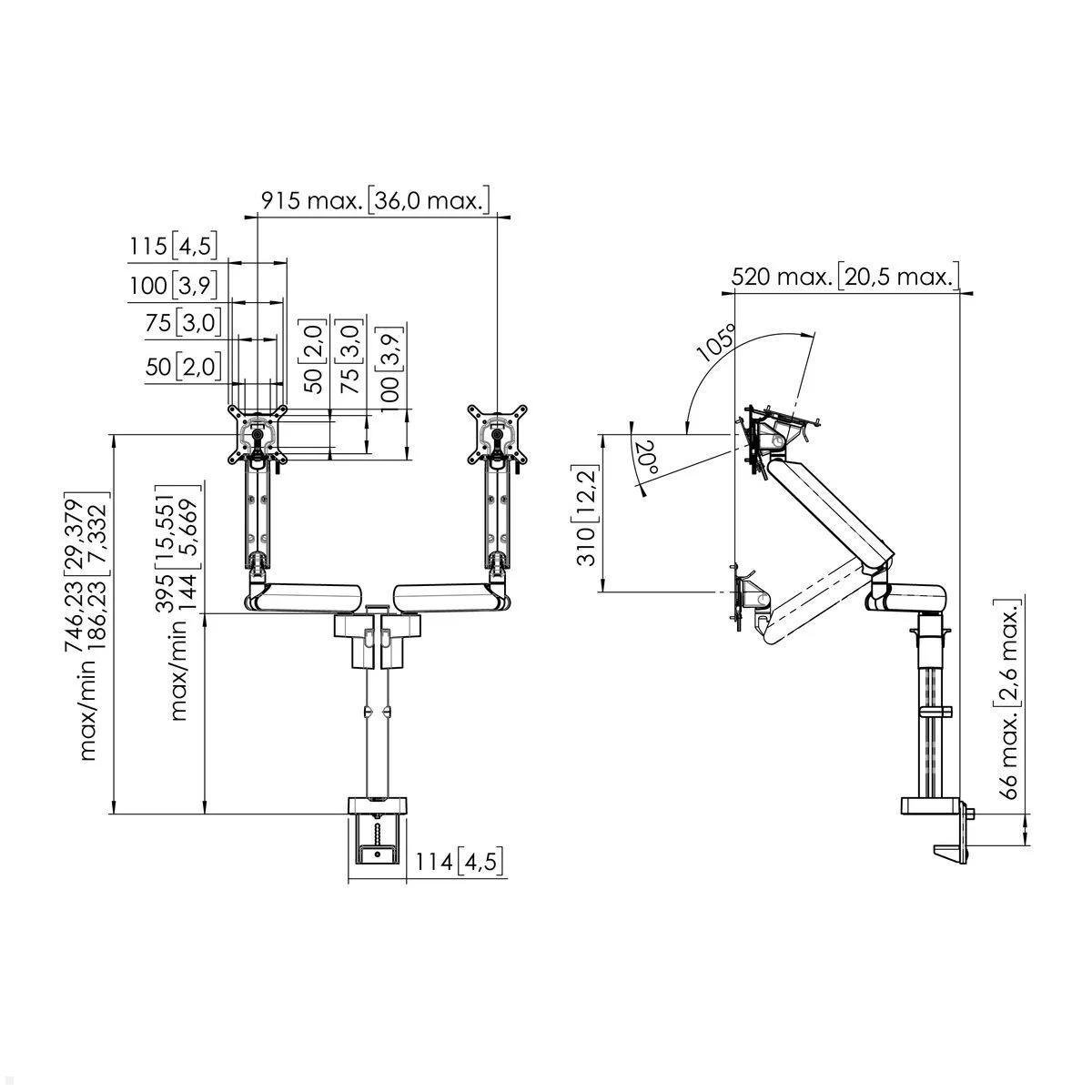

Technical details Vogels MOMO dual monitor mount with articulated arm
- Suitable for 2 monitors from 10" to 34"
- Maximum total load capacity: 20 kg (10 kg per arm)
- Max. weight curved display: 10 kg
- Minimum weight: 1 kg
- VESA standard: 50 x 50, 75 x 75, 100 x 100 mm
- Tilt: -20° / +105°
- Swivel range: up to 180°
- Number of pivot points: 3 per arm
- Height adjustment: mechanical spring (OneFinger Movement)
- Adjustable depth: Yes
- Maximum desk thickness: 66 mm
- Mounting: desk clamp or bolt-through mounting
- Color: White
- Warranty: 10 years
- Certifications: TÜV, IGR
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| Others: | [pdf] |
| Installation manual: | [pdf] |
| Minimum weight: | 1 kg |
| Capacity: | 20 kg |
| Tilt: | -20°/+105° |
| Swivelling range: | 180° |
| Screen size: | 10" - 34" |
| Thickness of table (mm): | max. 66 mm |
| VESA Standard: | 50x50,75x75, 100x100 mm (www.vesa-standard.com) |
| Contains installation material: | + |
| Warranty: | 10 years |
| Manufacturer/Importer: | Vogel's Products BV, Hondsruglaan 93, 5628 DB Eindhoven, info.de@vogels.com |
| Inch size: | 14 inch, 15 inch, 17 inch, 18 inch, 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch, 28 inch, 29 inch, 30 inch, 31 inch, 32 inch, 33 Zoll, 34 inch |
| Mobility: | height adjustable , swivelling, tilting |
| Mounting type: | desk - clamp, desk - drill screw fastening |
| Multi-monitor mount: | 2 monitors side by side |
| color: | Weiß |
| VESA (in mm): | 50 x 50, 75 x 75, 100 x 100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the Vogels Motion Plus MOMO 4237W Dual Monitor Desk Mount?
A dual monitor arm for two screens with stepless height adjustment and the OneFinger Movement spring system. It supports monitors from 10 to 34 inches, with a total load capacity of up to 20 kg (10 kg per arm) and uses VESA patterns 50 x 50, 75 x 75 and 100 x 100.
-
Which monitor sizes are supported?
Suitable for two monitors from 10 to 34 inches.
-
How much weight can it hold?
Maximum total load is 20 kg (10 kg per arm).
-
What are the adjustment options?
Height adjustment is mechanical via the OneFinger Movement spring system, and each arm offers three pivot points with adjustable depth. Tilt ranges from -20° to +105° and the swivel range is up to 180°.
-
What VESA standards are supported?
VESA standards: 50 x 50 mm, 75 x 75 mm and 100 x 100 mm.
-
What mounting options are available?

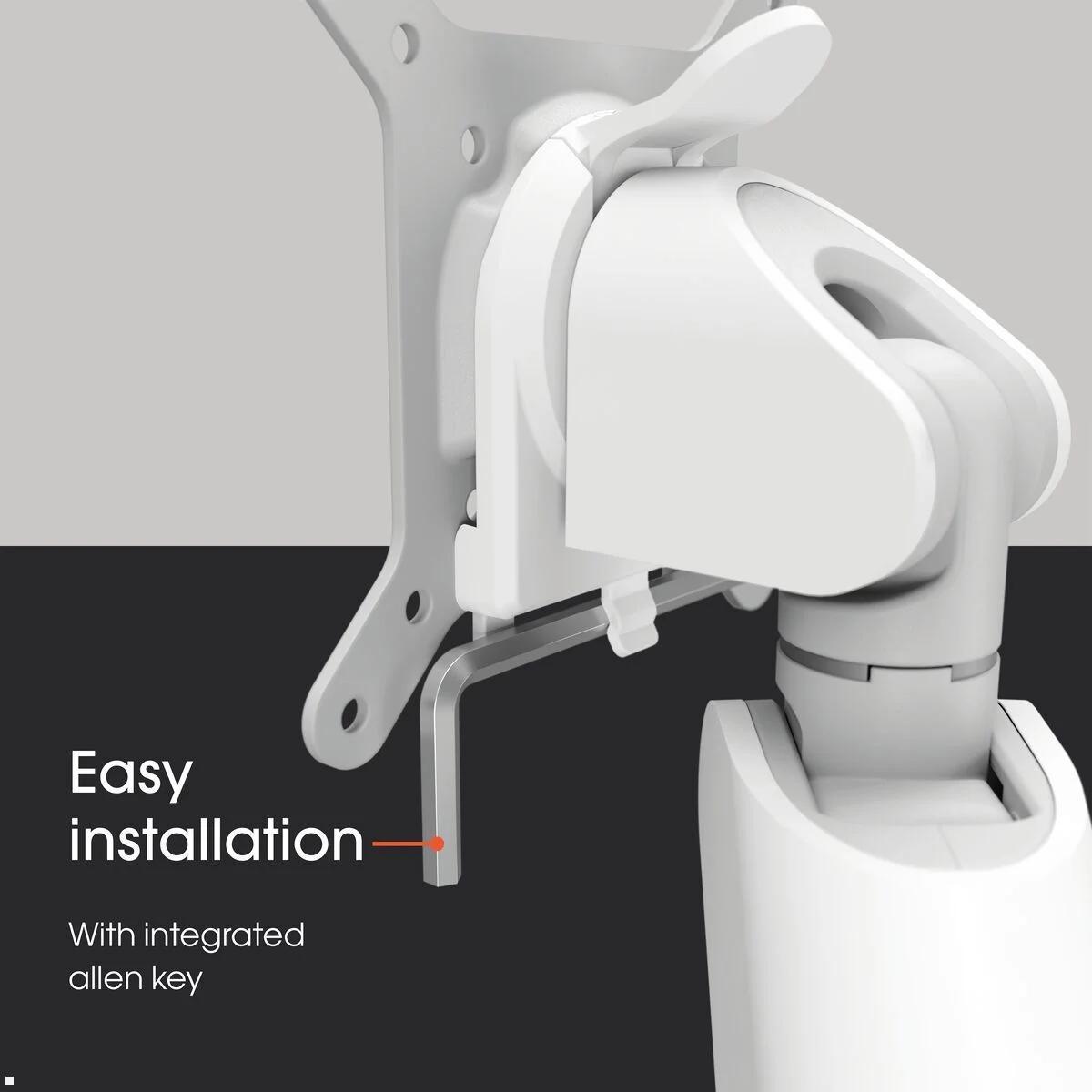

Mounting is via desk clamp or through-bolted fixation; an integrated Allen key eliminates the need for additional tools.
-
What other features does the mount have?
Cable management with stainless clips keeps the workspace tidy. Colour: White; Maximum desk thickness: 66 mm; 10-year warranty; Certifications: TÜV and IGR.
Kunden kauften auch
Why is the Vogels MOMO 4237W the optimal dual-monitor mount for productive work?

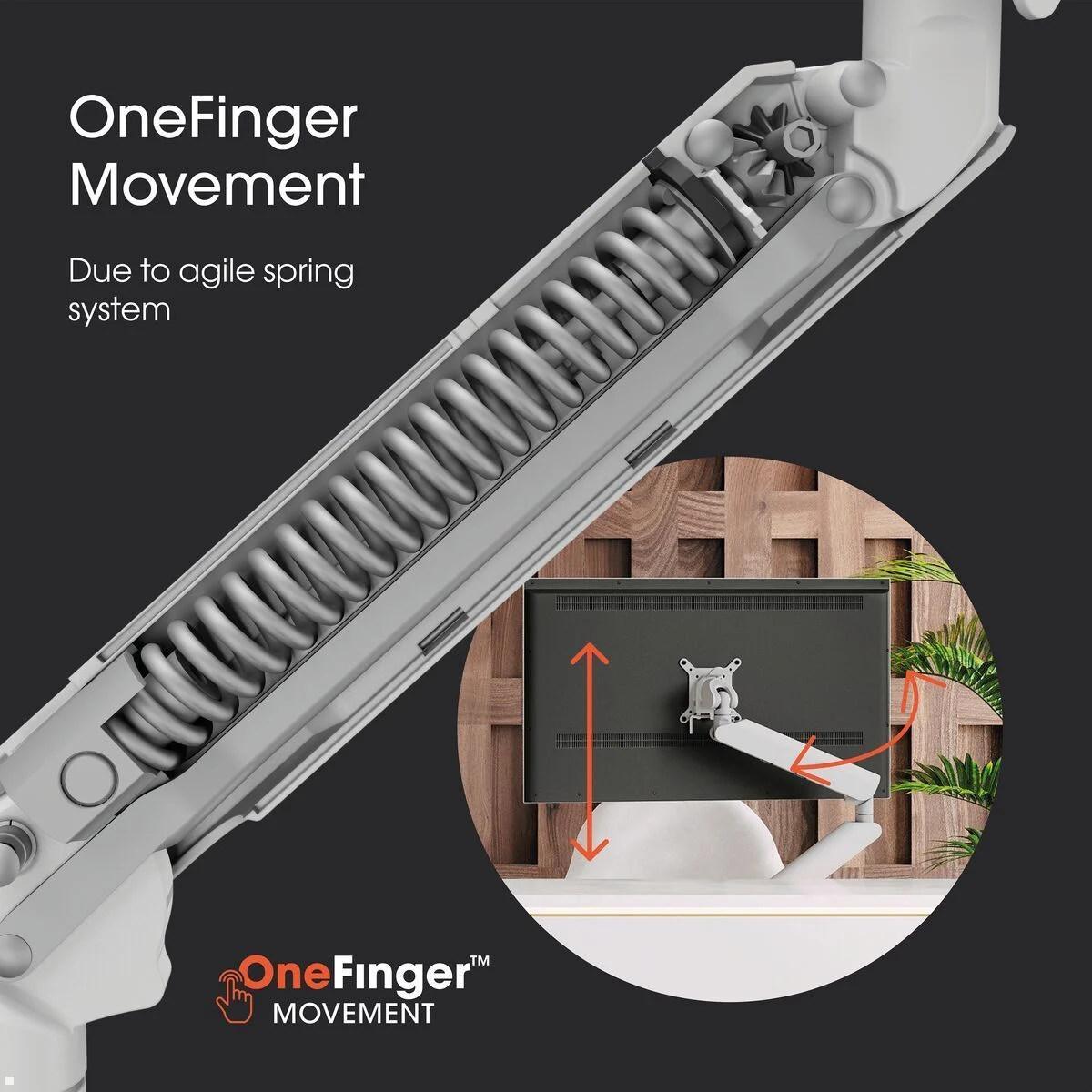

Two monitors at the workplace demonstrably increase productivity. The Vogels Motion Plus MOMO 4237W Dual Monitor Desk Mount, white, was specifically designed for use with two screens and offers maximum ergonomics with minimal desk footprint. Each of the two arms has 3 pivot points and the patented OneFinger Movement System, which allows the monitors to be adjusted independently and steplessly in height and depth. Whether sitting or standing, the individual positioning of each screen ensures an optimal working environment. The total load capacity of 20 kg is distributed over two arms with 10 kg capacity each. Both monitors can range from 10 to 34 inches; curved displays up to 10 kg are also securely supported. The VESA mount supports the common hole patterns 50 x 50, 75 x 75 and 100 x 100 mm for broad device compatibility. The compact single column with two arms requires significantly less space than two separate monitor mounts.
How is the Vogels MOMO dual-monitor mount attached to the desk?

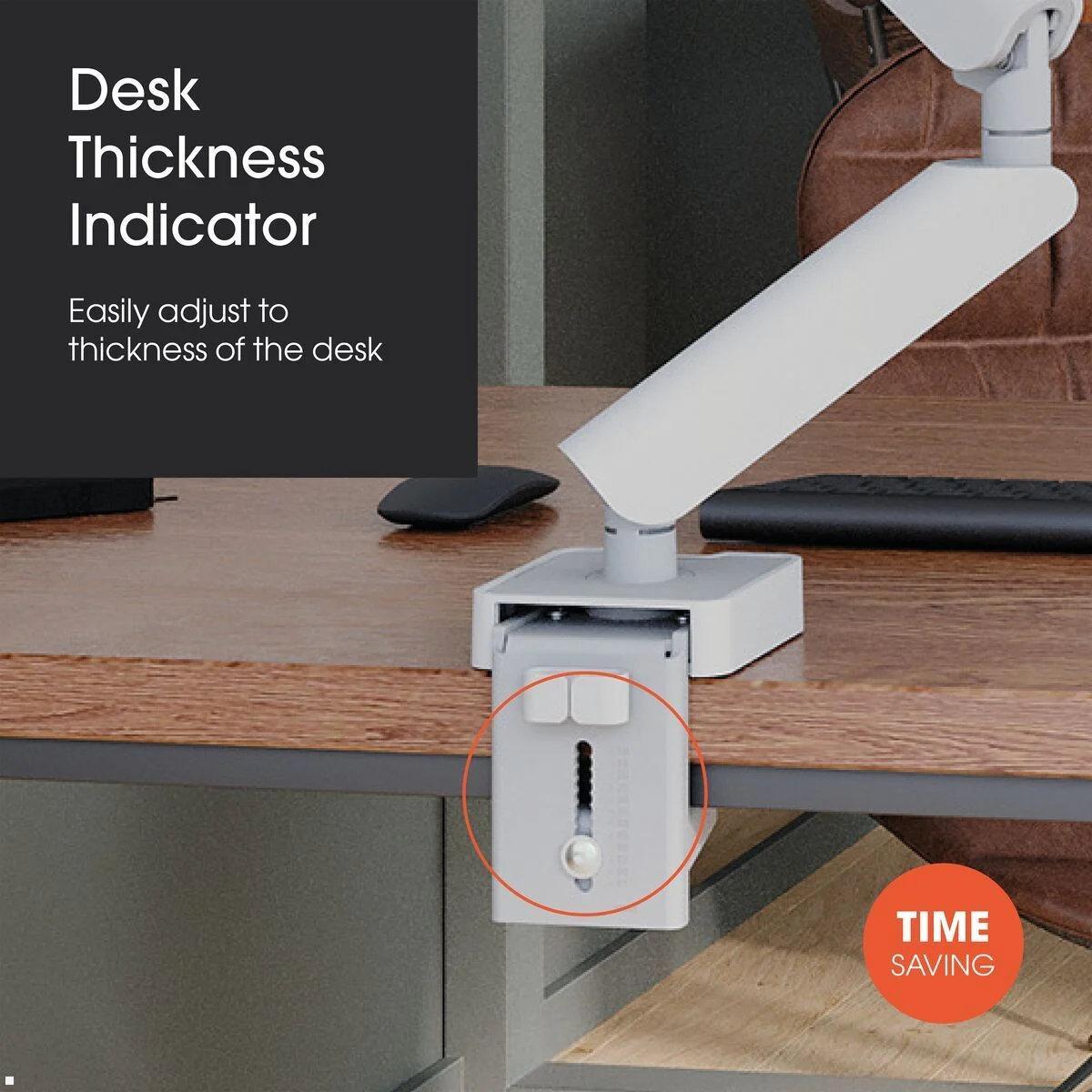

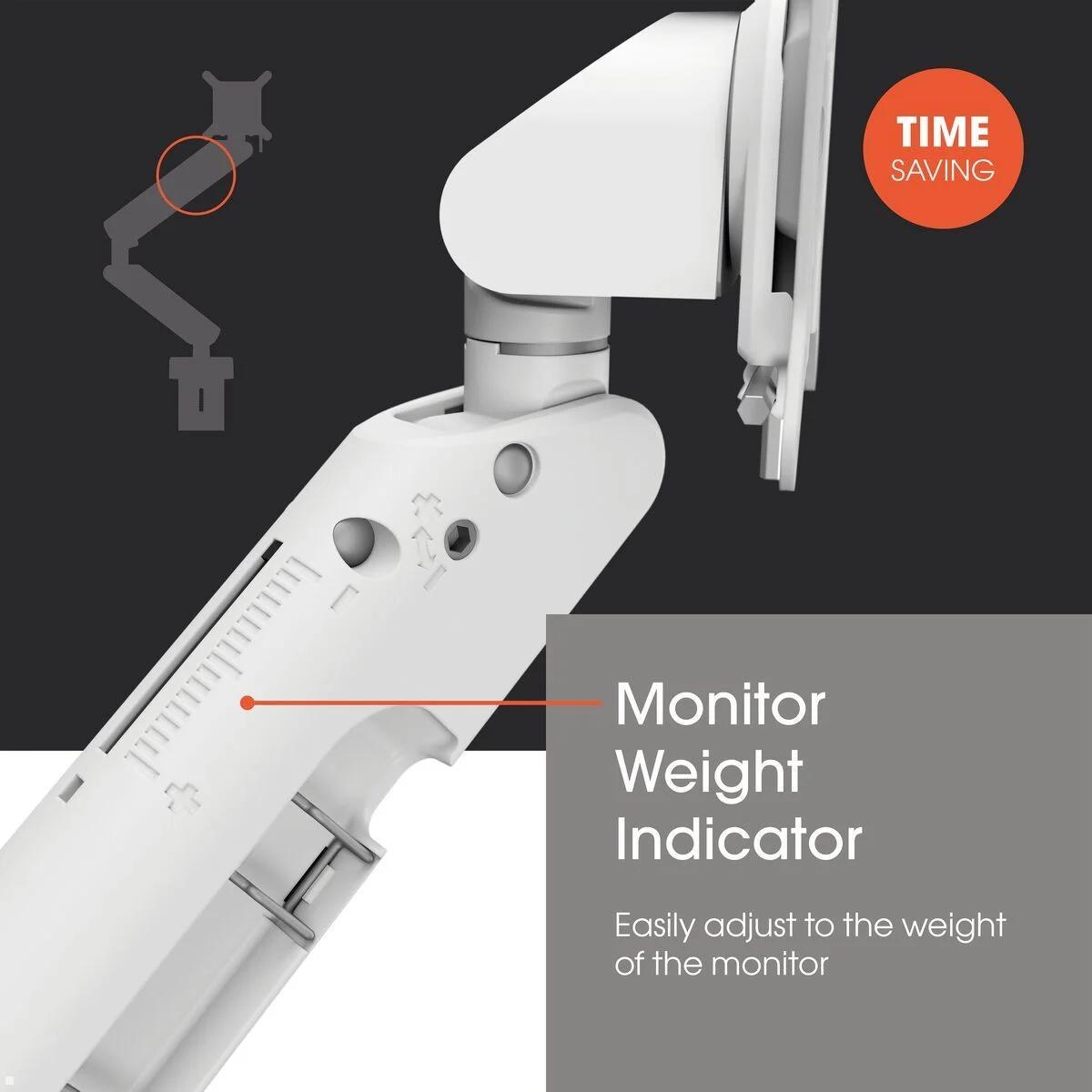

Despite the dual configuration, assembly is uncomplicated and quick. The supplied desk clamp offers two flexible mounting options: clamped to the desk edge or firmly screwed through a hole in the desktop. Desk tops up to 66 mm thick are easily supported. An integrated hex key makes additional tools unnecessary. Each arm features a built-in weight indicator that allows precise balancing of the individual monitors. A desk thickness indicator facilitates the correct adjustment of the clamp. These features make the dual mount particularly attractive for mass installations in companies, as all units can be preconfigured. Installation is done entirely from above, without cumbersome handling under the desk.
What advantages does the dual swivel arm offer compared to two separate monitor stands?
The main advantage of the MOMO 4237W lies in the space-saving single column that serves as a common base for both arms. Instead of two desk clamps, the dual mount occupies only a single fastening point, creating significantly more free workspace. The swivel range of up to 180 degrees and the tilt of -20 to +105 degrees per arm enable maximum adaptability of both screens independently. An integrated rotation-stop mechanism reliably prevents cable breakage and damage to the monitors. Concealed cable channels with stainless steel clips keep all cables of both screens neatly hidden. TÜV and IGR certification confirm compliance with the strictest safety standards even under the higher load of a dual configuration. With a 10-year manufacturer's warranty, Vogels sends a clear signal for durability. Whether in open-plan offices, home offices, trading desks or control rooms, the MOMO 4237W is the professional solution for ergonomic work with two monitors.
