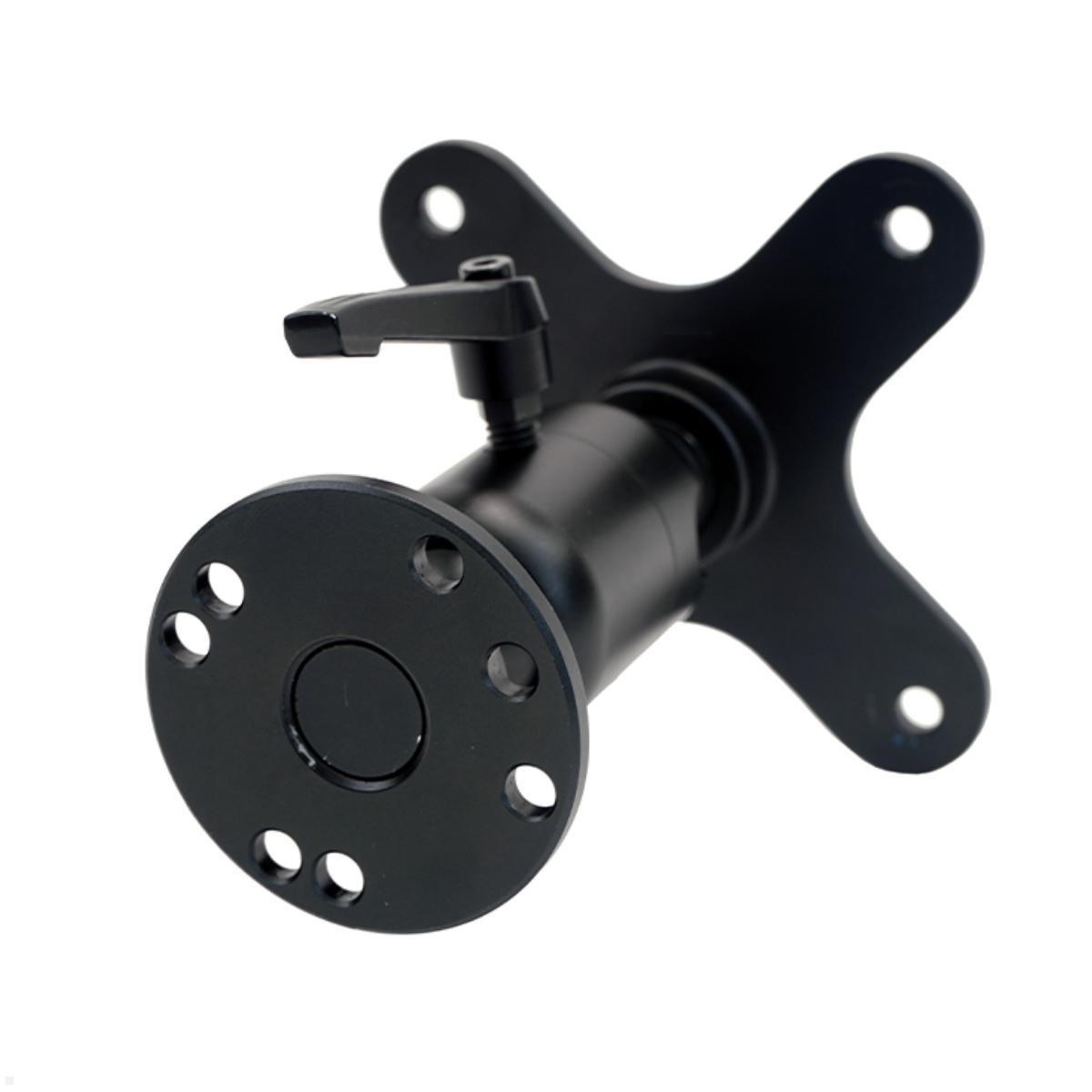

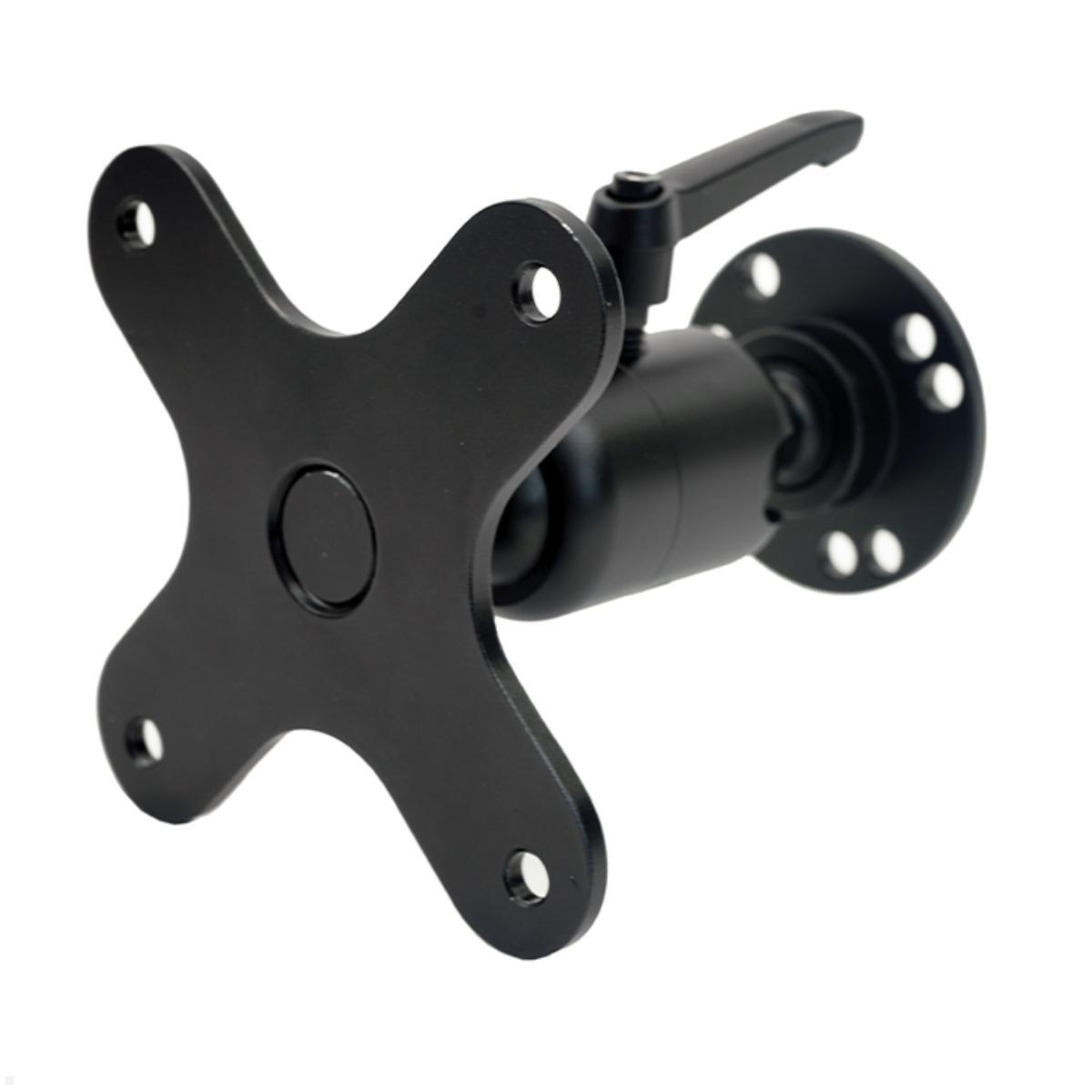

Zirkona Medium Joiner Short VESA 75 Vehicle Mount (7160-1179)
Highlights
- VESA 75x75 and AMPS hole pattern

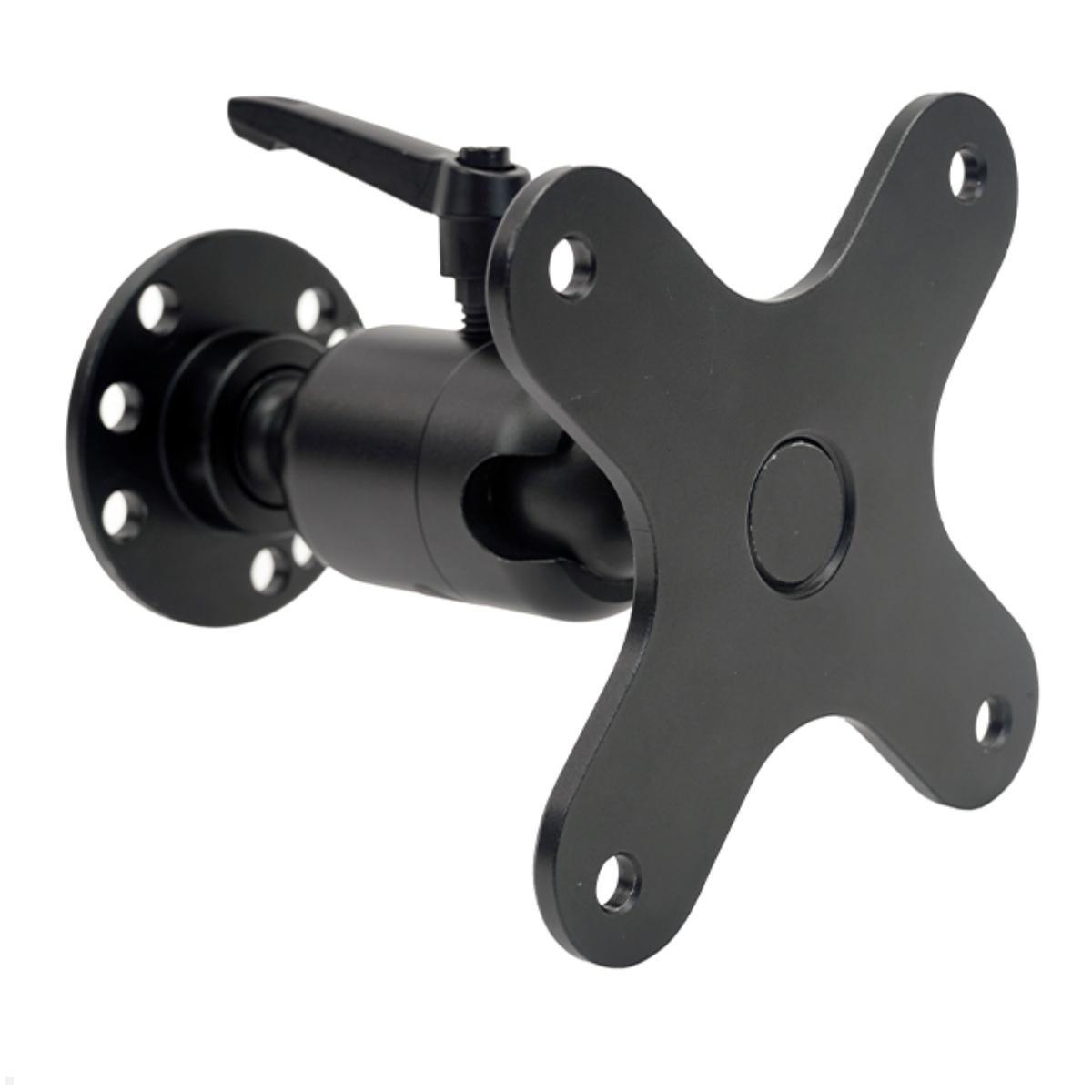

- 3-axis ball joint (X/Y/Z)
- Anodized aluminum, vibration-resistant

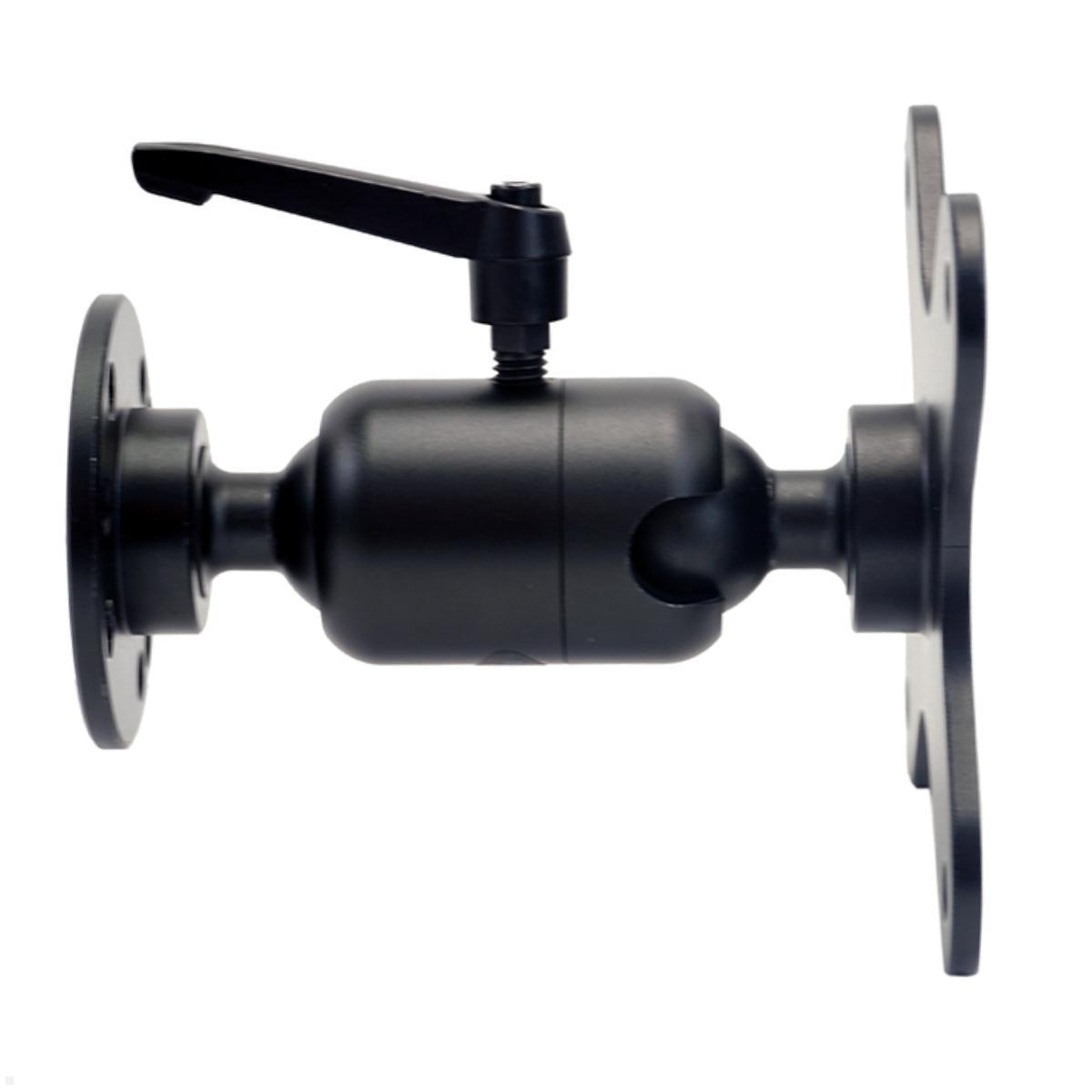

- Quick-adjust lever
- Max. load capacity 2.3 kg
Compact Ball Joint Mounting System for Vehicle and Industrial Applications
The Zirkona Joiner Medium Short with VESA mount 75x75 is a compact monitor mount for locations where the monitor should be mounted as flat as possible to the mounting surface while retaining some flexibility. The double-sided ball joint made of anodized aluminum allows precise positioning in all three axes: left/right (X-axis), forward/back (Y-axis) and up/down (Z-axis). The robust all-metal construction does not deform and is designed for continuous use in demanding environments such as truck cabs, commercial vehicles and industrial facilities. With a maximum load capacity of 2.3 kg, the Joiner Medium Short is especially suitable for lightweight tablets and compact displays. The quick-adjust lever enables fast, tool-free position adjustment.
Versatile mounting system for vehicle and industrial applications
The VESA 75x75 mm interface is used for attaching docking stations or cradles, while the AMPS hole pattern allows direct mounting to Gamber-Johnson dashboard mounts and other AMPS-compatible mounting systems. The Zirkona Joiner System is a unique and patented mounting system for vehicle computers, control modules, tablets and flat screens. For industrial customers, Zirkona offers intelligent solutions for securing joysticks, displays and control units wherever a strong attachment combined with flexibility and mobility is required. The Zirkona Joiner is available in different sizes, made of aluminum or stainless steel. Various mounting types offer the possibility to integrate the system anywhere.
Technical Details Zirkona Joiner Medium Short with VESA Mount 75x75
- Double-sided ball joint
- VESA mount standard 75x75 mm

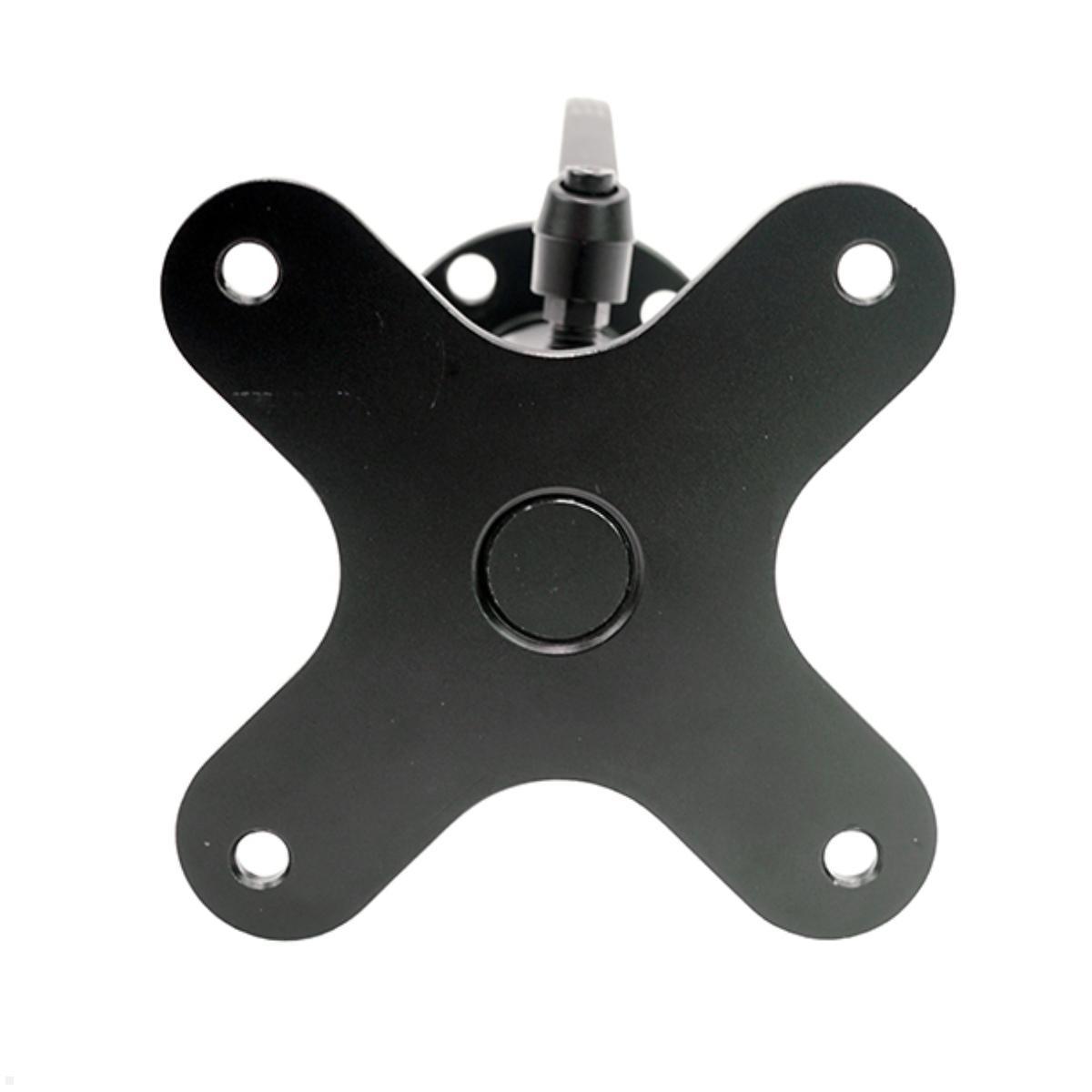

- AMPS hole pattern for Gamber-Johnson compatibility
- Load capacity: max. 2.3 kg (5 lbs)
- 3-axis mobility (X, Y, Z)
- Material: anodized aluminum
- Quick-adjust lever for tool-free adjustment
- Patented and vibration-tested
- Height: approx. 70 mm
- Mounting plate with 30x38 mm hole pattern included
- Lever can alternatively be replaced with an M8 screw
- Successor to: 7110-1240

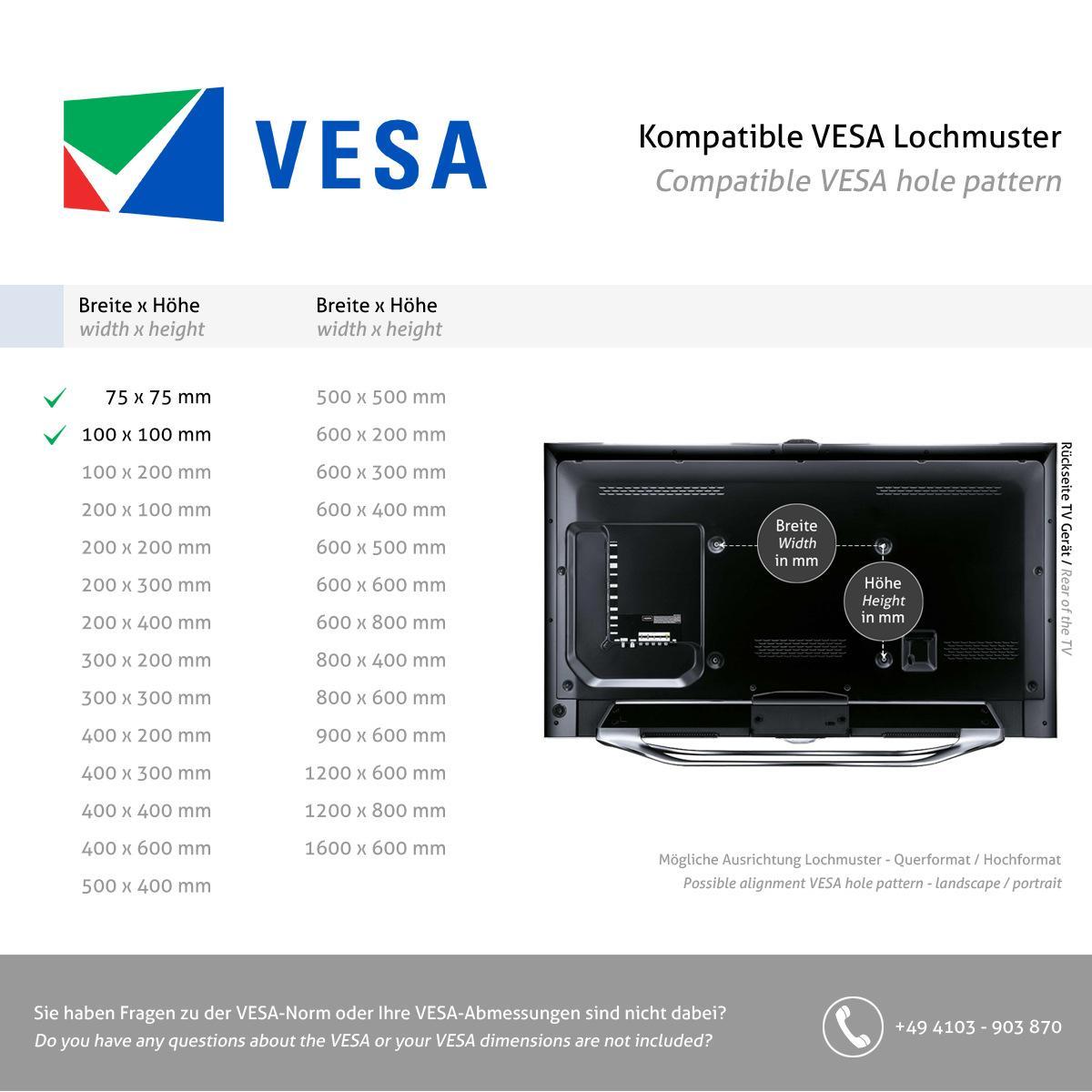

VESA Standard - Learn more about the VESA standard for monitor mounts!
| Installation manual: |  [pdf] |
|---|---|
| Capacity: | 2,3 kg |
| Material: | Aluminium, eloxiert |
| Old model no.: | 7110-1240 |
| VESA Standard: | 75x75mm (www.vesa-standard.com) |
| Accessories: | Zirkona Joiner Small (601010) Zirkona Joiner Medium (601020) Zirkona Joiner Large (601030) Zirkona Joiner Vesa 75 (601040) Zirkona Joiner Vesa 75/100 (601042) Zirkona Joiner Rohr (601051, 601052, 601053, 601054) Zirkona Joiner Montageplatte rund (601060) Zirkona Joiner M20 adapter (601070) Zirkona Joiner Rohrhalterung (601080) Zirkona Joiner Quicker (601101) Zirkona Joiner Quick Release (602080) Zirkona Joiner Balkenhalterung (602100) Zirkona Joiner Universalhalterung (602110) |
| Contains installation material: | + |
| Warranty: | 2 years |
| Manufacturer/Importer: | four traders GmbH / Zirkona, Am Marienhof 8, 22880 Wedel, info@four-traders.com |
| Mobility: | rotatable (pivot), swivelling, tilting |
| color: | Black |
| VESA (in mm): | VESA 75x75 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
1 review
20 January 2026 21:01
Top Leistung
Sehr schnelle Bearbeitung und Lieferung.
Why is a ball-joint mounting system for tablets indispensable in vehicles?
In commercial vehicles, truck cabs and emergency vehicles, tablets and monitors must be securely mounted while remaining flexibly adjustable. The Zirkona Joiner Medium Short solves this challenge with a patented double-sided ball joint that enables precise positioning across all three axes. The X-axis allows alignment to the left and right, the Y-axis to the front and back, and the Z-axis up and down. The Quick-Adjust lever lets the desired position be fixed quickly and without tools. The compact overall height of just 70 mm ensures the monitor sits as flat as possible against the mounting surface. The construction of anodized aluminum is vibration-resistant and does not deform even under continuous use, which is particularly important for vehicle installations. With a load capacity of up to 2.3 kg, the Joiner Medium Short is ideal for tablets and lightweight displays that use a VESA 75x75 mm mount or an AMPS hole pattern.
What mounting options do the VESA 75 and AMPS hole patterns offer?
The VESA 75x75 mm mount on the top of the Joiner is used to attach docking stations, cradles or monitors that comply with the VESA standard. The AMPS hole pattern on the underside allows direct mounting to Gamber-Johnson dashboard mounts and other AMPS-compatible mounting systems that are standard in many commercial and emergency vehicles. This double compatibility makes the Joiner Medium Short a versatile connecting piece that brings together a wide range of devices with different attachment systems. The supplied mounting plate with a hole pattern of 30x38 mm further expands the connection options. The Quick-Adjust lever can be replaced by an M8 screw if required to ensure a permanently fixed position.
What makes the Zirkona Joiner System unique?
The Zirkona Joiner System is a modular mounting system available in various sizes and material variants. In addition to the Medium Short Joiner, the range includes the Small Joiner for particularly compact installations, the Medium Joiner with more leeway and the Large Joiner for heavy displays. All Joiners are made from high-quality aluminum or stainless steel and are designed for industrial continuous use. The patented ball-joint technology ensures an even clamping force across the entire range of motion, so the monitor is held securely in any position. The system is used in commercial vehicles, forklifts, construction machinery, ships and stationary industrial workstations. The combination of robust construction, compact design and universal compatibility makes the Zirkona Joiner a proven solution for professional mounting requirements.
