Bachmann BN PRO Metered – 16A Rack PDU with 24x C13 / 6x C19 & Display, 3.0m CEE 16A/5p (BM0015589)
Highlights
- 3-phase, per-phase measurement – precisely capture current, voltage, power and energy
- Hot-swappable controller & power supply – maintenance without interruption of operation
- 24x C13 & 6x C19 connectors – flexible power distribution for servers and IT equipment
- 2.4"-color display & dual Ethernet – local and remote monitoring
- PDU clustering up to 20 units – scalable integration into large rack environments
BN PRO Metered – 3-phase Rack PDU for Professional Data Centers
The BN PRO Metered BM0015589 is a powerful, three-phase Power Distribution Unit (PDU) for data centers, server rooms and professional IT infrastructures. With a 16 A / 400 V input (11 kW) and a 3.0 m long supply cable with a red CEE-16A-5p plug it offers maximum power capacity and secure power delivery. The integrated metering function records per phase all relevant energy and power parameters – from current and voltage to reactive, apparent and active power, energy, frequency and power factor. Measurements can be read directly on the 2.4” TFT color display or remotely via the integrated web server and web interface.
Thanks to a hot-swappable controller and power supply maintenance can be performed without interrupting operation. Two Ethernet interfaces (1 Gbit/s with PoE and 10/100 Mbit/s) enable easy integration into existing IT management systems. Up to ten external sensors can be connected via the RJ45 sensor port; a USB-C port (USB 2.0) is available for local configuration. The PDU can be operated in a group with up to 20 other PDUs. With 24 IEC C13 and 6 IEC C19 outlets, colored labeling frames (blue, red) and included mounting bracket (L-shape) the BM0015589 is ideal for professional continuous rack use.
Technical Details – Features of the BN PRO Metered BM0015589
- Per-phase measurement: current, voltage, reactive, apparent, active power, reactive, apparent, active energy, frequency and power factor
- Input: 16 A / 400 V / 11 kW, three-phase
- Supply cable: 3.0 m | 2.5 mm² with CEE-16A plug (red, 5-pin)

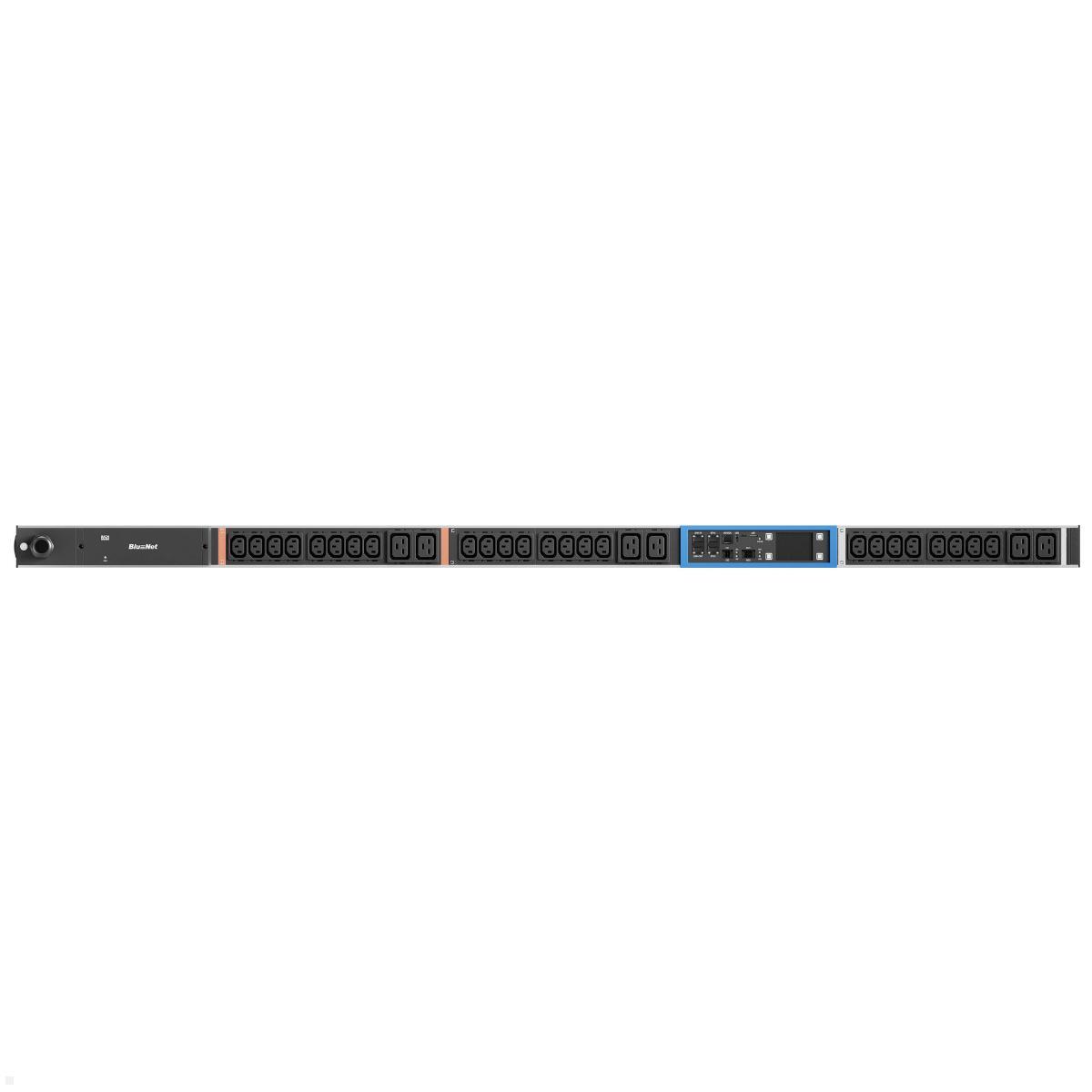

- 24x IEC C13 & 6x IEC C19 outlets
- 2x Ethernet ports: 1 Gbit/s (PoE) + 10/100 Mbit/s
- 1x RJ45 sensor port for up to 10 external sensors
- 1x USB-C port (USB 2.0)
- Hot-swappable controller and power supply
- Integrated web server with web interface
- SNMP support
- PDU grouping: up to 20 PDUs networkable
- 2.4” TFT color display
- Frames for color coding (blue, red)
- Includes mounting bracket (L-shape, simple)
- Vertical mounting, aluminum housing

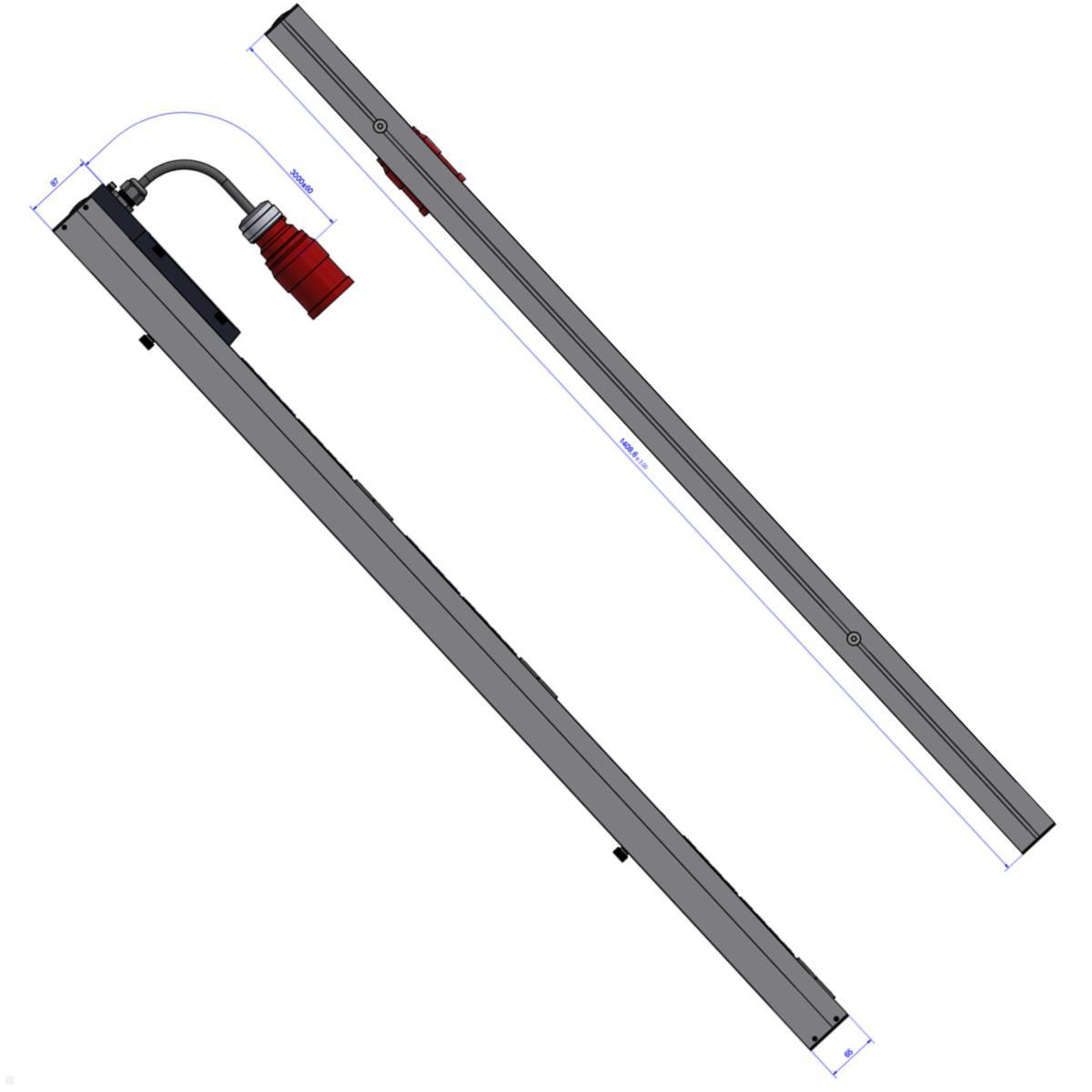

- Dimensions (L × W × D): 1408.6 × 56 × 65 mm
- RoHS compliant
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Warranty: | 3 years |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Einspeisung: | 16A |
| Größe PDU: | 19" |
| Messen: | pro Phase |
| Number of sockets: | 30 Outlets |
| Phasen: | 3-phasig |
| Steckerart: | Combosocket |
| Strommessung / Überwachung: | Ja, nur Display |
| color: | Black |
| Form: | eckig |
| USB-Charger: | USB C |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
BN PRO Metered BM0015589 – Three-phase Rack PDU with Energy Monitoring
The BN PRO Metered BM0015589 is a powerful three-phase rack PDU from Bachmann, specifically designed for professional data centers, server rooms and demanding IT infrastructures. With an input of 16 A / 400 V and an 11 kW power capacity as well as a 3.0 m long supply cable with red CEE-16A-5p plug, it provides safe and powerful power distribution for demanding rack environments. The integrated measurement function records, per phase, all relevant energy parameters: current, voltage, reactive, apparent and active power, frequency and power factor – for maximum transparency in energy management.
Intelligent control and seamless network integration

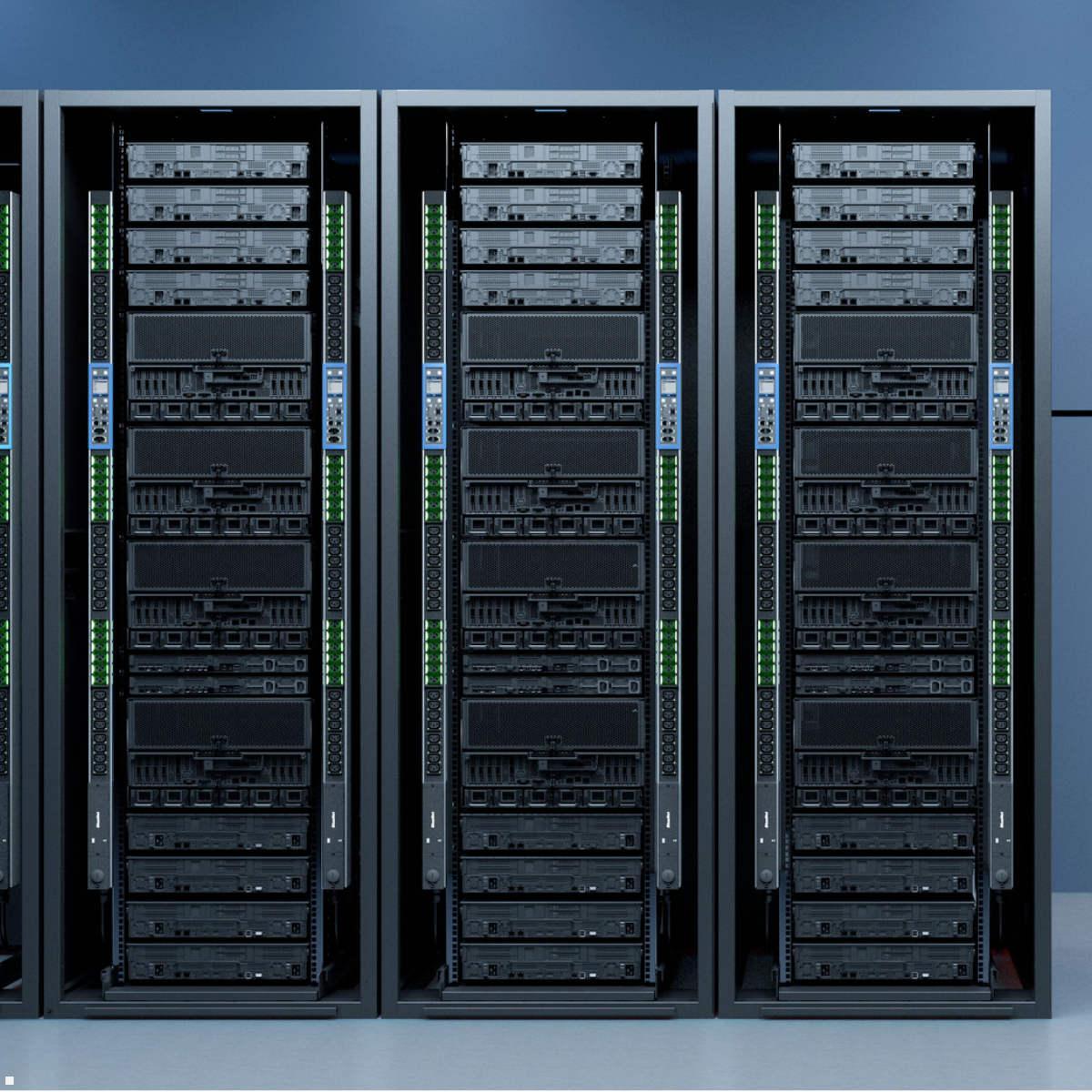

The BN PRO Metered PDU features a 2.4-inch TFT color display for local viewing of all measured values as well as an integrated web server with a web interface for remote monitoring. Two Ethernet interfaces (1 Gbit/s with PoE and 10/100 Mbit/s) enable easy integration into existing IT management systems. Up to ten external sensors for temperature, humidity or other parameters can be connected via the RJ45 sensor port. Thanks to SNMP support and PDU linking (up to 20 PDUs), the BM0015589 is ideal for centralized use in large data center environments.
Service friendliness and professional equipment
Particularly service-friendly: the controller and power supply of the BN PRO Metered are hot-swappable – they can be replaced during operation without shutdown. With 24 IEC-C13 and 6 IEC-C19 outlets, a USB-C port (USB 2.0) for local configurations as well as colored marking frames (blue and red) for identifying A and B feeds, the PDU is optimally equipped for professional continuous operation. The supplied mounting bracket (L-shape) facilitates vertical rack mounting. The BN PRO Metered BM0015589 from Bachmann is the ideal solution for operators who require precise energy monitoring, high availability and scalable network integration in a robust, professional rack PDU.
