Bachmann BN PRO Metered – 32A Rack PDU with 12xC13 / 12xC19 / 6xMCB, 3,0m CEE 32A/5p (BM0015600)
Highlights
- High C19 share – 12x C13 & 12x C19 for high-performance equipment in the rack
- Residual current measurement per phase (Type B) – maximum electrical safety
- 32A / 400V / 22 kW with 6x 16 A circuit breakers – highest power and protection
- 3-phase per-phase measurement – accurately capture current, voltage, power and energy
- Hot-swappable controller & power supply – maintenance without operational interruption
BN PRO Metered RCM – 32A Rack PDU with a high proportion of C19 outlets and residual current measurement

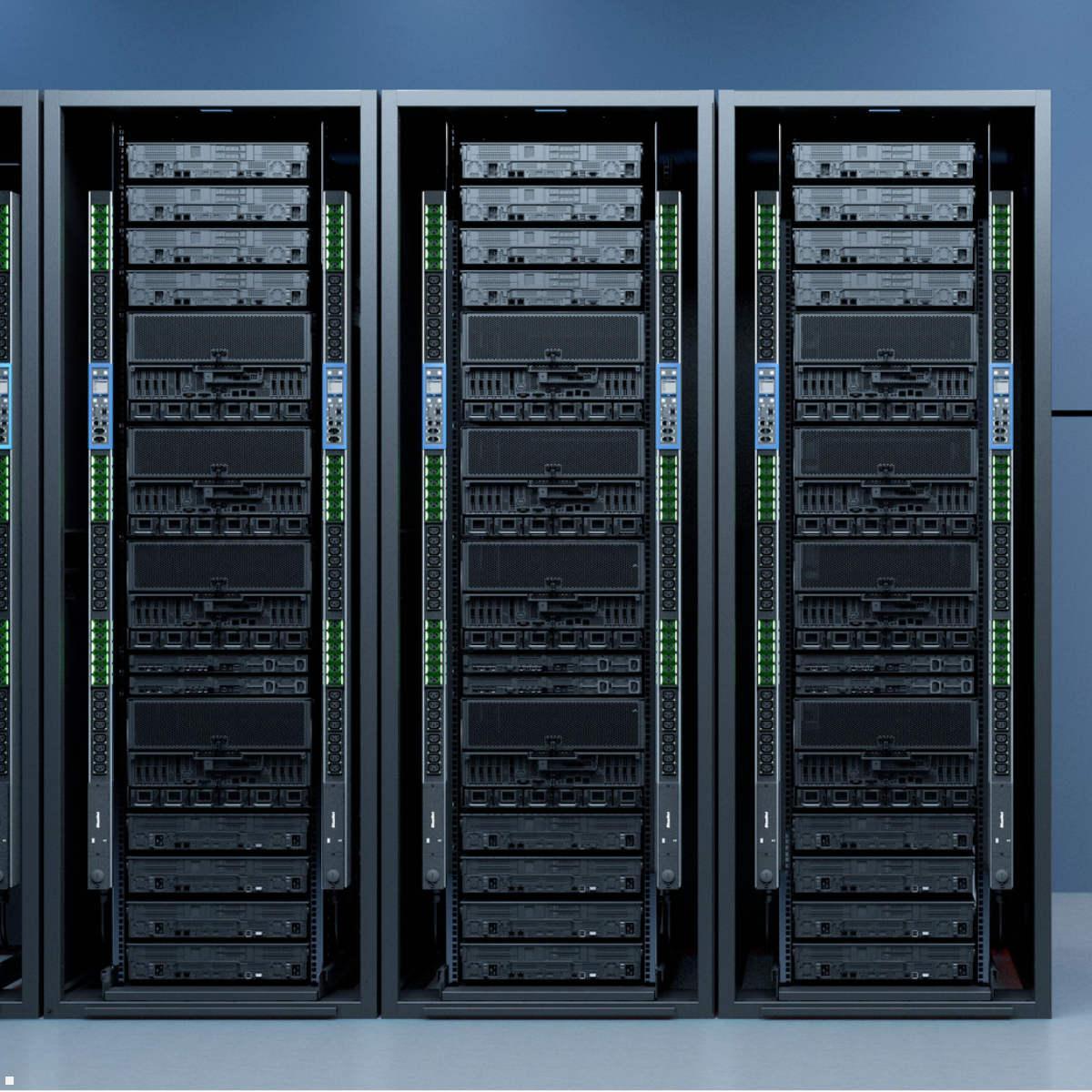

The BN PRO Metered RCM BM0015600 is a powerful, three-phase Power Distribution Unit (PDU) for data centers, server rooms and professional IT infrastructures with a high demand for C19 outlets. In addition to full energy measurement per phase, it also features an integrated residual current measurement per phase (Type B) for maximum electrical safety. With a 32 A / 400 V input (22 kW) and a 3.0 m supply cable with a red CEE-32A-5p plug, it delivers maximum power capacity. Six integrated hydraulic-magnetic circuit breakers (16 A) reliably protect against overload. All measurements can be read directly on the 2.4”-TFT color display or remotely via the integrated web server and web interface.
Thanks to the hot-swappable controller and power supply, maintenance can be performed without interrupting operation. Two Ethernet interfaces (1 Gbit/s with PoE and 10/100 Mbit/s) as well as SNMP support enable easy integration into existing IT management systems. A USB-C port (USB 2.0) is available for local configuration. With 12 IEC C13 and 12 IEC C19 sockets, colored marking frames (blue, red) and the included mounting bracket (L-shape), the BM0015600 is ideal for environments with many high-performance devices in the rack.
Technical Details – Features of the BN PRO Metered RCM BM0015600
- Per-phase measurement: current, voltage, reactive, apparent, active power; reactive, apparent, active energy; frequency and power factor
- Residual current measurement per phase, Type B
- Input: 32 A / 400 V / 22 kW, 3-phase
- Supply cable: 3.0 m | 4 mm² with CEE-32A plug (red, 5-pin)

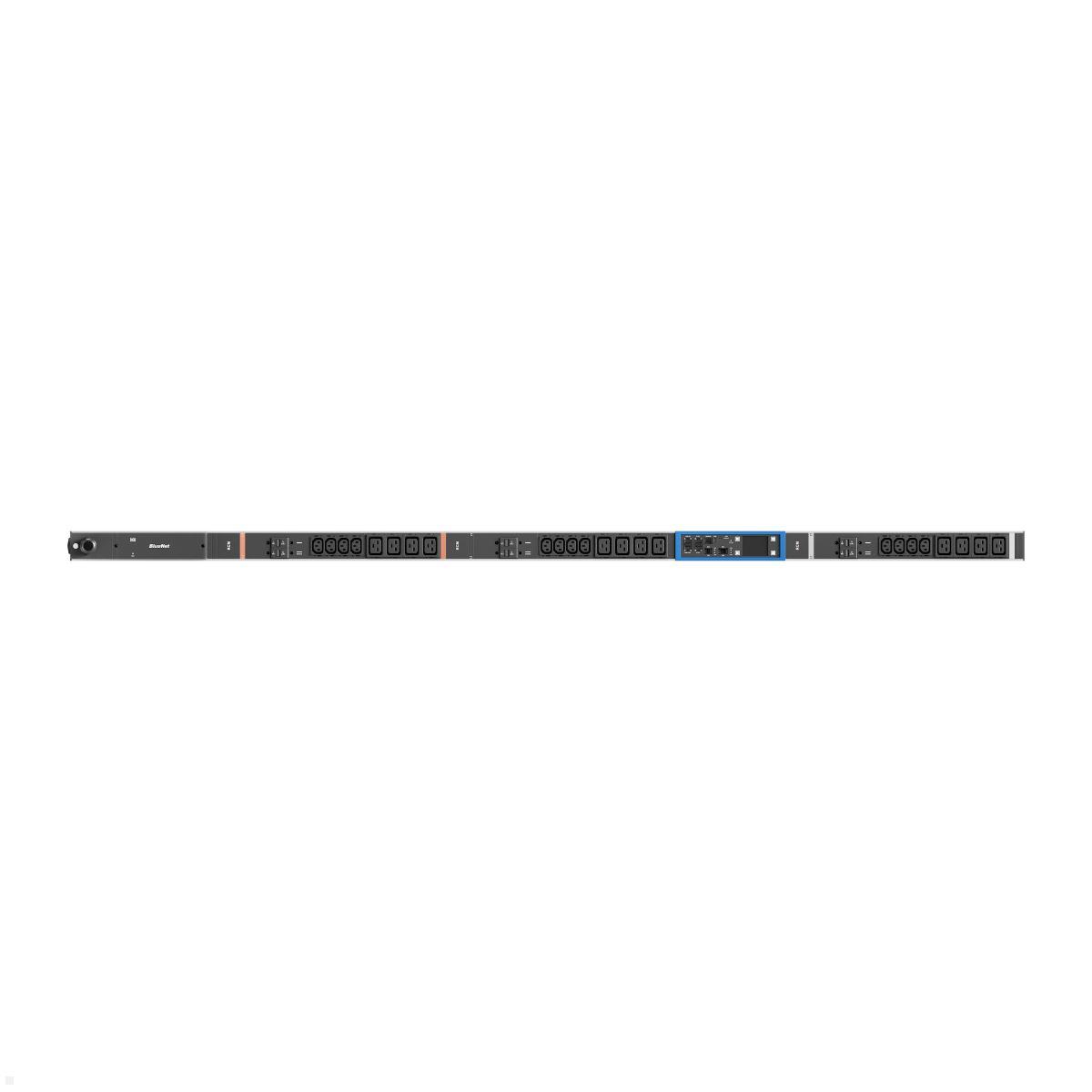

- 12x IEC C13 & 12x IEC C19 sockets
- 6x hydraulic-magnetic circuit breakers 16 A
- 2x Ethernet ports: 1 Gbit/s (PoE) + 10/100 Mbit/s
- 1x RJ45 sensor port for external sensors
- 1x USB-C port (USB 2.0)
- Hot-swappable controller and power supply
- Integrated web server with web interface
- SNMP support
- PDU chaining: up to 20 PDUs networkable
- 2.4” TFT color display
- Frames for color coding (blue, red)
- Includes mounting bracket (L-shape, single)
- Vertical mounting, aluminum housing

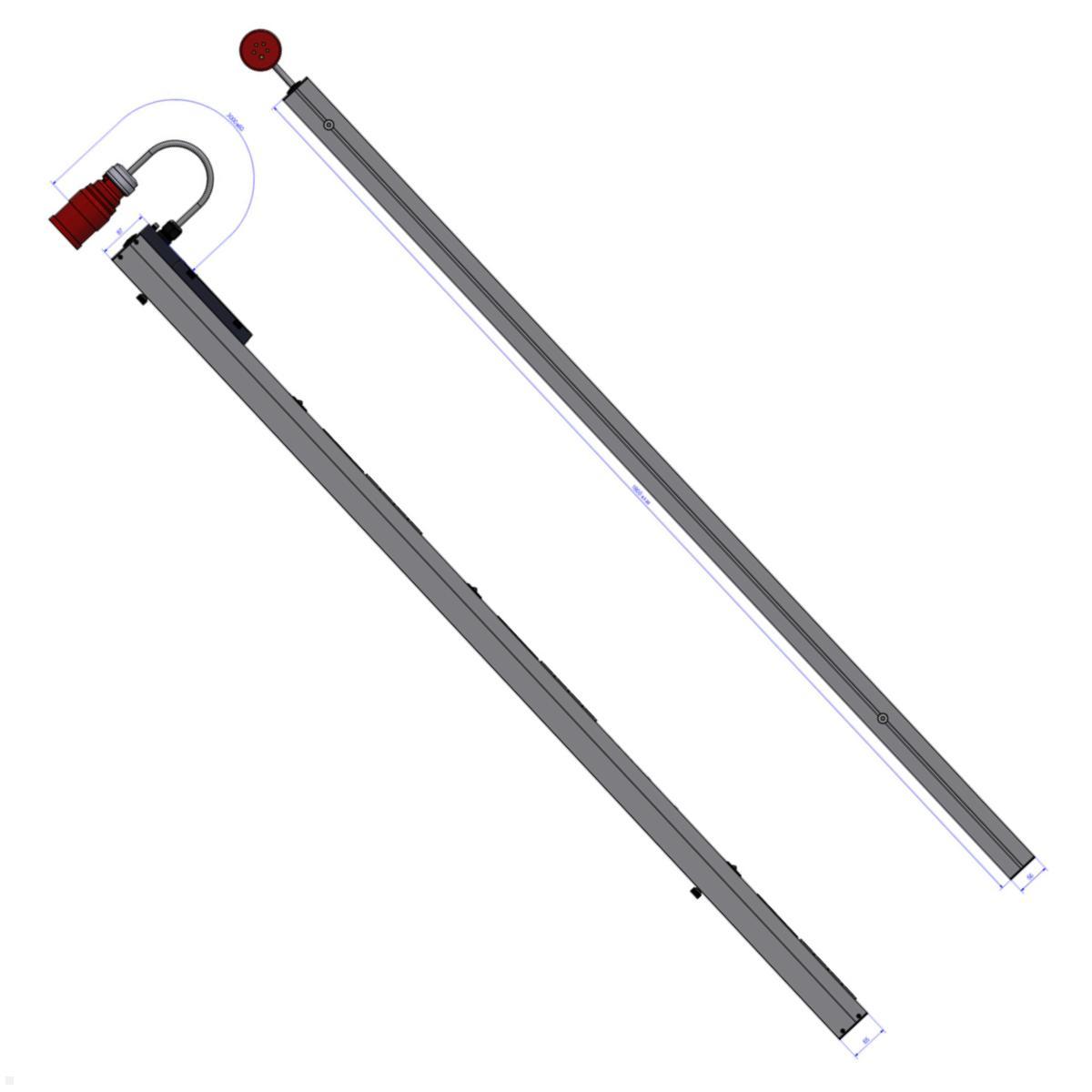

- Dimensions (L × W × D): 1.800 × 56 × 65 mm
- RoHS compliant
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Warranty: | 3 years |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Einspeisung: | 32A |
| Größe PDU: | 19" |
| Messen: | pro Phase |
| Number of sockets: | 24 Outlets |
| Phasen: | 3-phasig |
| RCM-Differenzstrommessung: | Ja |
| Steckerart: | Combosocket |
| Strommessung / Überwachung: | Ja, nur Display |
| color: | Black |
| Form: | eckig |
| USB-Charger: | USB C |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
BN PRO Metered RCM BM0015600 – 32A Rack PDU with high C19 share and residual current measurement
The BN PRO Metered RCM BM0015600 is a three-phase rack PDU from Bachmann for professional data centers with a high demand for C19 outlets. It combines precise energy monitoring per phase with integrated residual current measurement per phase (Type B) and six hydraulic-magnetic circuit breakers (16 A). With a 32 A / 400 V input (22 kW) and a 3.0 m supply cable with a red CEE-32A-5p plug, it offers maximum power capacity for demanding high-power rack environments.
Intelligent control and seamless network integration
The BN PRO Metered RCM features a 2.4-inch TFT color display as well as an integrated web server with a web interface for remote monitoring. Two Ethernet interfaces (1 Gbit/s with PoE and 10/100 Mbit/s) and SNMP support enable easy integration into existing IT management systems. Thanks to the PDU linking function (up to 20 PDUs), the BM0015600 is ideal for central deployment in large data center environments.
Service friendliness and optimized C19 configuration
The controller and power supply of the Bachmann BN PRO Metered – 32A Rack PDU with 12xC13 / 12xC19 / 6xMCB, 3.0m CEE 32A/5p (BM0015600) RCM are hot-swappable – replacement during operation without shutdown. With 12 IEC-C13 and 12 IEC-C19 outlets, the BM0015600 offers the highest C19 proportion of the BN PRO Metered series – ideal for environments with many servers and switches using C20 plugs. Colored marking frames (blue, red) and the supplied mounting bracket (L-shaped) round off the professional equipment. The BN PRO Metered RCM BM0015600 from Bachmann is the ideal solution for safety-critical high-performance data centers.
