Bachmann BN PRO Metered – 32A Rack PDU with 24xC13 / 4xC19 / 2xMCB, 3.0m CEE 32A/3p (BM0015593)
Highlights
- Residual current measurement per phase (Type B) – maximum electrical safety in the data center
- 32A power feed with 2x 16 A circuit breakers – reliable overload protection in the rack
- Per-phase measurement – accurately capture current, voltage, power and energy
- Hot-swappable controller & power supply – maintenance without operational interruption
- 24x C13 & 4x C19 outlets – flexible power distribution for servers and IT equipment
BN PRO Metered RCM – 32A Rack PDU with Residual Current Monitoring
The BN PRO Metered RCM BM0015593 is a single-phase Power Distribution Unit (PDU) for data centers, server rooms and professional IT infrastructures. In addition to full energy measurement per phase, it also features integrated residual current monitoring per phase (Type B) for maximum electrical safety. With a 32 A / 230 V input (7.2 kW) and a 3.0 m supply cable with blue CEE-32A-3p plug it delivers high power capacity. Two integrated hydraulic-magnetic circuit breakers (16 A) provide reliable overload protection. All measurements – current, voltage, reactive, apparent and active power, energy, frequency and power factor – can be read directly on the 2,4”-TFT color display or remotely via the integrated web server.
Thanks to a hot-swappable controller and power supply, maintenance can be performed without interrupting operation. Two Ethernet interfaces (1 Gbit/s with PoE and 10/100 Mbit/s) as well as SNMP support enable easy integration into existing IT management systems. Up to ten external sensors can be connected via the RJ45 sensor port; a USB-C port (USB 2.0) is available for local configuration. With 24 IEC C13 and 4 IEC C19 sockets, colored marking frames (blue, red) and the supplied mounting bracket (L-shape), the BM0015593 is ideal for professional continuous use in the rack.
Technical Details – Features of the BN PRO Metered RCM BM0015593
- Per-phase measurement: current, voltage, reactive, apparent and active power, reactive, apparent and active energy, frequency and power factor
- Residual current monitoring per phase, Type B
- Input: 32 A / 230 V / 7.2 kW, single-phase
- Supply cable: 3.0 m | 4 mm² with CEE-32A plug (blue, 3-pole)

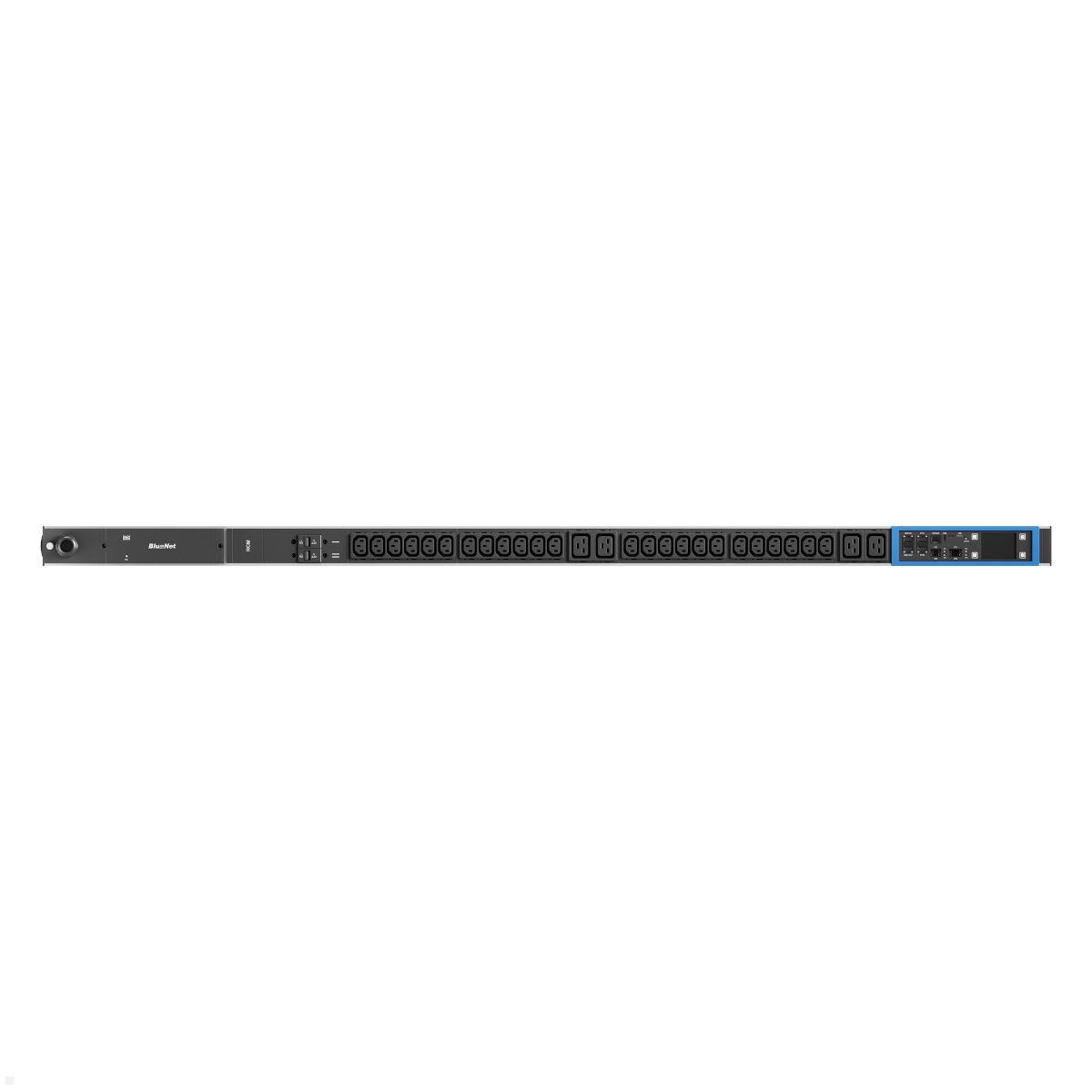

- 24x IEC C13 & 4x IEC C19 outlets
- 2x hydraulic-magnetic circuit breakers 16 A
- 2x Ethernet ports: 1 Gbit/s (PoE) + 10/100 Mbit/s
- 1x RJ45 sensor port for up to 10 external sensors
- 1x USB-C port (USB 2.0)
- Hot-swappable controller and power supply
- Integrated web server with web interface
- SNMP support
- PDU chaining: up to 20 PDUs networkable
- 2,4” TFT color display
- Frames for color coding (blue, red)
- Incl. mounting bracket (L-shape, single)
- Vertical mounting, aluminum housing

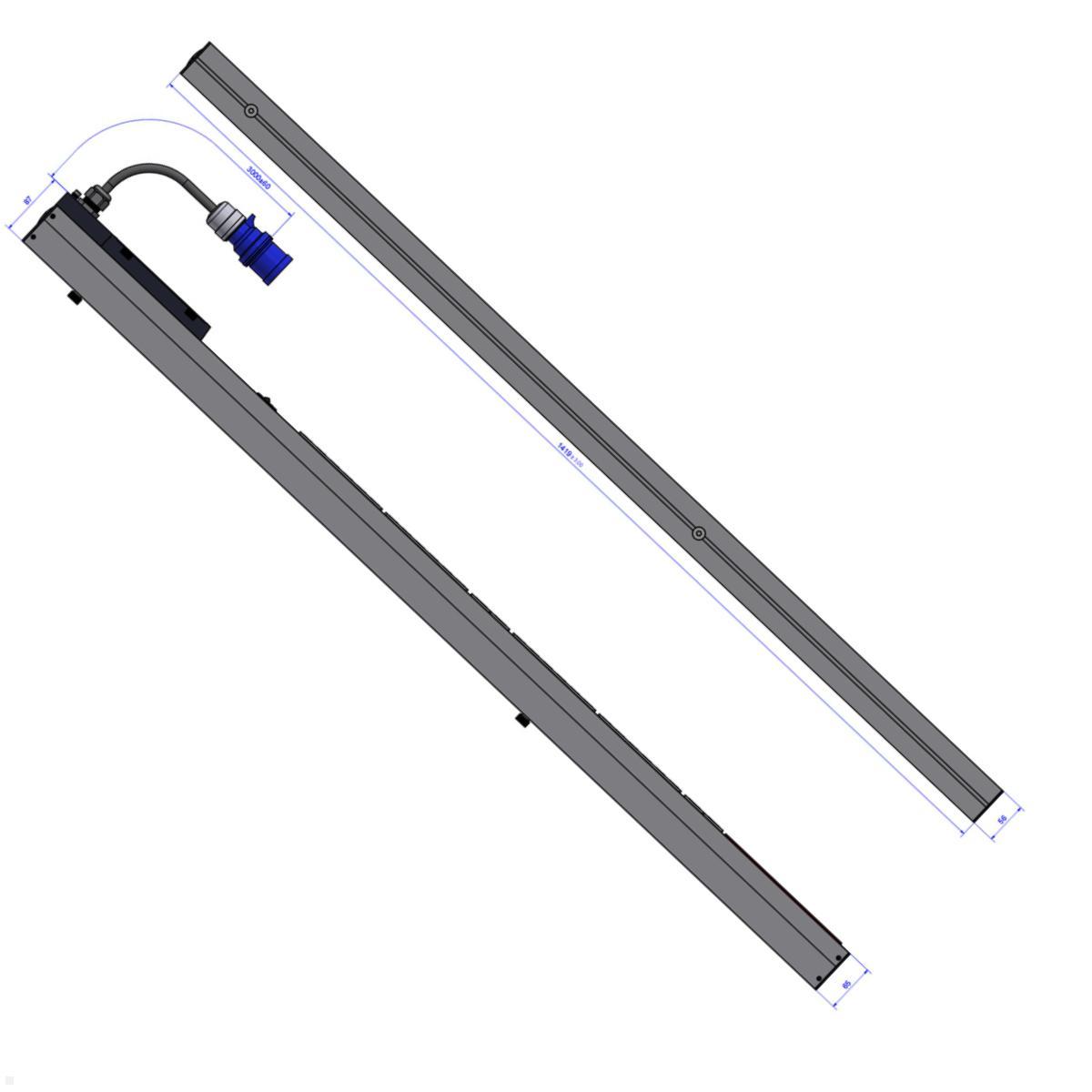

- Dimensions (L × W × D): 1.419 × 56 × 65 mm
- RoHS compliant
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Warranty: | 3 years |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Einspeisung: | 32A |
| Größe PDU: | 19" |
| Messen: | pro Phase |
| Number of sockets: | 28 Steckdosen |
| Phasen: | 1-phasig |
| RCM-Differenzstrommessung: | Ja |
| Steckerart: | Combosocket |
| Strommessung / Überwachung: | Ja, nur Display |
| color: | Black |
| Form: | eckig |
| USB-Charger: | USB C |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
BN PRO Metered RCM BM0015593 – 32A Rack PDU with residual current measurement and MCBs
The BN PRO Metered RCM BM0015593 is a single-phase rack PDU from Bachmann for professional data centers and server rooms. It combines precise per-phase energy monitoring with integrated residual current measurement per phase (Type B) – for maximum electrical safety. With a 32 A / 230 V input (7.2 kW), a 3.0 m power cable with a blue CEE-32A 3p plug and two hydraulic-magnetic MCBs (16 A), it provides reliable overload protection and secure power delivery in demanding rack environments.
Intelligent control and seamless network integration
The BN PRO Metered RCM features a 2.4-inch TFT color display and an integrated web server with a web interface for remote monitoring. Two Ethernet interfaces (1 Gbit/s with PoE and 10/100 Mbit/s) and SNMP support enable easy integration into existing IT management systems. Up to ten external sensors can be connected via the RJ45 sensor port. Thanks to the PDU cascading function (up to 20 PDUs), the BM0015593 is ideal for centralized use in large data center environments.
Service friendliness and professional equipment
The controller and power supply of the BN PRO Metered RCM are hot-swappable – replacement can be performed during operation without shutdown. With 24 IEC-C13 and 4 IEC-C19 outlets, a USB-C port (USB 2.0), colored marking frames (blue, red) and the supplied L-shaped mounting bracket, the PDU is optimally equipped for professional continuous operation. The BN PRO Metered RCM BM0015593 from Bachmann combines residual current protection, integrated overload protection and precise energy monitoring in a robust 32A rack PDU.
