Bachmann BN PRO Metered – 16A Rack PDU with 24xC13 / 6xC19 & Display, 3,0m CEE 16A/5p (BM0015591)
Highlights
- Residual current measurement per phase (Type B) – maximum electrical safety in the data center
- 3-phase per-phase measurement – precisely measure current, voltage, power and energy
- Hot-swappable controller & power supply – maintenance without downtime
- 24x C13 & 6x C19 outlets – flexible power distribution for servers and IT equipment
- PDU grouping of up to 20 units – scalable integration into large rack environments
BN PRO Metered RCM – 3-phase Rack PDU with Residual Current Measurement
The BN PRO Metered RCM BM0015591 is a three-phase Power Distribution Unit (PDU) for data centers, server rooms and professional IT infrastructures. In addition to full energy measurement per phase, it also features an integrated residual/differential current measurement per phase (Type B) – for maximum electrical safety and uninterrupted monitoring. With a 16 A / 400 V input (11 kW) and a 3.0 m supply cable with a red CEE-16A-5p plug, it delivers reliable power for demanding rack environments. All measurements – current, voltage, reactive, apparent and active power, energy, frequency and power factor – can be read directly on the 2.4”-TFT color display or remotely via the integrated web server.
Thanks to the hot-swappable controller and power supply, maintenance can be performed without interrupting operation. Two Ethernet interfaces (1 Gbit/s with PoE and 10/100 Mbit/s) as well as SNMP support enable easy integration into existing IT management systems. Up to ten external sensors can be connected via the RJ45 sensor port; a USB-C port (USB 2.0) is available for local configuration. With 24 IEC C13 and 6 IEC C19 sockets, colored marking frames (blue, red) and the included mounting bracket (L-shaped), the BM0015591 is optimally equipped for professional continuous use in the rack.
Technical Details – Features of the BN PRO Metered RCM BM0015591
- Measurement per phase: current, voltage, reactive, apparent and active power, reactive, apparent and active energy, frequency and power factor
- Residual/differential current measurement per phase, Type B
- Input: 16 A / 400 V / 11 kW, 3-phase
- Supply cable: 3.0 m | 2.5 mm² with CEE-16A plug (red, 5-pin)

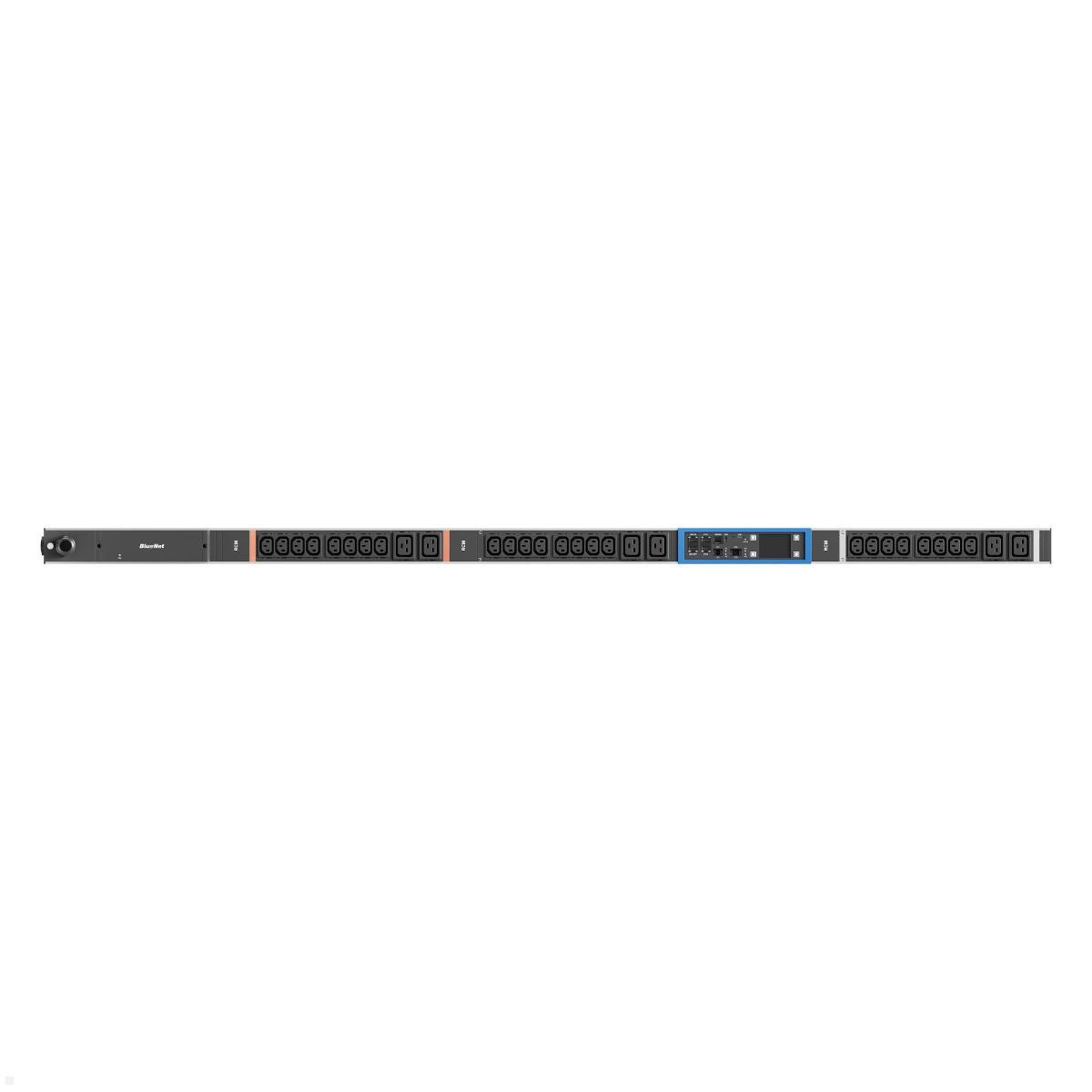

- 24x IEC C13 & 6x IEC C19 sockets
- 2x Ethernet ports: 1 Gbit/s (PoE) + 10/100 Mbit/s
- 1x RJ45 sensor port for up to 10 external sensors
- 1x USB-C port (USB 2.0)
- Hot-swappable controller and power supply
- Integrated web server with web interface
- SNMP support
- PDU chaining: up to 20 PDUs can be networked
- 2.4” TFT color display
- Frames for color coding (blue, red)
- Incl. mounting bracket (L-shaped, single)
- Vertical mounting, aluminum housing

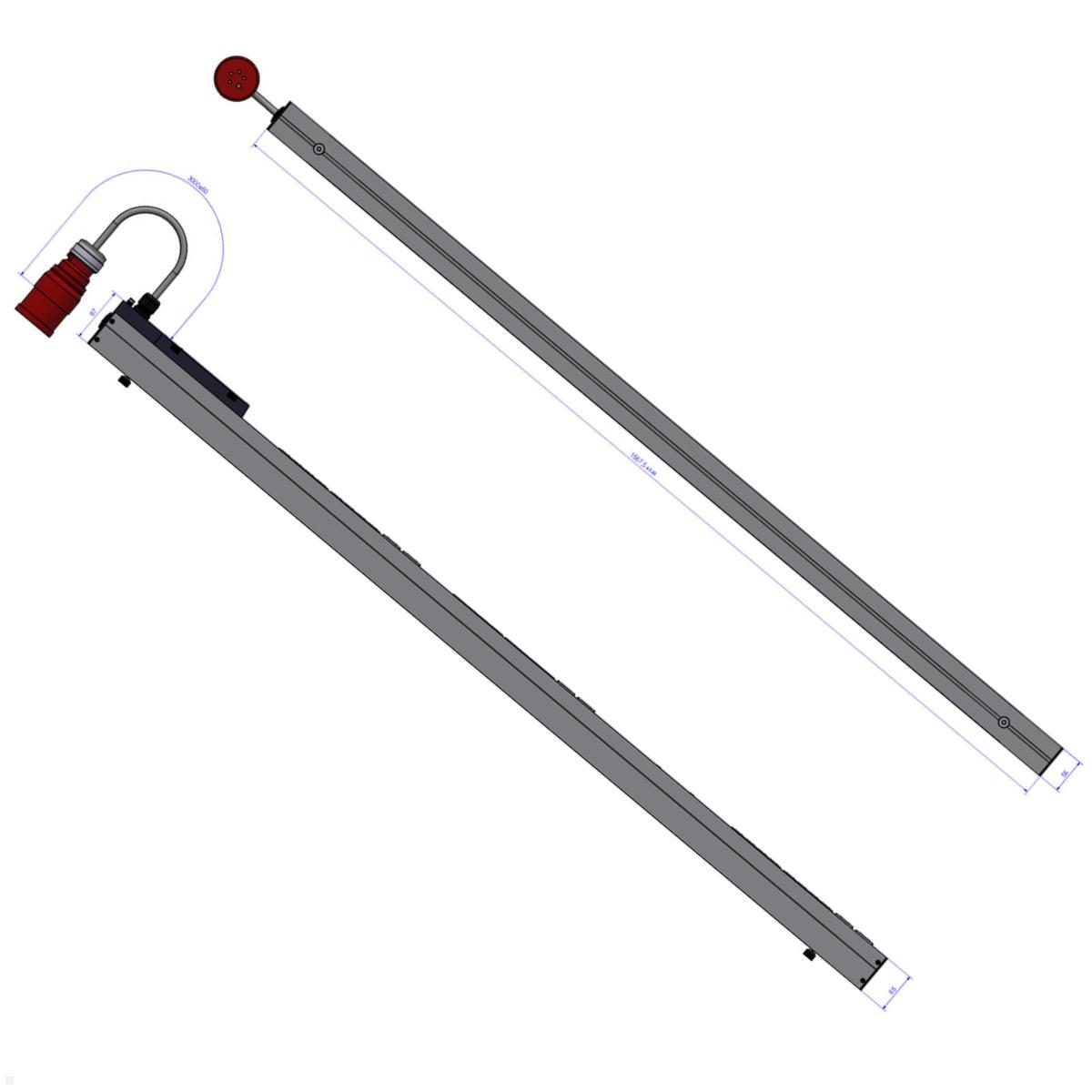

- Dimensions (L × W × D): 1,567.5 × 56 × 65 mm
- RoHS compliant
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Warranty: | 3 years |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Einspeisung: | 16A |
| Größe PDU: | 19" |
| Messen: | pro Phase |
| Number of sockets: | 30 Outlets |
| Phasen: | 3-phasig |
| RCM-Differenzstrommessung: | Ja |
| Steckerart: | Combosocket |
| Strommessung / Überwachung: | Ja, nur Display |
| color: | Black |
| Form: | eckig |
| USB-Charger: | USB C |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
BN PRO Metered RCM BM0015591 – Three-phase Rack PDU with residual current measurement
The BN PRO Metered RCM BM0015591 is a three-phase rack PDU from Bachmann for professional data centers and server rooms. It combines precise energy monitoring per phase with integrated type B residual current measurement per phase – for maximum electrical safety and continuous monitoring of the IT infrastructure. With a 16 A / 400 V input (11 kW) and a 3.0 m supply cable with red CEE-16A-5p plug, it is designed for demanding rack environments.
Intelligent control and seamless network integration
The BN PRO Metered RCM features a 2.4-inch TFT color display as well as an integrated web server with a web interface for remote monitoring. Two Ethernet interfaces (1 Gbit/s with PoE and 10/100 Mbit/s) and SNMP support enable easy integration into existing IT management systems. Up to ten external sensors can be connected via the RJ45 sensor port. Thanks to the PDU cascade function (up to 20 PDUs), the BM0015591 is ideal for centralized use in large data center environments.
Serviceability and professional equipment
The controller and power supply of the BN PRO Metered RCM are hot-swappable – replacement during operation without shutdown. With 24 IEC-C13 and 6 IEC-C19 outlets, USB-C port (USB 2.0), colored marking frames (blue, red) and supplied mounting bracket (L-shape), the PDU is optimally equipped for professional continuous operation. The BN PRO Metered RCM BM0015591 from Bachmann offers the ideal combination of energy monitoring, residual current protection and high availability for safety-critical IT infrastructures.
