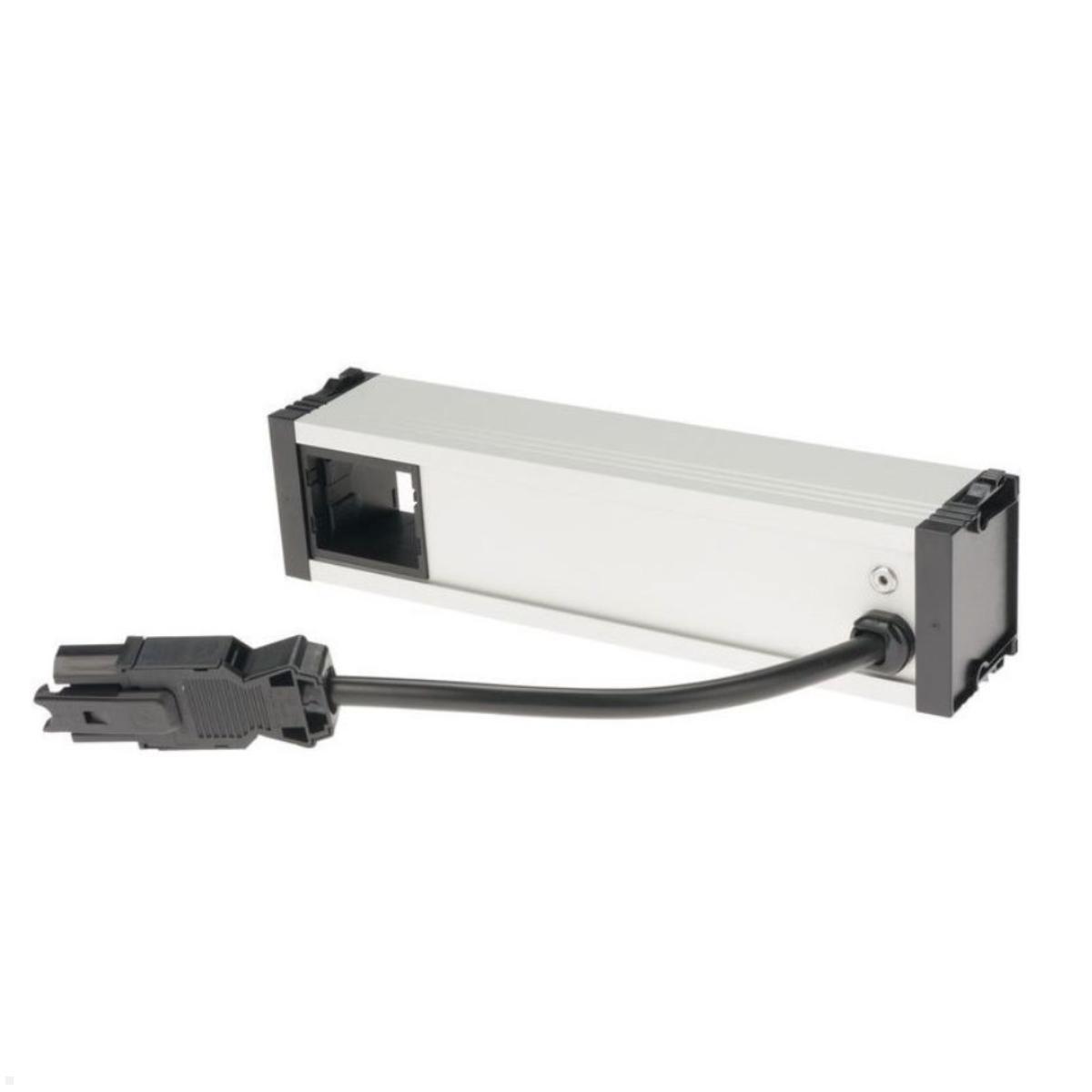

Bachmann CONI module carrier 4-way 1x socket, 3x CM (912.026)
Rahmen
Keystone
Your set selection:
The Bachmann CONI 4-way socket unit with 1 socket and 3 custom modules (912.026) is designed for the CONI mounting frame. The perfect desktop connection panel!
Bachmann CONI 4-way power strip, 1x socket, 3x custom modules 912.026

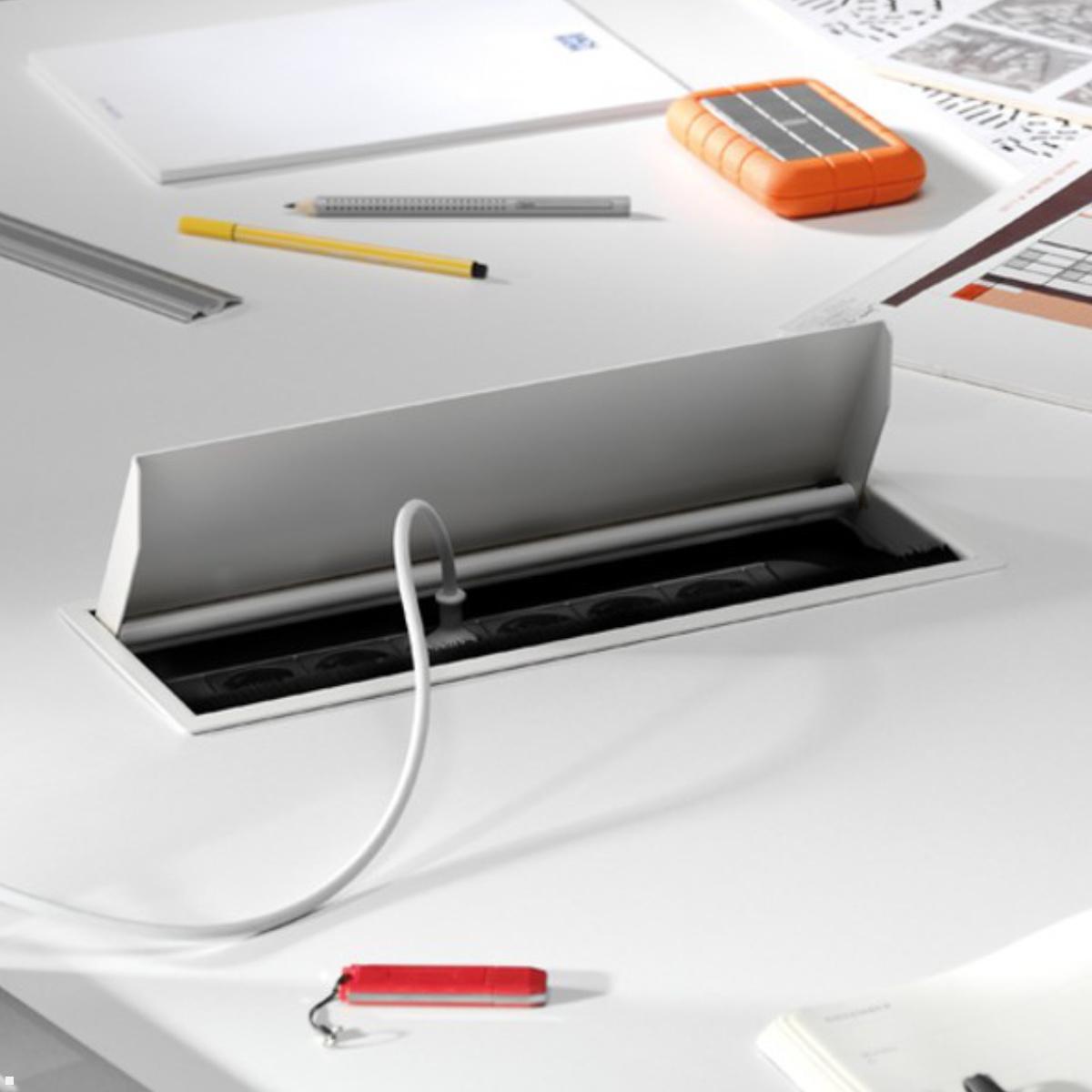

The Bachmann CONI 912.026 flush-mounted power strip offers convenient access to power, media, and data connections directly on the work surface. Thanks to the integrated brush insert, the cover can be closed even with cables plugged in, without pinching them. CONI thus creates ideal conditions for flexible workstations in conference rooms, meeting areas, and training spaces, as power and data connections are always quickly accessible. When closed, the Bachmann CONI is discreetly and flush integrated into the table surface. As soon as connections are needed, the lid is opened, the desired devices are connected, and the lid can then be closed again. This keeps the table visually uncluttered and functionally usable. Equipped with a protective contact socket and three free custom modules, it allows for individual configuration for data, media, or charging connections. The configuration can be adjusted at any time depending on requirements. The socket unit can also be replaced without tools – an advantage that simplifies both installation and future modifications. Thanks to its minimal installation depth, the CONI table connection panel offers maximum legroom under the table, even when mounted close to the edge. Furthermore, various surface finishes allow for harmonious integration into different room and furniture concepts.
Key features socket unit 912.026
- Length: 4-way 1x Schuko socket black
- 1x CEE 7/3 (Type F) 2-pole
- With increased Touch protection
- 3x custom module empty
- Supply cable: 0.20m H05VV-F 3G1.50mm² Black with Wieland GST18 connectors
- Power output: 16A 250V~, IP20
Advantages of the Bachmann CONI table connection panel
- Integrated into the table surface
- Very shallow installation depth
- Robust frame construction
- Brush insert allows closing despite connected cables
- Free choice of configuration
- Socket unit replaceable without tools
- Even retrofittable Retrofittable
Note DGUV V3: According to DGUV V3, permanently screwed/stationary power strips must be inspected every 4 years by a qualified electrician in accordance with DIN VDE 0100-600. Portable power strips must be inspected annually. Further information can be found in the download area under "Manufacturer's Declarations"
Is your table-top power strip suitable?
We would be happy to check whether your Bachmann 912.026 product is suitable for your application. Simply provide us with your model (manufacturer + model number) in the comment field at the end of the ordering process. We will then check for you whether the Bachmann power strip is fully compatible, and if not, our team will contact you.
[pdf]
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Flexible Desktop Connection Panel for Power and Data
The Bachmann CONI 912.028 is a high-quality desktop connection panel specifically designed for modern work environments, conference rooms, and training and meeting areas. With its intelligent combination of three grounded outlets and a free custom module, it offers users flexible power and media connections directly on the work surface. While traditional desktop power outlets often appear impractical or take up additional space, the CONI integrates almost flush with the surface, ensuring a tidy, convenient, and efficient cable management environment.
A particular highlight is the integrated brush insert: It allows the cover to be easily closed even with cables plugged in, without disrupting the table's appearance or pinching cables. This keeps the workspace visually uncluttered, which is especially important in prestigious meeting or conference rooms. Whether for presentations, laptops, displays, or mobile devices – the CONI provides a reliable power supply at all times.
Individual Expandability with Custom Modules
The 4-way power strip features an open Custom Module that can be equipped with various connection types as needed. Numerous options are available for the Bachmann Custom Module, including data connections such as RJ45 (LAN), media connections such as HDMI or DisplayPort, as well as USB-A/USB-C charging ports or audio modules. This makes the CONI 912.028 a modular system that can be adapted to new requirements at any time – ideal for dynamic workplace concepts and digital collaboration environments.
Furthermore, the entire power strip unit can be replaced without tools. This saves time and money and ensures long-term future-proofing. Whether replacement is required due to changing technology standards or individual user requirements, the desktop power strip remains sustainable and flexible.
Practical Installation and Convenient Everyday Use
With its minimal installation depth, the Bachmann CONI not only ensures ergonomic conditions but also maximum legroom under the desktop. Even when mounted close to the edge, the system does not interfere with workplace use. The robust frame construction ensures long-lasting stability, while the seamless surface integration creates a high-quality and harmonious appearance.
Operation is intuitive and user-friendly: When power or media access is needed, the cover can be easily opened and closed again immediately after the devices are plugged in. This keeps the table surface virtually flat and tidy during use. This is particularly advantageous in conference rooms where a clean and professional look is essential.
The ideal solution for modern work environments
As a modern desktop power outlet, the Bachmann CONI 912.028 combines functionality, design, and future-proofing. The system supports efficient cable management, ensures quick access to power and media, and allows for individual configuration. This makes it an ideal solution for businesses, educational institutions, and professional meeting areas where flexibility and technical infrastructure play a key role.
