Bachmann CONI module carrier 4-way 3x socket, 1x CM (912.028)
Rahmen
Keystone
Your set selection:
The Bachmann CONI 4-way socket unit with 3 sockets and 1 custom module (912.028) is designed for the CONI mounting frame. The perfect desktop connection panel!

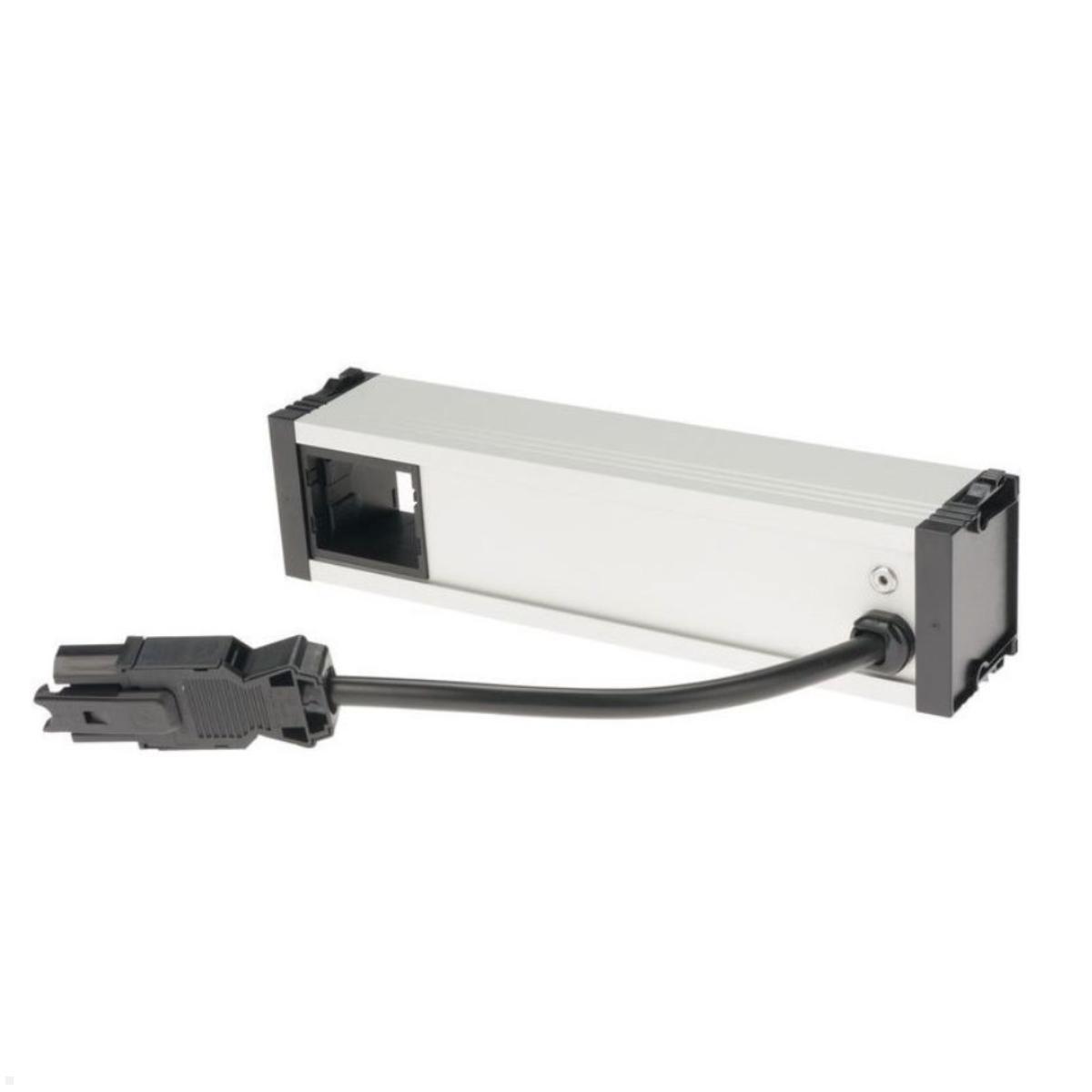

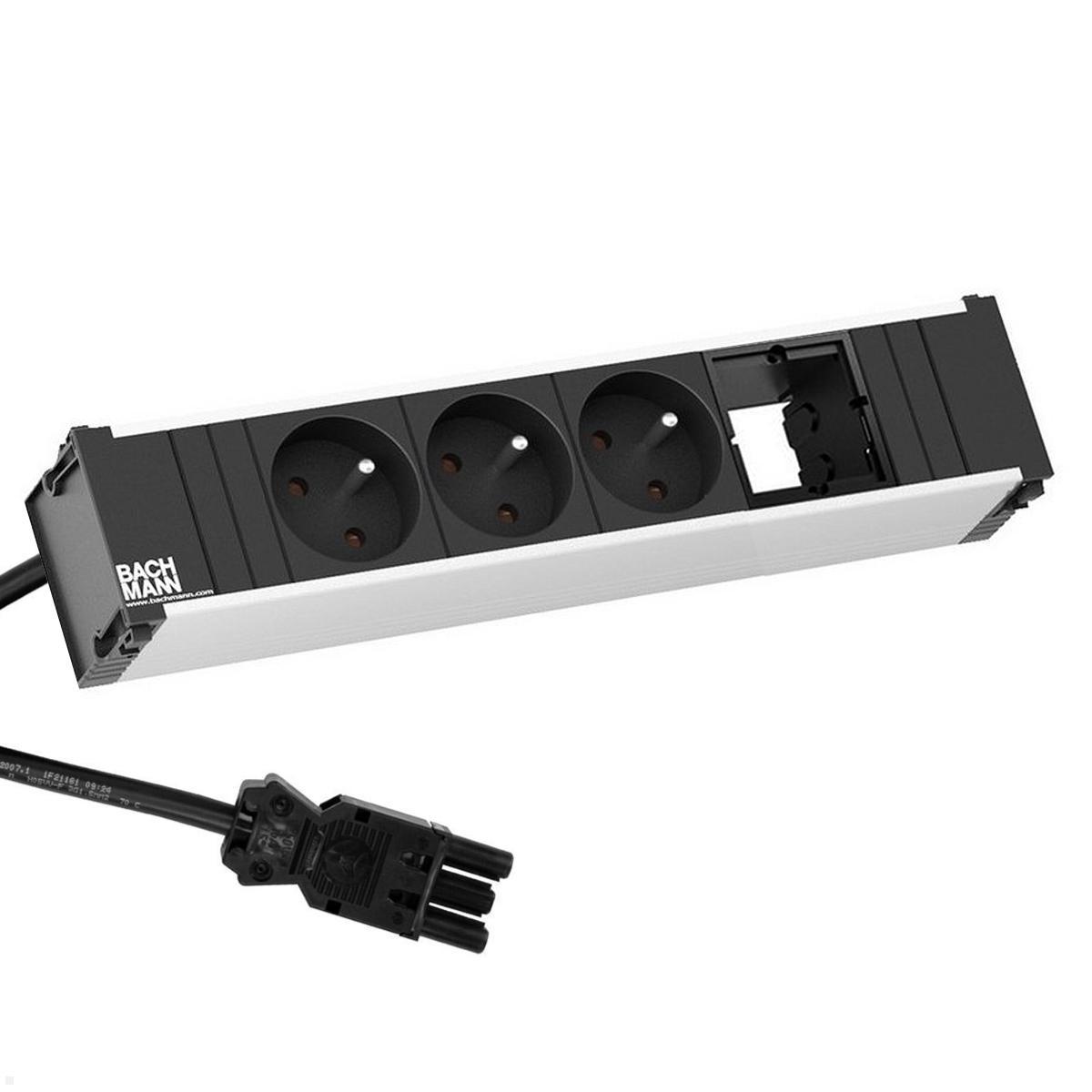

Bachmann CONI 4-way power strip, 3x sockets, 1x custom module 912.028

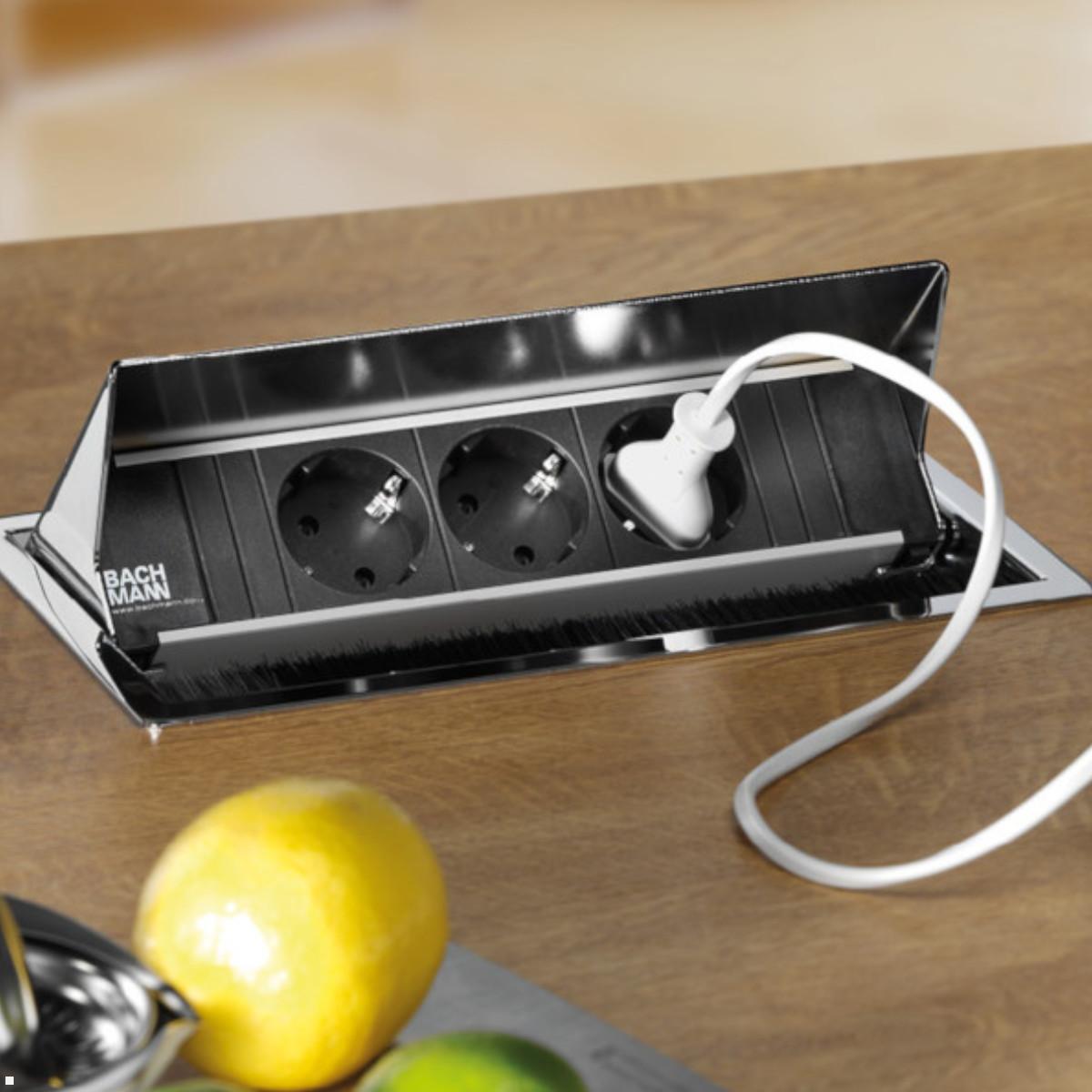

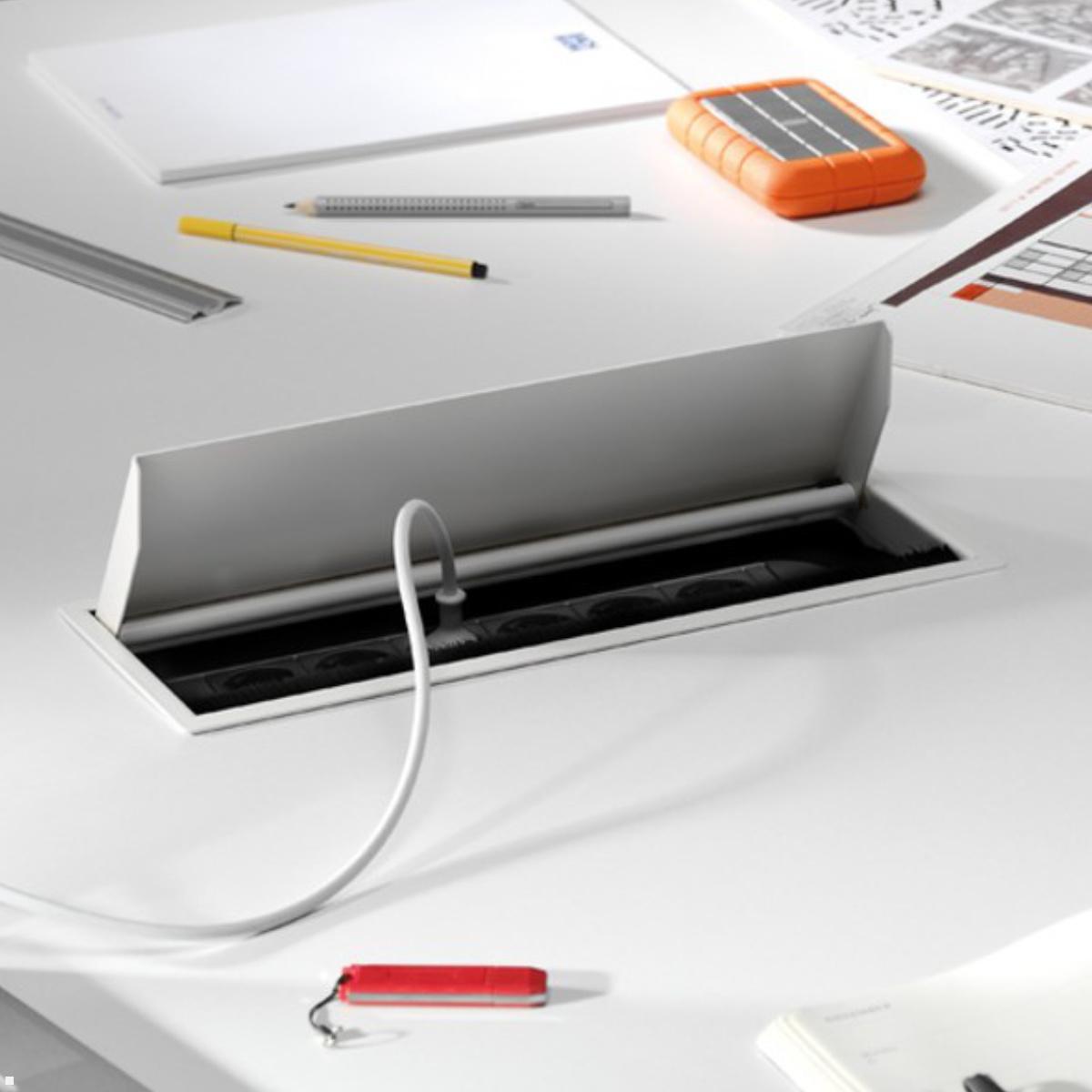

The flush-mounted power strip Bachmann CONI 912.028 provides convenient access to power, media, and data connections directly on the work surface. Thanks to the integrated brush insert, the cover can be closed even with devices plugged in, without pinching cables. This makes CONI ideal for workstations in conference and meeting rooms or training environments where flexibility and a tidy work surface are required. The shallow installation depth also ensures maximum legroom – even with easy-to-install, edge-to-edge placement. When closed, the CONI sits almost flush with the table surface. To connect devices, simply open the cover, plug in the connector, and close it again. The brush strips ensure that cables are neatly routed and the table's appearance is maintained. The table connection panel can be individually configured – the free CM module can be equipped with suitable data, media, or charging ports as needed. The entire socket unit can be replaced at any time without tools, ensuring CONI remains flexible in the long term.
Key features socket unit 912.028
- Length: 4-way 3x Schuko socket,
- black 3x CEE 7/3 (Type F) 2-pole
- With increased contact protection
- 1x Custom module (empty)
- Cable: 0.20m H05VV-F 3G1.50mm² Black with Wieland GST18 connectors
- Power output: 16A 250V~, IP20
Advantages of the Bachmann CONI table connection panel
- Integrated into the table surface
- Very shallow installation depth
- Robust frame construction
- Brush insert allows closing despite connected cables
- Free choice of configuration
- Socket unit replaceable without tools
- Even retrofittable Retrofittable
Note DGUV V3: According to DGUV V3, permanently screwed/stationary power strips must be inspected every 4 years by a qualified electrician in accordance with DIN VDE 0100-600. Portable power strips must be inspected annually. Further information can be found in the download area under "Manufacturer's Declarations"
Is your table-top power strip suitable?
We would be happy to check whether your Bachmann 912.028 product is suitable for your application. Simply provide us with your model (manufacturer + model number) in the comment field at the end of the ordering process. We will then check for you whether the Bachmann power strip is fully compatible, and if not, our team will contact you.
[pdf]
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Flexible Desktop Connection Panel for Modern Work Environments
The Bachmann CONI 912.026 is a versatile desktop connection panel specifically designed for modern meeting rooms, conference areas, training rooms, and workstations. The innovative combination of a grounded power outlet and three freely configurable custom modules offers maximum flexibility for power and media connections directly on the desktop. Unlike conventional desktop power outlets that only provide power connections, the CONI allows for individual customization to digital workflows – from data connections such as RJ45 (LAN) to HDMI, USB, USB-C, or DisplayPort modules.
This desktop power system ensures a tidy workspace, facilitates presentations, and supports the use of digital devices such as laptops, tablets, monitors, and video conferencing equipment. The Bachmann CONI 912.026 is therefore a future-proof solution for companies, educational institutions, and co-working spaces where a flexible and structured infrastructure is crucial.
Individual Configuration Thanks to Custom Modules
The 912.026 model features a 4-way layout with a black Schuko socket and three free slots for custom modules. These can be retrofitted with suitable media and data connections as needed – both during initial installation and at a later date. Typical modules include LAN, HDMI, USB charging ports, USB-C charging, and audio ports. Thanks to its modular design, the desktop power outlet remains usable in the long term, as new technologies can be easily integrated.
The entire power outlet unit can be replaced without tools. This allows for quick and cost-effective modifications – a significant advantage for companies that regularly modernize or update technical standards. The CONI thus supports sustainable infrastructure concepts and reduces both installation effort and ongoing costs.
Convenient Cable Management and Discreet Integration
A special feature of the Bachmann CONI desktop power outlet is the integrated brush insert. This allows the cover to be closed even with cables plugged in, without damaging or pinching them. At the same time, the table surface remains visually uncluttered. In conference rooms, this contributes to a professional appearance, which is advantageous during presentations, workshops, or client meetings.
When closed, the CONI 912.026 sits flush with the table surface. Its shallow installation depth provides maximum legroom under the table – even when mounted close to the edge. Robust materials and various surface finishes allow for harmonious integration into a wide range of furniture concepts and room designs.
Versatile applications and future-proof design
With its modular design and high functionality, the Bachmann CONI offers a solution for modern collaboration, hybrid work models, digital meetings, and agile workplace concepts. The table socket serves as a central element for power supply at the workstation as well as a media and data interface. Especially in conference and meeting rooms, it replaces complex floor boxes or external power strips and ensures efficient cable management on the table.
