Bachmann CONI module carrier 4-way 4x socket (333.2235)
The Bachmann CONI 4-way socket unit with 4 sockets (333.2235) is for the CONI mounting frame. The perfect table connection panel!
Bachmann CONI 4-way power strip 4x socket 333.2235

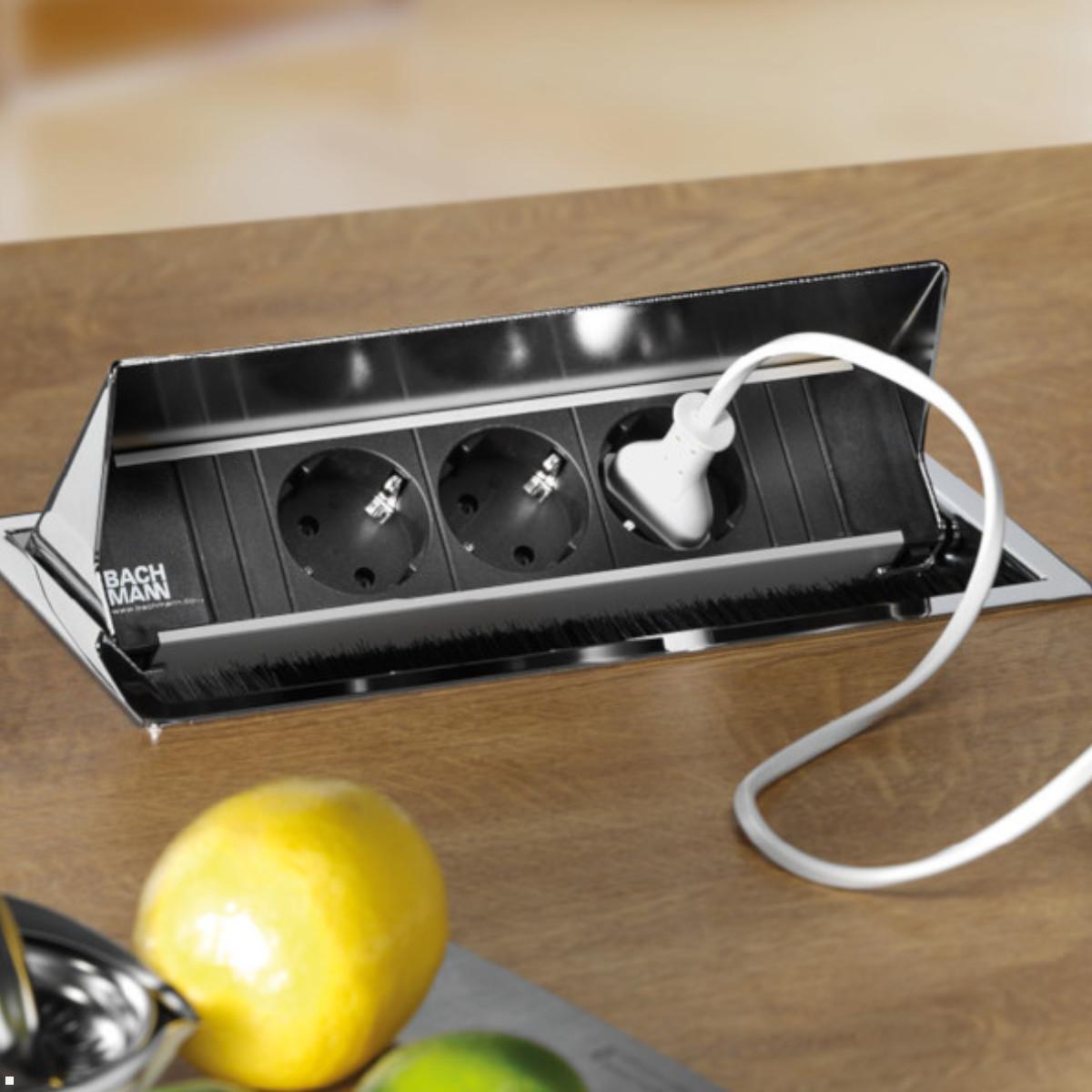

The Bachmann CONI 333.2235 recessed power strip allows quick, convenient, and direct access to power on the table surface. Thanks to the integrated brush insert, the cover can be closed even with cables plugged in, without damaging or pinching any wires. This makes the CONI ideal for flexible workstations in conference and meeting rooms, meeting zones, or training areas where power connections must be readily available at all times.
When closed, the table connection panel fits almost flush with the surface, appearing unobtrusive and high-quality. When power is needed, simply open the cover, connect the desired devices, and then continue using the table as usual. An advantage for visually tidy and functional workspaces. The 4-way version with four grounded sockets provides a reliable power supply for laptops, presentation equipment, displays, or other devices.

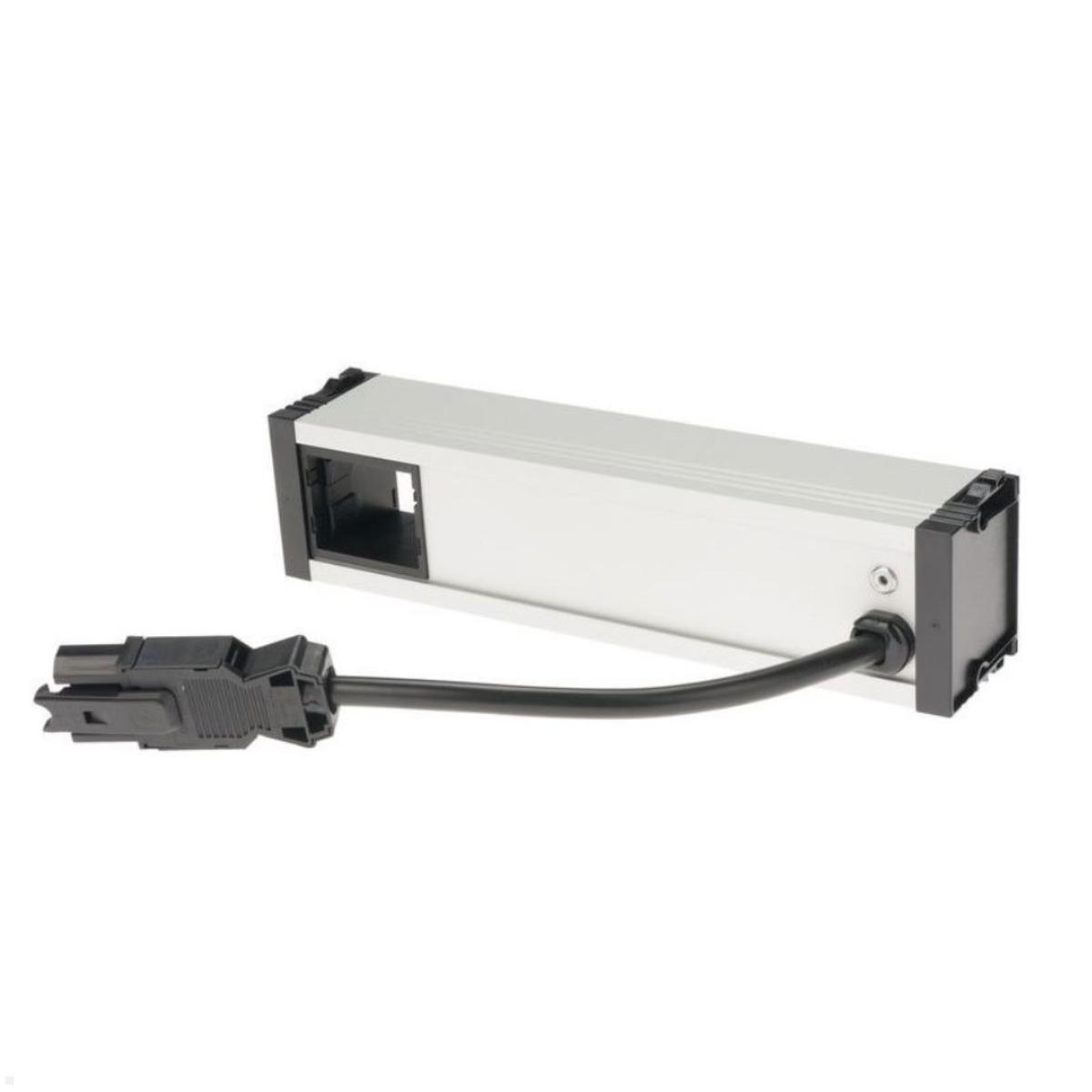

Thanks to tool-free replacement, the socket unit can be quickly adapted or replaced as needed, which significantly simplifies installation and maintenance. The CONI's shallow installation depth ensures maximum legroom under the table, even when mounted close to the edge. At the same time, different surface finishes allow for harmonious integration into a wide variety of furniture and room concepts, making the CONI convincing not only technically but also aesthetically.

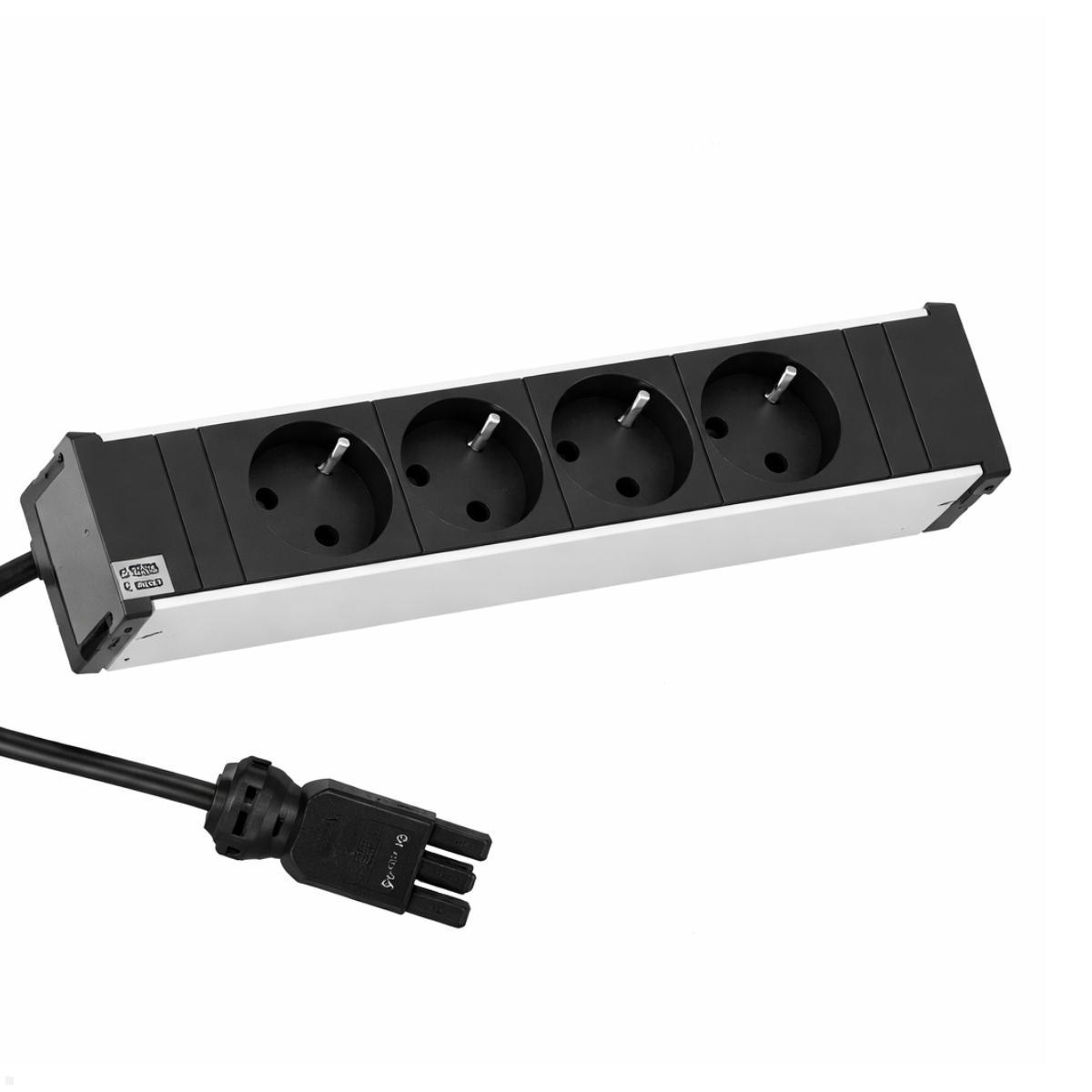

Key features Socket Unit 333.2235
- Version: 4-way
- 4x Schuko socket (CEE 7/3, Type F), black
- With increased contact protection
- Cable: 0.20m H05VV-F 3G1.50mm² Black with Wieland GST18 connectors
- Power output: 16A 250V~
- Protection class: IP20
Advantages of the Bachmann CONI table connection panel
- Integrated into the table surface
- Very shallow installation depth
- Robust frame construction
- Brush insert allows closing even with cables plugged in
- Socket unit replaceable without tools
- Even retrofittable retrofittable
Note DGUV V3: According to DGUV V3, permanently screwed/stationary power strips must be inspected every 4 years by a qualified electrician in accordance with DIN VDE 0100-600. Portable power strips must be inspected annually. Further information can be found in the download area under "Manufacturer's Declarations"
Is your table connection panel compatible?
We would be happy to check whether the Bachmann CONI model 333.2235 is suitable for your application. Simply provide us with the manufacturer and model number of your table connection panel in the comment field at the end of the ordering process. Our team will then check the compatibility and contact you if we have any questions.
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 4 |
| RCM-Differenzstrommessung: | Nein |
| Schalten: | Nein |
| color: | Silver/Anthracite |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Professional power supply for conference rooms and meeting areas
The Bachmann CONI power strip 333.2235 is a high-quality 4-way desktop power strip specifically designed for modern workplaces, conference rooms, and meeting areas. It allows easy and direct access to power directly on the table surface – ideal for presentations, hybrid meetings, training sessions, or flexible project workstations. With four full-size safety sockets (CEE 7/3, Type F), this desktop power strip offers ample connection options for laptops, monitors, projectors, chargers, or other electronic work devices. The integrated brush insert allows the cover of the socket to be closed even with cables plugged in, without pinching any wires. This not only ensures effective cable management but also contributes to a tidy and professional appearance – especially in conference and meeting rooms regularly used by clients, business partners, or larger teams. The Bachmann CONI 333.2235 combines functionality, design, and user-friendliness at a high level.
Elegant integration into the table surface and maximum user-friendliness
When closed, the Bachmann CONI power strip sits flush with the table surface and remains almost invisible. This allows the table connection panel to blend harmoniously into modern offices, conference tables, and training rooms. When power is needed, the cover is opened, the devices are connected, and the cover can then be closed again. Ideal for continuing to use the table surface efficiently and without bothersome cables. A major advantage is the shallow installation depth of the CONI system. Even when mounted close to the edge, the recessed socket offers maximum legroom and does not interfere with daily use of the workspace. The robust frame construction ensures a long service life and makes the unit suitable for continuous professional use. Even in dynamic work environments, such as project offices or shared-desk concepts, the CONI system impresses with its durability and flexible application options.
Reliable technology and sustainable infrastructure for your workplace
The Bachmann CONI 333.2235 table socket is equipped with four safety sockets (4x Schuko), has increased contact protection and operates with a load capacity of 16 A at 250 V~. The black power cord (0.20 m, H05VV-F 3G1.50 mm²) is equipped with a Wieland GST18 connector, enabling quick and secure integration into existing power supply systems. The IP20 protection rating makes it suitable for indoor use and meets all common safety requirements for office electrical systems. Thanks to the tool-free replacement of the entire socket unit, the system offers a high degree of future-proofing: Should the infrastructure be expanded or modernized later, the unit can be easily adapted or replaced. Retrofitting is also easily possible, making the Bachmann CONI series a popular solution for retrofitting existing furniture.
