Bachmann Custom Module USB-Charger with 2x USB C/C 45W (BM0030435), black
Highlights
- 2x USB-C ports with 45W
- USB Power Delivery and PPS
- GST18i3 Wieland connector at the rear
- Custom module size for retrofitting
- Extremely low no-load power consumption
Bachmann BM0030435 Custom Module USB-C Dual Charger 45W
With the new Bachmann USB-C Dual Charger 45W in custom module size, charging end devices becomes particularly powerful: The universally and flexibly usable solution is especially suitable for retrofitting Bachmann products with a custom module slot. The Bachmann Custom Module USB charger with 2x USB C/C 45W (BM0030435), black, offers maximum flexibility when charging modern devices such as smartphones, tablets and laptops thanks to two USB-C ports.
USB-C fast charger with Power Delivery
In single mode each port delivers up to 45W charging power with USB Power Delivery (PD) and PPS support. In dual mode both ports are supplied simultaneously with up to 20W each. The Bachmann USB-C Charger module BM0030435 draws power via the Wieland device connector system GST18i3. The module is ideal for use in offices, conference rooms, reception areas and home office workspaces.
Technical Details Bachmann USB-C Dual Charger BM0030435
- Input voltage: 250 V
- Output single mode (C1 or C2): max. 45W (5V/3A, 9V/3A, 15V/3A, 20V/2.25A)
- Output dual mode (C1 + C2): each max. 20W (5V/3A, 9V/2.22A)
- PPS support: Single 5-21V/2A (max. 42W), Dual 5-10V/2A (max. 20W)

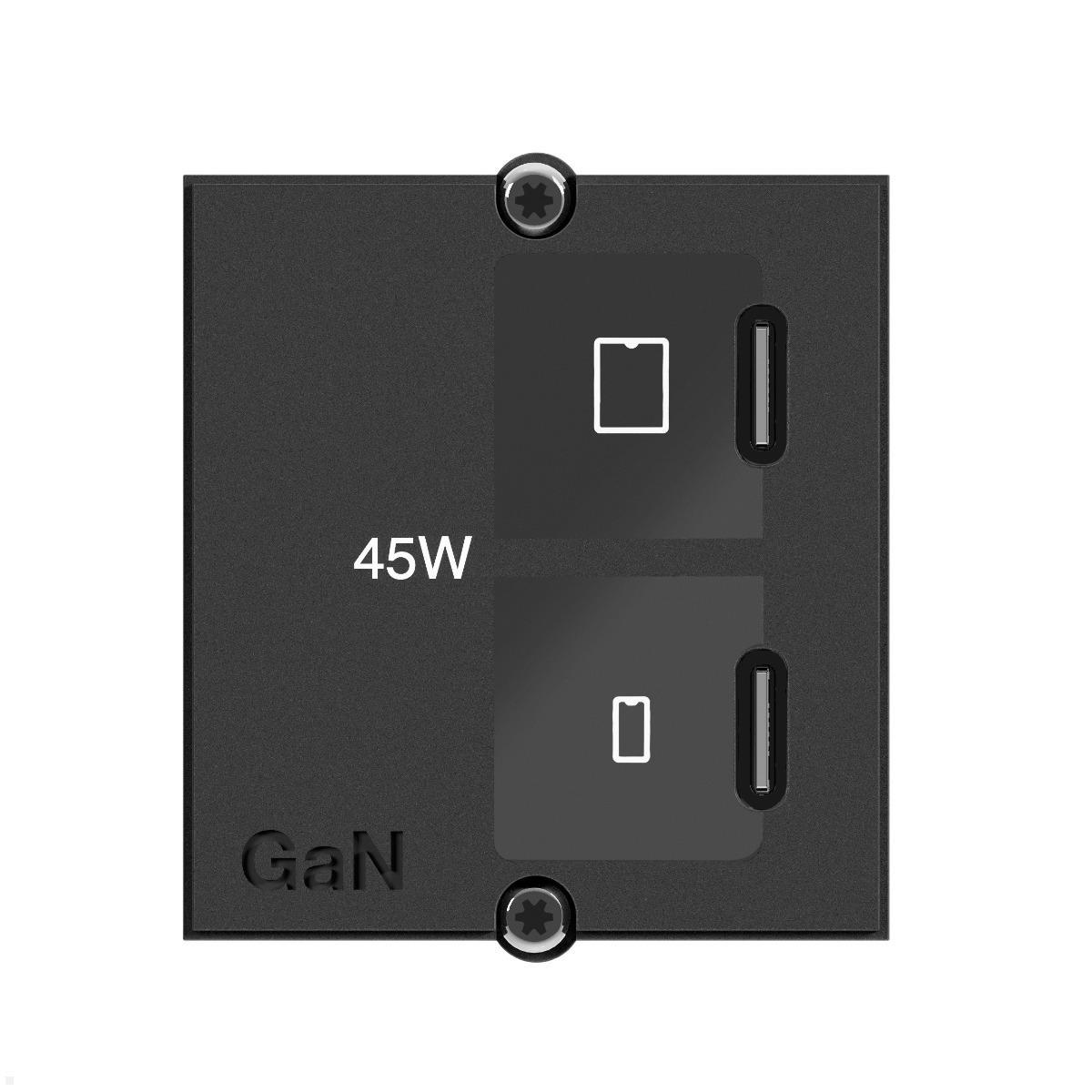

- Front: two USB-C ports

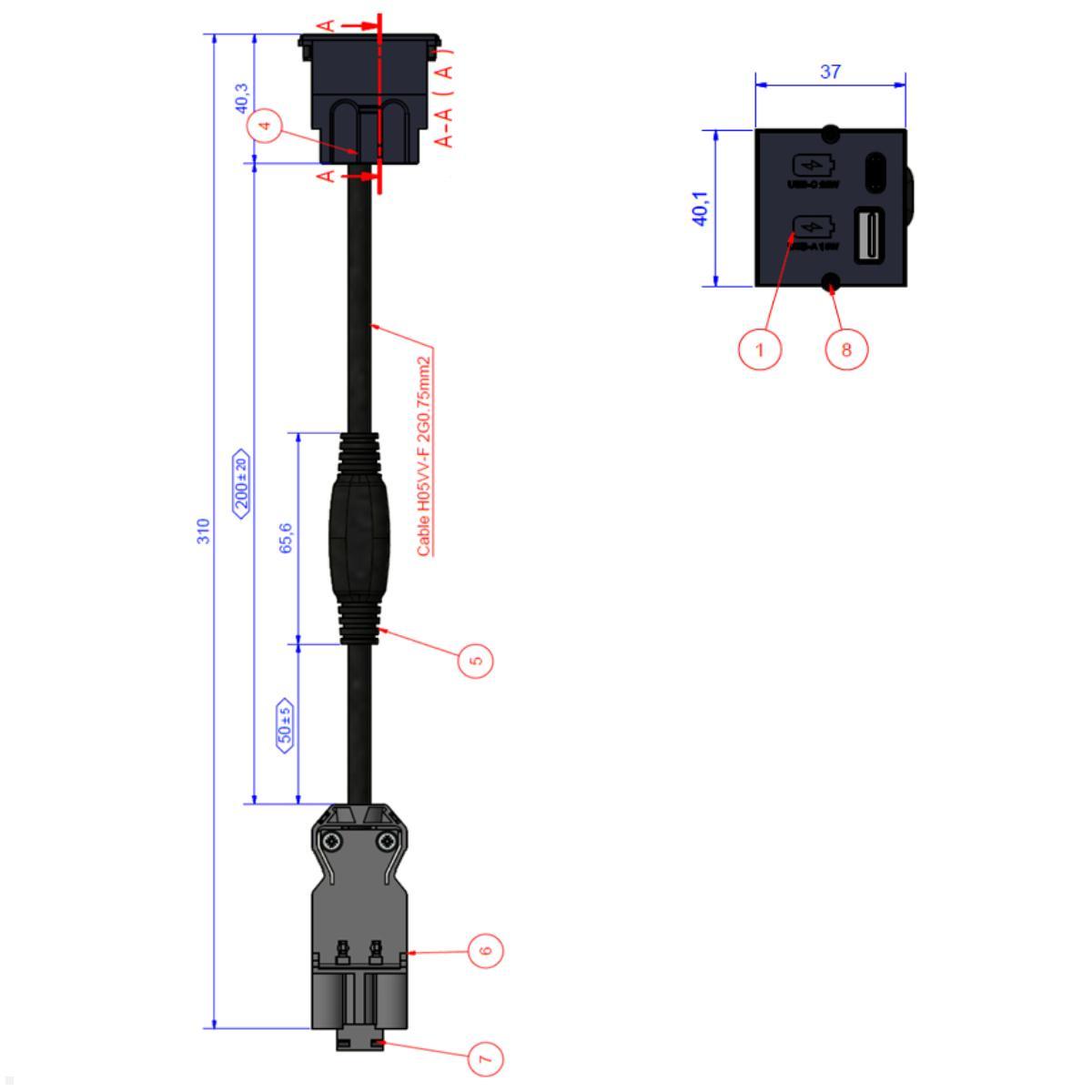

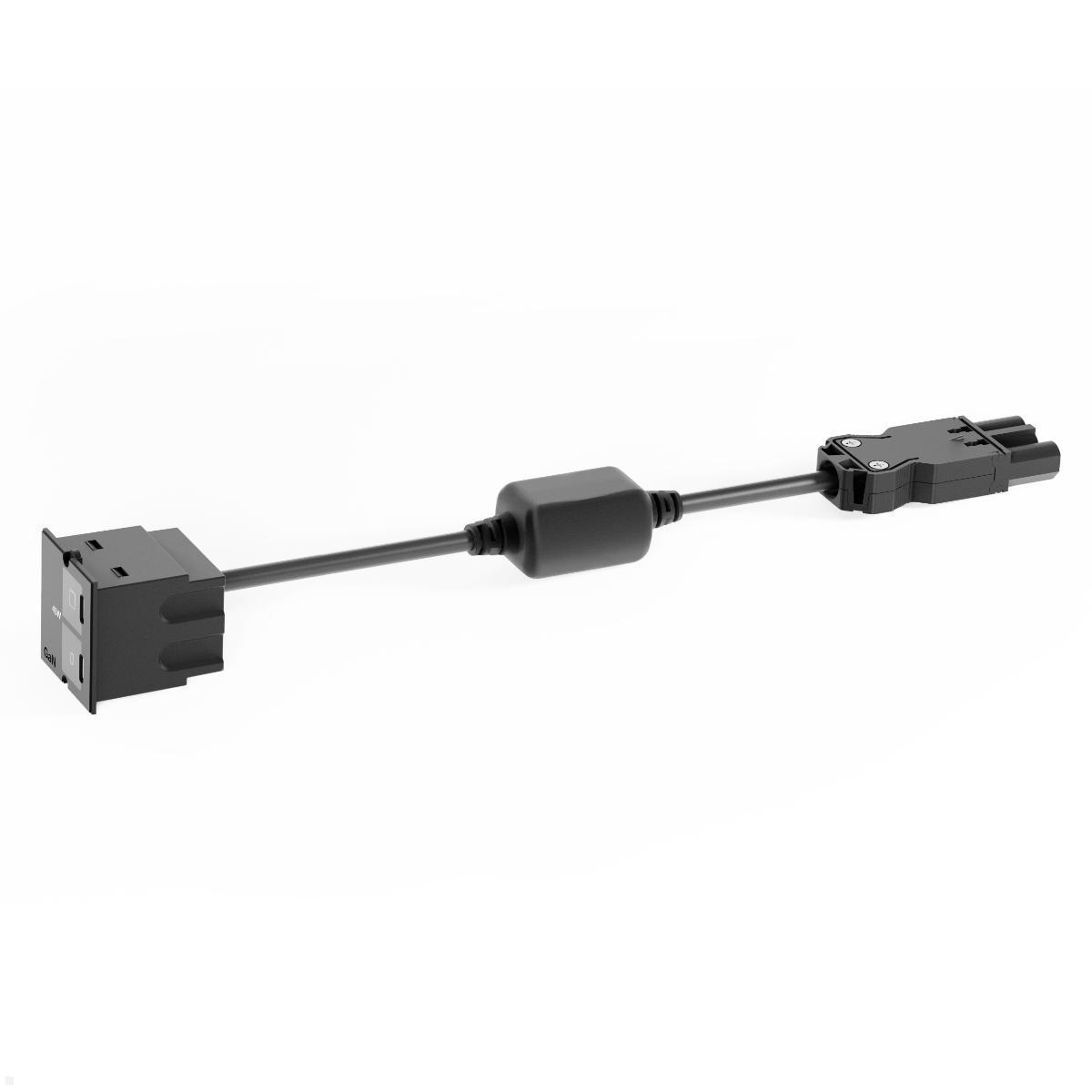

- Rear: GST18i3 plug with approx. 200 mm cable
- Power consumption at no load: 0.01 W
- Color: black (RAL 9005)
Advantages of Bachmann USB-C charging station at a glance:
- Individual configuration options
- Future-proof through replaceable modules
- Easy and flexible installation
TIPS:
If you want to connect the USB-C Dual Charger directly to a power source, you need a suitable GST18 device power cord. When installing in an existing table connection unit we would recommend the distributor block 375.102. Then you will not need a second supply cable. However, you may need a GST18 device extension.
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Warranty: | 3 years |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| RCM-Differenzstrommessung: | Nein |
| Schalten: | Nein |
| color: | Black |
| USB-Charger: | USB C/C |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the Bachmann Custom Modul USB-Charger BM0030435?
The USB-C dual charger BM0030435 by Bachmann is a Custom Module with two USB-C ports. In Single mode, each port delivers up to 45 W; in Dual mode, up to 20 W per port. The unit is powered via the Wieland GST18i3 system.
-
What is the single-mode output per port?
In Single mode, each port delivers up to 45 W with USB Power Delivery (PD) and PPS support (5V/3A, 9V/3A, 15V/3A, 20V/2.25A).
-
What is the dual-mode output per port?
In Dual mode, both ports supply up to 20 W each (5V/3A, 9V/2.22A).
-
What PPS support does it have?
PPS support: Single 5-21V/2A (max 42W), Dual 5-10V/2A (max 20W).
-
What connections does the device have?
Front: two USB-C sockets; Rear: GST18i3 plug with about 200 mm lead.
-
What are its recommended applications?
Ideal for offices, conference rooms, reception areas and home-office workstations.
-
What color is the product and what are its features?
Color: Black (RAL 9005). Features include two USB-C ports, PD and PPS support, and GST18i3 power input.
Why is the Bachmann USB-C Dual Charger the ideal solution for modern workspaces?
The Bachmann USB-C Dual Charger BM0030435 is a powerful charging module in a compact custom module size, specifically designed for integration into Bachmann facility systems, desk connection panels and electrical installations. With two USB-C ports and a maximum charging output of 45W per port in single mode, the module fully meets the requirements of modern devices. Whether smartphone, tablet or laptop — thanks to USB Power Delivery and PPS technology, devices are charged quickly and efficiently. In dual mode, two devices can be charged simultaneously with up to 20W each. The extremely low power consumption of only 0.01W in standby makes the module particularly energy-efficient and environmentally friendly. The charger draws power via the proven Wieland device connector system GST18i3, which ensures a reliable and safe connection. The black housing in RAL 9005 blends unobtrusively into any work environment.
Which application areas are suitable for the USB-C Charger BM0030435?
The Bachmann USB-C Dual Charger is versatile and is ideal for office workstations, conference rooms, meeting rooms, reception areas, hotels and home office environments. Wherever electronic devices need to be charged reliably and quickly, the custom module offers an elegant and space-saving solution. Due to the custom module form factor, the charger can be easily integrated into existing Bachmann power strips, desk connection panels and other facility systems. The module is also well suited for retrofits and upgrades of existing installations, as installation is tool-free and requires little effort. This allows older installations to be easily brought up to the latest USB-C charging technology.
What sets the BM0030435 apart from conventional USB charging modules?
Unlike USB-A charging modules, the BM0030435 supports the latest USB-C technology with Power Delivery and PPS. This means significantly higher charging outputs of up to 45W in single mode, which also enables charging of laptops and power-hungry tablets. Conventional USB-A chargers typically deliver only 5V at a maximum of 2.4A, i.e. only 12W. With the BM0030435, almost four times the charging power is available. In addition, the module supports various voltage levels from 5V to 20V, automatically selecting the optimal charging voltage for the connected device. The PPS function furthermore enables continuous voltage adjustment for maximum charging efficiency. Another advantage is the extremely low no-load power consumption of only 0.01W, making the BM0030435 one of the most energy-efficient charging modules in its class. The rear connection via GST18i3 ensures easy and safe integration into the power supply.
