Bachmann ELEVATOR 1x power socket outlet 1x CAT6 1x USB (928.005)
The power strips Bachmann ELEVATOR 1x power socket outlet 1x CAT6 1x USB (928.005) is a tiny yet impressive powerhouse. Simply press down with your thumb to open ELEVATOR. It is simply lowered again after use.
Bachmann ELEVATOR 1x power socket outlet 1x CAT6 1x USB (928.005)
Bachmann ELEVATOR – The elevator is powered straight away

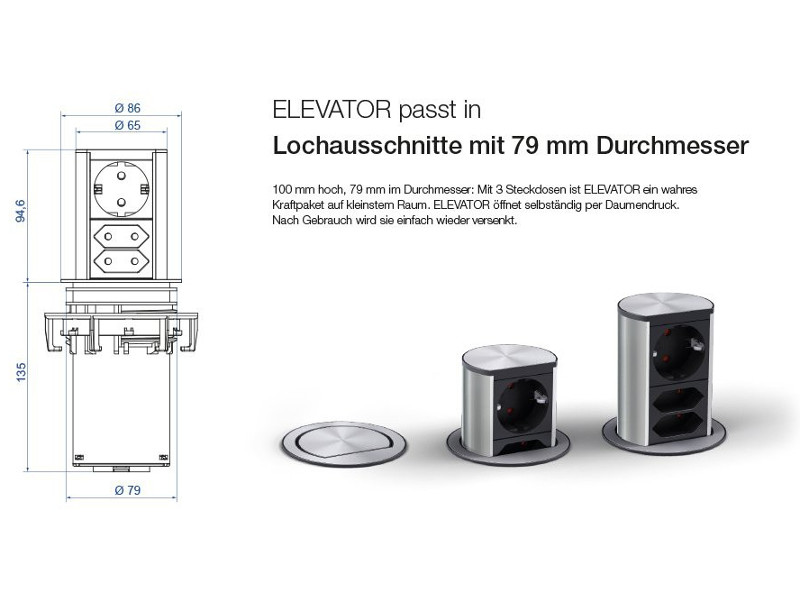

Bachmann ELEVATOR fits perfectly in any working environment. At 79 mm in diameter, Bachmann ELEVATOR is ideal for integrating power and data connections in tiny spaces.
Simply press down with your thumb to raise and lower ELEVATOR.
Installation is incredibly simple. Bachmann ELEVATOR is placed in a cut-out 79 mm in diameter and secured to the desk or table top from below using a lock ring. The Bachmann Elevator can also be installed horizontally without any problems.
Key Features:
- 1x socket outlet with earthing contact, child-proof, black, set at 35°
- 1x CAT6 RJ45 with 3.0 m data cable and RJ45 plug
- 1x USB A socket with 3.0 m data cable and plug
- Anodised aluminium profile E0EV01;
- office variant
- Power input: 0.3 m H05VV-F 3G1.5 mm² with GST18 plug
- cut-outs 79 mm in diameter
- Lift high 100mm
The Advantage at a glace:
- Press down with your thumb to raise
- 2 configurationsSuitable for Standard 79mm hole
- Quick and easy to install
- Suitable for retrofitting
- Aluminium nickel-plated, brushed
- Classic design
- For desk or table top thicknesses of 16 - 40 mm
Note DGUV V3: According to DGUV V3, permanently screwed / stationary power strips must be checked every 4 years by a qualified electrician in accordance with DIN VDE 0100-600. Portable power strips must be checked annually. Further information can be found in the download area under "Manufacturer's declarations"
| Product sheet: |  [pdf] |
|---|---|

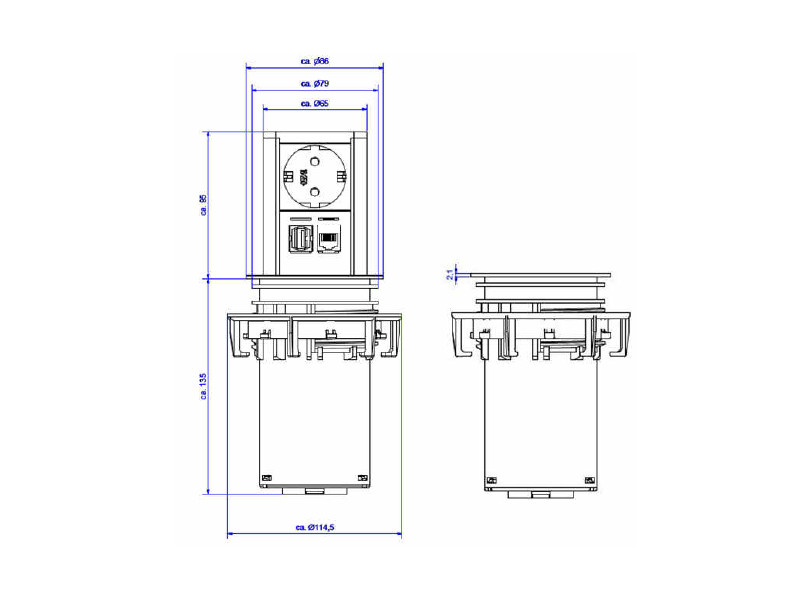

| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 1 |
| color: | Chrome matt |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
