Bachmann ELEVATOR 2x power socket (928.002)

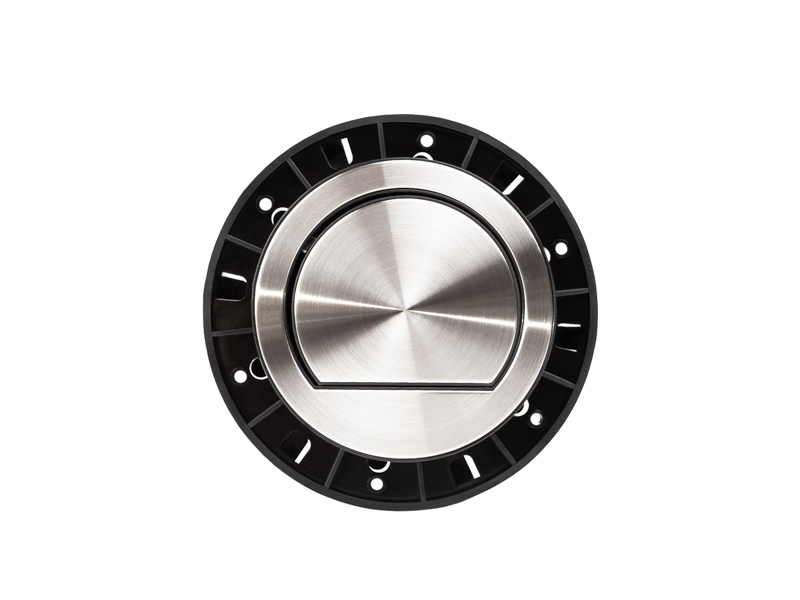

The retractable socket Bachmann ELEVATOR 2x socket strip (928.002) operates by finger pressure and offers in a small space two sockets. After use, the socket unit is simply sunk back into the table top.

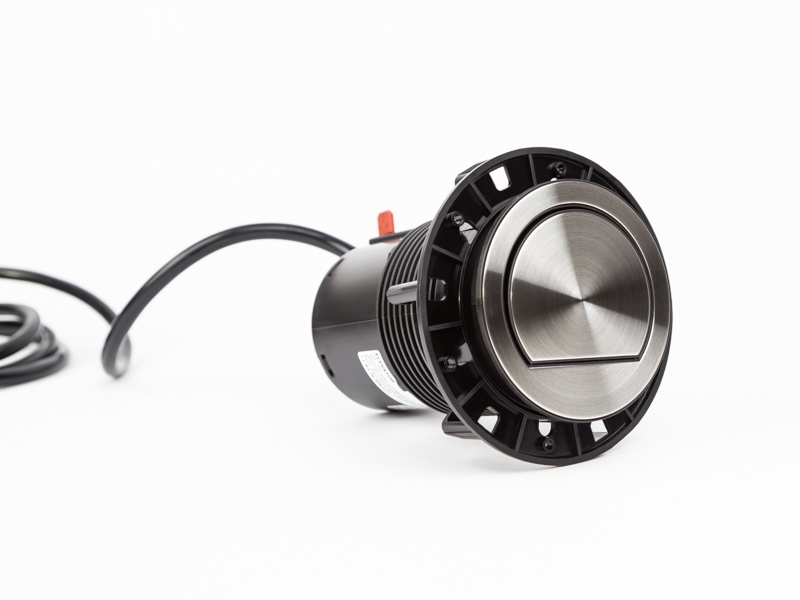

Bachmann ELEVATOR retractable socket strip 928.002
Bachmann ELEVATOR – The elevator is powered straight away
Bachmann ELEVATOR fits perfectly in any working environment. At 79 mm in diameter, Bachmann ELEVATOR is ideal for integrating power and data connections in tiny spaces.

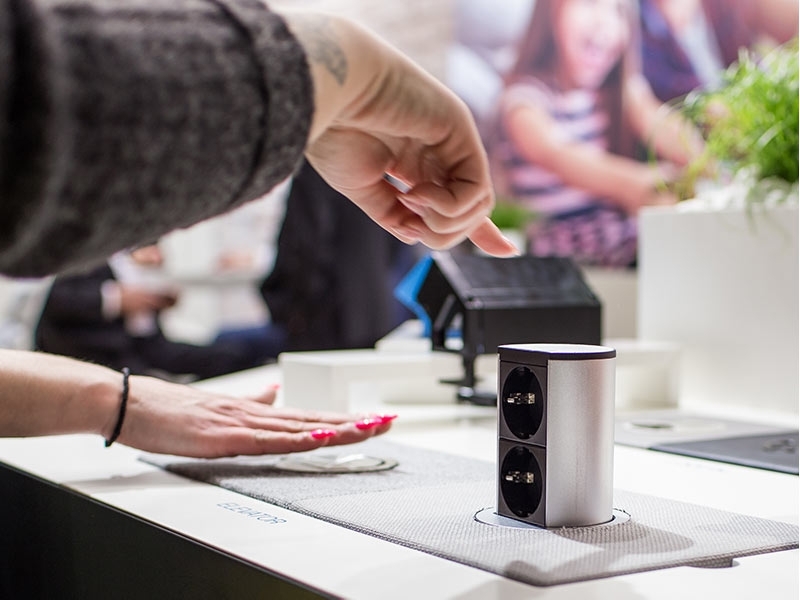

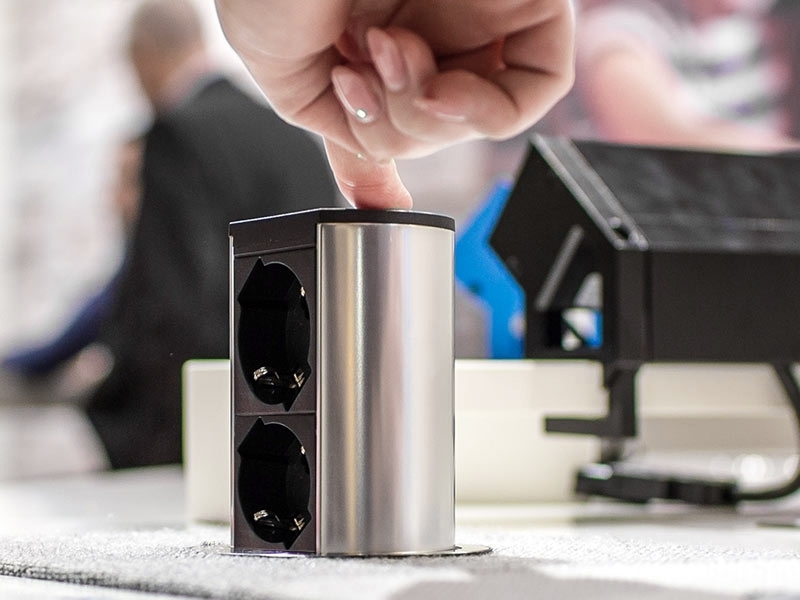

Simply press down with your thumb to raise and lower ELEVATOR.
Installation is incredibly simple. Bachmann ELEVATOR is placed in a cut-out 79 mm in diameter and secured to the desk or table top from below using a lock ring. The Bachmann Elevator can also be installed horizontally without any problems.
Key Features Bachmann ELEVATOR 2x power socket outlet 928.002
- 2x socket outlet with earthing contact, child-proof, black, set at 35°
- Stainless steel look proile

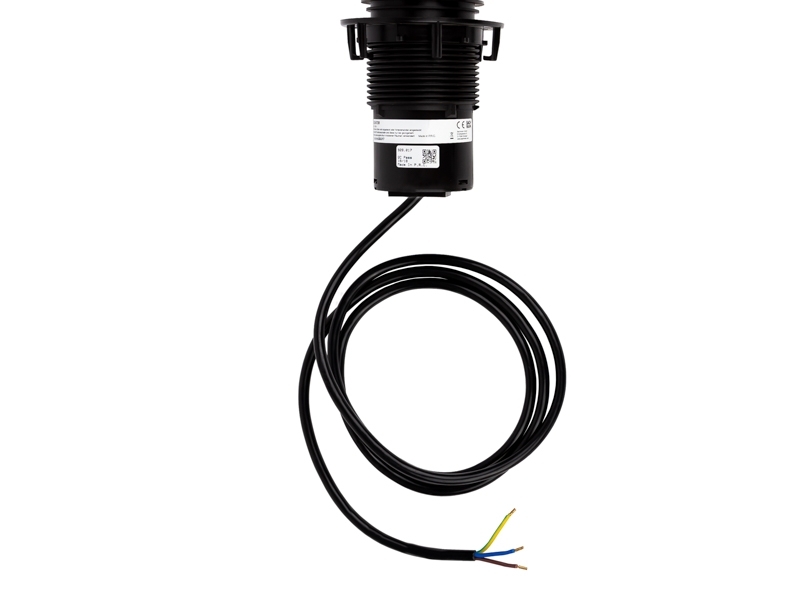

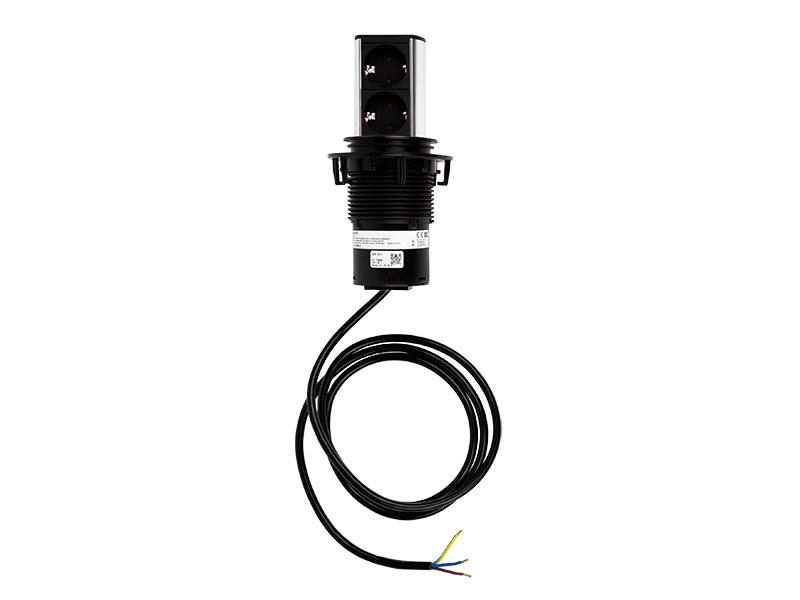

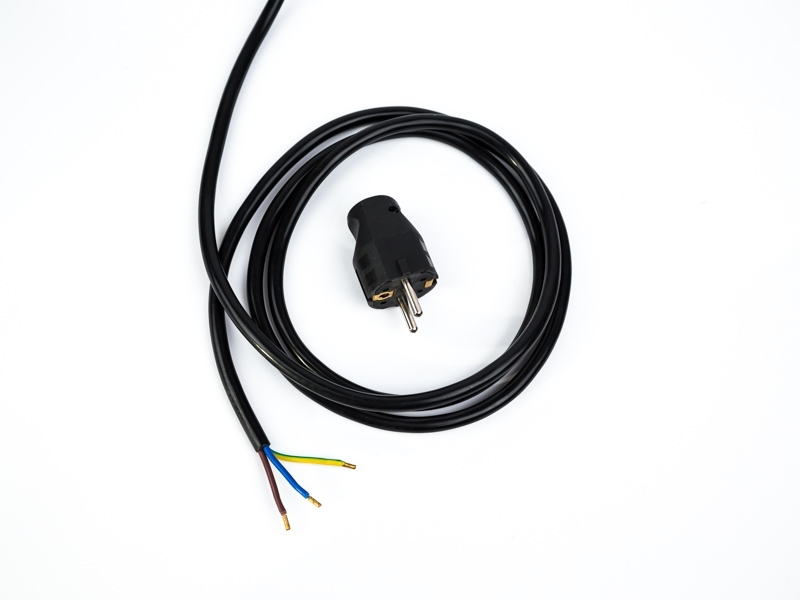

- Power input: 2.0 m H05VV-F 3G 1.5 mm² with end sleeves
- Included mounting plug
- Cut-outs 79 mm in diameter

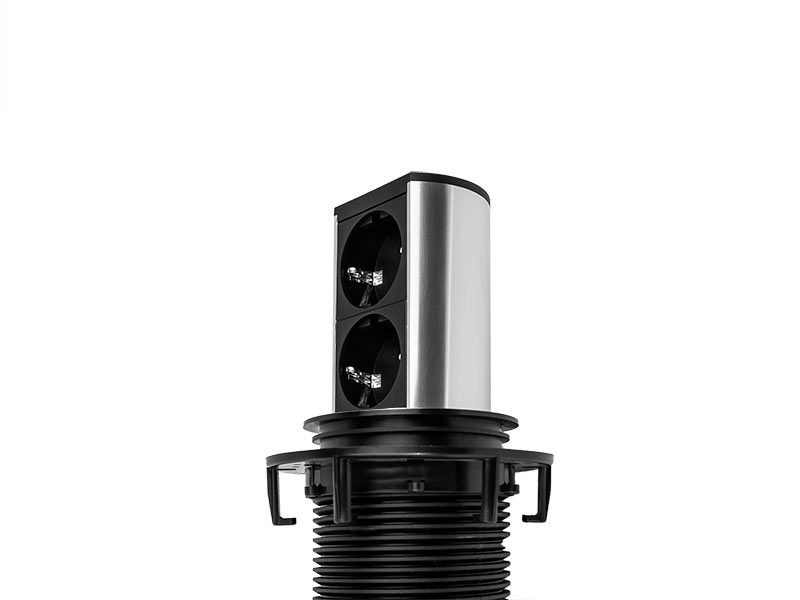

- Lift height 100mm

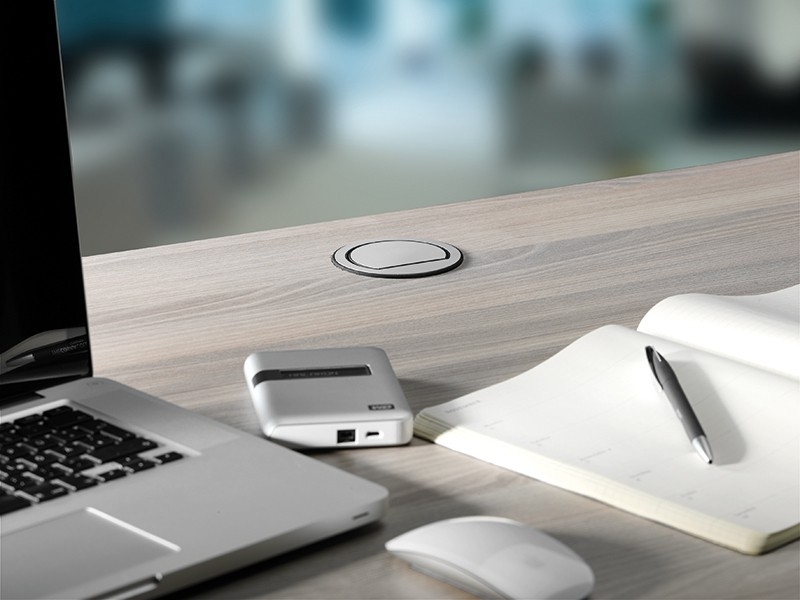

- It is simply lowered again after use
- Secured to the desktop or tabletop from below using a lock ring (included)
The advantages Bachmann ELEVATOR at a glance:
- Press down with your finger to raise
- Suitable for standard 79 mm hole
- Quick and easy to install
- Suitable for retrofitting
- Aluminium nickel-plated, brushed
- Classic design
- For desk or table top thicknesses of 16 - 40 mm
Note DGUV V3: According to DGUV V3, permanently screwed / stationary power strips must be checked every 4 years by a qualified electrician in accordance with DIN VDE 0100-600. Portable power strips must be checked annually. Further information can be found in the download area under "Manufacturer's declarations"
| Product sheet: |  [pdf, 132 kb] |
|---|---|

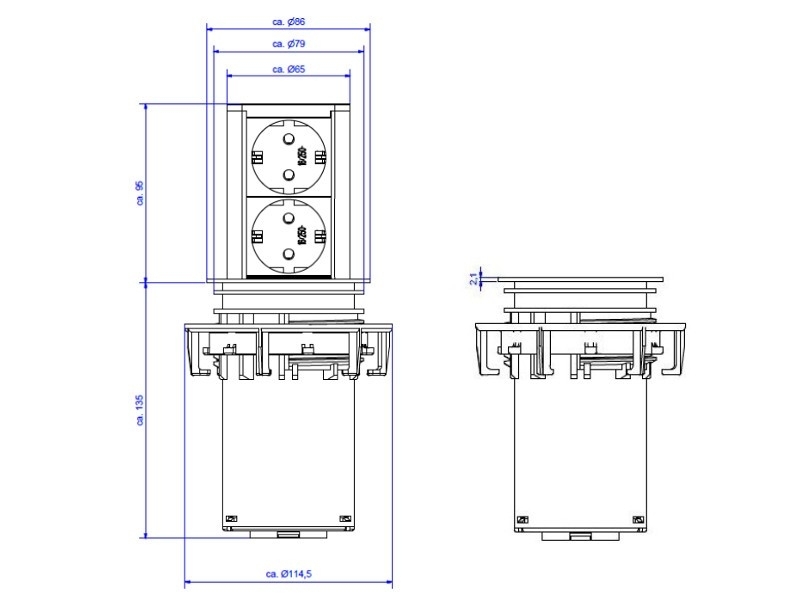

| Technical drawing: | [pdf, 97 kb] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf, 226 kb] |
| Warning/safety instructions: | [pdf] |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 2 |
| color: | Stainless Steel |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
