Bachmann ELEVATOR retractable double socket, black (928.0024)
Retractable power strip

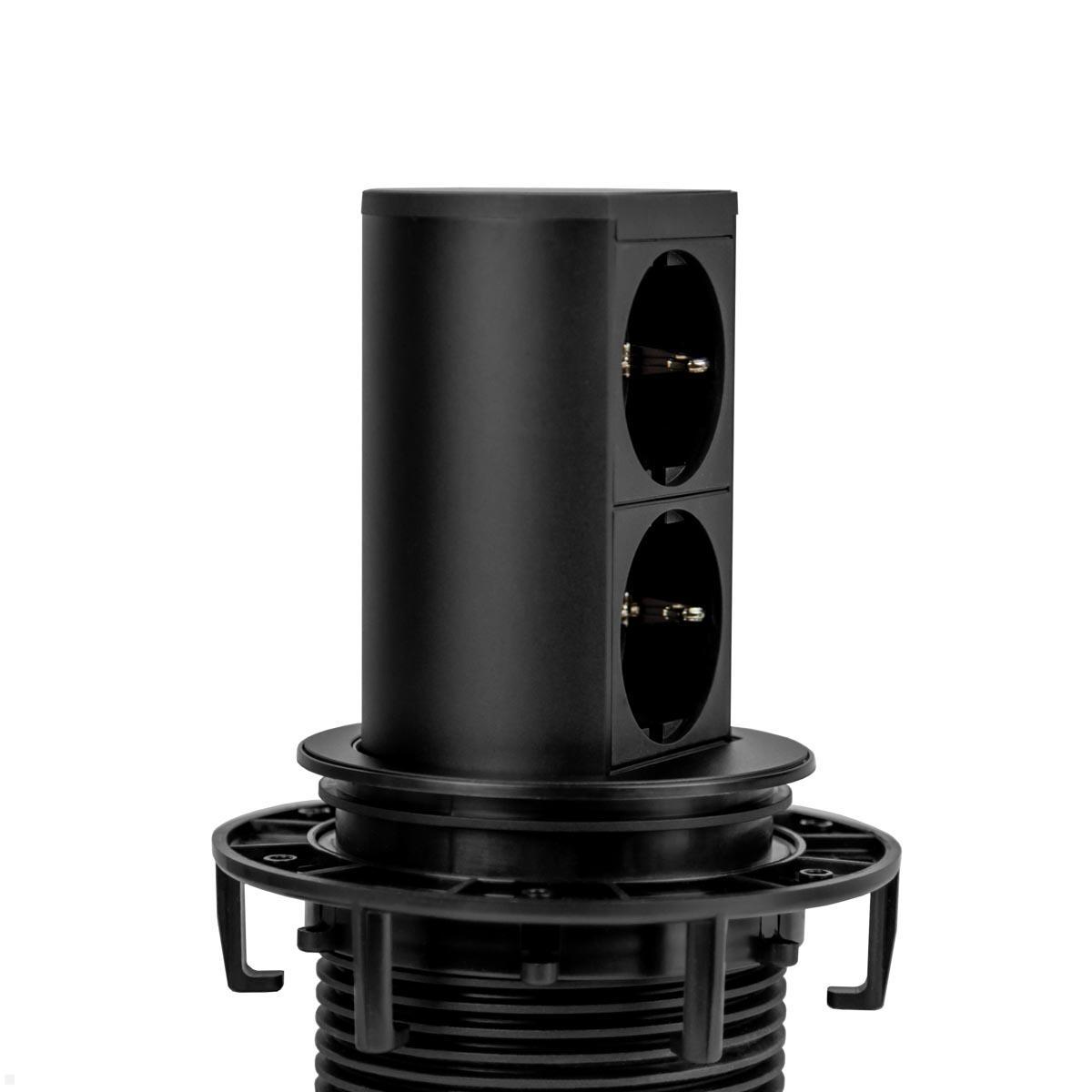

The retractable power strip Bachmann ELEVATOR (928.0024) is ideally suited for installation in kitchens or offices and provides power connections in the smallest space. Only a cut-out of 79 mm is required to install the built-in socket. Installation is also possible at a later date without any problems. At the touch of a finger, the multiple socket outlet can be moved out of the tabletop thanks to a spring mechanism, and when not in use, it can be retracted flush with the tabletop to save space. With its completely black look (PURE BLACK), Bachmann ELEVATOR stands for timeless elegance. The power is supplied via a 2.0 m cable with wire end ferrules, a protective contact mounting plug is included. The Bachmann Elevator can also be installed horizontally without any problems.
Key features Bachmann ELEVATOR pull-out multiple socket (928.0024)
- 2x protective contact socket with child protection, rotated 90 degrees

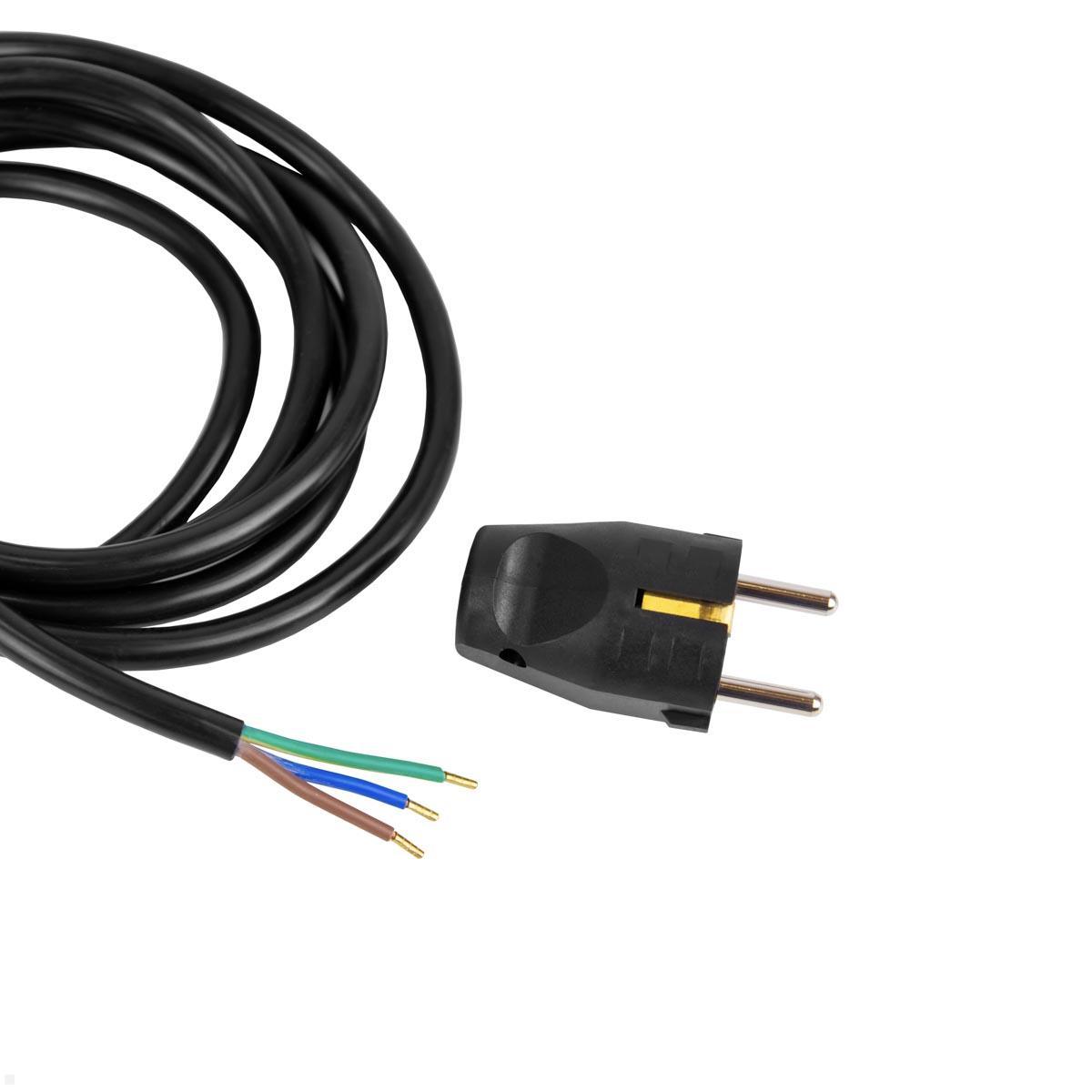

- Power input: 2.0 m cable with ferrules
- Incl. enclosed protective contact mounting plug
- Cutout: 79 mm diameter
- Table thickness: 16 - 60 mm
- Dimensions (HxØ): 230 x 114 mm
- Installation depth without cable: 135 mm
- Subsequent installation possible
- Extension height: 100 mm
- Material: aluminum (profile), plastic (socket)
- Color: black
Note DGUV V3: According to DGUV V3, permanently screwed / stationary power strips must be checked every 4 years by a qualified electrician in accordance with DIN VDE 0100-600. Portable power strips must be checked annually. Further information can be found in the download area under "Manufacturer's declarations"
| Product sheet: |  [pdf] |
|---|---|

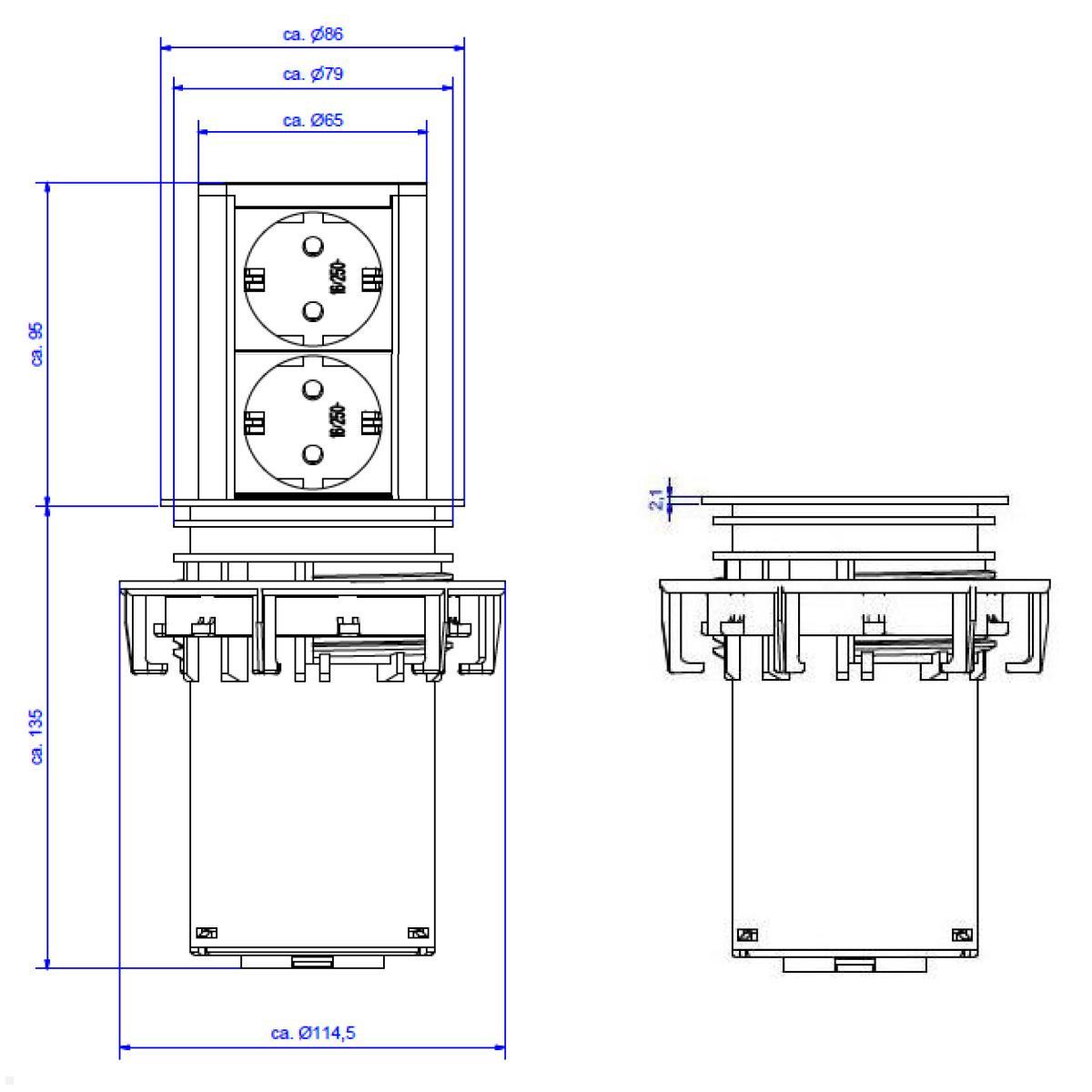

| Technical drawing: | [pdf] |
| RoHS / REACH: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Scope of delivery: | 1x power strip | 1x mounting plug |
| Contains installation material: | + |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| Number of sockets: | 2 |
| color: | Black |
| Land: | Germany |
| screw-on: | Yes |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
