Ergotron LX Pro accessory desk clamp 2-piece for LX Pro monitor arms
Highlights
- Mounting possible without drilling
- Load capacity up to 20 kg
- Steel and aluminium construction
- 2-piece table clamps included
- Only for LX Pro series
Ergotron LX Pro Desk Clamp – sturdy edge mounting for LX Pro monitor arms
The Ergotron LX Pro desk clamp enables easy mounting of LX Pro monitor arms to the desk edge – without drilling or modifications to the desk. The two-piece mounting kit made of robust steel and aluminum offers a maximum load capacity of 20 kg and provides a secure, stable hold. The large base with two-part clamp can be easily attached to tabletops up to 60 mm thick. Ideal for home workspaces, offices and professional working environments.
The Ergotron LX Pro accessory desk clamp 2-piece for LX Pro monitor arms (98-727-29x) is designed as a conversion kit and is compatible with Ergotron's LX Pro monitor arms. Note: LX Pro components are not compatible with the older LX series or other product lines.
Technical details – Ergotron LX Pro accessory desk clamp
- Type: Mounting kit / conversion kit
- Material: Steel, aluminum
- Maximum load capacity: 20 kg
- Included: Large base, 2-piece desk clamp
- Tabletop thickness: up to 60 mm
- Weight: 3 kg
- Packaging dimensions (W×D×H): 500 × 235 × 165 mm
- Packaging weight: 3.9 kg
- Warranty: 10 years (limited manufacturer's warranty)

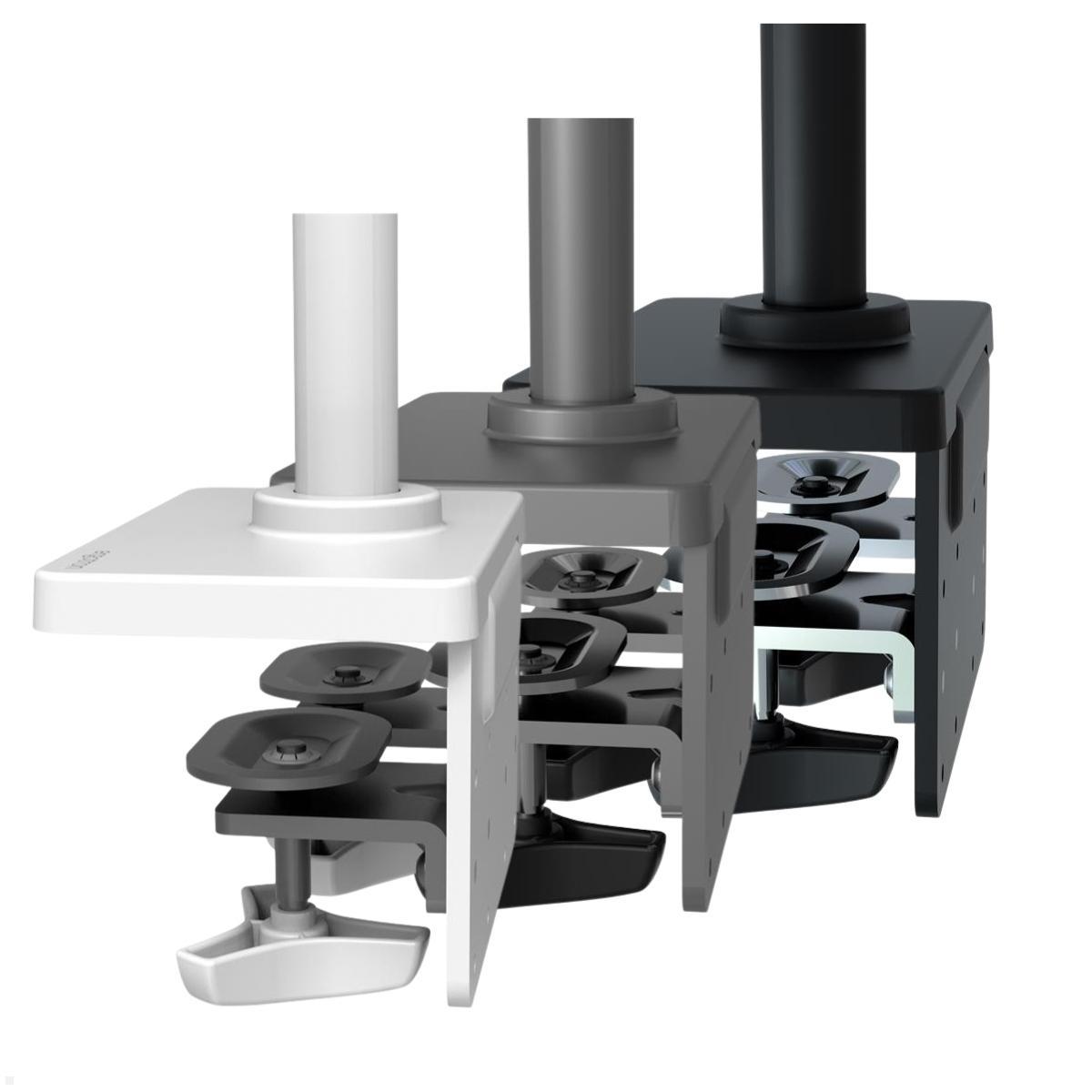

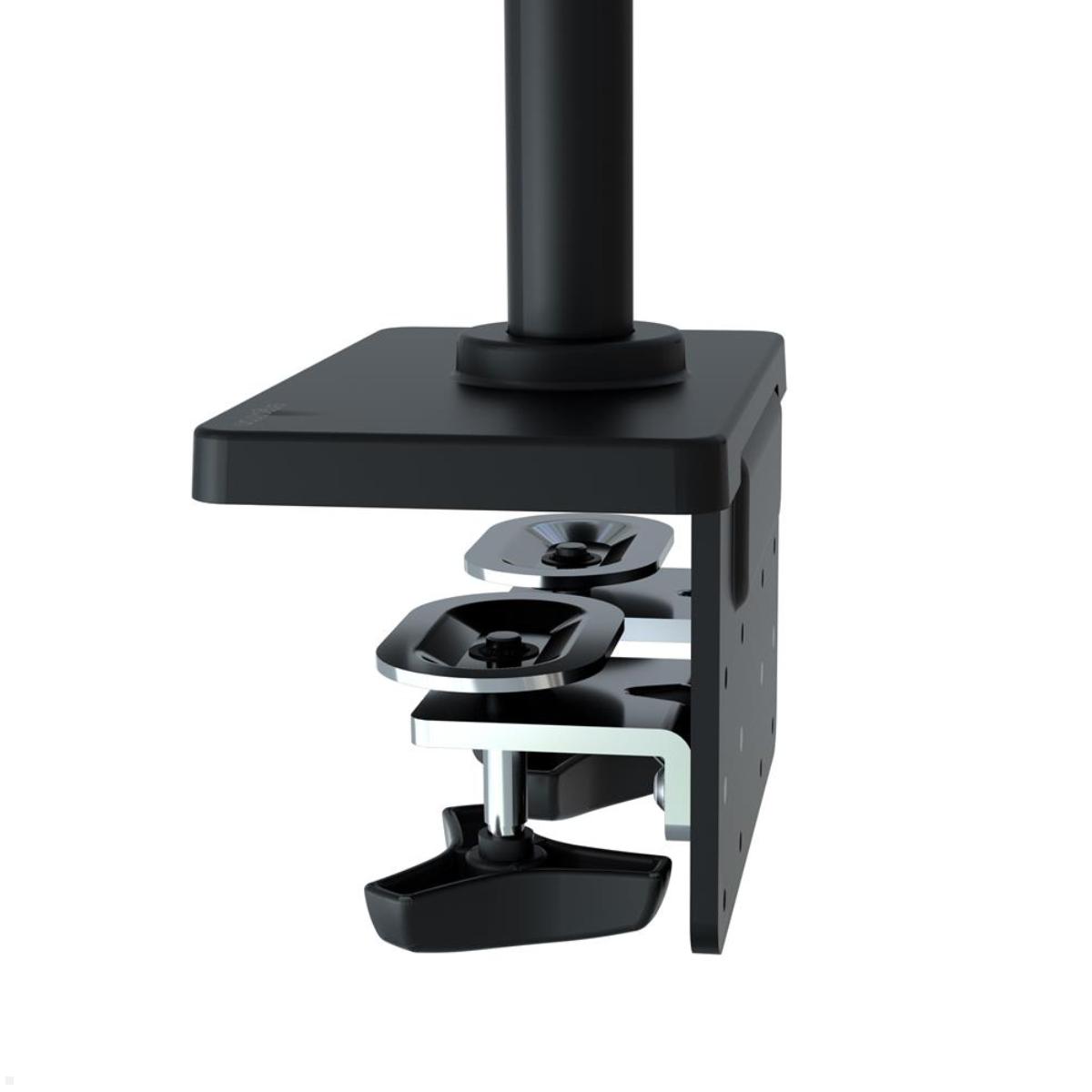

- Available in black (98-727-292), white (98-727-290) and dark gray (98-727-293)

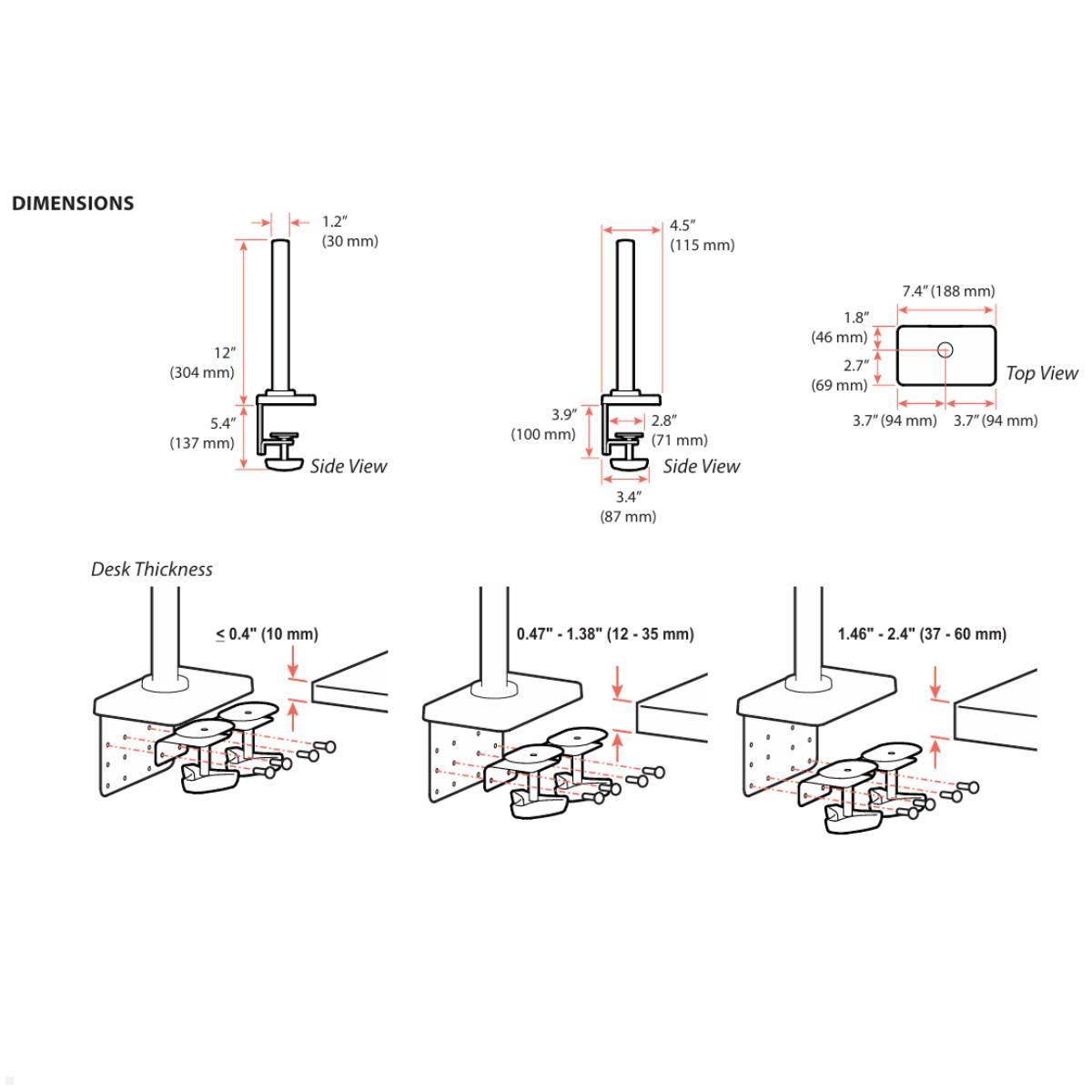

| Technical drawing: |  [pdf] |
|---|---|
| Installation manual: | [pdf] |
| Capacity: | 20 kg |
| Thickness of table (mm): | 10 - 60 mm |
| Material: | Stahl, Aluminium |
| Suitable for: | Ergotron LX Pro |
| Scope of delivery: | Large base, 2-piece table clamp |
| Contains installation material: | + |
| Warranty: | 10 years |
| Manufacturer/Importer: | Ergotron Europe, Stationsstraat 77H, 3811 MH Amersfoort, Niederlande, info.de@ergotron.com |
| Mounting type: | desk - clamp |
| Ergotron Serie: | Ergotron LX Pro |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the Ergotron LX Pro desk clamp kit 2-piece for LX Pro monitor arms?
It enables simple edge mounting for LX Pro monitor arms without drilling or modifying the desk.
-
What is the load capacity of the desk clamp?
It has a maximum load capacity of 20 kg.
-
What desk thickness can it fit?
It can be attached to desk tops up to 60 mm thick.
-
What colours are available and what are the part numbers?
Available in black (98-727-292), white (98-727-290), and dark grey (98-727-293).
-
What is included in the package?
Includes a large base and a 2-piece desk clamp.
-
Is LX Pro hardware compatible with older LX series?
No—LX Pro components are not compatible with the older LX series or other product lines.
-
What is the warranty on this product?
10-year limited warranty.
-
What is the weight and packaging size?
Weight is 3 kg; packaging dimensions are 500 × 235 × 165 mm.
Zubehör
Ergotron LX Pro Desk Clamp – flexible desk mounting without drilling
The Ergotron LX Pro Desk Clamp (model 98-727-29x) offers a straightforward way to securely attach LX Pro monitor arms to the desk edge. Thanks to the two-piece clamping system, no alterations to the desk are necessary – ideal for users who value flexibility and a clean installation. The mounting kit, made of robust steel and aluminum, supports up to 20 kg and thus ensures reliable stability even with heavy monitors or multi-monitor configurations. The large base provides a firm stance and prevents unwanted wobbling or slipping of the monitor arm during daily use. Whether in the home office, a professional office, or technically demanding work environments – the Ergotron LX Pro Desk Clamp is the ideal solution for anyone who wants to ergonomically optimize their workspace without permanently modifying the desk.
Which monitor arms is the Ergotron desk clamp suitable for?
This accessory is designed exclusively for monitor arms of the Ergotron LX Pro series – compatible, for example, with models 45-683-290, 45-684-290, 45-685-290 and 45-686-290. It is not compatible with the classic LX series or other product lines. Those who already own an LX Pro arm can easily convert it to edge mounting with this kit without having to purchase new hardware. The conversion is quick and requires little tooling thanks to the included mounting hardware. The two-piece desk clamp can be securely fixed to tabletops up to 60 mm thick and remains reliable even with intensive daily use. For users who operate multiple LX Pro arms, combining it with additional Ergotron LX Pro accessories is recommended for a fully coordinated setup.
Why is the LX Pro desk clamp worthwhile for the workplace?
Especially in modern offices or home office setups where desks should or must not be drilled, the Ergotron desk clamp is the ideal solution. The robust combination of steel and aluminum provides lasting hold, while the compact design allows space-saving installation. With a 10-year limited manufacturer's warranty, the Ergotron LX Pro mounting kit is a durable investment for ergonomic working. Its low net weight of 3 kg and compact packaging dimensions make shipping and handling particularly easy. Those who want to position their monitor arm flexibly and remove it again at any time will find this accessory the right choice – for a tidy, efficient, and ergonomically optimized workspace.
