Fellowes Chicago Dual Monitor Desk Mount
Highlights
- For two monitors up to 38" and 12 kg per arm
- Gas spring for effortless height and depth adjustment
- Cable management system
- Top-down clamp + through-desk mounting included
- Made from recycled aluminum
Fellowes Chicago Series Dual Monitor Arm
The Fellowes Chicago Dual Monitor Arm brings ergonomic comfort and maximum flexibility to modern dual-screen workstations. The separately gas-sprung arm sections allow for effortless and stepless height and depth adjustment – for optimal screen positioning and more relaxed working throughout the day. With its clean, minimalist design, the monitor arm blends aesthetically into any work environment. The integrated cable management ensures a tidy and clean setup, while the 180-degree rotation stop prevents the arm from hitting walls or partitions. The Chicago dual monitor arm is mounted via a top-down clamp – quickly, securely, and without any obtrusive components under the desk. Alternatively, through-desk mounting is also possible. Made from recycled aluminum, it impresses not only visually and functionally, but also in terms of sustainability.
key features Fellowes Chicago Dual Monitor Mount
- Number of monitors: 2
- Arrangement: 2 monitors side by side
- Screen size: up to 38 inches
- Load capacity: 2 - 12 kg per monitor
- VESA mount: 75x75, 100x100 mm
- Height adjustable: 199 - 513 mm Tiltable: +/-30° Swivel: 180° Rotatable: 360° (Pivot) Mounting type: Table clamp, through-screw mounting Table thickness: - 70 mm (through-table) | 10 - 45 mm (table clamp) Integrated cable management 180° Rotation stop
- Gas spring for stepless adjustment
- Material: recycled aluminum
- Warranty: 5 years
- Available in white, black, or silver
Will your screen or display fit the monitor mount?
We'd be happy to check if your screen is suitable for this Fellowes Chicago multi-table monitor mount. Simply provide us with your model (manufacturer + model number) in the comments field at the end of the ordering process. We will then check for you whether the monitor or display is compatible with the monitor mount, and if not, we will contact you.
VESA Standard - Learn more about the VESA standard for monitor mounts!
| Installation manual: |  [pdf] |
|---|---|
| Minimum weight: | 2 kg per monitor |
| Capacity: | 12 kg per monitor |
| Tilt: | +/-30° |
| Rotate: | 360° |
| Height range (mm): | 199 - 513 |
| Swivelling range: | 180° |
| Screen size: | max 38'' |
| Thickness of table (mm): | 10 - 70 (Through table) | 10 - 45 (Table clamp) |
| VESA Standard: | 75x75, 100x100 mm (www.vesa-standard.com) |
| Scope of delivery: | 1x Monitor desk mount with clamp and through-the-table attachment | Installation material |
| Warranty: | 5 years |
| Manufacturer/Importer: | Fellowes GmbH, Fliegerstr. 1, D-30179 Hannover, cs-germany@fellowes.com |
| Inch size: | 17 inch, 18 inch, 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch, 28 inch, 29 inch, 30 inch, 31 inch, 32 inch, 34 inch, 35 inch, 37 inch, 38 inch |
| Mobility: | Drehbar, height adjustable , swivelling, tilting |
| Mounting type: | desk - clamp, desk - drill screw fastening |
| Multi-monitor mount: | 2 monitors side by side |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What types of monitors are compatible with the Fellowes Chicago Dual Monitor Mount?
The mount supports monitors up to 38 inches and weighing between 2 to 12 kg each.
-
How is the monitor mounted?
The mounting is done via a top-down clamp or through-desk installation, depending on user needs.
-
How can I adjust the height of the monitors?
Height can be adjusted seamlessly from 199 to 513 mm using the gas spring.
-
What materials are used for the mount?
The mount is made of recycled aluminum, making it sustainable and durable.
-
Is there a warranty on the product?
Yes, the Fellowes Chicago Dual Monitor Mount comes with a 5-year warranty.
-
How is cable management handled in the mount?
Integrated cable management keeps the setup tidy and prevents cable clutter.
-
What is the 180-degree rotation stop?
The rotation stop prevents the monitor arm from hitting walls or dividers.
-
In what colours is the mount available?
It is available in white, black, or silver.
Kunden kauften auch
Why a dual monitor arm for the modern workplace?
Anyone who works with multiple applications or programs simultaneously on a daily basis benefits enormously from an ergonomic monitor solution. The Chicago dual monitor arm was specifically designed for workplaces where two screens are used at the same time – for example, in the office, in home offices, in trading or development environments, and in creative fields. Its flexible height and depth adjustment ensures that the monitors always remain within the ideal field of vision. This reduces neck and shoulder strain and noticeably contributes to a healthier and more efficient workflow.
How does the Chicago dual monitor arm improve ergonomics?
Thanks to the gas spring technology, both monitors can be moved almost weightlessly into the perfect position in just a few seconds. Whether you work sitting or standing, the screen height can be adjusted at any time. At the same time, the depth can be individually adjusted – a crucial advantage for users who frequently switch between different working positions or use large desks. A 180-degree rotation stop prevents the arms from hitting walls or partitions. This makes the monitor arm particularly suitable for tight or structured work environments, such as open-plan offices. Its high load capacity of 2 to 12 kg per screen and a screen size of up to 38 inches make it versatile – from standard office displays to larger graphics or data monitors.
What makes assembly so straightforward?

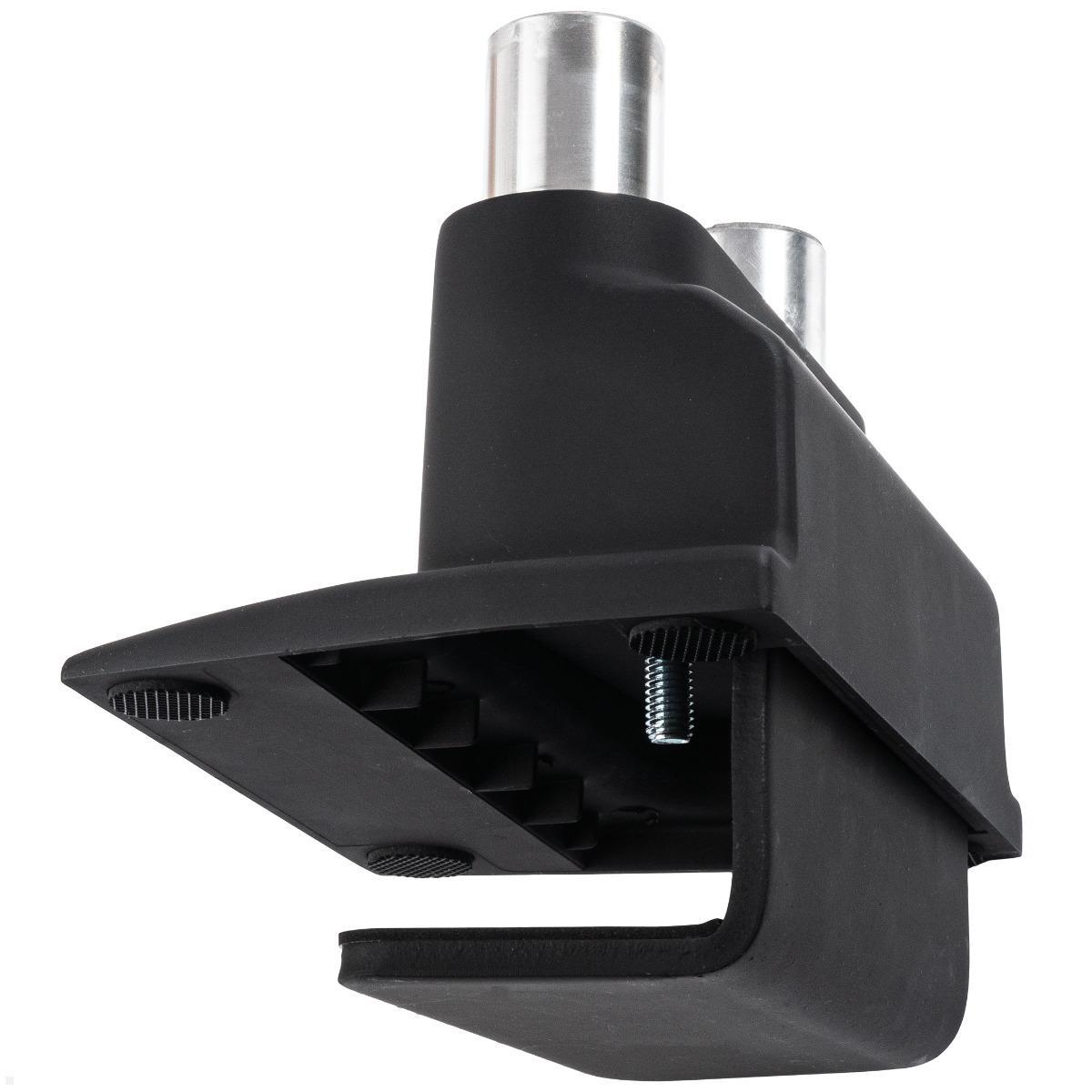

Installation is made easy by a well-designed top-down mounting system, where the desk clamp is fixed from above. This eliminates the need for awkward maneuvering under the desk – a common problem with conventional monitor mounts. Alternatively, a through-desk mount is included, allowing the monitor arm installation to be optimally adapted to the specific workplace situation. For worktops with cable channels, beveled edges, or partitions, the table clamp is recommended. Both options provide a stable and secure hold, enabling safe and vibration-free use – an important consideration for larger dual-monitor configurations.
How does the monitor arm promote tidiness and sustainability?
In addition to functionality and ergonomics, the Chicago dual monitor arm features practical integrated cable management, minimizing visible cables and ensuring a tidy setup. Especially when working from home, in meetings, or at a shared desk, a professionally organized workspace appears significantly more sophisticated and efficient. Sustainability is also a key consideration: The monitor arm is made from recycled aluminum and combines durability with a modern, minimalist look in white, black, and silver. This makes it ideal for interior design concepts in companies, agencies, or private workspaces.
