Fellowes Chicago Single Monitor Desk Mount
Highlights
- Ergonomic gas spring monitor arm
- continuously adjustable in height and depth
- easy top-down mounting
- VESA quick-release
- integrated cable management
Fellowes Chicago Single Monitor Arm
The Fellowes Chicago Single Monitor Arm is a gas spring-assisted monitor arm for a single screen, offering superior ergonomic comfort in a modern, streamlined design. Its stepless height and depth adjustment promotes a healthy posture and reduces strain on the eyes, neck, and back. Installation is quick and easy thanks to the top-down desk clamp. The VESA quick-release system simplifies mounting, while integrated cable management ensures a tidy workspace. The monitor arm is made of recycled aluminum and can be expanded to a dual-monitor solution if needed.
Key features Fellowes Chicago Monitor Arm
- Screen size: up to 45 inches
- Load capacity: 2 - 12 kg per monitor
- VESA mount: 75x75, 100x100 mm
- Mounting type: desk clamp
- Desk thickness: 10 - 45 mm
- Integrated Cable management
- 180° locking function
- Gas spring for stepless height adjustment
- Material: recycled aluminum
- Warranty: 5 years
- Available in white, black, chrome, or silver
- Will your screen or display fit the monitor mount?
We'd be happy to check if your screen is compatible with this Fellowes Chicago single monitor mount. Simply provide us with your model (manufacturer + model number) in the comments field at the end of the ordering process. We will then check for you whether the monitor or display is compatible with the monitor mount, and if not, we will contact you.
VESA Standard - Learn more about the VESA standard for monitor mounts!
| Installation manual: |  [pdf] |
|---|---|
| Minimum weight: | 2 kg |
| Capacity: | 12 kg |
| Tilt: | +/-30° |
| Rotate: | 360° |
| Height range (mm): | 204 - 518 |
| Swivelling range: | 180° |
| Screen size: | max 45'' |
| Thickness of table (mm): | 10 - 50 |
| VESA Standard: | 75x75, 100x100 mm (www.vesa-standard.com) |
| Scope of delivery: | 1x Monitor desk mount with clamp | Installation material |
| Warranty: | 5 years |
| Manufacturer/Importer: | Fellowes GmbH, Fliegerstr. 1, D-30179 Hannover, cs-germany@fellowes.com |
| Inch size: | 17 inch, 18 inch, 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch, 28 inch, 29 inch, 30 inch, 31 inch, 32 inch, 34 inch, 35 inch, 37 inch, 38 inch, 40 inch, 42 inch, 43 inch, 44 Zoll, 45 Zoll |
| Mobility: | Drehbar, height adjustable , swivelling, tilting |
| Mounting type: | desk - clamp |
| Multi-monitor mount: | 1 monitor |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the maximum screen size for the Fellowes Chicago Single Monitor Mount?
The maximum screen size is up to 45 inches.
-
How much weight can the monitor mount support?
The weight capacity ranges from 2 to 12 kg per monitor.
-
How is the monitor mount installed?
Installation is quick and easy using the top-down table clamp.
-
How can I check if my screen is compatible with the mount?
Please provide your model in the comments field at checkout, and we will check compatibility for you.
-
What VESA mounting standards are supported?
The mount supports VESA standards of 75x75 mm and 100x100 mm.
-
Is the monitor mount adjustable in height?
Yes, the mount features a gas spring for continuous height adjustment.
-
How long is the warranty on the monitor mount?
The warranty is for 5 years.
-
What material is the monitor mount made from?
The mount is made from recycled aluminum.
Why is the Fellowes Chicago monitor arm the right choice for an ergonomic workstation?
An ergonomically designed workstation is crucial for focused, healthy, and productive work. The Fellowes Chicago monitor arm was specifically developed to optimally position monitors and significantly reduce strain on the eyes, neck, and back. Its flexible adjustment allows the screen to be precisely aligned at eye level, supporting a natural posture and preventing tension.
The monitor arm is suitable for screens weighing up to 12 kg and measuring up to 45 inches. This makes it versatile – both in the traditional office and in the home office or at professional individual workstations.
How does the gas spring technology ensure maximum ease of use?
A key feature of the Chicago monitor arm is the integrated gas spring, which allows for stepless height and depth adjustment. The monitor can be moved almost weightlessly and adjusted to the individual sitting or standing position at any time. Whether changing work positions or different users – the height-adjustable monitor arm adapts flexibly.
This dynamic adjustability contributes significantly to an ergonomic workplace and makes the monitor arm ideal for long working days. At the same time, the monitor remains stable and secure in position at all times.
How easy is the assembly and monitor mounting?

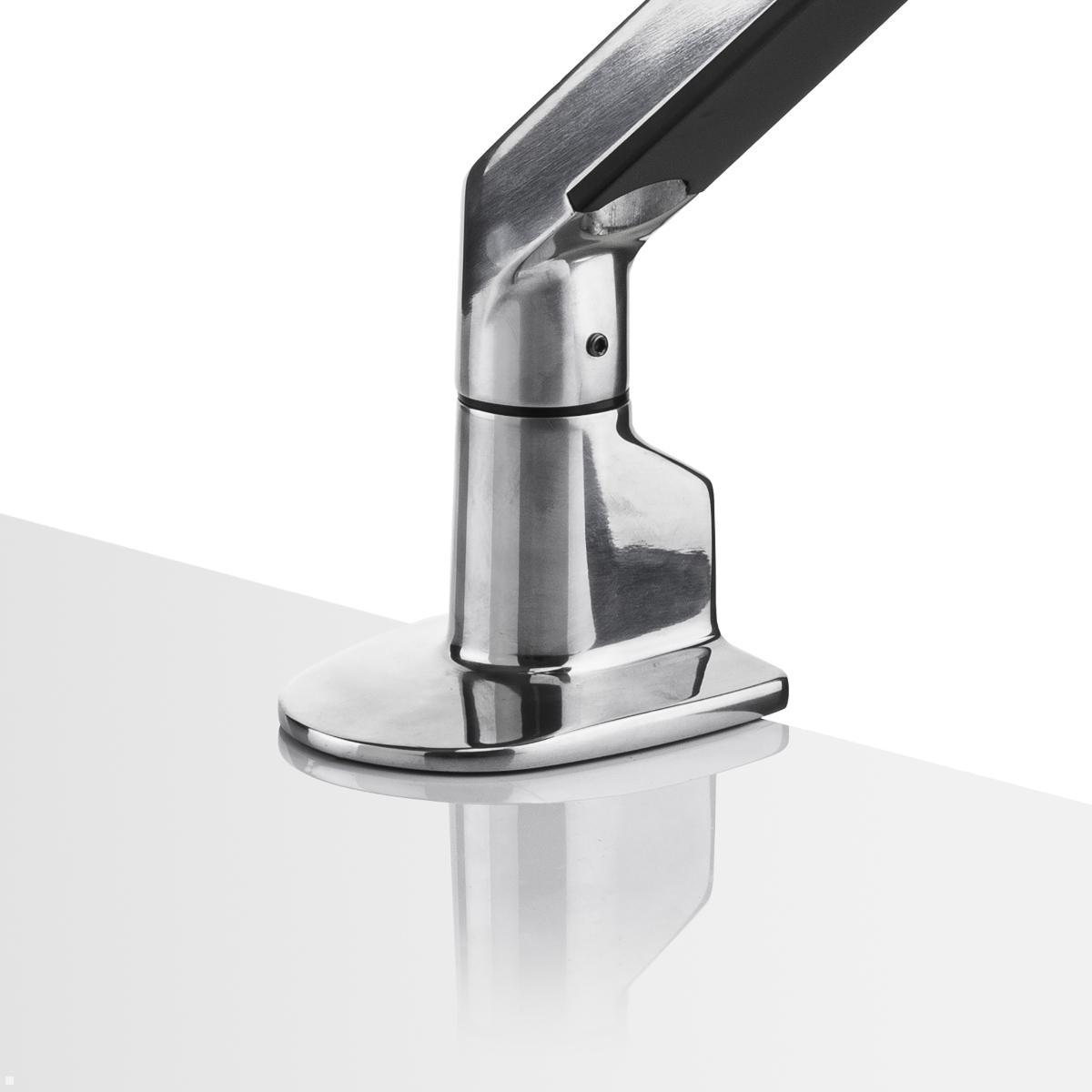

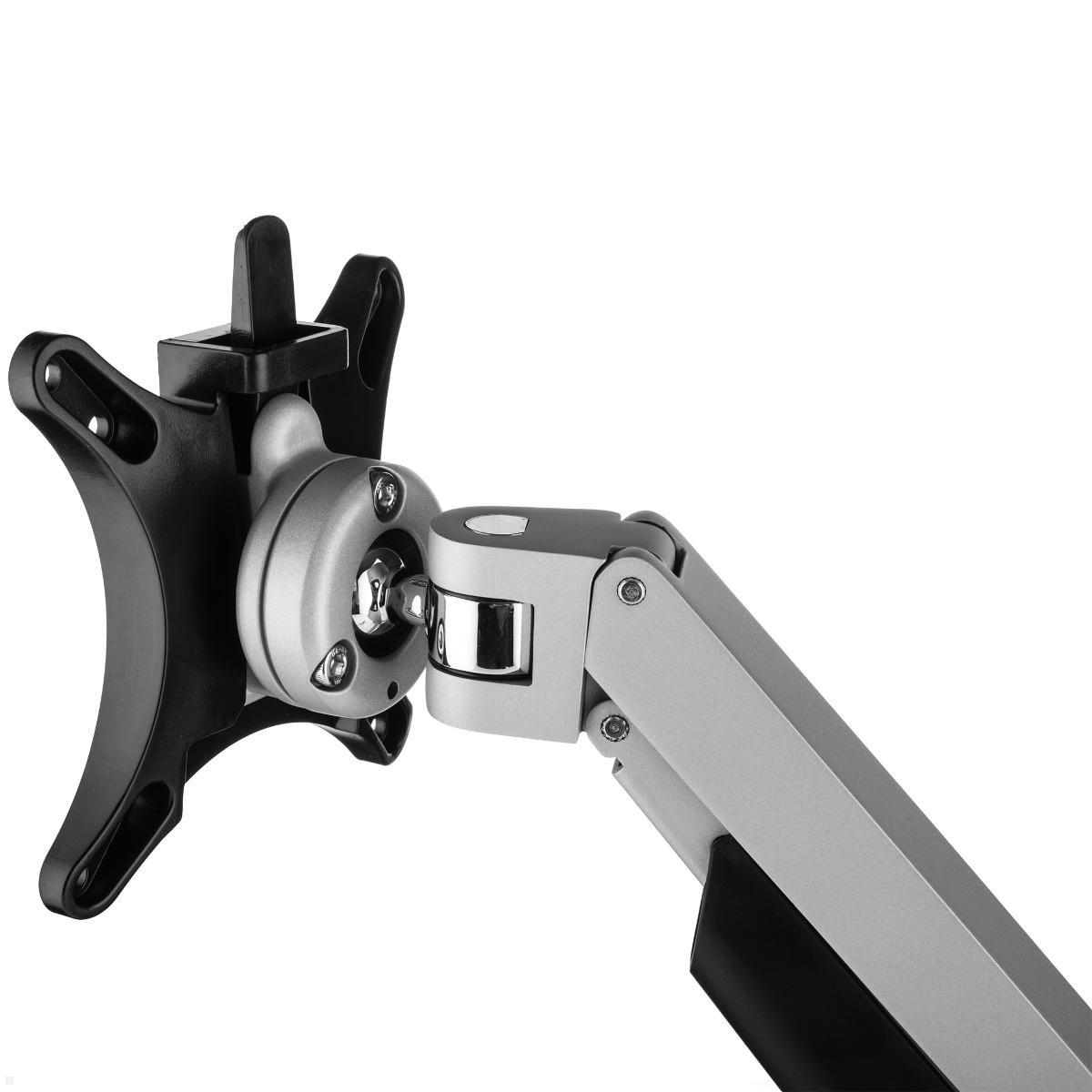

The Chicago monitor arm impresses with its particularly user-friendly installation. The included top-down desk clamp allows for quick mounting from above, without having to reach under the desk. This saves time and makes installation easier, even at already set up workstations. Alternatively, the monitor arm can be mounted via a grommet mount, which is available separately. The VESA quick-release mount (75" x 75" and 100" x 100) ensures that the monitor can be attached or replaced quickly and easily. A clear advantage when changing monitors or relocating workspaces.
What makes the Chicago monitor arm future-proof and sustainable?
Besides functionality and ergonomics, the Chicago monitor arm scores points with its modern, streamlined design. Made from recycled aluminum, it is not only stable and durable, but also a sustainable choice for contemporary office setups. The integrated cable management system neatly routes all cables along the arm, ensuring a tidy, professional workspace.
For maximum flexibility, the monitor arm can be easily extended as needed – For example, with a crossbar and a VESA ball joint, to later switch to a dual-monitor setup. This way, the monitor arm grows with the requirements of the workplace. The Chicago monitor arm is the ideal solution for anyone who values ergonomics, quality, and a modern workplace design.
