Legrand Raritan iX Rack-PDU 1U with 8xC13 / 4xHDOT Cx, single-phase 100-240V 20A, Outlet Metered/Switched (PX4-5256CR-C8E8A0)
Highlights
- 12 outputs: 8x C13, 4x HDOT Cx
- Compact 1U 19-inch form factor
- Class 0.5 energy measurement per outlet
- Remote switching of individual outlets
- Hot-swappable controller
Intelligent 19-inch Rack PDU with Outlet Metering and Switching
The Legrand Raritan iX Rack-PDU 1U with 8xC13 / 4xHDOT Cx, single-phase 100-240V 20A, Outlet Metered/Switched (PX4-5256CR-C8E8A0) is a compact power distribution unit in a 19-inch 1U form factor for professional IT infrastructures. With a total of 12 outlets, divided into 8x C13 and 4x combined HDOT Cx sockets, this intelligent PDU provides precise Class 0.5 energy measurement per input feed, per circuit breaker and per outlet. In addition, the remote switching of individual outlets allows targeted control of connected devices. Power quality monitoring includes voltage and current harmonic distortion, voltage sags and swells, neutral current, inrush current peaks and crest factor.

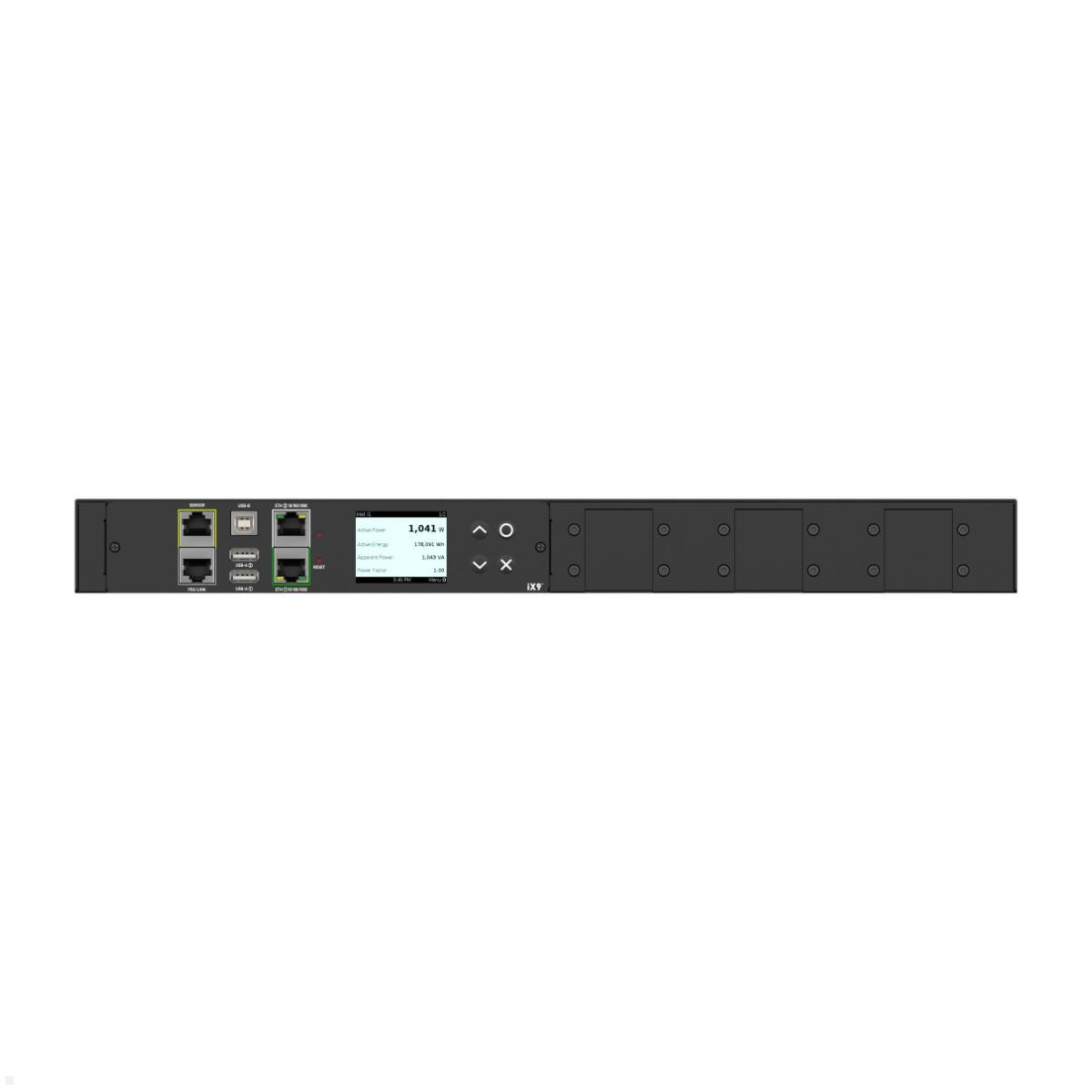

The hot-swappable controller enables field replacement without shutdown and ensures maximum availability. Via the integrated color LCD display with auto-flip functionality, voltage, current and power can be read directly on the device. The rack PDU supports environmental sensors for temperature, humidity, airflow, differential pressure, dust, water leakage, motion, vibration and more. Up to 32 PDUs can be cascaded over a single Ethernet port, and up to 8 PDUs can be linked via the Link-Port. Remote management is possible via HTTP(S), SSH, SNMP v2/v3, JSON-RPC API, MODBUS-TCP, Redfish API and other protocols. Ideal for use in data centers, server rooms and network cabinets.
Technical Details Legrand Raritan iX Rack-PDU PX4-5256CR-C8E8A0
- Input: IEC C20 100-240V Inlet
- Rated voltage: 240V
- Max. input current: 20A
- Rated input current: 16A
- Power capacity: 3.8 kVA
- Outlets: 8x C13, 4x HDOT Cx (combined C13/C19)
- Measurement accuracy: Class 0.5
- Measurements per input feed, per circuit breaker and per outlet
- Remote switching of outlets: Yes
- Network: Dual 10/100/1000 Base-T Ethernet, optional WLAN (802.11 a/b/g/n)
- Remote management: HTTP(S), SSH, Telnet, RS-232, SNMP v2/v3, SMTP, JSON-RPC API, MODBUS-TCP, Redfish API
- Cascading: up to 32 PDUs over Ethernet, up to 16 PDUs over USB
- Linking: up to 8 PDUs via Link-Port
- Environmental sensors: Temperature, humidity, airflow, differential pressure, dust, water leakage, motion, vibration, dry contact
- Display: Color matrix LCD with auto-flip
- Controller: Hot-swappable
- Dimensions (W x D x H): 440 x 183 x 44 mm
- Weight: approx. 4.1 kg
- Shipping weight: approx. 4.5 kg
- Shipping dimensions (H x D x W): 550 x 372 x 208 mm
- Operating temperature: up to 60 °C
- Operating humidity: up to 85 %
- Certifications: UL, CE
- Warranty: 2 years manufacturer warranty
| Product sheet: |  [pdf - Englisch] |
|---|---|

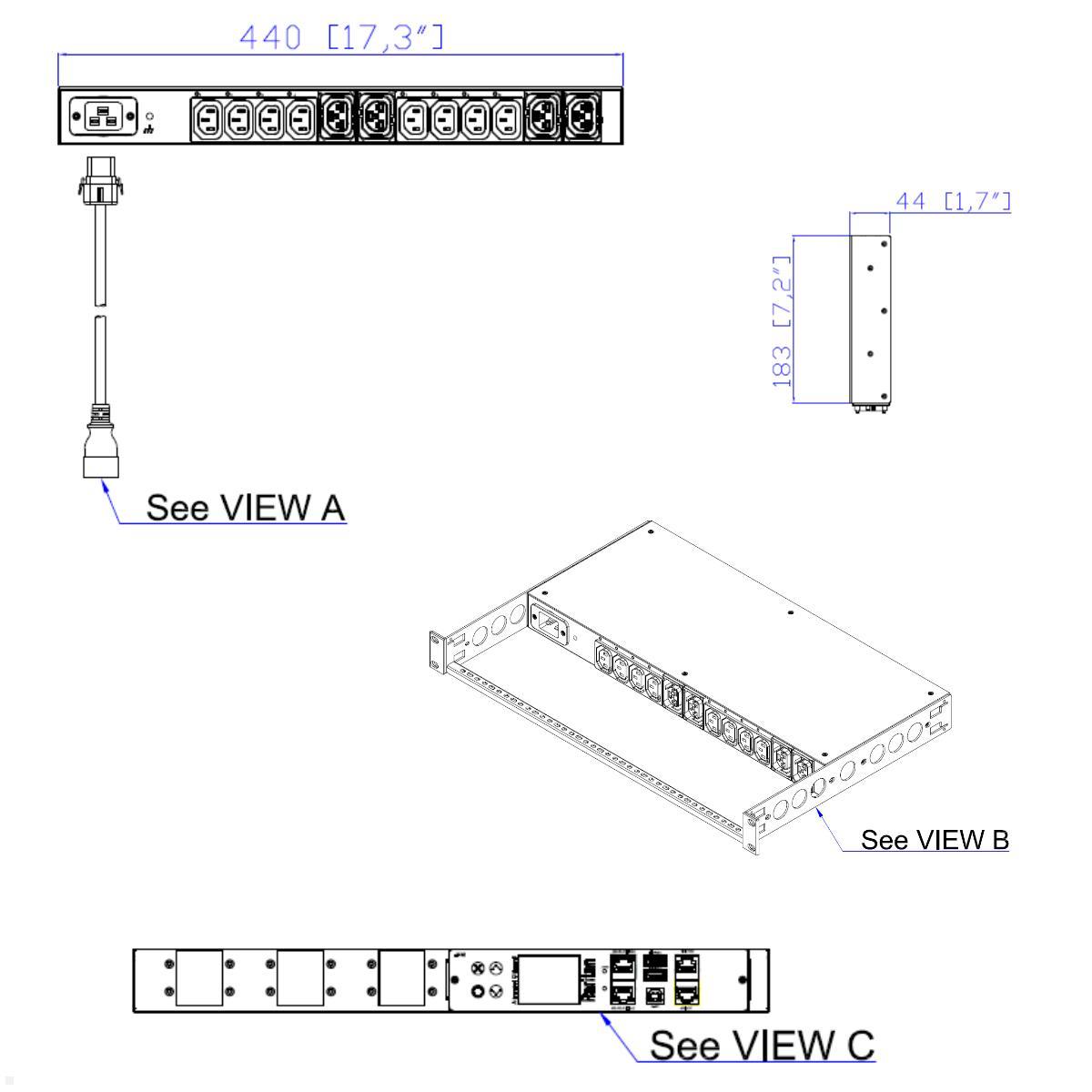

| Technical drawing: | [pdf] |
| Packaging dimensions (LxWxH in mm): | 550 x 372 x 208 |
| Scope of delivery: | Legrand Raritan iX Rack PDU PX4-5256CR-C8E8A0, Rack mounting kit RACK-KIT-DPX-1U, Installation manual |
| Contains installation material: | + |
| Warranty: | 2 years |
| Manufacturer/Importer: | Raritan Europe B.V., Jan van Galenstraat 59, 3115 JG Schiedam, The Netherlands, sales.germany@raritan.com |
| Einspeisung: | 16A |
| FI switch: | No |
| Fuse: | Yes |
| Mains filter: | No |
| Messen: | pro Port |
| Number of sockets: | 12 Outlets |
| Overvoltage protection: | No |
| Phasen: | 1-phasig |
| RCM-Differenzstrommessung: | Nein |
| Schalten: | Ja |
| Steckerart: | C13,Combosocket |
| Strommessung / Überwachung: | Ja, online |
| color: | Black |
| Größe PDU: | 19" |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
1 review
18 September 2026 16:03
Klare Empfehlung – Beratung & bin sehr zufrieden
Wirklich empfehlenswerter Anbieter! Reibungsloser Ablauf von A bis Z.
Questions & Answers
-
What is the Legrand Raritan iX Rack-PDU PX4-5256CR-C8E8A0?
An intelligent 19-inch rack PDU in a 1U form factor with outlet metering and switching for professional IT infrastructure. It features 12 outlets: 8x C13 and 4x HDOT Cx (C13/C19 combined).
-
How many outlets does it have and what types are they?
12 outlets: 8x C13 and 4x HDOT Cx (combined C13/C19).
-
What are the electrical specifications?
Nominal voltage 100-240V, single-phase; max input current 20A and power rating 3.8 kVA. Measurement accuracy is class 0.5 per input line, per circuit breaker and per outlet.
-
What monitoring and protection features does it provide?
Outlet metering and switching; power quality monitoring includes voltage and harmonic distortion, sags and swells, neutral current, inrush, and crest factor.
-
How can it be managed remotely and which protocols are supported?
Remote management via HTTP(S), SSH, Telnet, RS-232, SNMP v2/v3, SMTP, JSON-RPC API, MODBUS-TCP, Redfish API, and more; dual Ethernet and optional WLAN.
-
Can PDUs be cascaded or linked, and how many?
Up to 32 PDUs can be cascaded over Ethernet; up to 16 PDUs over USB; up to 8 PDUs can be linked via the Link-Port.
-
What are the physical specs, environmental support, certifications, and warranty?
Dimensions 440 x 183 x 44 mm; weight approximately 4.1 kg (shipping approx. 4.5 kg); operating temperature up to 60 °C; humidity up to 85%; certifications UL and CE; 2-year manufacturer warranty.
What distinguishes the Legrand Raritan iX Rack PDU in the 1U 19-inch form factor?
The Legrand Raritan iX Rack PDU PX4-5256CR-C8E8A0 is a compact intelligent power distribution unit in a 1U 19-inch form factor that occupies only one rack unit in the server cabinet. With 12 outlets, divided into 8x C13 and 4x combined HDOT Cx receptacles, it offers sufficient connectivity for switch stacks, patch panels and smaller server environments despite its compact design. The single-phase 100–240V input with a 20A maximum input current and a power capacity of 3.8 kVA makes it flexible to deploy. Class 0.5 energy metering provides billing-grade accuracy per input, per breaker and per outlet. Individual outlets can be switched remotely, enabling targeted control of connected devices.
What monitoring functions does the horizontal PDU offer?
The power quality monitoring of the Legrand Raritan iX PDU captures voltage and current harmonic distortion, voltage sags and swells, neutral current, inrush currents as well as crest factor. The integrated color LCD display with auto-flip function shows all relevant measurements directly on the device. Remote management is available via HTTP(S), SSH, SNMP v2/v3, JSON-RPC API, MODBUS-TCP and Redfish API. In addition, the PDU supports environmental sensors for temperature, humidity, airflow, differential pressure, dust and water leakage. Up to 32 PDUs can be cascaded via a single Ethernet port and up to 8 PDUs can be linked via the link port.
For which use cases is the 1U PDU particularly suitable?
The horizontal 1U rack PDU is particularly suitable for installations where vertical rack space is limited or a horizontal mounting is preferred. Typical use cases are smaller server rooms, network cabinets, edge computing locations and telecommunications distribution cabinets. The hot-swappable controller allows the replacement of the control unit during operation without interrupting power. Automated provisioning via TFTP, DHCP, SSH or USB flash drives speeds up commissioning. With dual 10/100/1000 Ethernet ports, optional Wi‑Fi and the ability to log data via HTTP/S or MQTT, the PDU offers comprehensive connectivity for modern IT environments.
