Legrand Raritan iX Rack-PDU 0U with 18xC13 / 18xHDOT Cx, 3-phase 400V 32A, Input Metered/Switched (PX4-2699-E7V2)
Highlights
- 0U rack PDU, 36 C13 outlets / HDOT Cx
- 3-phase 400V 32A, 22.2 kVA power
- Energy monitoring Class 0.5 (±0.5%)
- Hot-swap controller, dual Gigabit LAN
- Remote switching & environmental sensor-ready
Intelligent 0U Rack PDU with Outlet Switching and Class-0.5 Metering

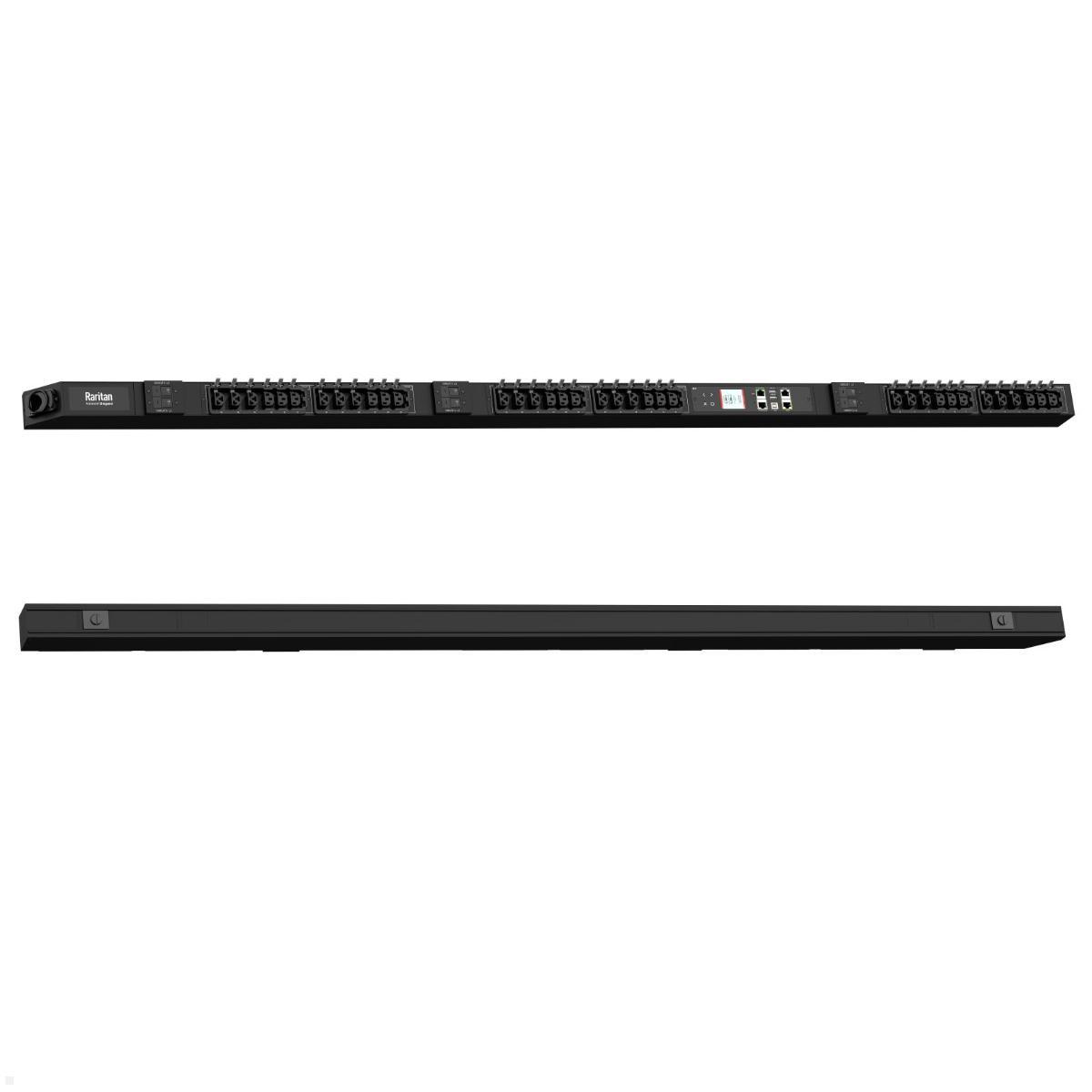

The Legrand Raritan iX Rack-PDU PX4-2699-E7V2 is a powerful vertical 0U PDU for professional server racks. With 18x C13 and 18x HDOT Cx outlets (36 outlets total), 3-phase input at 400V/32A and a power capacity of 22.2 kVA, it reliably covers demanding data center environments. Billing-grade energy monitoring to Class 0.5 (±0.5%) records voltage, current, active power, apparent power, energy and power factor — both per input feed and per branch circuit breaker. Remote Outlet Switching enables individual on/off control of each outlet over the network.
The hot-swappable controller with integrated processor, 16 MB SPI Flash and 64 MB DDR2 RAM can be replaced while running — ensuring maximum availability. Up to 8 PDUs can be linked via the PDU Link port, and up to 32 PDUs can be cascaded physically. Dual Gigabit Ethernet (10/100/1000 Base-T) with optional Wi-Fi (802.11 a/b/g/n) and extensive remote management via HTTPS, SSH, SNMP v2/v3, JSON-RPC API and Redfish API make the Legrand Raritan iX Rack-PDU 0U with 18xC13 / 18xHDOT Cx, 3-phase 400V 32A, Input Metered/Switched (PX4-2699-E7V2) the ideal solution for modern data centers, colocation facilities and enterprise IT infrastructures.
Technical Details Legrand Raritan iX Rack-PDU PX4-2699-E7V2
- Form factor: 0U vertical
- Input plug: IEC 60309 3P+N+PE 6Hr (230/400V, 32A)
- Rated voltage: 400V, 3-phase
- Max. input current: 32A
- Power capacity: 22.2 kVA
- Outlets: 18x C13 + 18x HDOT Cx (36 total)

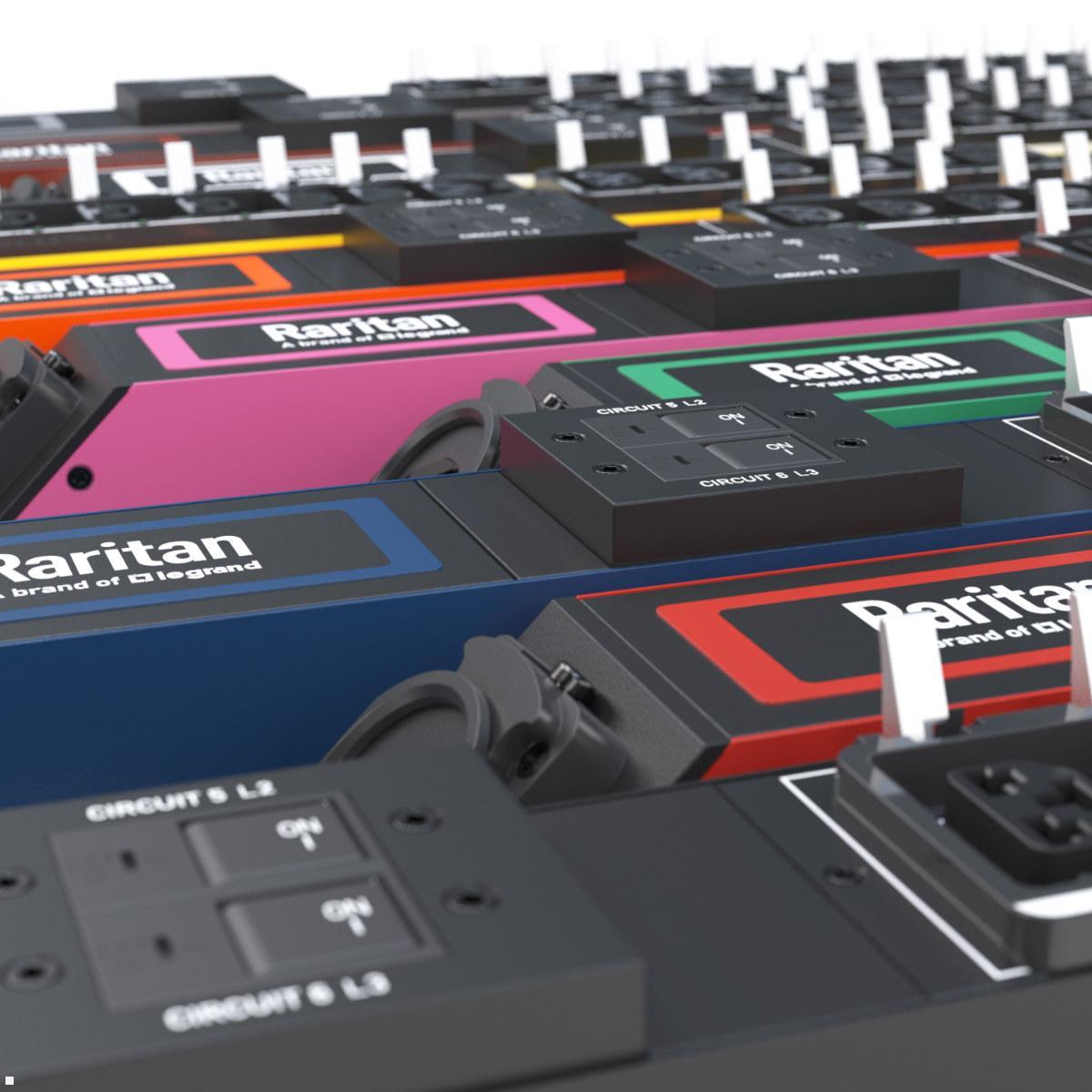

- Overcurrent protection: 6 circuit breakers
- Energy metering: Class 0.5 (±0.5%)
- Remote Outlet Switching: Yes
- Controller: Hot-swappable

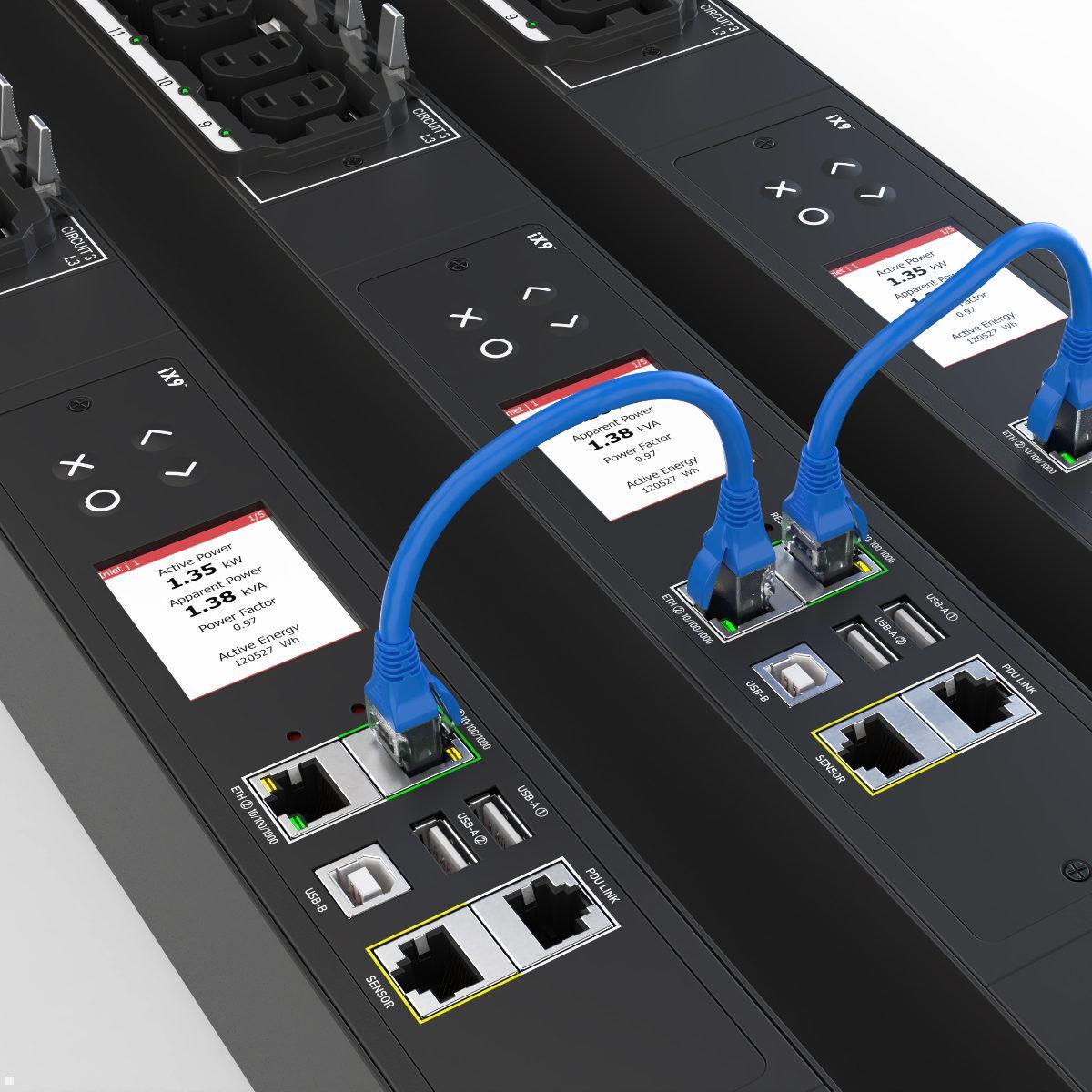

- Network: 2x Gigabit Ethernet (10/100/1000), optional Wi-Fi
- Remote management: HTTPS, SSH, Telnet, SNMP v2/v3, JSON-RPC, Redfish API, MODBUS-TCP
- Display: Color LCD, auto-flip
- Environmental sensors: up to 32 sensor functions
- Input cable length: 3 m
- Dimensions (W×D×H): 56 x 65 x 1780 mm
- Weight: approx. 7.7 kg
- Certification: CE
- Warranty: 2 years
| Product sheet: |  [pdf - Englisch] |
|---|---|
| Contains installation material: | + |
| Warranty: | 2 years |
| Manufacturer/Importer: | Legrand AV Netherlands B.V. / Chief, Franklinstraat 14, 6003 DK Weert NL, deutschland.verkauf@av.legrand.com |
| Einspeisung: | 32A |
| FI switch: | No |
| Fuse: | Yes |
| Mains filter: | No |
| Messen: | pro Phase |
| Number of sockets: | 36 Outlets |
| Overvoltage protection: | No |
| Phasen: | 3-phasig |
| RCM-Differenzstrommessung: | Nein |
| Schalten: | Ja |
| Steckerart: | C13,Combosocket |
| Größe PDU: | Vertikal, 42 HE |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the Legrand Raritan iX Rack-PDU PX4-2699-E7V2?
It is a powerful 0U vertical rack PDU with 18x C13 and 18x HDOT Cx outlets (36 outlets total), 3-phase 400V/32A supply, and a 22.2 kVA rating.
-
How many outlets and types does it have?
It provides 18x C13 and 18x HDOT Cx outlets, for a total of 36 outlets.
-
What are the input and power specifications?
Nominal voltage is 400V, 3-phase; max input current 32A; power capacity 22.2 kVA.
-
What energy monitoring is available?
Billing-grade energy monitoring to class 0.5 (±0.5%) measures voltage, current, active power, apparent power, energy and power factor – on both the input line and the output breaker.
-
Can outlets be switched remotely?
Yes, Remote Outlet Switching allows turning each outlet on or off over the network.
-
Is the controller hot-swappable?
Yes, a hot-swappable controller with an integrated processor, 16 MB SPI Flash and 64 MB DDR2 RAM can be replaced without powering down, ensuring maximum availability.
-
How can I manage and connect the device?
Dual Gigabit Ethernet (10/100/1000), optional WLAN; remote management via HTTPS, SSH, Telnet, SNMP v2/v3, JSON-RPC, Redfish API and MODBUS-TCP.
