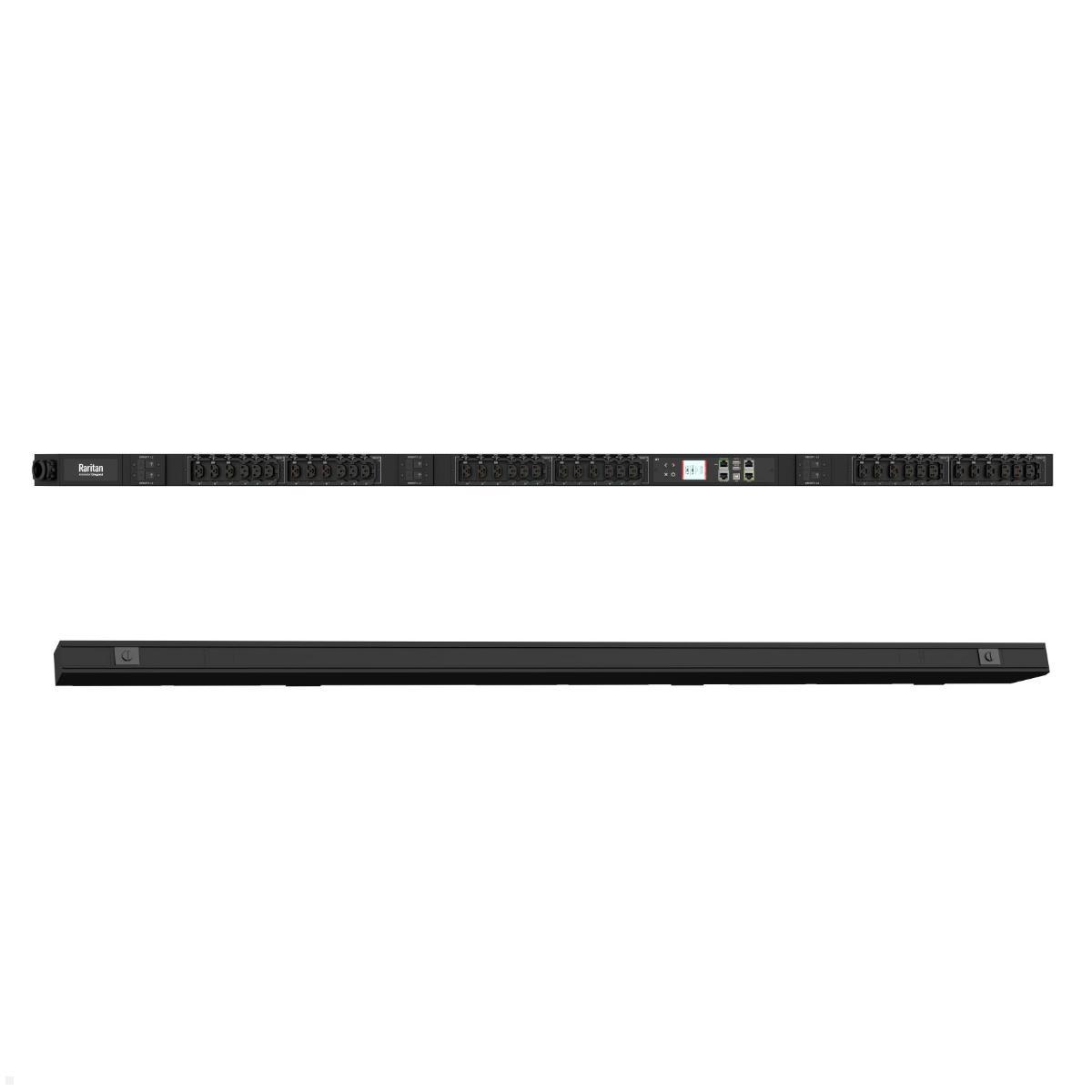

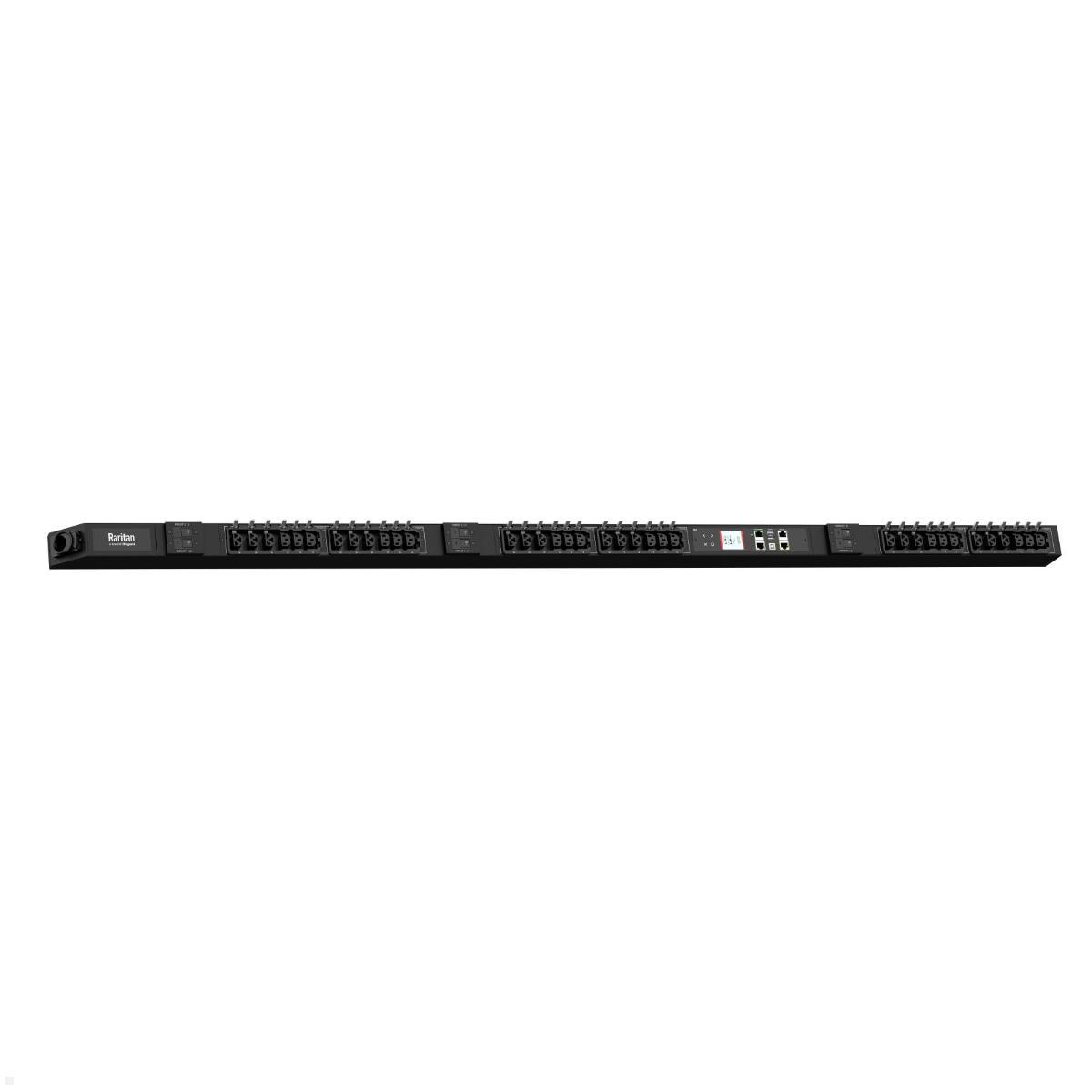

Legrand Raritan iX Rack-PDU 0U with 18xHDOT C13 / 18xCx, 3-phase 400V 32A, Outlet Metered/Switched RCM (PX4-5699-E7M28V2)
Highlights
- 0U Rack-PDU, 36 Outlets HDOT C13/Cx
- 3-phase 400V 32A, 22.2 kVA power
- Outlet metered/switched + RCM
- 6 circuit breakers, class 0.5
- Hot-swap controller, dual Gigabit LAN
High-performance 3-phase 0U Rack PDU with RCM, 32A and 22.2 kVA
The Legrand Raritan iX Rack-PDU PX4-5699-E7M28V2 is the most powerful 3-phase 0U PDU in the Raritan iX series. With 18x HDOT C13 and 18x Cx outlets (36 outlets total), 3-phase input at 400V/32A (IEC 60309 3P+N+PE 6Hr) and a power capacity of 22.2 kVA it reliably supplies even the most power-intensive server environments. Six integrated circuit breakers (16A, 10 kAIC) provide optimal overload protection for all output circuits. The outlet metered/switched energy monitoring to class 0.5 (±0.5%) captures all relevant measurements per input line, circuit breaker and individual outlet. The integrated RCM (Residual Current Monitoring) continuously monitors the differential current.

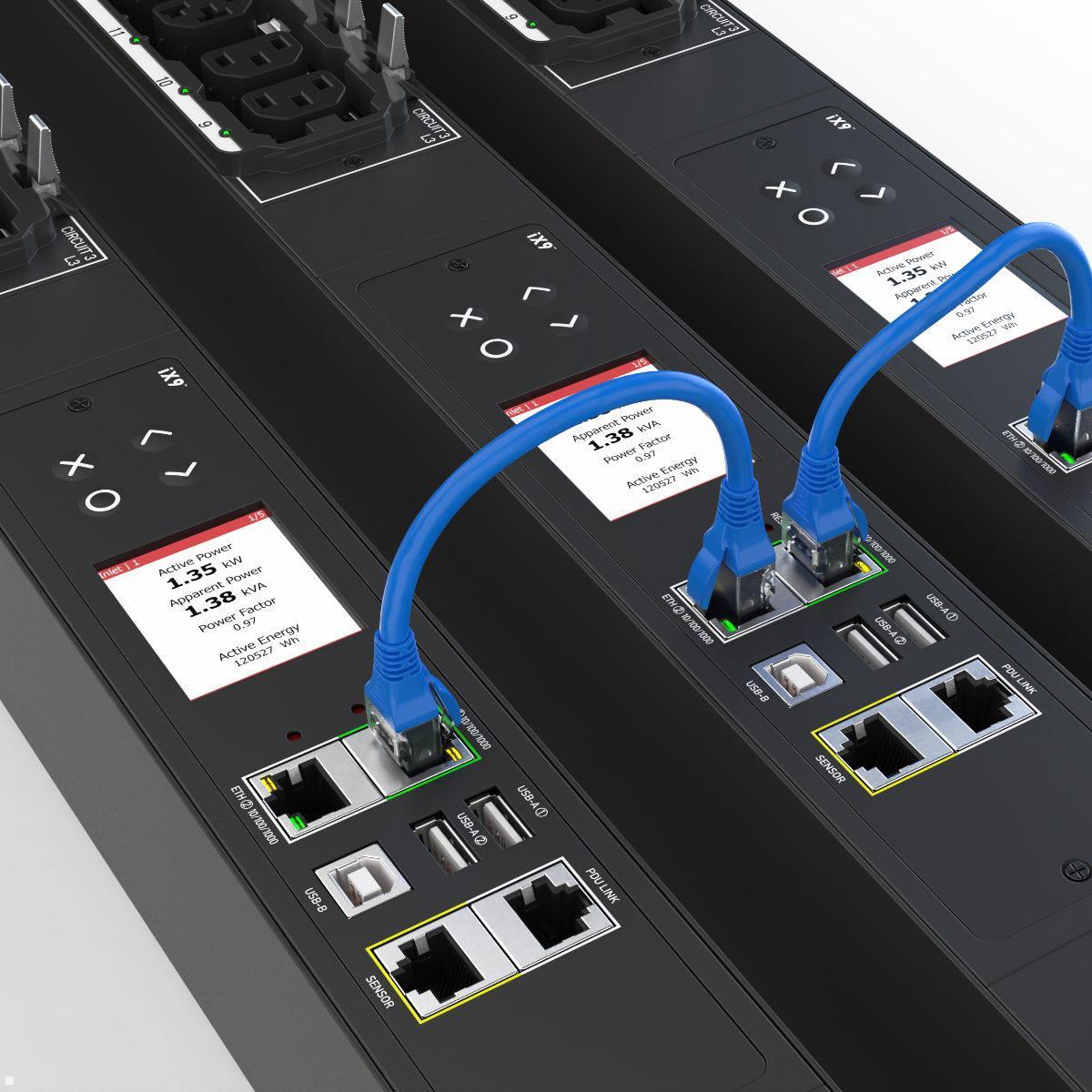

The Remote Outlet Switching enables individual switching of each outlet over the network. The hot-swappable controller can be replaced during operation. Up to 8 PDUs can be linked, up to 32 physically cascaded. Dual Gigabit Ethernet, optional WLAN as well as remote management via HTTPS, SSH, SNMP v2/v3, JSON-RPC API and Redfish API make the Legrand Raritan iX Rack-PDU 0U with 18xHDOT C13 / 18xCx, 3-phase 400V 32A, Outlet Metered/Switched RCM (PX4-5699-E7M28V2) the top solution for high-performance data centers.
Technical Details Legrand Raritan iX Rack-PDU PX4-5699-E7M28V2
- Form factor: 0U vertical
- Input plug: IEC 60309 3P+N+PE 6Hr (230/400V, 32A)
- Rated voltage: 400V, 3-phase
- Max. input current: 32A
- Power capacity: 22.2 kVA
- Outputs: 18x HDOT C13 + 18x Cx (36 total)
- Overload protection: 6 circuit breakers (16A, 10 kAIC)
- Energy monitoring: Class 0.5 (±0.5%), per outlet
- Remote outlet switching: Yes
- RCM (residual current monitoring): Yes
- Controller: Hot-swappable
- Network: 2x Gigabit Ethernet (10/100/1000), opt. WLAN
- Remote management: HTTPS, SSH, Telnet, SNMP v2/v3, JSON-RPC, Redfish API, MODBUS-TCP
- Display: Color LCD, Auto-Flip
- Environmental sensors: up to 32 sensor functions
- Input cable length: 3 m
- Dimensions (W×D×H): 56 x 65 x 1780 mm
- Weight: approx. 8.2 kg
- Certification: CE
- Warranty: 2 years
| Product sheet: |  [pdf - Englisch] |
|---|---|
| Contains installation material: | + |
| Warranty: | 2 years |
| Manufacturer/Importer: | Legrand AV Netherlands B.V. / Chief, Franklinstraat 14, 6003 DK Weert NL, deutschland.verkauf@av.legrand.com |
| Einspeisung: | 32A |
| FI switch: | No |
| Fuse: | Yes |
| Mains filter: | No |
| Messen: | pro Port |
| Number of sockets: | 36 Outlets |
| Overvoltage protection: | No |
| Phasen: | 3-phasig |
| RCM-Differenzstrommessung: | Ja |
| Schalten: | Ja |
| Steckerart: | C13,Combosocket |
| Größe PDU: | Vertikal, 42 HE |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the product name?
Legrand Raritan iX Rack-PDU 0U with 18xHDOT C13 / 18xCx, 3-phase 400V 32A, Outlet Metered/Switched RCM (PX4-5699-E7M28V2).
-
What is the power capacity?
Power capacity is 22.2 kVA at 400V 3-phase (max input current 32A).
-
How many outlets does it have?
36 outlets in total (18x HDOT C13 + 18x Cx).
-
What protection features are included?
Six integrated circuit breakers (16A, 10 kAIC) provide overload protection.
-
What monitoring and management features are available?
Outlet Metered/Switched energy monitoring to Class 0.5 (±0.5%) captures measurements per input, fuse and outlet; the RCM monitors differential current. Remote Outlet Switching enables individual switching of each outlet over the network; dual Gigabit Ethernet, optional WLAN, and remote management via HTTPS, SSH, SNMP v2/v3, JSON-RPC and Redfish API support remote management.
-
How many PDUs can be linked or cascaded?
Up to 8 PDUs can be linked, up to 32 physically cascaded.
-
What are the dimensions and weight?
Form factor: 0U vertical; Dimensions: 56 x 65 x 1780 mm; Weight: approx. 8.2 kg.
-
What is the warranty?
Warranty: 2 years.
