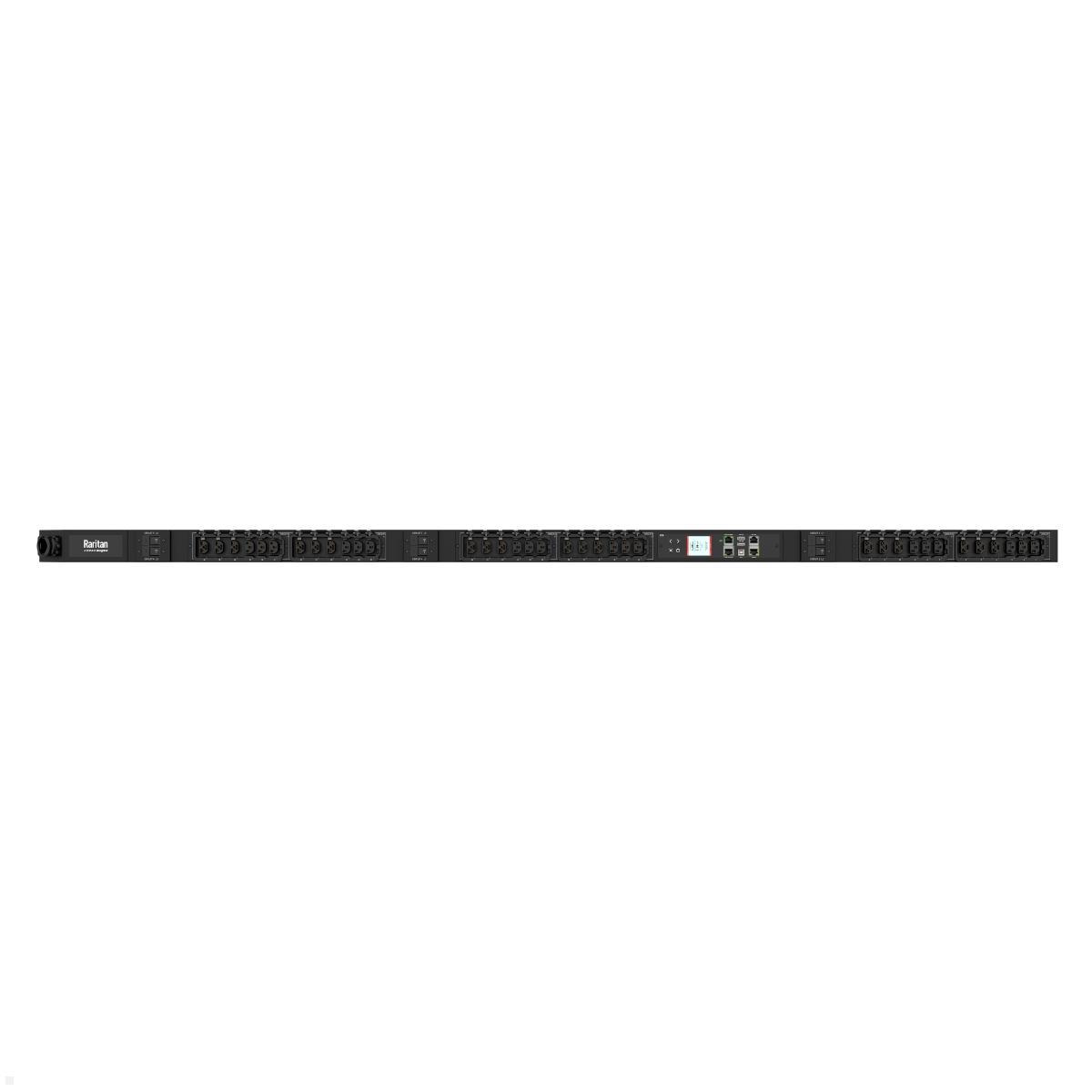

Legrand Raritan iX Rack-PDU 0U with 18xHDOT C13 / 18xCx, 3-phase 400V 32A, Outlet Metered/Switched (PX4-5699-E7V2)
Article number:
91120151
Manufacturer:
Legrand
Manufacturernumber:
PX4-5699-E7V2
EAN:
0785813120151
€3,594.99*
delivery time: 1 - 5 working days
Freight forwarding
Highlights
- 36 lockable outlets: 18x C13, 18x Cx
- 23 kVA, 3-phase 415V/32A
- Billing-grade metering ±0.5% (Class 0.5)
- Remote outlet switching via network
- Hot-swappable controller iX12, dual Gigabit Ethernet
0U Rack PDU with Remote Outlet Switching and Billing-Grade Energy Measurement
The Legrand Raritan iX Rack-PDU 0U (PX4-5699-E7V2) is a powerful 3-phase 0U PDU with 36 locking outlets (18x C13 Locking 10A, 18x Cx Locking 16A) and an input capacity of 23 kVA at 415V/32A (3-phase). Thanks to the compact 0U form factor it saves valuable rack space and can be mounted space-efficiently at the side. The billing-grade energy measurement of class 0.5 records voltage (V), current (A), active power (kW), apparent power (kVA), energy (kWh) and power factor – both per input line, per circuit breaker and per individual outlet. The hot-swappable controller (iX12) enables replacement during operation without downtime. Remote outlet switching allows individual on/off control of each outlet via the network. Power quality monitoring captures harmonics, voltage sags, voltage swells, mains current and inrush currents. Up to 8 PDUs can be linked via PDU-Linking into a single management unit; in cascading mode up to 32 PDUs can be operated under a single Ethernet port or 16 PDUs via USB. Two USB-A ports (5V/500mA) and one USB-B port complete the connectivity. The Legrand Raritan iX Rack-PDU 0U is ideal for data centers, server rooms and professional IT infrastructures with high monitoring requirements.Technical Details Legrand Raritan iX Rack-PDU 0U
- Form factor: 0U (vertical mounting)
- Input: IEC 60309 3P+N+E 6h 32A (4P5W)
- Nominal input voltage: 415V 3-phase
- Rated input voltage: 380–415V 3-phase
- Input frequency: 50/60 Hz
- Max input current: 32A
- Power capacity: 21.1 kVA at 380V / 23.0 kVA at 415V
- Cable length: 3 m, bottom-front feed
- Output nominal voltage: 230V (220–240V)
- Outlets: 18x IEC320 C13 Locking (10A) + 18x Cx Locking (16A) = 36 total
- Outlet LEDs: R/G/B LEDs (powered on/off, threshold, service mode, trip forensics)
- Outlet locking: Yes (incl. SecureLock / P-lock)
- Overload protection: 6x LEJBXV6-16 circuit breakers
- Current measurement: Class 0.5 (±0.5%)
- Measured parameters: Voltage (V), Current (A), Active power (kW), Apparent power (kVA), Energy (kWh), Power factor
- Measurement per input line: Yes
- Measurement per circuit breaker: Yes
- Measurement per outlet: Yes
- Remote outlet switching: Yes
- Power quality monitoring: Harmonics (voltage & current), displacement power factor, voltage sags & swells, mains current, inrush current, crest factor
- Controller: iX12, hot-swappable
- Display: Multi-color LCD (voltage, current, active power per line or outlet; alarms; configuration; auto-flip)
- PDU linking: up to 8 PDUs (PDU link port)
- Cascading: up to 32 PDUs (Ethernet) / 16 PDUs (USB)
- Network: Dual Gigabit Ethernet (10/100/1000 Base-T), optional Wi-Fi (802.11 a/b/g/n)
- USB ports: 2x USB-A (5V/500mA), 1x USB-B
- Remote access: HTTP(S), SSH (CLI), Telnet, RS-232, SNMP v2/v3, SMTP, JSON-RPC API, MODBUS-TCP, Redfish API
- SmartLock: contact and contact-closure sensors
- Sensor port: RJ45 (incl. sensor hub support)
- Reset button: firmware restart without power interruption to the outlets
- Environmental sensors: temperature, humidity, airflow, differential air pressure, water leak, dust/particles, proximity/motion, vibration, dry contact
- Operating temperature: up to 60 °C
- Relative humidity (operating): 5–95% (non-condensing)
- Operating altitude: 0–3,048 m
- Enclosure: extruded aluminum, black powder-coated
- Certifications: CE, RoHS, FCC Part 15 Class A, Canada ICES-003
- Warranty: 2 years manufacturer warranty

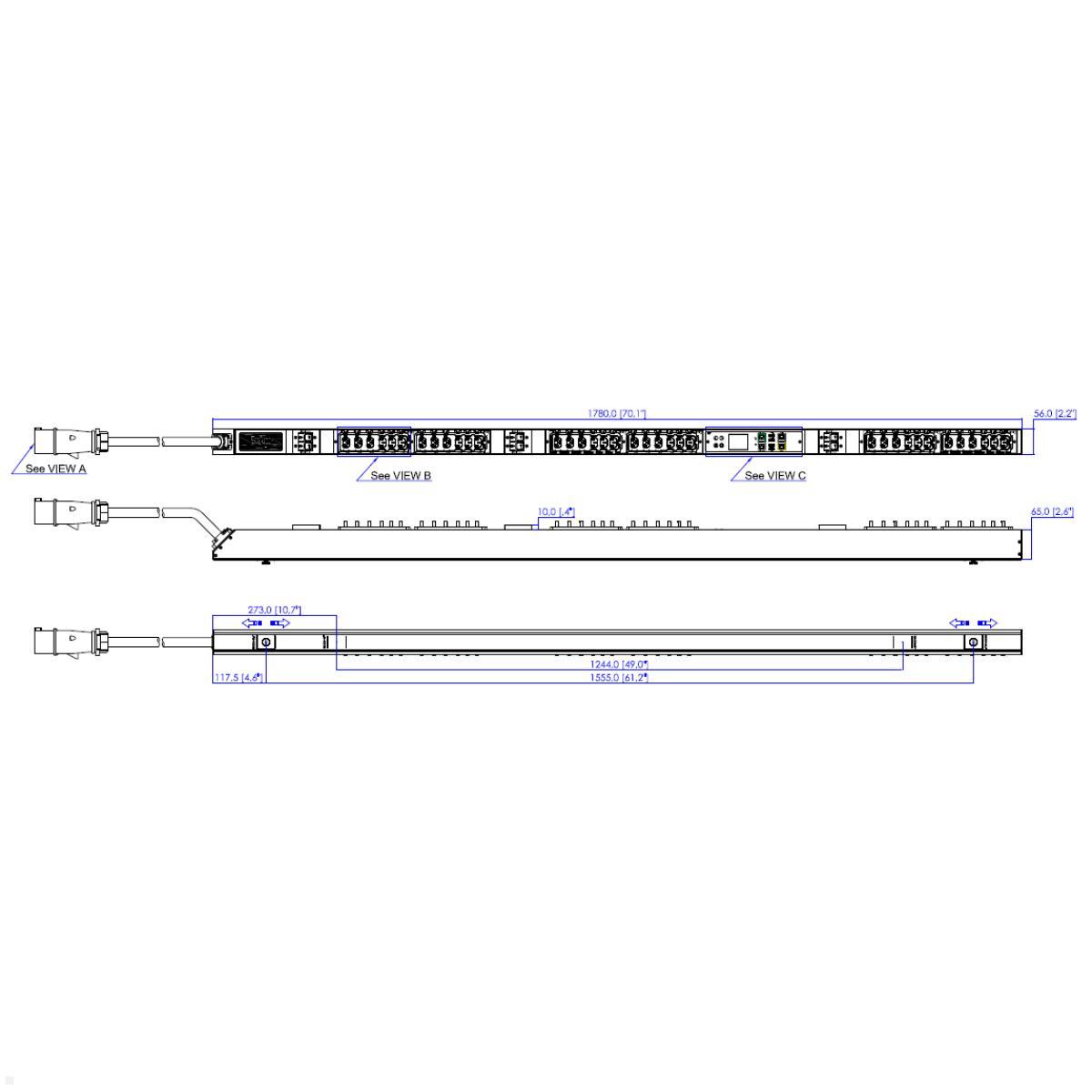

- Dimensions (W×D×H): 56 x 65 x 1780 mm
- Net weight: 8.18 kg
- Shipping weight: 10.63 kg
- Shipping dimensions (W×D×H): 255 x 125 x 1940 mm
| Product sheet: |  [pdf - Englisch] |
|---|---|
| Technical drawing: | [pdf] |
| Packaging dimensions (LxWxH in mm): | 1940 x 255 x 125 |
| Contains installation material: | + |
| Warranty: | 2 years |
| Manufacturer/Importer: | Raritan Europe B.V., Jan van Galenstraat 59, 3115 JG Schiedam, The Netherlands, sales.germany@raritan.com |
| Einspeisung: | 32A |
| FI switch: | No |
| Mains filter: | No |
| Messen: | pro Port |
| Number of sockets: | 36 Outlets |
| Overvoltage protection: | No |
| Phasen: | 3-phasig |
| RCM-Differenzstrommessung: | Nein |
| Schalten: | Ja |
| Steckerart: | C13, Combosocket |
| Strommessung / Überwachung: | Ja, online |
| color: | Black |
| Größe PDU: | Vertikal, 42 HE |
| USB-Charger: | USB A/B |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Login
Questions & Answers
-
What are the input specifications of the Legrand Raritan iX Rack-PDU 0U (PX4-5699-E7V2)?
It is 3-phase, 400V 32A input; nominal input voltage is 415V (range 380–415V). Form factor: 0U. Cable length: 3 m, bottom-front feed (IEC 60309 3P+N+E 6h 32A).
-
How many outlets does it have and what types are included?
36 outlets total: 18x IEC320 C13 Locking (10A) and 18x Cx Locking (16A).
-
What metering capabilities are provided?
Billing-grade energy measurement class 0.5; measures voltage, current, real power, apparent power, energy and power factor. Measurements per input leg, per circuit breaker and per outlet.
-
What does Remote Outlet Switching enable?
Allows individual turning on/off of each outlet over the network.
-
What are the management and connectivity features?
Multi-Color LCD display; dual Gigabit Ethernet; USB ports; remote access via HTTP(S), SSH, Telnet, RS-232, SNMP v2/v3, SMTP, JSON-RPC API, MODBUS-TCP and Redfish API.
-
How scalable is the PDU system?
PDU-Linking supports up to 8 PDUs; cascading supports up to 32 PDUs via Ethernet or 16 PDUs via USB.
-
What are the typical applications and environmental conditions?
Ideal for data centers, server rooms and professional IT infrastructure with high monitoring requirements. Operating temperature up to 60 °C; 5–95% relative humidity (non-condensing).
-
What are the physical specifications?
Dimensions (W×D×H): 56 × 65 × 1780 mm; weight 8.18 kg; shipping weight 10.63 kg; shipping size 255 × 125 × 1940 mm.
