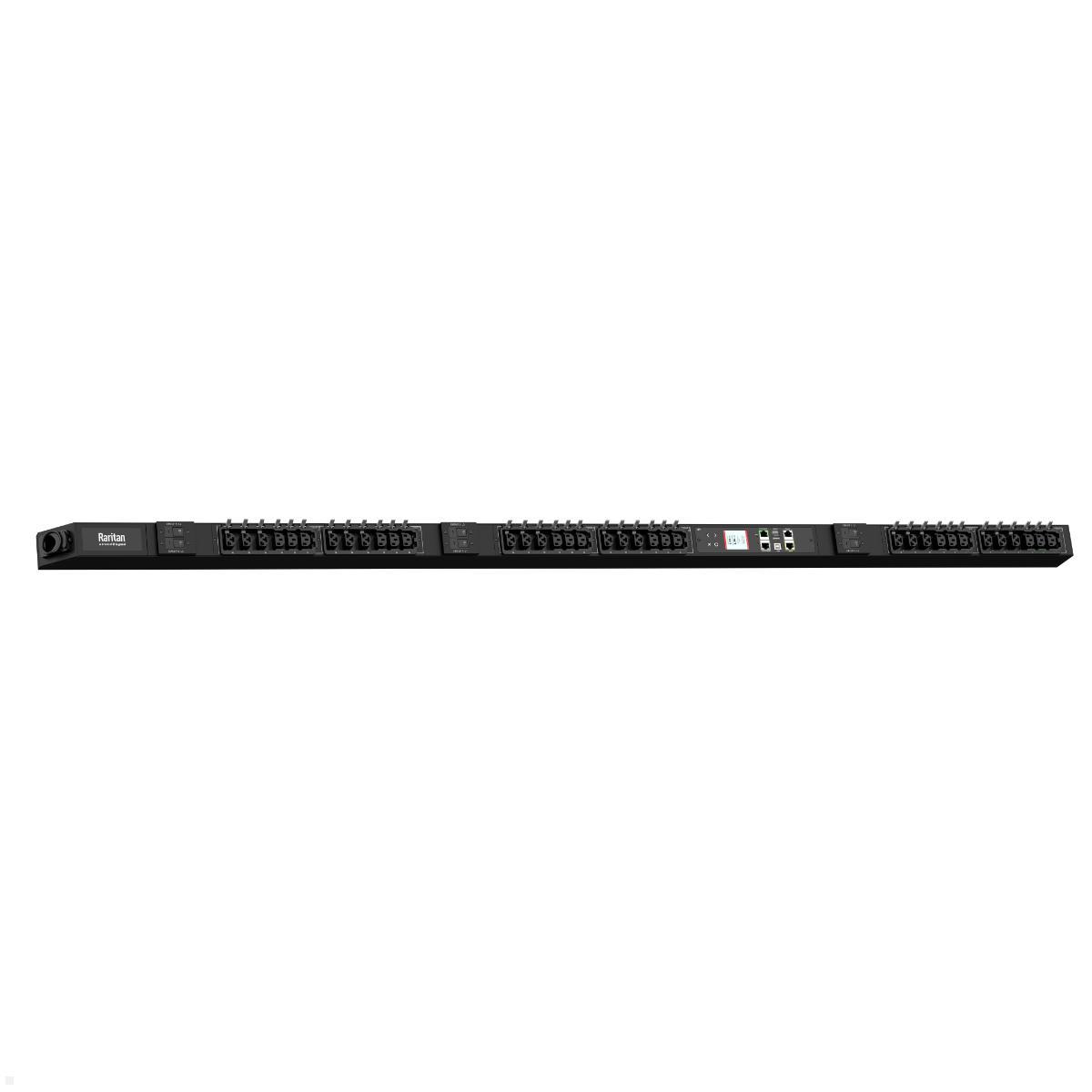

Legrand Raritan iX Rack-PDU 0U with 18xC13 / 18xHDOT Cx, 3-phase 400V 32A, Outlet Metered (PX4-4699-E7V2)
Highlights
- 36 outputs: 18x C13, 18x HDOT Cx
- Class 0.5 energy measurement per output
- Hot-swappable controller
- Up to 32 PDUs cascadeable
- Color LCD display with auto-flip
Intelligent Rack PDU with Outlet Metering for Data Centers
The Legrand Raritan iX Rack PDU 0U with 18x C13 / 18x HDOT Cx, 3-phase 400V 32A, Outlet Metered (PX4-4699-E7V2) is a powerful power distribution unit for professional IT infrastructures. With a total of 36 outlets, split into 18x C13 and 18x combined HDOT Cx sockets, this intelligent PDU provides precise energy metering Class 0.5 per input line, per circuit breaker and per outlet. Power quality monitoring includes voltage and current harmonic distortion, voltage sags and swells, neutral current, inrush current peaks and crest factor.
The hot-swappable controller allows replacement during operation and ensures maximum availability. Via the integrated color LCD display with auto-flip function, voltage, current and power can be read directly on the device. The rack PDU supports environmental sensors for temperature, humidity, airflow, differential pressure, dust, water leakage, motion, vibration and more. Up to 32 PDUs can be cascaded via a single Ethernet port, up to 8 PDUs can be linked via the link port. Remote management is available via HTTP(S), SSH, SNMP v2/v3, JSON-RPC API, MODBUS-TCP, Redfish API and other protocols. Ideal for use in data centers, server rooms and network cabinets.
Technical Details Legrand Raritan iX Rack PDU PX4-4699-E7V2
- Input: 230/400V Wye 32A IEC 60309 3P+N+PE 6h
- Rated voltage: 400V
- Max. input current: 32A
- Power capacity: 22.2 kVA
- Supply cable: 3 m
- Outlets: 18x C13, 18x HDOT Cx (combined C13/C19)
- Overcurrent protection: 6 circuit breakers
- Measurement accuracy: Class 0.5
- Measurement per input line, circuit breaker and outlet
- Remote switching of outlets: No
- Network: Dual 10/100/1000 Base-T Ethernet, optional Wi-Fi (802.11 a/b/g/n)
- Remote management: HTTP(S), SSH, Telnet, RS-232, SNMP v2/v3, SMTP, JSON-RPC API, MODBUS-TCP, Redfish API
- Cascading: up to 32 PDUs via Ethernet, up to 16 PDUs via USB
- Linking: up to 8 PDUs via link port
- Environmental sensors: temperature, humidity, airflow, differential pressure, dust, water leakage, motion, vibration, dry contact
- Display: color matrix LCD with auto-flip
- Controller: hot-swappable
- Dimensions (WxDxH): 56 x 65 x 1780 mm
- Weight: approx. 7.3 kg
- Shipping weight: approx. 10.1 kg
- Shipping dimensions (HxDxW): 1940 x 255 x 125 mm
- Operating temperature: up to 60 °C
- Operating humidity: up to 85 %
- Ingress protection: IP20
- Certifications: CE
- Warranty: 2 years manufacturer's warranty
| Product sheet: |  [pdf - Englisch] |
|---|---|

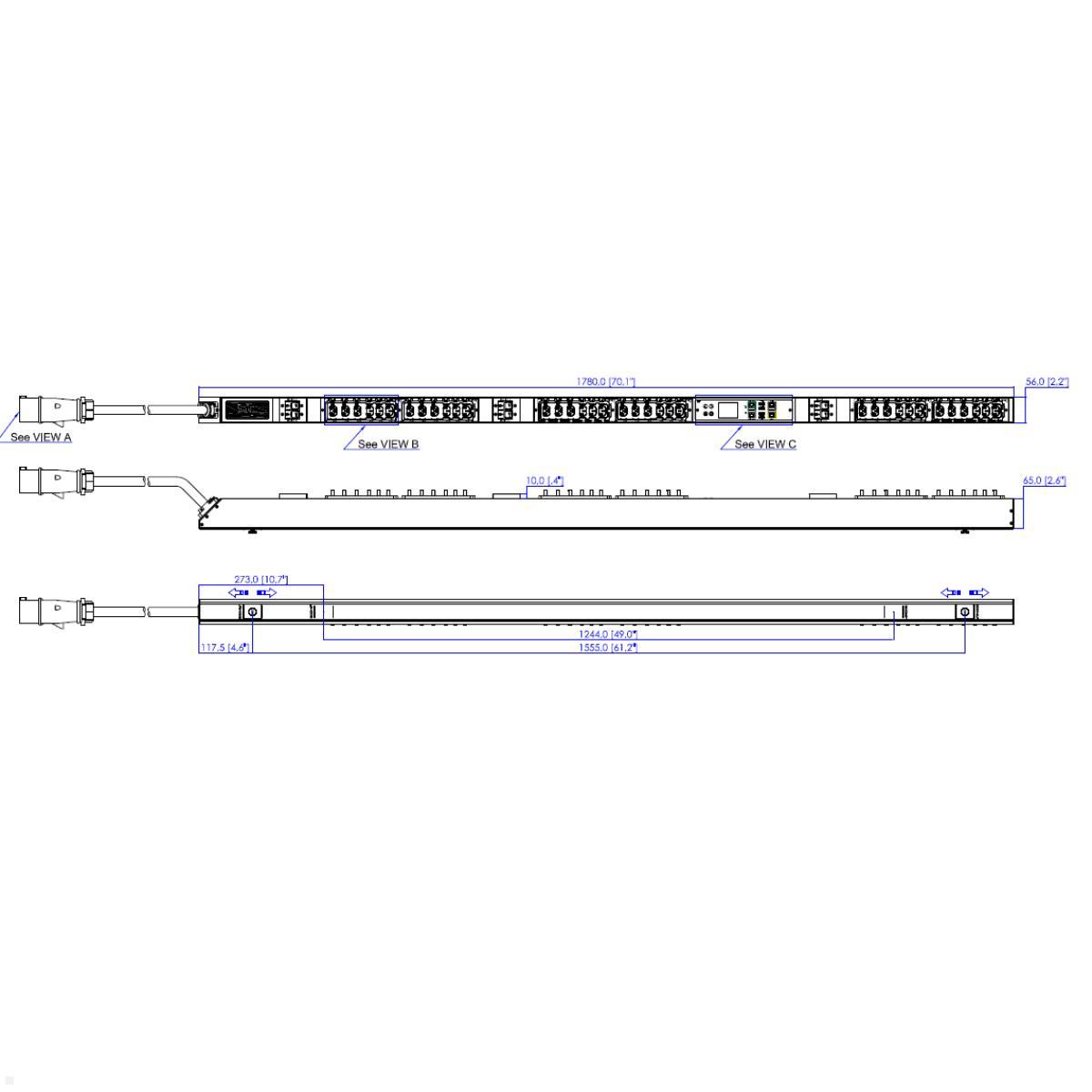

| Technical drawing: | [pdf] |
| Packaging dimensions (LxWxH in mm): | 1940 x 255 x 125 |
| Scope of delivery: | Legrand Raritan iX Rack-PDU PX4-4699-E7V2, mounting accessory G4-HOLDER-FOR-ZU, installation manual |
| Contains installation material: | + |
| Warranty: | 2 years |
| Manufacturer/Importer: | Raritan Europe B.V., Jan van Galenstraat 59, 3115 JG Schiedam, The Netherlands, sales.germany@raritan.com |
| Einspeisung: | 32A |
| FI switch: | No |
| Fuse: | Yes |
| Mains filter: | No |
| Messen: | pro Port |
| Number of sockets: | 36 Outlets |
| Overvoltage protection: | No |
| Phasen: | 3-phasig |
| RCM-Differenzstrommessung: | Nein |
| Schalten: | Nein |
| Steckerart: | C13,Combosocket |
| Strommessung / Überwachung: | Ja, online |
| color: | Black |
| Größe PDU: | Vertikal, 42 HE |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the Legrand Raritan iX Rack-PDU PX4-4699-E7V2?
An intelligent 0U rack PDU with 36 outlets (18x C13, 18x HDOT Cx) for 3-phase 400V 32A operation, with outlet metering.
-
How many outlets and what types does the PDU provide?
36 outlets: 18x C13 and 18x HDOT Cx (C13/C19 combined).
-
What does outlet metering include?
Metering accuracy class 0.5; measurement per input line, per circuit breaker, and per outlet.
-
What network management options and protocols are supported?
Remote management via HTTP(S), SSH, SNMP v2/v3, JSON-RPC API, MODBUS-TCP, Redfish API and more; dual Ethernet 10/100/1000, with optional Wi‑Fi.
-
How many PDUs can be cascaded or linked?
Cascade up to 32 PDUs over Ethernet, up to 16 PDUs over USB; up to 8 PDUs linked via the Link-Port.
-
What environmental sensors are supported?
Supports sensors for temperature, humidity, airflow, differential pressure, dust, water leakage, movement, vibration, and more; the color LCD displays voltage, current and power.
-
What are the key electrical and physical specifications?
Input: 230/400V Wye, 32A; Nominal voltage 400V; Max input current 32A; Power capacity 22.2 kVA; Cable 3 m; Outlets 18x C13, 18x HDOT Cx; Dimensions 56 x 65 x 1780 mm; Weight ~7.3 kg; Shipping weight ~10.1 kg; IP20; CE; 2-year warranty.
What is the Legrand Raritan iX Rack-PDU and who is it suitable for?
The Legrand Raritan iX Rack-PDU is an intelligent power distribution unit designed specifically for professional use in data centers, server rooms, and network cabinets. It combines precise energy metering, comprehensive remote management, and high reliability in a compact 0U form factor. With 36 outlets, divided into 18x C13 and 18x combined HDOT Cx sockets, the PDU reliably supplies power to numerous devices. The 3-phase 400V 32A input with a power capacity of 22.2 kVA makes it an ideal choice for demanding IT infrastructures. Administrators benefit from class 0.5 energy metering, which offers billing-grade accuracy and transparency of the power consumption of each individual outlet.
What management and monitoring options does the Rack-PDU offer?
The Legrand Raritan iX PDU offers extensive options for remote monitoring and management. Via protocols such as HTTP(S), SSH, SNMP v2/v3, JSON-RPC API, MODBUS-TCP, and Redfish API, the PDU can be seamlessly integrated into existing management systems. The integrated color LCD display with auto-flip function shows voltage, current, and power directly on the device. The power quality monitoring detects harmonic distortion, voltage sags, inrush current peaks, and the crest factor. Up to 32 PDUs can be cascaded via a single Ethernet port, greatly simplifying the management of large installations. Additionally, the PDU supports environmental sensors for temperature, humidity, airflow, and other parameters.
Why is the hot-swappable controller a decisive advantage?
The hot-swappable controller of the Legrand Raritan iX Rack-PDU allows the control unit to be replaced during operation without interrupting the power supply to connected devices. This is especially important in business-critical environments where downtime must be avoided. The controller features an embedded processor with at least a 536 MHz clock speed, 16 MB SPI flash, and 64 MB DDR2 RAM. With the ability to link up to 8 PDUs via the link port, the primary PDU also receives redundant power from the first expansion PDU. Automated provisioning via TFTP, DHCP, SSH, or USB flash drives speeds up deployment and minimizes configuration effort. With an operating temperature of up to 60 degrees Celsius at full load and CE certification, the PDU meets the highest requirements for reliability and safety.
