Legrand Raritan iX Rack-PDU 1U with 8xC13 / 4xHDOT Cx, 1-phase 100-240V 20A, Outlet Metered (PX4-4256CR-C8E8A0)
Highlights
- 1U rack PDU, 12 outlets C13/HDOT Cx
- 1-phase 100-240V 16A, 3.8 kVA
- Outlet metering Class 0.5 (±0.5%)
- Hot-swap controller, dual Gigabit LAN
- Environmental sensor-ready, up to 32 sensor functions
Compact 1U Rack PDU with Outlet Metering and Class-0.5 Accuracy
The Legrand Raritan iX Rack-PDU PX4-4256CR-C8E8A0 is a space-saving 1U PDU for use in 19" server racks. With 8x C13 and 4x HDOT Cx outlets (12 outlets total), single-phase IEC C20 input at 100-240V/16A and a power capacity of 3.8 kVA, it is ideal for small to medium server environments. The outlet-metered energy monitoring to Class 0.5 (±0.5%) measures voltage, current, active power, apparent power, energy and power factor — both per inlet, per branch breaker and per individual outlet. The color LCD display with auto-flip function shows all relevant measurements directly on the device.

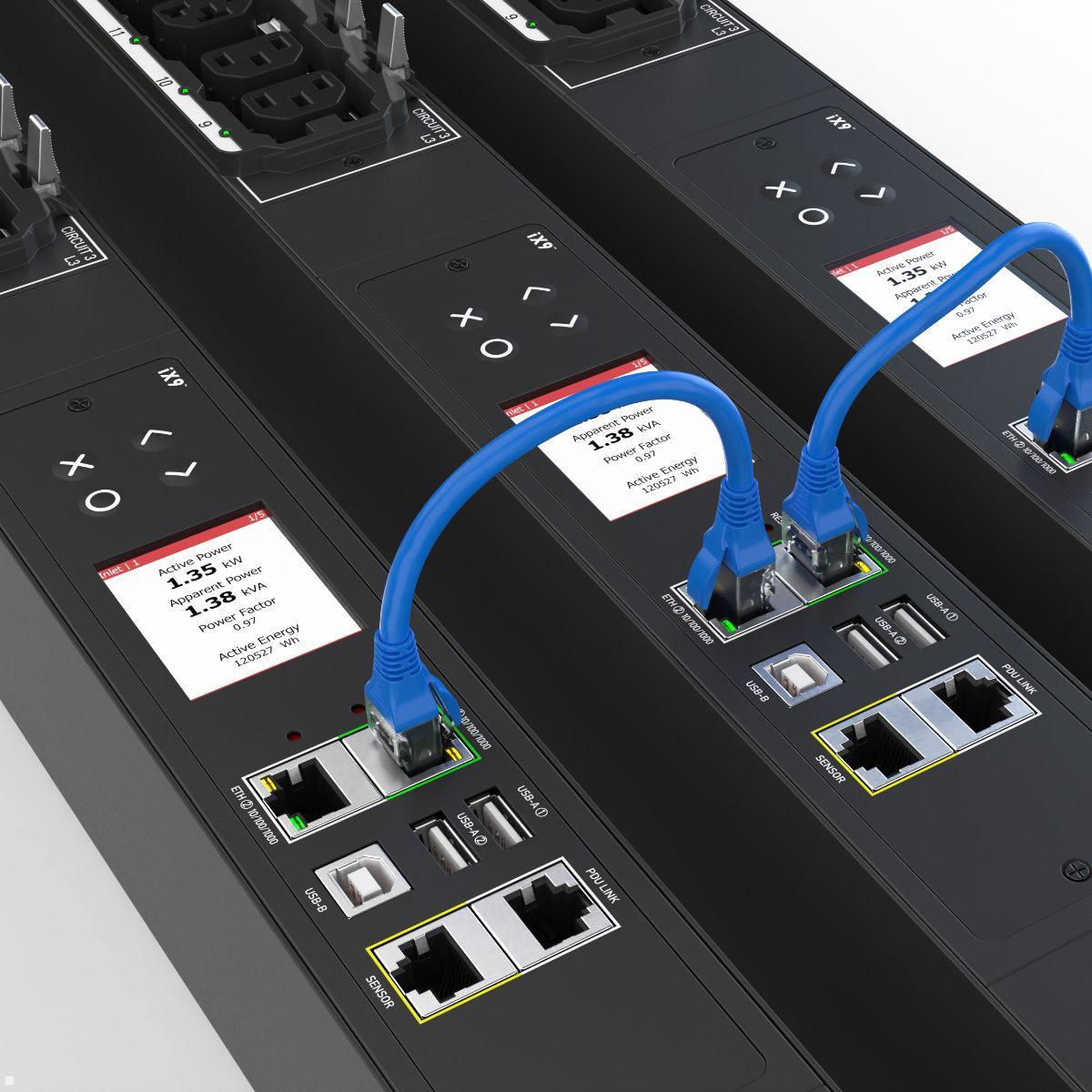

The hot-swappable controller with integrated processor, 16 MB SPI Flash and 64 MB DDR2 RAM can be replaced during operation. Up to 8 PDUs can be linked via the PDU Link Port, up to 32 PDUs can be cascaded physically. The dual Gigabit Ethernet (10/100/1000 Base-T) with optional Wi-Fi as well as extensive remote management via HTTPS, SSH, SNMP v2/v3, JSON-RPC API and Redfish API make the Legrand Raritan iX Rack-PDU 1U with 8xC13 / 4xHDOT Cx, single-phase 100-240V 20A, outlet metered (PX4-4256CR-C8E8A0) the ideal solution for modern data center and enterprise IT environments.
Technical Details Legrand Raritan iX Rack-PDU PX4-4256CR-C8E8A0
- Form factor: 1U horizontal
- Input plug: IEC C20 (100-240V)
- Rated voltage: 100-240V, single-phase
- Rated current: 16A (max. 20A)
- Power capacity: 3.8 kVA
- Outlets: 8x C13 + 4x HDOT Cx (12 total)
- Overload protection: none (0 circuit breakers)
- Energy monitoring: Class 0.5 (±0.5%), per outlet
- Remote outlet switching: No
- Controller: Hot-swappable
- Network: 2x Gigabit Ethernet (10/100/1000), optional Wi-Fi
- Remote management: HTTPS, SSH, Telnet, SNMP v2/v3, JSON-RPC, Redfish API, MODBUS-TCP
- Display: Color LCD, Auto-Flip
- Environmental sensors: up to 32 sensor functions
- Dimensions (W×D×H): 440 x 183 x 44 mm
- Weight: approx. 1.8 kg
- Certification: UL, CE
- Warranty: 2 years
| Product sheet: |  [pdf - Englisch] |
|---|---|
| Contains installation material: | + |
| Warranty: | 2 years |
| Manufacturer/Importer: | Legrand AV Netherlands B.V. / Chief, Franklinstraat 14, 6003 DK Weert NL, deutschland.verkauf@av.legrand.com |
| Einspeisung: | 16A |
| FI switch: | No |
| Fuse: | Yes |
| Mains filter: | No |
| Messen: | pro Port |
| Number of sockets: | 12 Outlets |
| Overvoltage protection: | No |
| Phasen: | 1-phasig |
| RCM-Differenzstrommessung: | Nein |
| Schalten: | Nein |
| Steckerart: | C13,Combosocket |
| Größe PDU: | 19" |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the Legrand Raritan iX Rack-PDU PX4-4256CR-C8E8A0?
It is a compact 1U rack PDU with Outlet Metering, 8x C13 and 4x HDOT Cx (12 outlets total) powered from 100-240V/16A with 3.8 kVA capacity.
-
How many outlets and types does it have?
It has 8x C13 plus 4x HDOT Cx (12 outlets in total).
-
What are the input voltage and current ratings?
Voltage is 100-240V, 1-phase; nominal current is 16A (max 20A).
-
What does the Outlet Metering monitor?
Monitors voltage, current, real power, apparent power, energy and power factor with class 0.5 accuracy (±0.5%), per input line, per output circuit and per outlet.
-
What are the network and management options?
Dual Gigabit Ethernet (10/100/1000) with optional WLAN; remote management via HTTPS, SSH, Telnet, SNMP v2/v3, JSON-RPC API, Redfish API and MODBUS-TCP.
-
How many PDUs can be linked or cascaded?
Up to 8 PDUs can be linked via the PDU Link Port and up to 32 PDUs can be cascaded physically.
-
What are the physical specs?
Form factor 1U horizontal; input plug IEC C20 (100–240V); dimensions 440 × 183 × 44 mm; weight about 1.8 kg.
-
What is the warranty and certifications?
2-year warranty; UL and CE certified.
