MonLines MLD375B TV lift ceiling mount electrically height-adjustable, stroke 375mm
Highlights
- Motorized swivel and height adjustment
- Stepless lift from 1025-1400 mm
- For 50-100 inch TVs up to 65 kg
- Intelligent collision protection system
- VESA up to 800x600 mm
Electric TV Ceiling Mount with Motorized Swivel and Height Adjustment
The MonLines MLD375B motorized swivel TV lift ceiling mount, 375mm lift, combines motorized swivel and height adjustment in a robust construction of steel and aluminum. The stepless electric lift enables flexible positioning of the TV between 1025 and 1400 mm profile height — the desired height is conveniently set via app or remote control. With the motorized 360° swivel function the display can be effortlessly rotated to any desired direction — ideal for living rooms, offices, fitness studios and commercial environments.
The mount is suitable for flat-screen TVs from 50 to 100 inches and supports a weight of up to 65 kg. An intelligent collision protection system detects obstacles during movement and reliably protects the TV and surroundings. Tilt can be adjusted manually between +3° and -20°, ensuring the optimal viewing angle at all times. Control is conveniently via app or RF remote control. Thanks to integrated cable management, the installation remains neat and tidy.
Technical details motorized swivel TV ceiling mount
- Suitable for TVs from 50 to 100 inches
- Load capacity: max. 65 kg
- VESA compatibility: 200x100 to 800x600 mm
- Profile height (lift): 1025-1400 mm, stepless electric adjustment
- Height adjustment: stepless electric (motorized)
- Swivel range: 360° motorized
- Tilt range: +3° / -20°

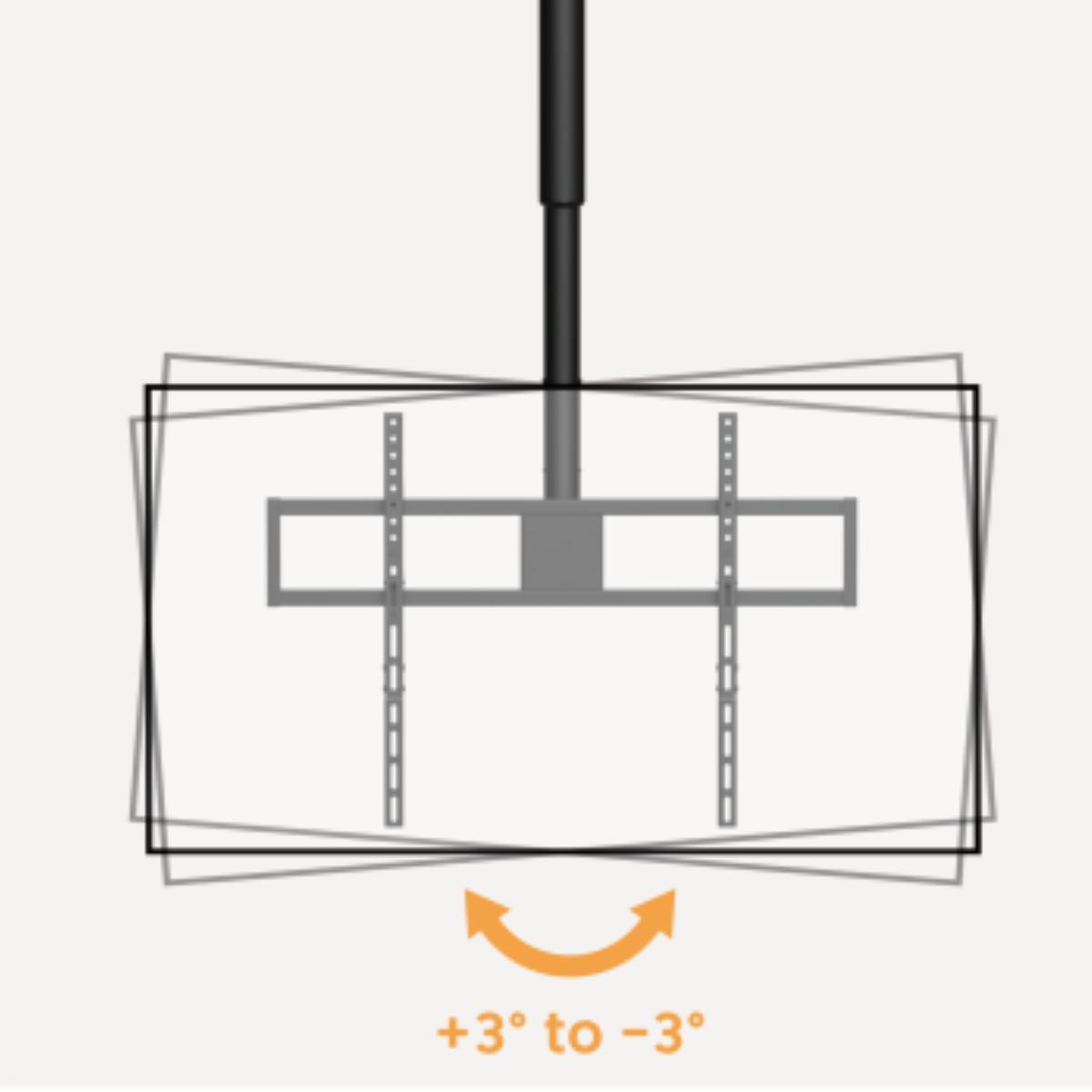

- Leveling: +3° / -3°
- Material: steel, aluminum, plastic
- Surface: powder coating, black (fine texture)
- Control: app control and RF remote control

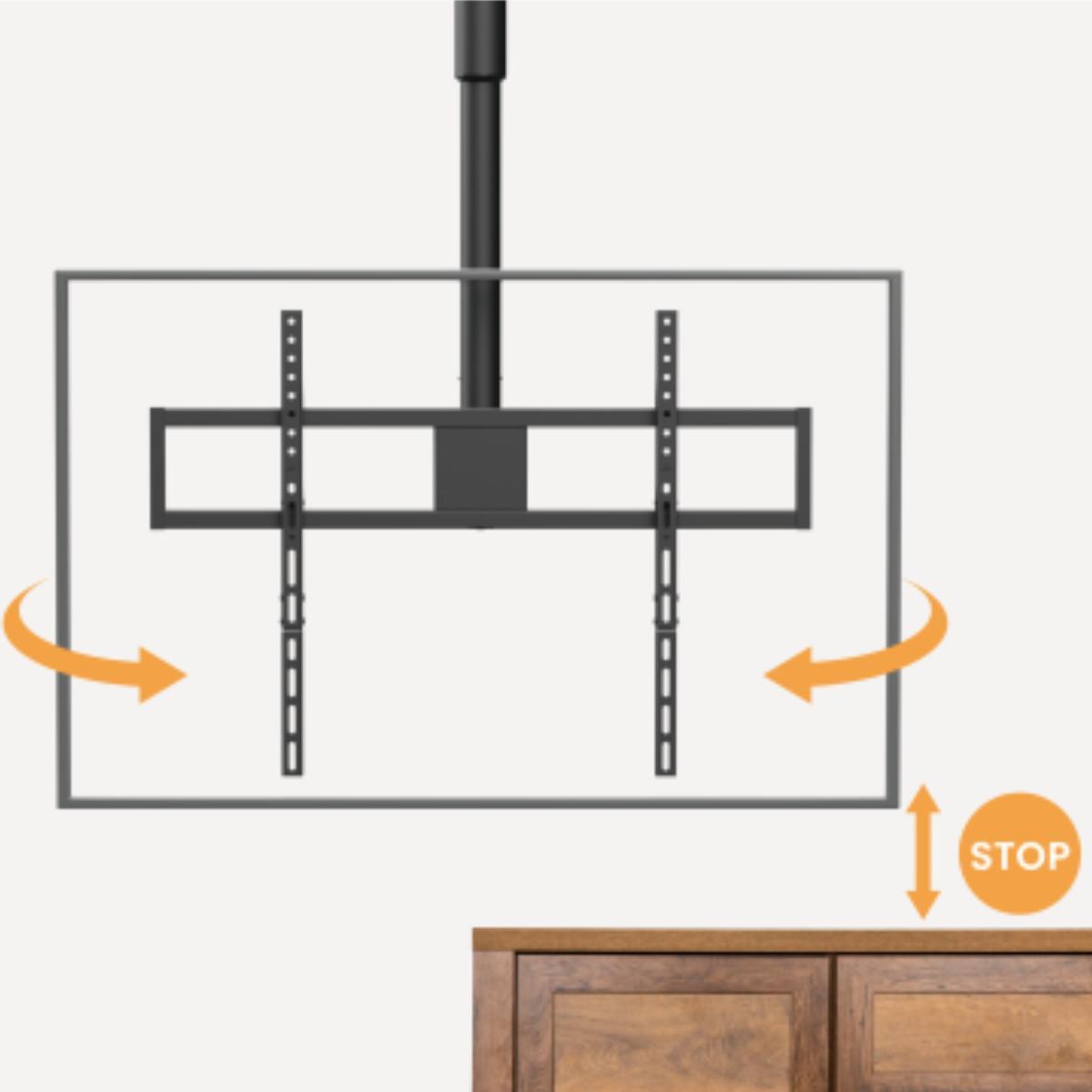

- Collision protection system integrated
- Cable management integrated
- Power supply: AC 100-240V, 50/60Hz; Output: DC 29V, 1A
- Power cord length: 1800 mm
- Curved TV suitable
- Ceiling mounting

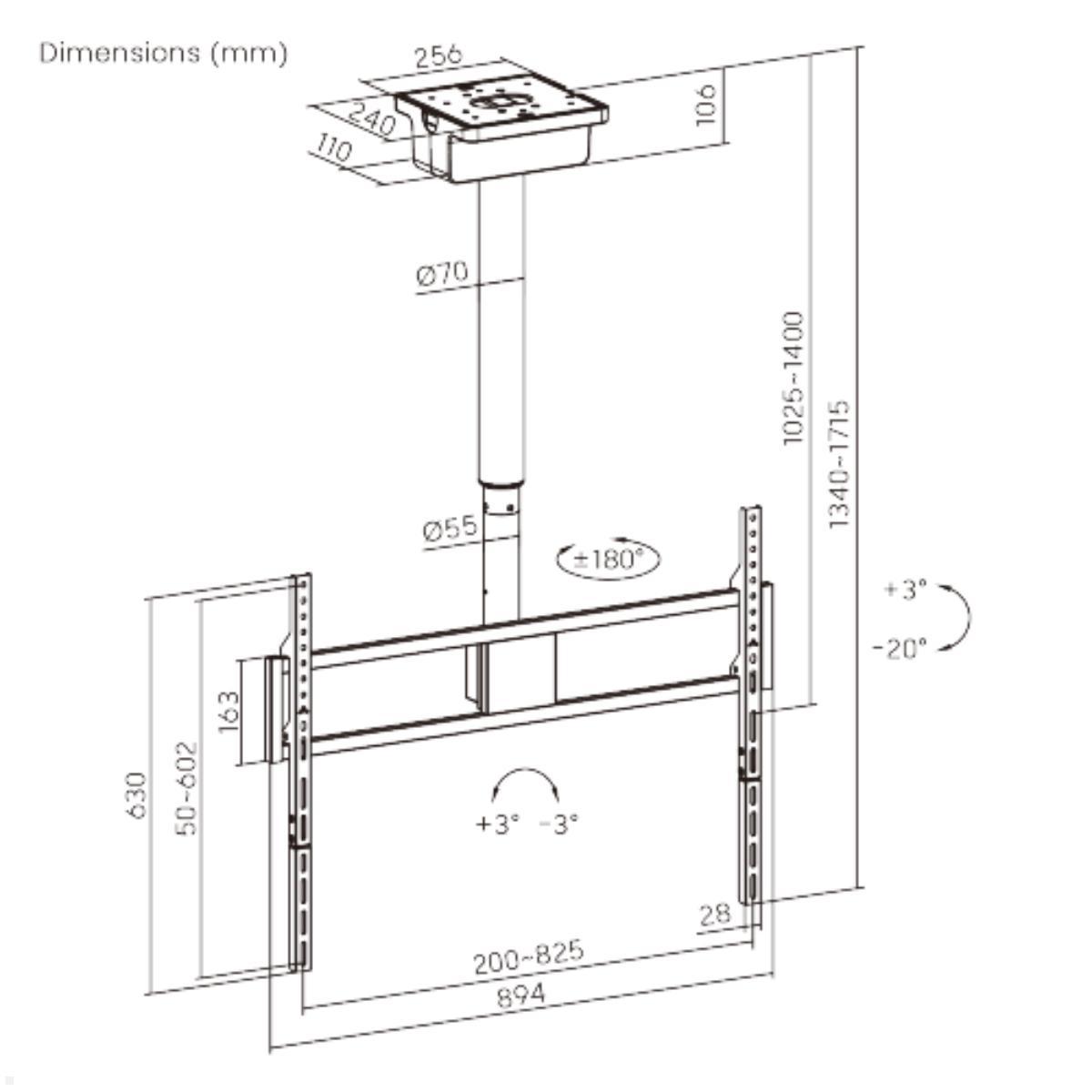

- Dimensions (L×W×H): 1400 x 894 x 240 mm
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| Capacity: | 65 kg |
| Tilt: | +3° / -20° |
| Height range (mm): | 1025 - 1400 mm |
| Swivelling range: | 360° |
| Screen size: | 50" - 100" |
| Material: | Stahl, Aluminium, Kunststoff |
| VESA Standard: | 200x100, 200x200, 200x300, 300x200, 200x400, 400x200, 300x300, 300x400, 400x300, 600x200, 350x350, 500x300, 400x400, 600x300, 500x400, 400x600, 600x400, 700x400, 800x400, 600x600, 800x500, 700x600, 800x600 mm |
| Contains installation material: | + |
| Manufacturer/Importer: | BCS Business Creative Solutions GmbH / MonLines, Am Marienhof 8, 22880 Wedel, info@monlines.de |
| Inch size: | 50 inch, 52 inch, 55 inch, 57 Zoll, 58 inch, 60 inch, 63 inch, 64 Zoll, 65 inch, 70 inch, 71 inch, 75 inch, 77 inch, 79 inch, 80 inch, 82 inch, 83 Zoll, 84 inch, 85 inch, 86 inch, 90 inch, 95 inch, 97 inch, 98 inch, 100 inch |
| Mobility: | electrical, height adjustable , swivelling, tilting |
| Mounting type: | Ceiling mount |
| Multi-monitor mount: | 1 monitor |
| color: | Black |
| VESA (in mm): | VESA 200x100, VESA 200x200, VESA 200x300, VESA 200x400, VESA 300x200, VESA 300x300, VESA 300x400, VESA 350x350, VESA 400x200, VESA 400x300, VESA 400x400, VESA 400x600, VESA 500x300, VESA 500x400, VESA 600x200, VESA 600x300, VESA 600x400, VESA 600x600, VESA 700x400, VESA 700x600, VESA 800x400, VESA 800x500, VESA 800x600 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
What advantages does an electric TV ceiling mount offer?
An electric TV ceiling mount enables the comfortable positioning of the television directly on the ceiling, thereby creating additional space in the room. The motorized height adjustment and swivel function ensure that the optimal viewing angle can be set at any time via remote control or app. Especially in rooms with high ceilings or open floor plans, a ceiling mount with lift function offers an elegant and space-saving solution for TV installation. Integrated cable management hides all connections inside the mount and ensures a tidy appearance.
For which applications is a swivel ceiling mount suitable?
Swiveling TV ceiling mounts with electric drive are used in many areas. In living rooms they enable flexible orientation of the television from different seating positions. In offices and conference rooms they serve as a professional presentation solution that can be quickly adapted to different room situations. Also in commercial environments such as gyms, waiting areas or gastronomy, motorized ceiling mounts are a popular choice because they are robustly built and offer high load capacities.
What should be considered when installing a motorized TV ceiling mount?
When installing a motorized TV ceiling mount, the load-bearing capacity of the ceiling is crucial. The mounting points must be able to safely support the weight of the television and the mount. Before installation, the desired profile height should be determined to set the optimal distance between the ceiling and the screen. Power supply must be available near the mounting location, as the motor is powered by a mains cable. An integrated collision protection system increases safety by detecting obstacles and automatically stopping the movement.
