MonLines MLD400B electrically swiveling TV lift ceiling mount, lift 400mm
Highlights
- Motorized 360° panning function
- Mechanical height adjustment 1000-1400 mm
- For 50-100 inch TVs up to 65 kg
- Intelligent collision protection system
- VESA up to 800x600 mm
Swiveling TV Ceiling Mount with Motorized Rotational Drive
The MonLines MLD400B swiveling electric TV lift ceiling mount, lift 400 mm, combines a motorized 360° swivel function with a mechanical height adjustment in a robust housing made of steel and aluminum. Via the telescopic lift column the profile height can be manually adjusted and fixed between 1000 and 1400 mm — the swivel movement is motorized, the height is adjusted once by hand. The motorized swivel function allows convenient alignment of the display via app or RF remote control — perfect for living rooms, offices, fitness studios and commercial environments.

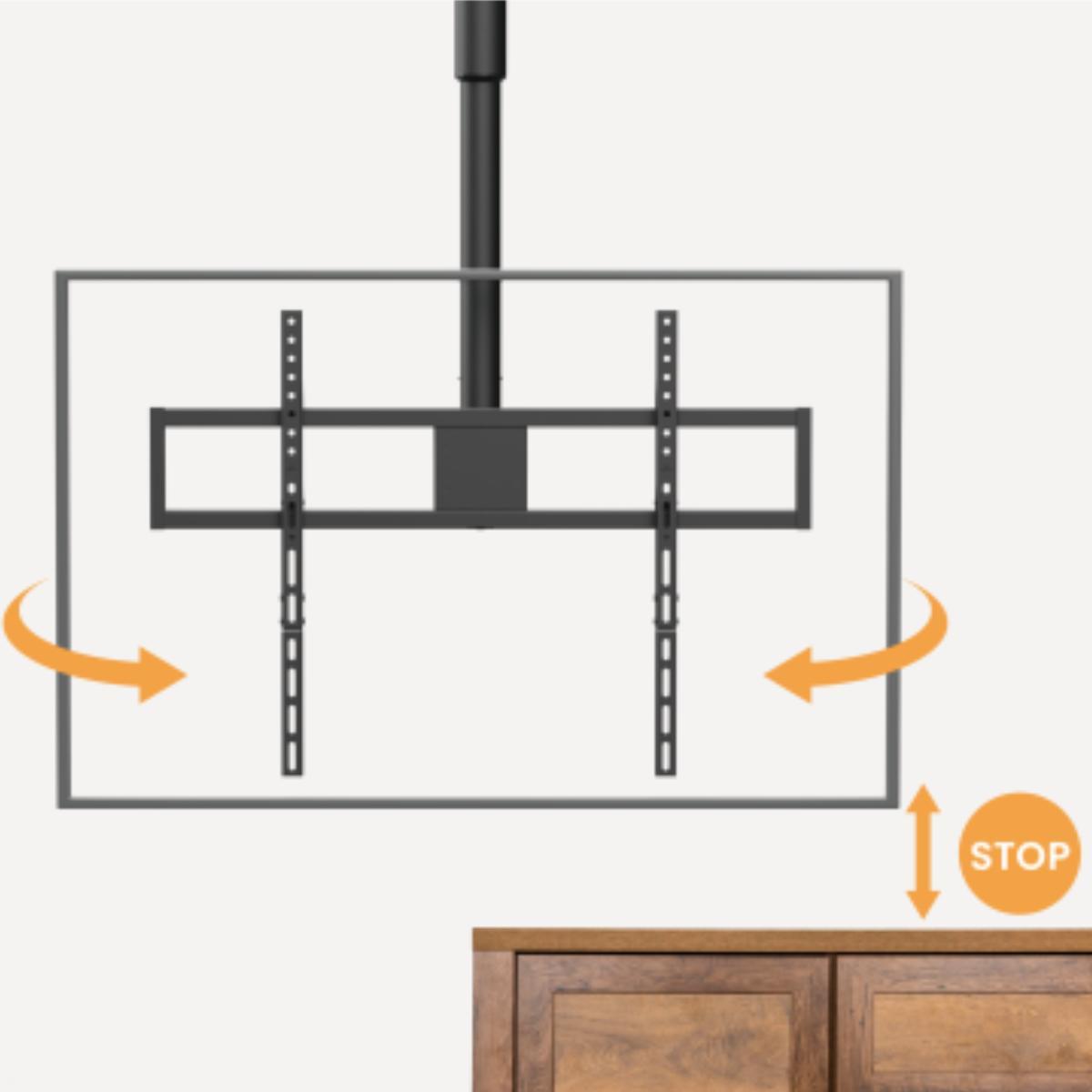

The mount is designed for flat-screen TVs from 50 to 100 inches and supports a weight of up to 65 kg. An intelligent collision protection system detects obstacles during the swivel movement and stops the motor automatically. The tilt can be adjusted manually between +3° and -20°, ensuring the optimal viewing angle at all times. Thanks to integrated cable management, all connections are routed inside the mount for a tidy appearance.
Technical Details swiveling TV lift ceiling mount
- Suitable for TVs from 50 to 100 inches
- Load capacity: max. 65 kg
- VESA compatibility: 200x100 to 800x600 mm

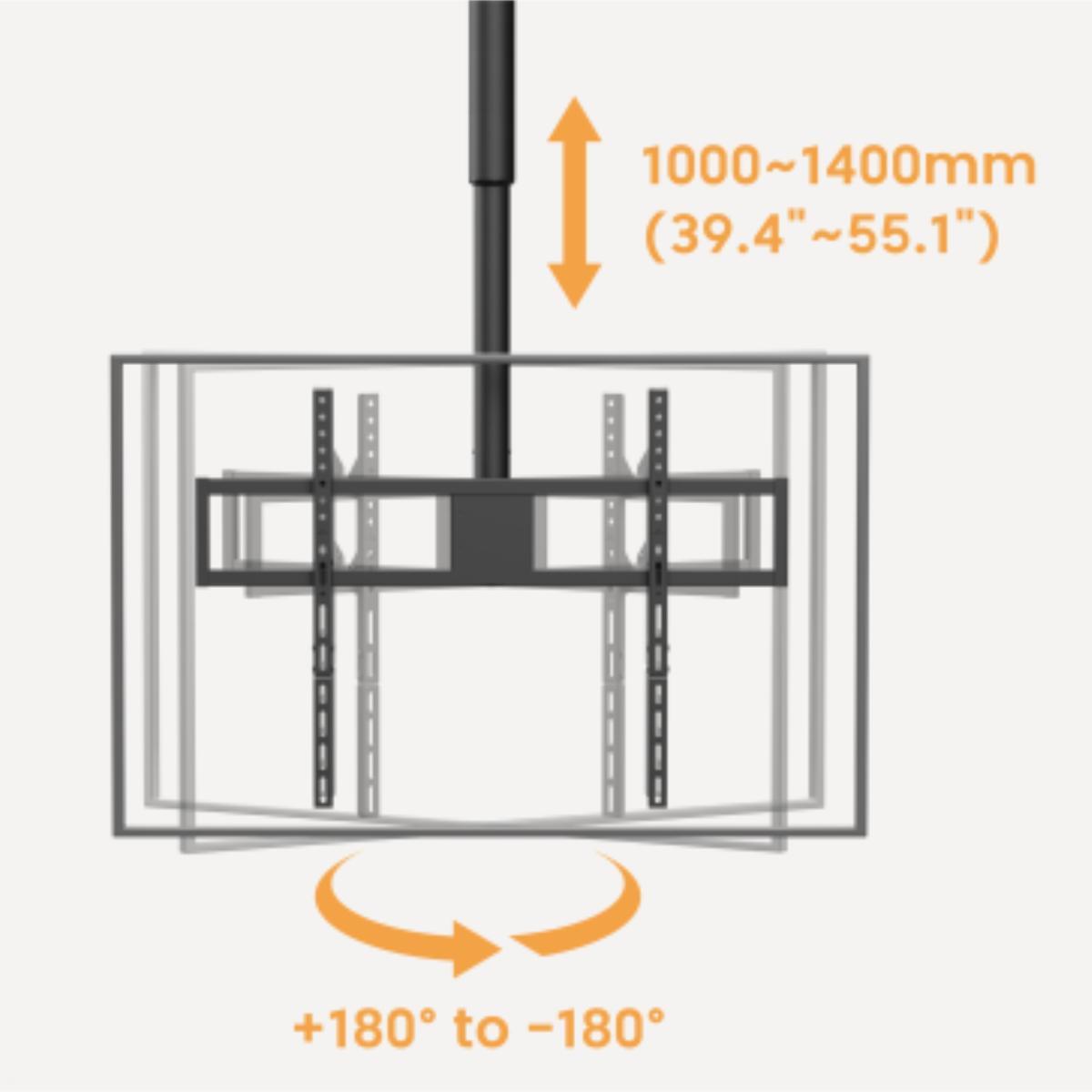

- Profile height (lift): 1000-1400 mm, mechanically adjustable
- Height adjustment: mechanical (manual via telescopic tube)
- Swivel range: 360° motorized
- Tilt range: +3° / -20°

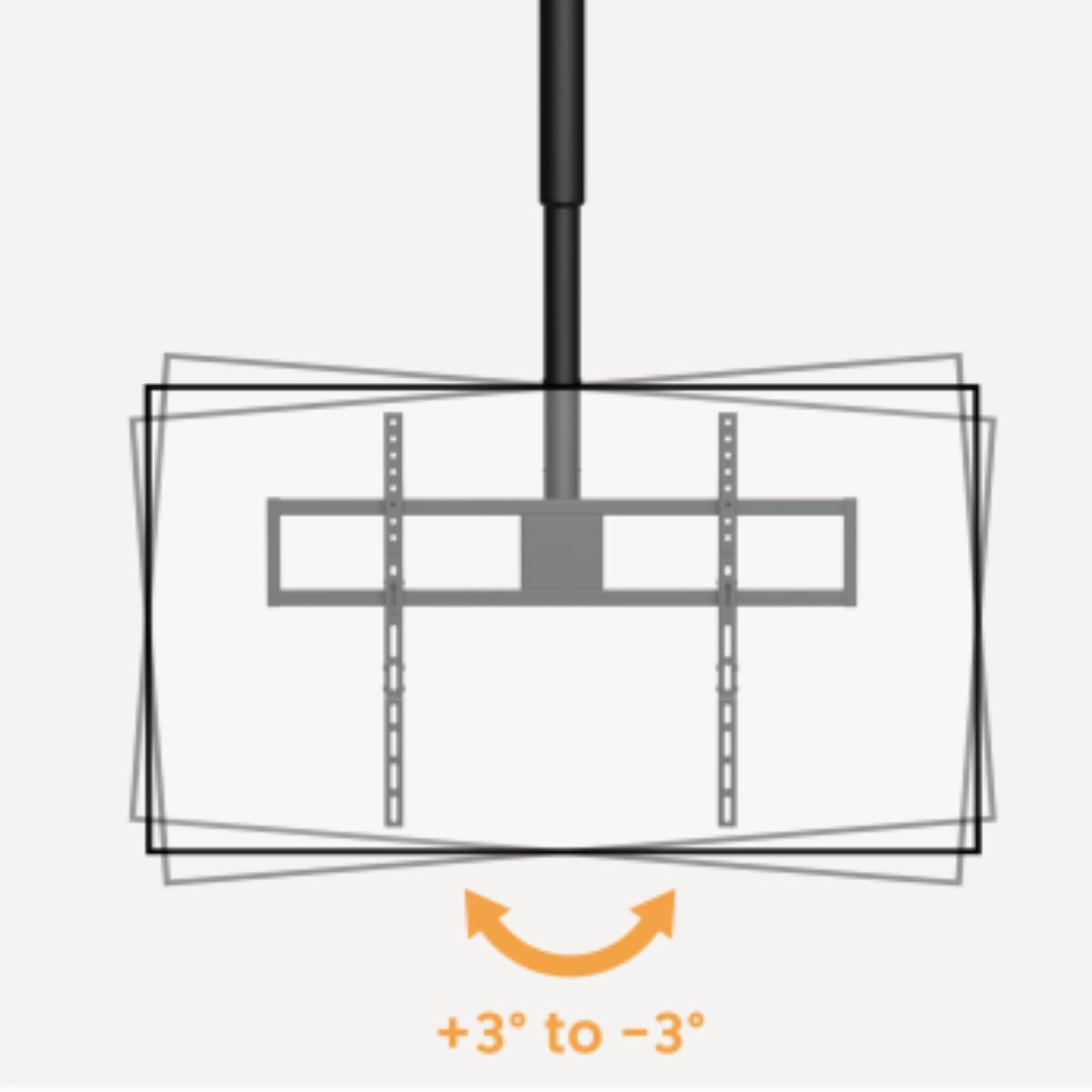

- Leveling: +3° / -3°
- Material: steel, aluminum, plastic
- Finish: powder coating, black (fine texture)
- Control: app control and RF remote control
- Collision protection system integrated
- Cable management integrated
- Power supply: AC 100-240 V, 50/60 Hz; Output: DC 29 V, 1 A
- Power cable length: 1800 mm
- Suitable for curved TVs
- Ceiling mounting

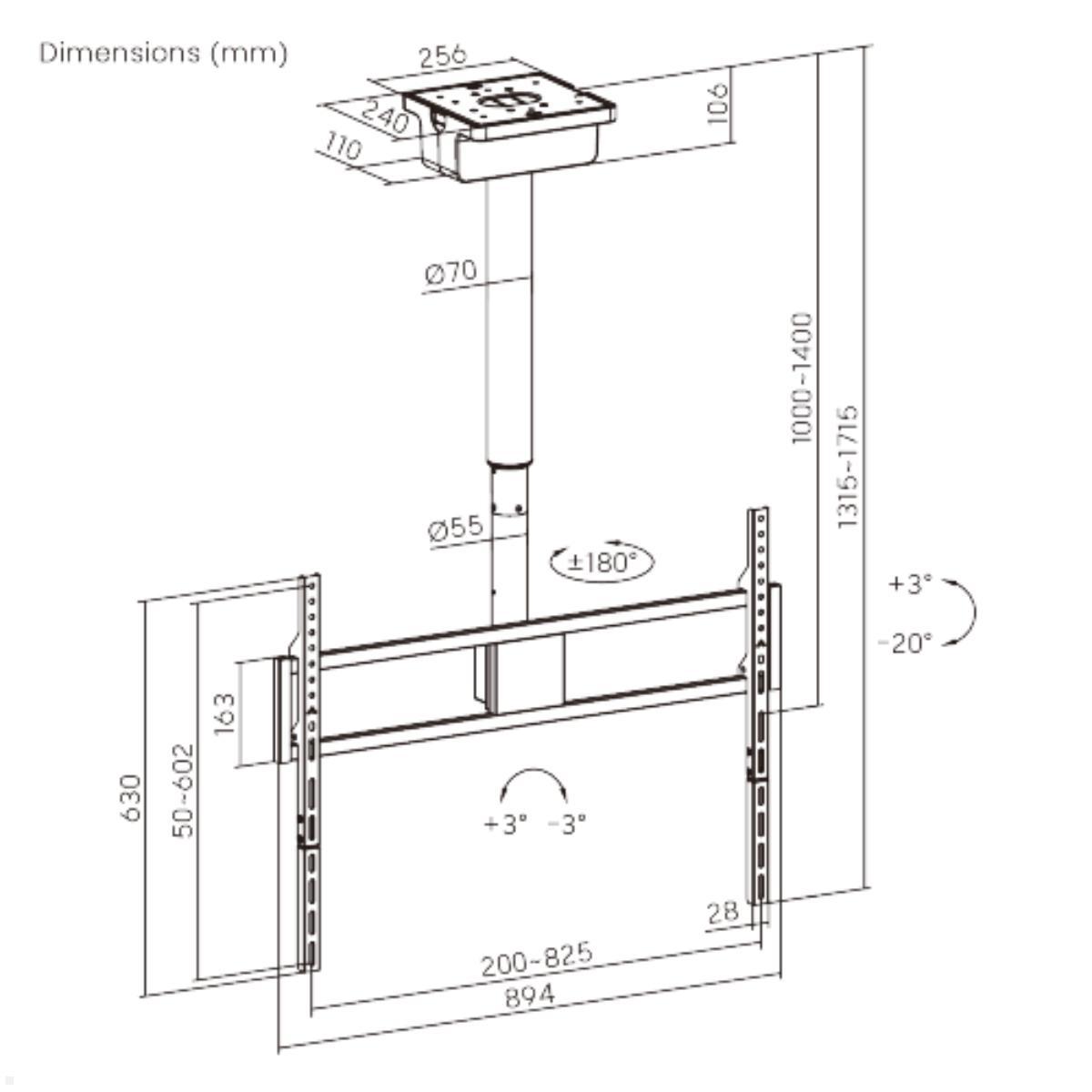

- Dimensions (L×W×H): 1400 x 894 x 240 mm
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| Capacity: | 65 kg |
| Tilt: | +3° / -20° |
| Height range (mm): | 1000 - 1400 mm |
| Swivelling range: | 360° |
| Screen size: | 50" - 100" |
| Material: | Stahl, Aluminium, Kunststoff |

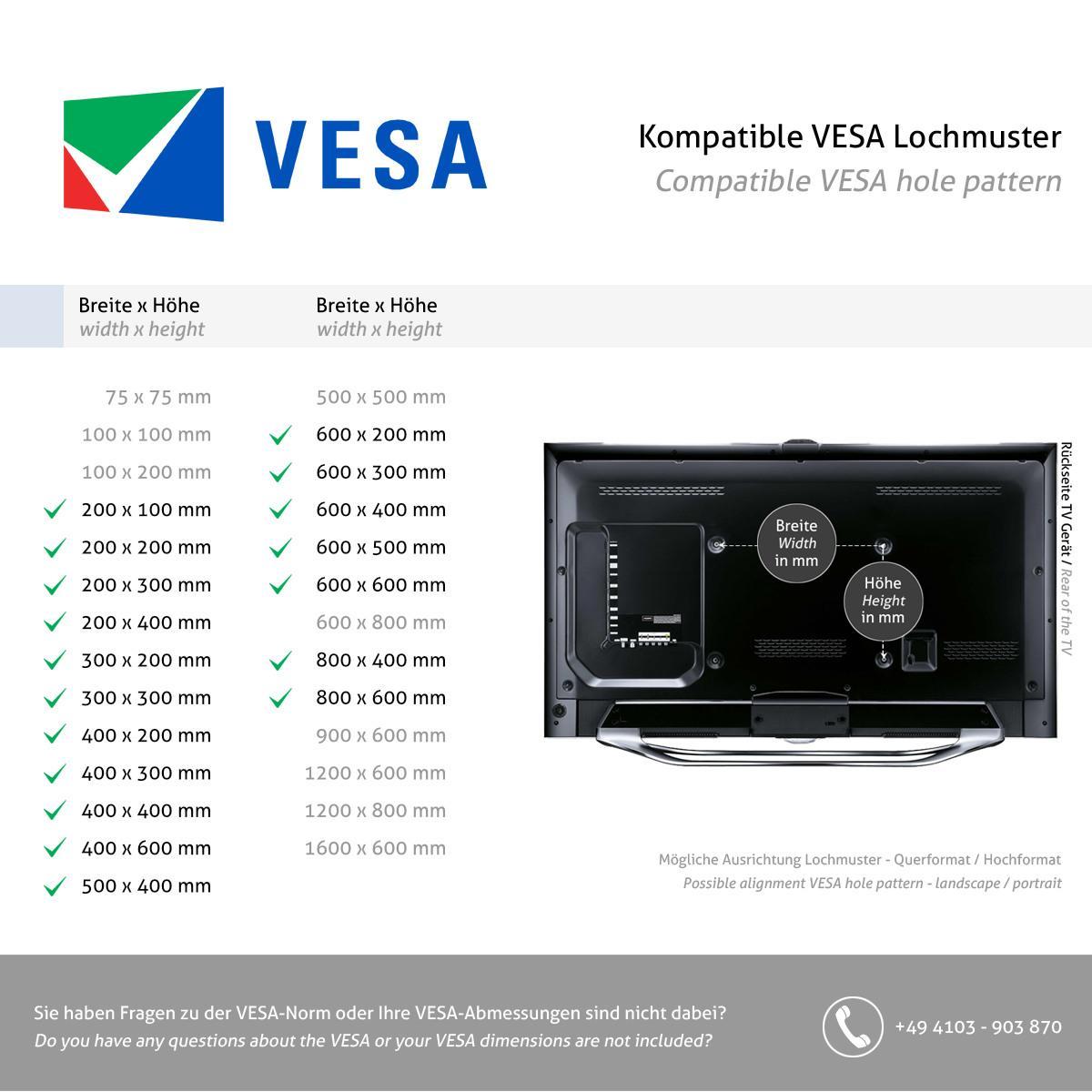

| VESA Standard: | 200x100, 200x200, 200x300, 300x200, 200x400, 400x200, 300x300, 300x400, 400x300, 600x200, 350x350, 500x300, 400x400, 600x300, 500x400, 400x600, 600x400, 700x400, 800x400, 600x600, 800x500, 700x600, 800x600 mm |
| Contains installation material: | + |
| Manufacturer/Importer: | BCS Business Creative Solutions GmbH / MonLines, Am Marienhof 8, 22880 Wedel, info@monlines.de |
| Inch size: | 50 inch, 52 inch, 55 inch, 57 Zoll, 58 inch, 60 inch, 63 inch, 64 Zoll, 65 inch, 70 inch, 71 inch, 75 inch, 77 inch, 79 inch, 80 inch, 82 inch, 83 Zoll, 84 inch, 85 inch, 86 inch, 90 inch, 95 inch, 97 inch, 98 inch, 100 inch |
| Mobility: | electrical, height adjustable , swivelling, tilting |
| Mounting type: | Ceiling mount |
| Multi-monitor mount: | 1 monitor |
| color: | Black |
| VESA (in mm): | VESA 200x100, VESA 200x200, VESA 200x300, VESA 200x400, VESA 300x200, VESA 300x300, VESA 300x400, VESA 350x350, VESA 400x200, VESA 400x300, VESA 400x400, VESA 400x600, VESA 500x300, VESA 500x400, VESA 600x200, VESA 600x300, VESA 600x400, VESA 600x600, VESA 700x400, VESA 700x600, VESA 800x400, VESA 800x500, VESA 800x600 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Why is a swivel TV ceiling mount the ideal solution?
A swivel TV ceiling mount offers maximum flexibility in aligning the television while saving valuable space on walls and furniture. By mounting to the ceiling, the screen can be positioned freely in the room and, thanks to the motorized swivel function, conveniently turned in any direction. Especially in open living and working areas, a ceiling mount with a rotation function allows the TV to be perfectly aligned with different seating positions. The mechanical height adjustment ensures that the optimal screen height can be set individually.
Which rooms benefit from a motorized ceiling mount?
Motorized TV ceiling mounts are suitable for a wide range of applications. In living rooms and bedrooms they create a modern and tidy atmosphere, as no visible wall brackets are needed. In offices and conference rooms they serve as a flexible presentation solution for meetings and video conferences. Also in commercial environments such as restaurants, hotels, waiting rooms or fitness studios, motorized ceiling mounts are a popular choice because they are robustly constructed and offer a high load capacity for large displays.
What is the difference between mechanical and electric height adjustment?
With mechanical height adjustment, the desired profile height is set and fixed manually via a telescopic tube. This solution is particularly reliable because it operates without additional electronics and keeps the once-set height permanently. In contrast, an electric height adjustment allows stepless adjustment at the push of a button. Both variants have their advantages — the mechanical adjustment is especially suitable when the height only needs to be changed rarely and a maintenance-free solution is desired.
