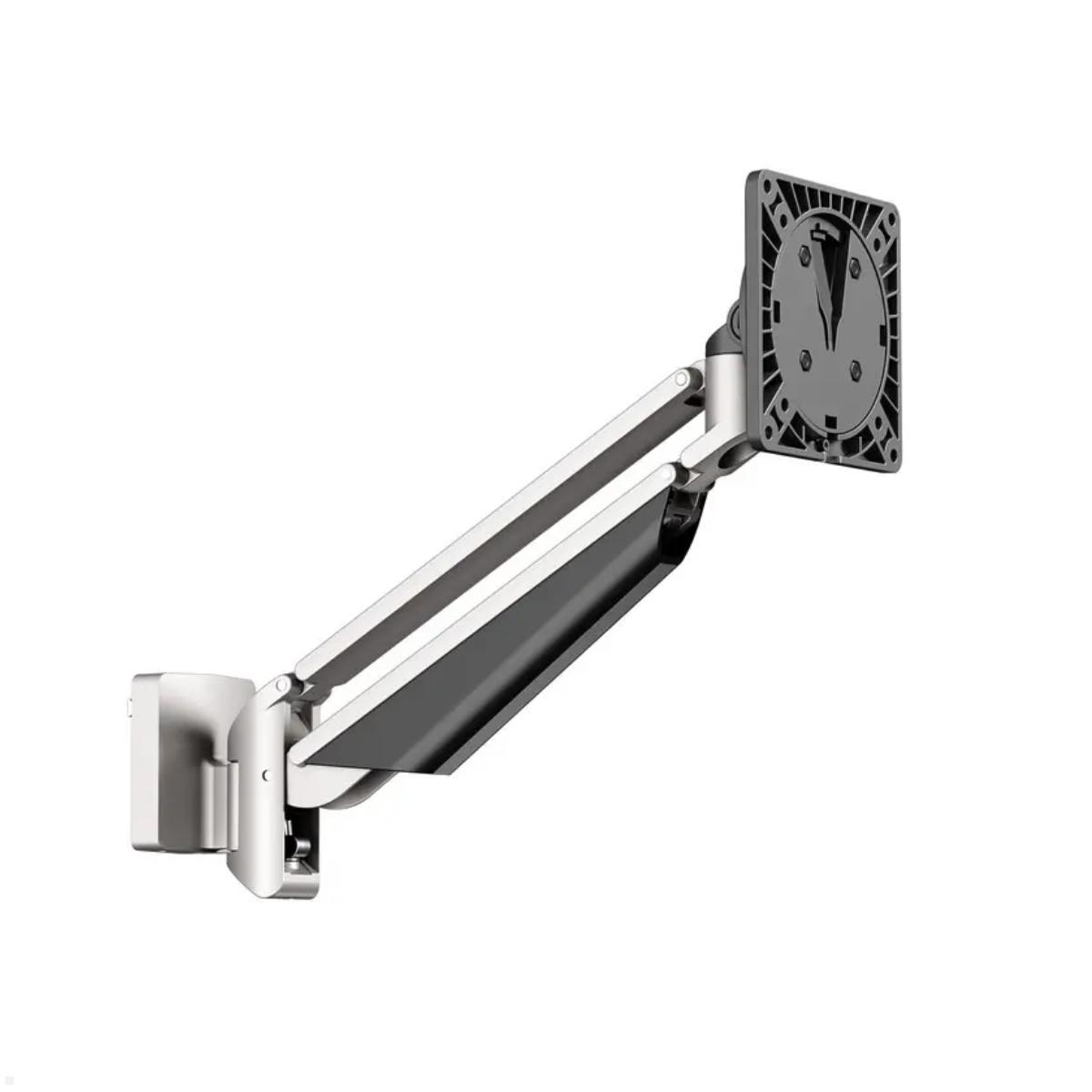

Novus Clu I Slatwall monitor mount 2-7kg, silver (990+1179+000)
Highlights
- Gas spring for stepless height adjustment
- SlatWall universal adapter integrated
- QuickRelease VESA 75/100 mount
- Load capacity 2-7 kg
- Pivot function landscape/portrait
Swiveling SlatWall Monitor Mount with Gas Spring
The Novus Clu I Slatwall monitor mount 2-7kg, silver (990+1179+000) is an elegant one-piece monitor arm with gas spring for comfortable, ergonomic adjustment of the monitor. The arm is designed for monitors up to approx. 34 inches with a maximum monitor width of approx. 820 mm and a weight of 2-7 kg. Thanks to the gas-spring technology the Clu arm can be effortlessly adjusted steplessly in height.
The integrated SlatWall universal adapter enables extremely quick and easy installation through central screw fastening for single-slot and double-slot mounting. The simple monitor attachment is done via QuickRelease compatible with the VESA standard 75/100. The pivot function allows the monitor to be switched from landscape to portrait. The ergonomic monitor mount is ideal for use at workplaces in the office, industry or retail, everywhere organizational rails are installed. Novus grants a 5-year warranty with proper use. TÜV Nord tested according to the Equipment and Product Safety Act.
Technical Details Novus Clu I SlatWall Monitor Arm
- Load capacity: 2-7 kg
- For monitors up to approx. 34 inches (max. monitor width approx. 820 mm)
- Swivels: 180°
- Tiltable: 180°
- Rotatable: 90°
- Pivot: 90°
- VESA: 75x75, 100x100 mm
- Swivel arm length: 304 mm
- Height adjustment: dynamic (gas spring)
- Integrated SlatWall universal adapter
- Mounting on organizational panel for single-slot and double-slot attachment
- QuickRelease monitor mounting
- Perfect cable management
- German Engineering
- Color: Silver
- Warranty: 5 years
- Successor to 990+1079+000
Does your monitor fit the Novus mount?
We will gladly check whether your monitor (display, TV, LED, LCD, plasma, TFT, screen) is suitable for this Novus Clu I Slatwall monitor mount 2-7kg in silver. To do so, simply provide your model (manufacturer + model number) at the end of the ordering process in the comment field. We will then check for you whether the monitor fits and if not, we will contact you.
VESA Standard - Learn more about the VESA standard for monitor mounts!
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| Others: | [pdf] |
| Installation manual: | [pdf] |
| Minimum weight: | 2 kg |
| Capacity: | 7 kg |
| Tilt: | 180° |
| Rotate: | 90° |
| Height range (mm): | 290 mm |
| Pivot: | 90° |
| Swivelling range: | 180° |
| Length of the swivel arm: | 304 |
| Screen size: | bis 34" |
| VESA Standard: | 75x75mm, 100x100mm MIS-D (www.vesa-standard.com) |
| Suitable for: | Novus Slatwall |
| Packaging dimensions (LxWxH in mm): | 460 x 170 x 90 |
| Scope of delivery: | 1x Novus Clu I SlatWall monitor mount | installation material |
| Contains installation material: | + |
| Warranty: | 5 years |
| Manufacturer/Importer: | Novus Dahle GmbH, Breslauer Straße 34-38, 49808 Lingen (Ems), info@novus-dahle.com |
| Inch size: | 15 inch, 17 inch, 18 inch, 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch, 28 inch, 29 inch, 30 inch, 31 inch, 32 inch, 34 inch |
| Mobility: | Drehbar, height adjustable , rotatable (pivot), swivelling, tilting |
| Mounting type: | for Slatwall |
| Multi-monitor mount: | 1 monitor |
| color: | Silber |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What monitors are compatible with the Novus Clu I Slatwall Monitor Arm?
The arm is designed for monitors up to about 34 inches, with a maximum width of about 820 mm and a weight of 2-7 kg. It supports VESA mounting sizes 75x75 mm and 100x100 mm.
-
How much weight can the arm support?
Weight capacity: 2-7 kg.
-
What movement does the arm offer?
Swivel 180°, tilt 180°, rotate 90°, and a 90° pivot.
-
What VESA sizes are supported?
VESA compatibility: 75x75 mm and 100x100 mm.
-
How is the height adjusted?
Height is dynamically adjustable via a gas spring.
-
What mounting options are available?
Integrated SlatWall universal adapter for 1-nut and 2-nut fittings; wall-mountable to an organisational wall; QuickRelease monitor mounting.
-
What warranty and certification does it have?
Five-year warranty; TÜV Nord certified under the Devices and Product Safety Act.
-
How can I check if my monitor fits?
We can check compatibility; please provide the manufacturer and model number in the order's comment field. We will confirm if it fits or contact you if it does not.
Kunden kauften auch
Why is an ergonomic SlatWall monitor mount important in the workplace?
An ergonomically adjusted monitor position is crucial for health in the workplace. Incorrectly positioned screens often lead to tension in the neck and shoulder area as well as eye fatigue. With a swiveling SlatWall monitor mount like the Novus Clu I, the screen can be individually adjusted in height, tilt and swivel angle. The integrated gas spring allows stepless and effortless height adjustment so the monitor can always be brought to the optimal eye level. Especially at workstations with organisational rails, the SlatWall mounting offers a space-saving and flexible solution that keeps the desk clear while providing maximum freedom of movement.
What advantages does the gas spring offer in a monitor arm?
The gas spring technology in the Novus Clu I monitor arm enables particularly comfortable operation. Unlike conventional monitor mounts with fixed detent positions, the screen can be adjusted continuously in height with minimal force. The gas spring holds the monitor securely in any desired position without it sinking or needing readjustment. This is particularly practical when multiple people use the workstation or when switching between sitting and standing tasks. The dynamic height adjustment ensures the screen always remains in the ideal working position and thus contributes to fatigue-free working.
For which applications is a SlatWall monitor mount suitable?
SlatWall monitor mounts are the ideal solution wherever organisational rails are already installed or planned. This mainly concerns office workstations, reception counters, workshops, laboratories, point-of-sale areas in retail as well as medical facilities. The Novus Clu I monitor arm can be mounted to both single-slot and double-slot fittings thanks to the integrated SlatWall universal adapter. With a load capacity of 2–7 kg and compatibility for monitors up to 34 inches, it covers a wide range of common screen sizes. The pivot function also allows switching between landscape and portrait, which is useful for document processing or programming, for example.
