Novus Clu Plus monitor mount for TSS column up to 50 inches, silver (991+0119+000)
Highlights
- For TSS columns, up to 50 inches
- Gas spring, 6-15 kg load capacity
- QuickRelease one-handed operation
- 360° swivel, pivot function
- Suitable for curved screens

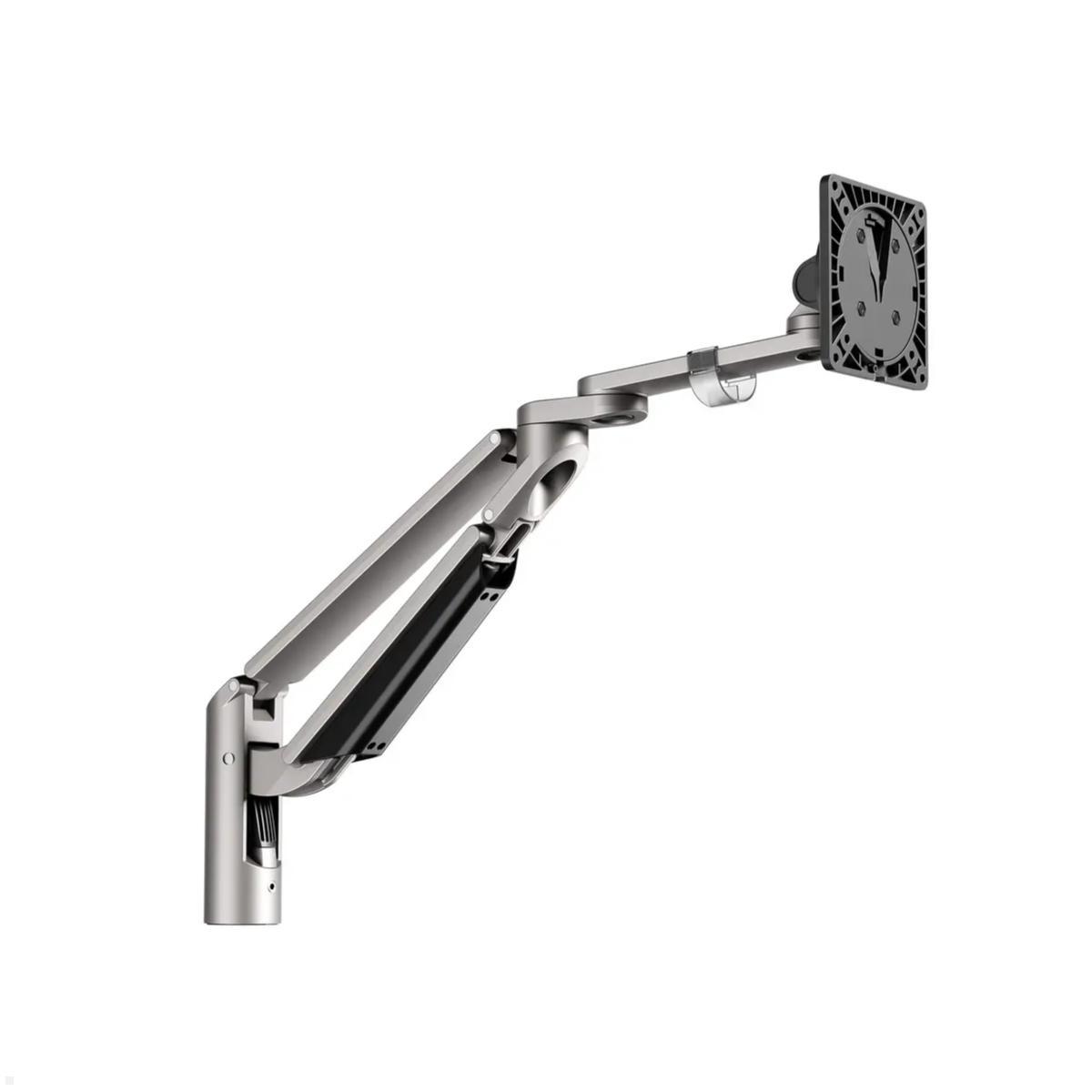

Swiveling Monitor Mount for TSS Column
The Novus Clu Plus swiveling monitor mount for TSS column (991+0119+000) in silver is specifically designed to be attached to a Novus TSS column. With a load capacity of 6 to 15 kg and a maximum diagonal display size of 50 inches, the Clu Plus provides a user-friendly solution for monitors at the workplace. The integrated cable management with cable clips ensures a tidy overall appearance on the desk. The practical QuickRelease system also allows displays to be installed quickly and easily or removed again when required. The elegant monitor mount is swiveling and height-adjustable, combining strength, functionality and handling in one construction.
Monitor Mount with Swivel Function
This robust, two-part monitor arm impresses with advanced gas spring technology that allows comfortable and ergonomic adjustment of the monitor. It is particularly suitable for use with large and heavy screens, such as modern curved screens. The practical QuickRelease function with one-handed operation, compliant with the VESA standard 75x75 and 100x100 mm, ensures uncomplicated monitor attachment. The monitor mount can hold screens weighing 6 to 15 kg and up to 50 inches without problems. The pivot joints are individually adjustable to lock the desired position. The monitor arm offers a 360° rotation with an adjustable stop at 180°. With a generous reach of 491 mm and a height adjustment range of 300 mm (from the center of the VESA mounting point 150 mm up to 452 mm above the desk surface), this mount provides remarkable flexibility. The pivot function allows a smooth switch of the monitor from landscape to portrait. Cable routing is very neat thanks to the integrated cable holder.
Spacer Screw Set
For mounting certain monitor/TV models with recessed VESA screw holes, it is necessary to bridge the depth of the recess using spacers. With the Novus spacer screw set (796+0905+000) the monitor mounts from the Novus CLU series can be mounted to almost all TV devices.
Technical Details Novus Clu Plus C Monitor Arm with Adapter for TSS Columns (991+0119+000)
- Screen sizes: 19 - 50 inches
- Compatible with TSS columns
- Load capacity: 6 - 15 kg
- Gas spring for comfortable, ergonomic adjustment
- Easy and quick installation of the monitor via QuickRelease (quick release)
- VESA mount: 75x75, 100x100 mm
- Swiveling: 360 degrees with adjustable stop at 180°
- Height adjustable: 150 - 452 mm (center of VESA mount to desk surface)
- Tilt: 70°
- Rotation: 360° (pivot)
- Integrated cable management
- Reach: 491 mm
- Included in delivery:
- Spacer screw set (796+0905+000)
- Novus Clu Plus monitor mount (991+3109+000)
- TSS column adapter (899+0099+000), silver
- Color: Silver
- Warranty: 5 years
Does your screen or display fit the VESA mount?
We will gladly check whether your monitor is suitable for this Novus Clu Plus monitor mount (991+0119+000). To do so, simply provide your model (manufacturer + model no.) at the end of the ordering process in the comment field. We will then check for you whether the monitor or display fits the monitor mount and, if not, we will contact you.
VESA standard - Learn more about the VESA standard for monitor mounts!
| Product sheet: |  [pdf] |
|---|---|

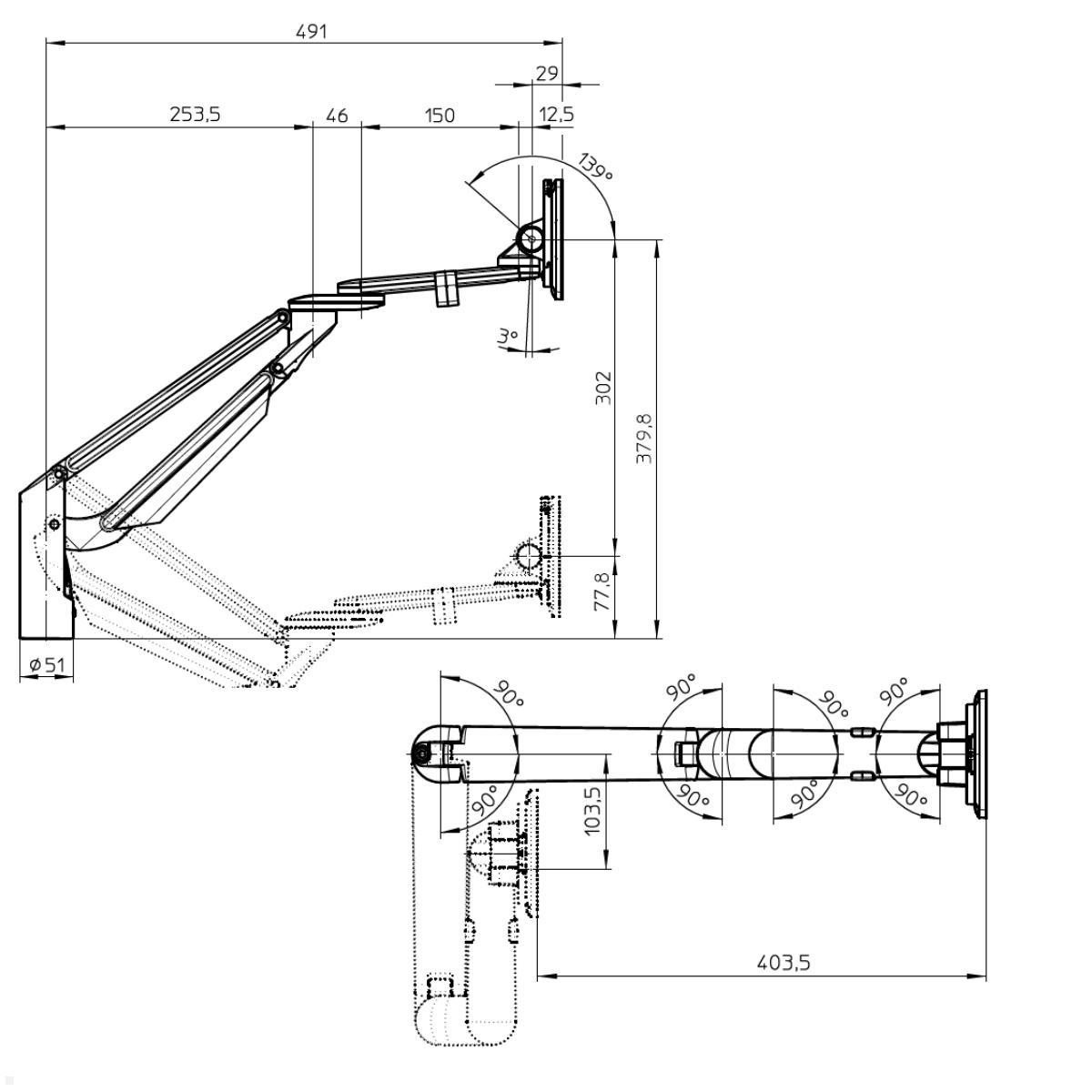

| Technical drawing: | [pdf] |
| Others: | [pdf] |
| Installation manual: | [pdf] |
| Minimum weight: | 6 kg |
| Capacity: | 15 kg |
| Tilt: | 70° |
| Rotate: | 90° |
| Height range (mm): | 150 - 452 mm |
| Pivot: | 90° |
| Swivelling range: | 360° |
| Length of the swivel arm: | 491 |
| Screen size: | 19 - 50" |
| Material: | Aluminium, plastic |
| VESA Standard: | 75x75, 100x100 mm (www.vesa-standard.com) |
| Suitable for: | Novus TSS columns / Novus POS columns / straight aluminum profiles with 8 mm groove |
| Scope of delivery: | 1x Clu Plus monitor mount | 1x TSS column adapter | 1x spacer screw set | installation material |
| Contains installation material: | + |
| Warranty: | 5 years |
| Manufacturer/Importer: | Novus Dahle GmbH, Breslauer Straße 34-38, 49808 Lingen (Ems), info@novus-dahle.com |
| Inch size: | 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch, 28 inch, 29 inch, 30 inch, 31 inch, 32 inch, 34 inch, 35 inch, 37 inch, 38 inch, 40 inch, 42 inch, 43 inch, 44 Zoll, 45 Zoll, 46 inch, 47 inch, 48 inch, 49 inch, 50 inch |
| Mobility: | height adjustable , rotatable (pivot), swivelling, tilting |
| Mounting type: | Aluminium profile, Pillar mount |
| Multi-monitor mount: | 1 monitor |
| color: | Silber |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
1 review
5 December 2025 23:03
Kompetente Support – bin sehr zufrieden
Funktioniert tadellos – sehr zu empfehlen. Einkauf war rundum angenehm.
Questions & Answers
-
What screen sizes are compatible with the Novus Clu Plus monitor mount?
The Novus Clu Plus monitor mount is compatible with screen sizes from 19 to 40 inches.
-
What weight can the mount support?
The mount has a weight capacity of 6 to 15 kg.
-
Is the monitor mount height adjustable?
Yes, the monitor mount can be adjusted between 150 mm and 450 mm above the desk surface.
-
Which VESA standards are supported?
The mount supports VESA standards of 75x75 mm and 100x100 mm.
-
What functionalities does the mount offer?
The mount is swivelable, tiltable, and features a pivot function for switching between landscape and portrait orientation.
-
How is the monitor installed or removed?
The installation and removal of the monitor is quick and easy using the practical QuickRelease system.
-
What about cable management?
The mount includes integrated cable management for a tidy workspace.
-
Is there a warranty on the monitor mount?
Yes, the Novus Clu Plus monitor mount comes with a 5-year warranty.
What advantages does the Novus Clu Plus monitor arm offer for TSS columns?
The Novus Clu Plus monitor arm was specially designed for use with Novus TSS columns and enables flexible, ergonomic screen positioning at the workplace. The powerful, two-part monitor arm with integrated gas spring supports monitors from 6 to 15 kg and is suitable for screens up to 50 inches, including modern curved screens. The stepless height adjustment over a range of 300 mm ensures that the monitor can be positioned exactly at eye level, which helps prevent back and neck discomfort during long working hours. The 360-degree swivel function with an adjustable stop at 180 degrees offers maximum flexibility in screen orientation. Thanks to the pivot function, the monitor can also be easily rotated from landscape to portrait format, which is particularly beneficial for programmers, graphic designers or when working on long documents. The practical QuickRelease system with one-handed operation allows quick mounting and dismounting of the monitor according to VESA standard 75x75 and 100x100 mm. The adjustable tensions of the swivel joints ensure that the monitor remains securely fixed in any desired position.
For which areas of application is the column mount suitable?
The Novus Clu Plus monitor mount for TSS columns finds versatile use in professional work environments. In offices and administration, the mount provides ergonomic screen positioning that meets modern workplace standards. In industrial environments and production halls, the robust construction offers reliable support even for heavy displays. In the medical sector, the swiveling monitor arm enables flexible positioning of diagnostic monitors and patient displays. Reception and service counters benefit from the ability to quickly turn the screen between employee and customer. It also proves its worth in training settings and conference rooms through its simple height adjustment and swivel capability. The integrated cable management ensures a tidy appearance in all application areas.
Why is gas spring technology particularly comfortable?
The gas spring technology used in the Novus Clu Plus clearly stands out from conventional monitor arms. While simple mounts can only fix the monitor in predetermined incremental positions, the gas spring allows stepless and almost effortless positioning of the screen. The monitor can be raised and lowered with minimal force and stays exactly in the chosen position without slipping or vibrating. This feature makes the Clu Plus especially suitable for workstations where multiple people take turns and need to quickly adjust the monitor to their individual seating height. The reach of 491 mm offers sufficient range to pull the monitor closer or push it further away. In combination with the TSS column, a modular system is created that can be flexibly adapted to different workplace requirements while always maintaining a professional, uncluttered appearance.
