Novus Clu Plus monitor mount without mounting hardware (991+3109+000), silver
Highlights
- Gas spring for 6 - 15 kg
- Up to 50 inches, suitable for curved displays
- 491 mm reach, 300 mm height
- 360° rotatable, pivot function
- QuickRelease one-handed mounting
Swiveling Monitor Arm with Gas Spring for Large Screens
The Novus Clu Plus monitor mount without fastening (991+3109+000), silver, is a powerful 2-piece monitor arm from the Clu Plus series. Thanks to the integrated gas spring, the screen can be adjusted steplessly in height, enabling ergonomic positioning at the workplace. The monitor arm is specially designed for the use of large and heavy screens up to 50 inches, including modern curved screens. The load capacity is 6 to 15 kg.
With a reach of 491 mm and a height adjustment range of 300 mm, the Novus Clu Plus offers maximum flexibility. The swivel joints feature adjustable friction and allow rotation of 360° with an adjustable stop at 180°. The pivot function enables switching between landscape and portrait modes. A QuickRelease quick-release with one-handed operation ensures easy monitor attachment compatible with the VESA standard 75/100. Perfect cable management through integrated cable clips completes the well-thought-out design. The monitor arm is ideal for use in offices, at reception desks, in medical practices, or in the home office.
Technical details Novus Clu Plus monitor arm for heavy monitors
- Mounting solutions available as accessories (not included)
- Reach: 491 mm
- Height adjustment range: 300 mm (VESA center 150 mm to 452 mm above the tabletop)
- Load capacity: 6 – 15 kg
- Screen sizes: up to approx. 50 inches
- Tiltable
- Rotatable: 360° with adjustable stop at 180°
- Swiveling
- Pivot function: landscape and portrait
- Adjustable friction of the swivel joints
- QuickRelease quick-release with one-handed operation
- VESA standard: 75x75, 100x100 mm
- 2-piece monitor arm with gas spring
- Integrated cable management via cable clips
- Color: Silver
- Warranty: 5 years
- TÜV Nord certified
Does your monitor or display fit?
We will gladly check whether your monitor is suitable for this mount (991+3109+000). Simply send us your model (manufacturer + model no.) in the comments field at the end of the ordering process. We will then check for you whether the monitor or display fits the monitor mount and, if not, we will contact you.
VESA standard - Learn more about the VESA standard for monitor mounts!
| Product sheet: |  [pdf] |
|---|---|

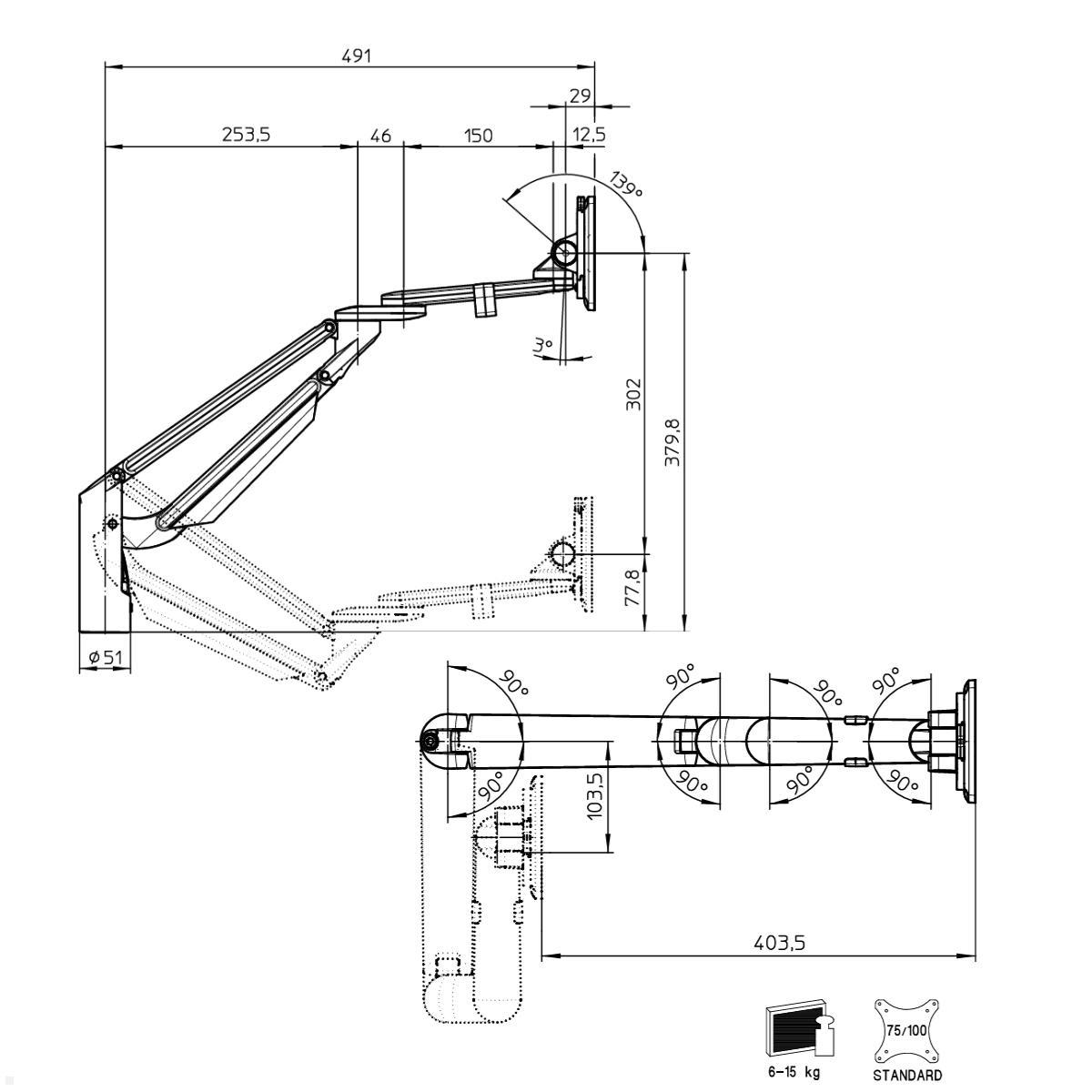

| Technical drawing: | [pdf] |
| Others: | [pdf] |
| Installation manual: | [pdf] |
| Minimum weight: | 6 kg |
| Capacity: | 15 kg |
| Rotate: | 360° |
| Height range (mm): | 300 |
| Pivot: | 90° |
| Swivelling range: | 360° |
| Length of the swivel arm: | 491 |
| Screen size: | bis ca. 50" |
| Material: | Aluminium, Kunststoff |
| VESA Standard: | 75x75mm, 100x100mm MIS-D (www.vesa-standard.com) |
| Scope of delivery: | 1x Clu Plus monitor mount |
| Contains installation material: | + |
| Warranty: | 5 years |
| Manufacturer/Importer: | Novus Dahle GmbH, Breslauer Straße 34-38, 49808 Lingen (Ems), info@novus-dahle.com |
| Inch size: | 15 inch, 17 inch, 18 inch, 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch, 28 inch, 29 inch, 30 inch, 31 inch, 32 inch, 33 Zoll, 34 inch, 35 inch, 37 inch, 38 inch, 40 inch, 42 inch, 43 inch, 44 Zoll, 45 Zoll, 46 inch, 47 inch, 48 inch, 49 inch, 50 inch |
| Mobility: | Drehbar, height adjustable , swivelling, tilting |
| Multi-monitor mount: | 1 monitor |
| color: | Silber |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the Novus Clu Plus Monitor Arm (991+3109+000) silver?
The Novus Clu Plus Monitor Arm is a two‑piece gas‑spring monitor arm for large displays up to around 50 inches. Load capacity is 6–15 kg, with a reach of 491 mm and a height adjustment of 300 mm (centre VESA 150 mm to 452 mm above the desk).
-
What is the load capacity?
6–15 kg.
-
Which screen sizes are supported?
Supports displays up to around 50 inches, including modern curved displays.
-
How adjustable is it in height and reach?
Reach is 491 mm; height range is 300 mm (centre VESA 150 mm to 452 mm above the desk).
-
Can I rotate the display, and how does the pivot work?
Yes, rotates 360° with an adjustable stop at 180°; Pivot function allows landscape and portrait orientation.
-
Which VESA patterns are supported?
VESA 75x75 mm and 100x100 mm.
-
How do I mount the monitor and manage cables?
QuickRelease with one‑hand operation for easy mounting; integrated cable management via cable guides; mounting solutions are available as accessories (not included).
-
Where can I use it and what is the warranty?
Suitable for offices, reception desks, clinics, or home offices; TÜV Nord tested; 5‑year warranty.
Kunden kauften auch
What makes the Novus Clu Plus monitor arm so special?
The Novus Clu Plus monitor arm stands out from conventional monitor mounts thanks to its powerful gas spring. The stepless height adjustment over a range of 300 mm allows individual, ergonomic positioning of the screen. The center of the VESA mount is thereby positioned between 150 mm and 452 mm above the desk surface. Notably, it is suitable for large and heavy monitors up to approx. 50 inches with a weight of 6 to 15 kg. Even modern curved screens can be mounted safely and comfortably thanks to the sturdy construction. The adjustable friction at the swivel joints ensures that the monitor stays in the desired position. The QuickRelease quick-release fastener with one-handed operation makes attaching the display to the VESA mount particularly simple and fast.
Which workspaces is the swiveling monitor arm suitable for?
The two-part monitor arm, with its reach of 491 mm, offers enormous flexibility in positioning the screen. Whether in the office, at reception desks, in medical practices, or in the home office – the Clu Plus swivel arm adapts to any workspace. With 360-degree rotation and an adjustable stop at 180 degrees and the pivot function for switching between landscape and portrait orientation, maximum freedom of movement is ensured. The integrated cable management via cable holders keeps the desk tidy and provides a clean look. The silver finish blends subtly into any office environment.
Which mounting is required for the Novus Clu Plus?
The Novus Clu Plus monitor arm is supplied without a mounting bracket. A suitable Clu Plus mount is available separately as a mandatory accessory and must be purchased for installation at the desk. Novus offers various mounting options, including desk clamps and bolt-through mounts, which adapt to different desk thicknesses and workplace requirements. The extremely quick and easy installation guarantees rapid commissioning. TÜV NORD testing in accordance with the Equipment and Product Safety Act as well as the quality mark German Engineering emphasize the high build quality and reliability of this monitor arm.
