NOVUS SKY Basic 2XL TV wall mount for motorhome and caravan, swiveling
Highlights
- Load capacity up to 7 kg
- VESA 75 × 75 and 100 × 100 mm
- Swivels and tilts ±10°
- Large reach of up to approx. 460 mm
- Lockable – ideal for motorhome and caravan
Novus Ska Basic 2XL Swiveling Motorhome TV Wall Mount
The NOVUS SKY Basic 2XL TV wall mount is a flexible solution for small flat screens in motorhomes, caravans and other areas with limited space. The multi-swivel support arm allows individual alignment of the display and offers an extension of up to approx. 460 mm.
The mount supports screens up to 7 kg and supports VESA 75 × 75 as well as 100 × 100 mm. In addition, the screen can be tilted by ±10° and the position can be adjusted in height over a range of 250 mm. For mobile use, the support arm can be locked so that the mount remains in its intended position during driving. The locking lever can be mounted either above or below depending on the installation situation.
Technical Details Novus SKY BASIC XL TV Wall Mount for Caravans
- Load capacity up to 7 kg
- For VESA 75 × 75 and 100 × 100 mm
- Large extension of up to approx. 460 mm
- Multi swivel- and rotatable support arm
- Screen tiltable by ±10°
- 250 mm height adjustable
- Lockable for use in motorhomes and caravans
- Locking lever can be mounted above or below
- Color: Black
Does your television, monitor or display fit the wall mount?
We will gladly check whether your monitor is suitable for this mount. To do so, simply provide your model (manufacturer + model no.) in the comments field at the end of the ordering process. We will then check for you whether the monitor or display fits the mount and, if not, will contact you.
VESA Standard - Learn more about the VESA standard for monitor mounts!

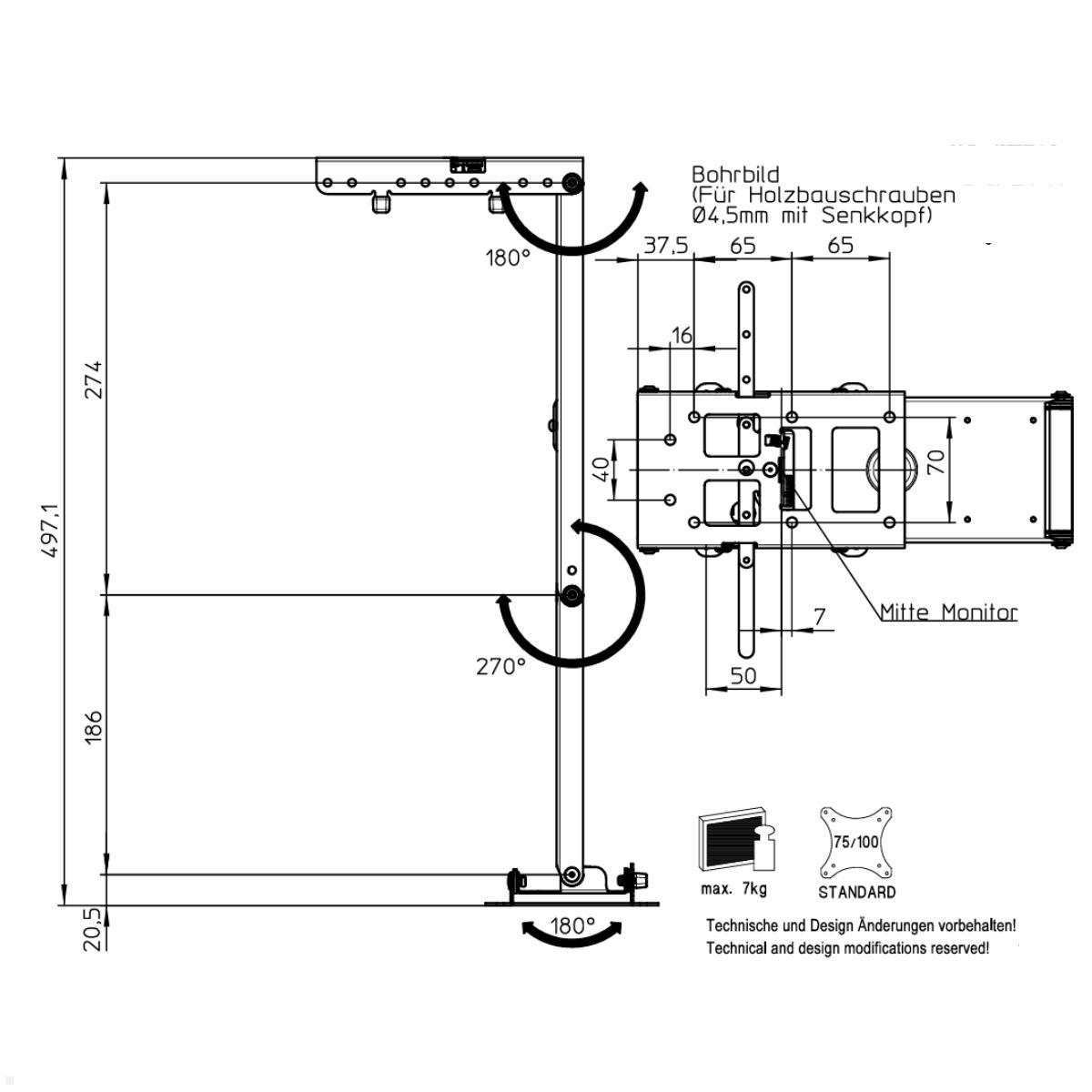

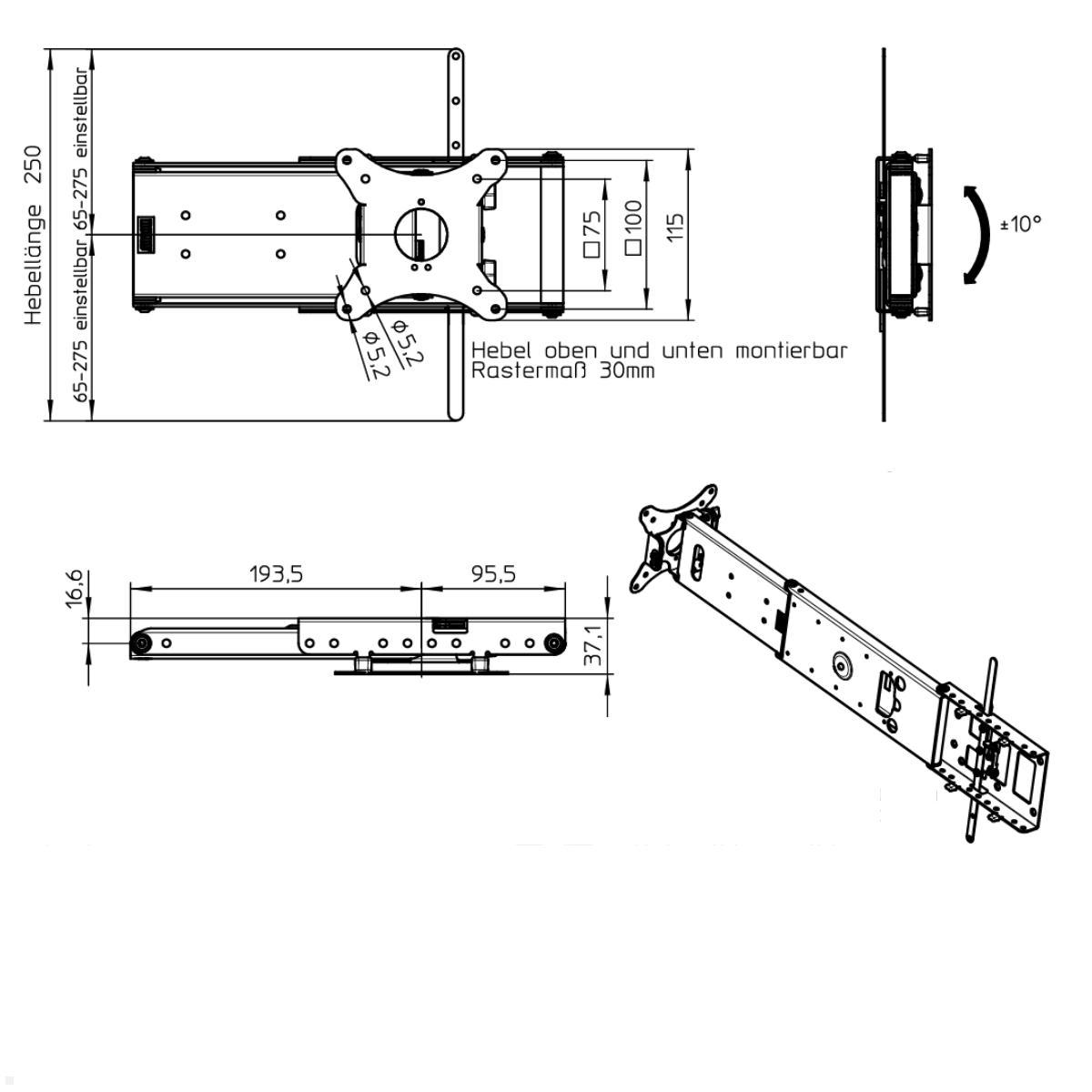

| Technical drawing: |  [pdf, 103 kb - German] |
|---|---|
| Capacity: | 7 kg |
| Tilt: | +/- 10° |
| Swivelling range: | 270° |
| Screen size: | 13 - 24" |
| Depth of the bracket: | 37,1 mm |
| Old model no.: | 01608T02299SB |
| VESA Standard: | 75x75mm, 100x100mm MIS-D (www.vesa-standard.com) |
| Contains installation material: | Ja |
| Warranty: | 2 years |
| Manufacturer/Importer: | Novus Dahle GmbH, Breslauer Straße 34-38, 49808 Lingen (Ems), info@novus-dahle.com |
| Inch size: | 14 inch, 15 inch, 17 inch, 18 inch, 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch |
| Mobility: | swivelling, tilting |
| Mounting type: | wall mount |
| Multi-monitor mount: | 1 monitor |
| color: | Black |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
1 review
5 December 2025 22:48
Perfekte Abwicklung
Von Bestellung bis Lieferung einfach perfekt.
Questions & Answers
-
What is the maximum load for the NOVUS SKY Basic 2XL?
Payload is up to 7 kg.
-
Which VESA patterns are supported?
VESA 75x75 mm and 100x100 mm are supported.
-
How far does the screen extend from the wall?
It offers a reach of up to approximately 460 mm.
-
Is the arm adjustable?
The arm is multi-swivel and rotatable, allowing individual display orientation.
-
Can the display be tilted?
Yes, the display can be tilted by ±10°.
-
Is the height adjustable?
Yes, it is height adjustable over a 250 mm range.
-
Can the arm be locked for travel?
Yes, the arm can be locked so the mount stays in its designated position during travel.
-
Where can the locking lever be mounted?
The locking lever can be mounted at the top or bottom depending on installation.
Why is the NOVUS SKY Basic 2XL suitable for motorhomes and caravans?
The NOVUS SKY Basic 2XL TV wall mount combines flexible screen positioning with a design that is particularly suited to mobile and space-saving applications. Especially in a motorhome or caravan, there is often very little space available and the TV should be able to be positioned differently depending on use.
The movable support arm allows the screen to be pulled away from the wall and aligned to the desired viewing angle. After use, the TV wall mount can be folded back to save space.
How flexibly can the TV be adjusted?
With its multiple joints, the NOVUS SKY Basic 2XL offers a wide range of motion. The maximum extension is approximately 460 mm, allowing the TV to be positioned significantly away from the wall. The screen can also be tilted by ±10°.
Another special feature is the 250 mm height adjustment. This allows not only the viewing angle but also the height of the display to be adapted to the specific installation location and desired usage position. The mount is designed for displays up to 7 kg with VESA 75 × 75 or 100 × 100 mm.
What advantages does the locking mechanism offer while driving?
With a standard swivel TV mount, the jointed arms can shift due to movement while driving. The NOVUS SKY Basic 2XL therefore features a locking mechanism that allows the support arm to be fixed. This makes the mount especially suitable as a TV holder for motorhomes and caravans. Practical for different installation situations: the lever used for locking can be mounted either at the top or at the bottom.
Which TVs is the NOVUS SKY Basic 2XL suitable for?
Decisive for compatibility are, in particular, the weight and the VESA mounting standard of the display used. The NOVUS TV mount is designed for TVs and monitors with a maximum weight of 7 kg and supports VESA sizes 75 × 75 and 100 × 100 mm. This makes it especially suitable for compact displays, as are often used in motorhomes, caravans or other areas with limited space. The combination of large reach, flexible positioning, height adjustment and locking makes the SKY Basic 2XL a versatile solution for secure and comfortable screen mounting.
