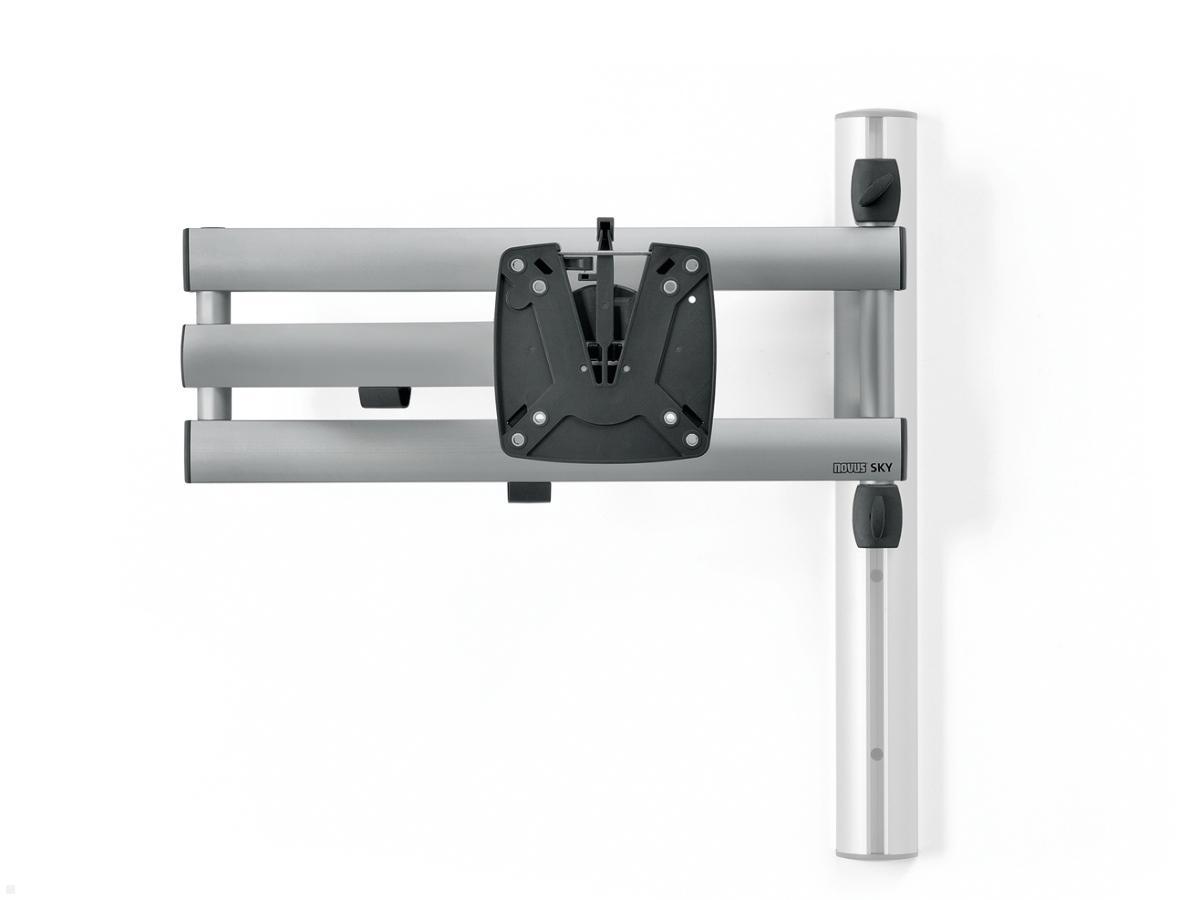

Novus SKY HF TV wall mount
The wall mount Novus SKY HF TV wall mount is perfect for caravans and campers. You can easily add or remove the tv with the quick release.
Novus SKY HF TV wall bracket
For over 30 years equips Novus caravans, campers, motor homes, buses, cars sale, cars and boats with high-quality technical details. The TV mount for flat panel displays counts of the highlights in the range.
Thanks to a large mounting plate, a very solid locking of the support arm and safe handling of the monitor adapter makes the stable Swivel Holder television while camping fun and safe at the same time. Easy is it to the support arm pivot, so that the flat panel is always brought in seconds in ideal position (horizontal 180 degrees and vertical 90 degrees). Convincing Result: freedom of movement - even in tight spaces.
A generous and goal-oriented usable monitor mount provides a free space and more mobility. The two-part articulated arm is equipped with a widely used flat-screen mount (VESA 75/100).
Technical Details Novus SKY HF TV wall holder
- Wall mount for caravan and campers
- Wallplate 158x88mm
- easy mounting of the monitor by quick release with one hand operation, suitable for attachment standard 75/100
- adapter for easy monitor mounting at support element
- Quick Release is attached with four screws at the monitor, thanks to the practical leverage the monitor can be placed without screws on a support element
- mounting of flat screens up to 10 kg
- ergonomic monitor settings by various joints
- perfect cable management by cable clips
If you are interested in more information about VESA-Standards for monitor brackets click here!
| Technical drawing: |  [pdf, 73 kb] |
|---|---|
| Installation manual: | [pdf, 519 kb] |
| Capacity: | 10 kg |
| Tilt: | 45° |
| Swivelling range: | 90° |
| Screen size: | 19 - 32 Zoll |
| VESA Standard: | 75x75mm; 100x100mm (www.vesa-standard.com) |
| Contains installation material: | + |
| Warranty: | 2 years |
| Manufacturer/Importer: | Novus Dahle GmbH, Breslauer Straße 34-38, 49808 Lingen (Ems), info@novus-dahle.com |
| Inch size: | 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch, 28 inch, 29 inch, 30 inch, 31 inch, 32 inch |
| Mobility: | swivelling, tilting |
| Mounting type: | wall mount |
| Multi-monitor mount: | 1 monitor |
| color: | Silver/Anthracite |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
1 review
18 December 2025 10:03
Hervorragende Lieferung – bin sehr zufrieden
Endlich mal ein Produkt, das hält, was es verspricht. Kundenservice war freundlich und lösungsorientiert.
Questions & Answers
-
Which VESA standards does the Novus SKY HF TV wall mount support?
VESA 75x75 mm and 100x100 mm.
-
How adjustable is the mount?
It can swivel horizontally by 90 degrees and vertically by 90 degrees, with a stepless adjustment range.
-
What is the maximum load?
10 kg.
-
What are the wall-plate dimensions?
Wall plate is 158 x 88 mm.
-
How is the monitor attached?
Mounting is via QuickRelease with one-handed operation; the monitor is attached to the carrier with four screws.
-
What colours are available?
Silver/anthracite.
-
How do I check if my monitor fits?
At the end of the checkout process, provide Manufacturer + Model; we will check if the monitor fits and contact you if not.
-
What is the mount suitable for?
For flat-screen displays in caravans, motorhomes, WOMO, sales vehicles, trains and boats.
