Novus TFC Monitor Holder Folding Arm 800 mm (969+3039+002)
Highlights
- VESA-compatible (75x75 & 100x100 mm)
- High load capacity up to 10 kg
- Compact design with approx. 800 mm reach
- QuickRelease system for tool-free monitor replacement
- Ideal for Novus TFC monitor mounting systems
Monitor Mount Novus TFC Articulating Arm III
The Novus TFC monitor mount articulating arm 800 mm (969+3039+002) is a high-quality, two-part monitor support arm for mounting to compatible TFC profile systems. It enables particularly flexible and ergonomic positioning of monitors and is ideal for offices, control rooms and professional workstations. Thanks to its robust construction, monitors weighing up to 10 kg can be securely attached. The standardized VESA mounting (75 × 75 mm and 100 × 100 mm) ensures high compatibility with a wide range of common displays.
Thanks to the two-part joint system, the articulating arm offers a high degree of freedom of movement and can be individually adjusted to different work requirements. The monitor can be tilted, swiveled and rotated, allowing optimal alignment for ergonomic working. With a reach of approx. 800 mm up to extended variants, the support arm provides sufficient scope for flexible monitor positions.
The integrated QuickRelease system allows particularly comfortable, tool-free mounting and dismounting of the monitor. This makes the articulating arm perfect for workstations where displays are regularly changed or adjusted. The standardized VESA mounting also guarantees maximum compatibility with common monitors and ensures easy integration into existing mounting solutions.
The Novus TFC Articulating Arm III impresses with its combination of flexibility, stability and ease of use, making it the ideal solution for modern, ergonomic monitor workspaces.
Technical Details
- Load capacity: 10 kg
- Reach: 800 mm
- Tilt: +/- 45 degrees
- Swivel range: +/- 90°
- Height adjustable: stepless
- VESA mount: 75x75 mm, 100x100 mm
- Ball-joint for flexible and precise positioning
- QuickRelease for fast monitor exchange
Does your screen or display fit the VESA mount?
We will gladly check whether your monitor is suitable for this mount. To do so, simply provide your model (manufacturer + model no.) at the end of the ordering process in the comment field. We will then check for you whether the monitor or display is compatible with the monitor mount and, if not, we will contact you.
Learn more about the VESA standard for VESA mounts here.
| Product sheet: |  [pdf] |
|---|---|

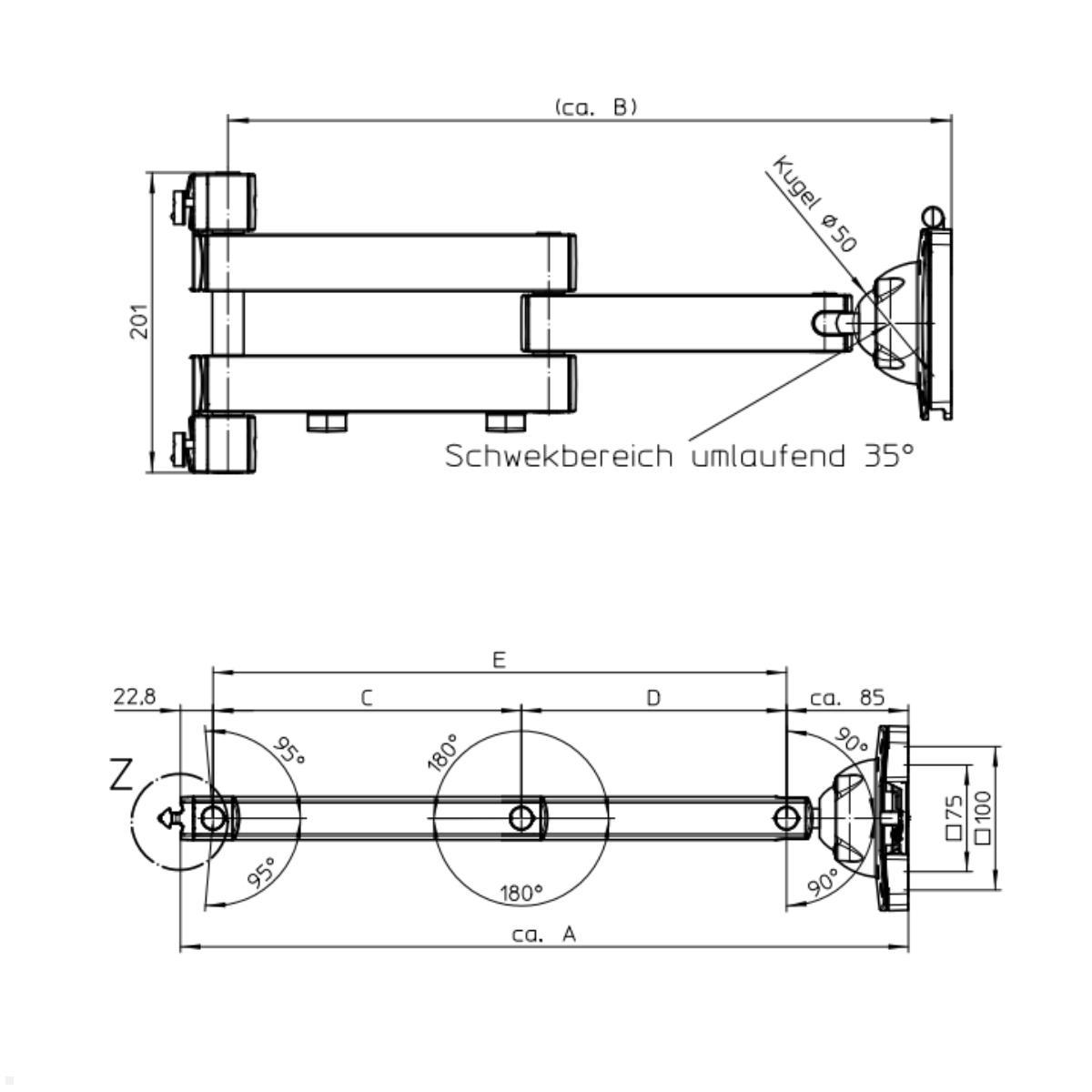

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Capacity: | 10 kg |
| Tilt: | +/- 35° |
| Rotate: | 90° |
| Swivelling range: | +/- 90° |
| Length of the swivel arm: | 800 |
| VESA Standard: | 75x75, 100x100 mm (www.vesa-standard.com) |
| Scope of delivery: | 1x TFC folding arm |
| Contains installation material: | + |
| Manufacturer/Importer: | Novus Dahle GmbH, Breslauer Straße 34-38, 49808 Lingen (Ems), info@novus-dahle.com |
| Mobility: | Drehbar, swivelling, tilting |
| Multi-monitor mount: | 1 monitor |
| color: | Silber |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Kunden kauften auch
What is the Novus TFC Folding Arm III and what is it used for?
The Novus TFC Folding Arm III is a high-quality, two-part monitor support arm specifically designed for professional use in modular workstation systems. As a component of the Novus TFC system (Technical Furniture Components), it enables secure and flexible mounting of monitors to profile systems. The folding arm is used wherever ergonomic, adaptable, and durable monitor solutions are required—for example in offices, control rooms, monitoring centers, or industrial work environments.
Thanks to its thoughtful design, the Folding Arm III offers an ideal combination of stability and mobility. It helps companies create modern and efficient workspaces where monitors can be positioned optimally. This flexibility is a decisive advantage, especially in environments with changing requirements or multiple users.
What advantages does the Novus TFC Folding Arm III offer in everyday work?
A key advantage of the Novus TFC Folding Arm III is its high flexibility. Thanks to the two-part joint system, the monitor can be easily positioned in various ways—moved closer to the user, oriented to the side, or folded back to save space. This makes the folding arm ideal for dynamic workstations where requirements change regularly.
Another major plus is the easy handling. The integrated QuickRelease system allows tool-free mounting and dismounting of the monitor. This saves time during installation and makes device replacement during operation significantly easier.
In addition, the integrated cable management ensures a neat and professional appearance at the workplace. Cables are routed cleanly and remain flexibly movable without getting in the way or posing a safety risk. Overall, the folding arm contributes to greater efficiency, comfort, and order in everyday work.
What technical features characterize the Folding Arm III?
The Novus TFC Folding Arm III impresses with its well-thought-out technical specifications. It is compatible with the common VESA standards 75 x 75 mm and 100 x 100 mm and thus supports a wide range of commercially available monitors. With a load capacity of up to 10 kg, the folding arm is suitable for both classic office screens and larger displays used in professional settings.
The reach of about 800 mm offers generous freedom of movement and allows flexible monitor positioning. The combination of joint arms and a ball joint allows the screen to be tilted, swiveled, and rotated, enabling precise alignment.
The sturdy construction ensures a secure and reliable attachment at all times. Even with frequent adjustments, the monitor stays firmly in position without losing stability. These technical features make the folding arm a durable and high-performance solution for demanding work environments.
Why is the Novus TFC Folding Arm III the ideal choice for monitor mounts?
The Novus TFC Folding Arm III is the ideal choice for anyone seeking a flexible, ergonomic, and high-quality solution for monitor mounting. Through its integration into the TFC system, it can be optimally incorporated into existing workstation concepts while offering maximum adaptability.
Especially in modern work environments where efficiency and ergonomics play a central role, the folding arm demonstrates its strengths. It enables individual adjustment of monitor position, supports healthy working practices, and contributes to a structured workplace design.
Companies benefit from the high quality and durability, while users appreciate the easy operation and high comfort. The Novus TFC Folding Arm III is thus a future-proof investment for professional monitor workstations that combines flexibility, stability, and functionality.
