Novus TFC monitor mount support arm 145mm (969+1039+000)
Highlights
- VESA-compatible (75x75 & 100x100 mm)
- High load capacity up to 15 kg
- Compact design with approx. 250 mm reach
- QuickRelease system for tool-free monitor replacement
- Ideal for Novus TFC monitor mounting systems
Novus TFC Monitor Mount Arm – Compact monitor mount for flexible workspaces
The Novus TFC Monitor Mount Arm 145mm (969+1039+000) is a high-quality, one-piece monitor arm for ergonomic positioning of screens in professional work environments. As part of the Novus TFC system (Technical Furniture Components), the arm can be integrated directly into aluminum profile systems and provides a stable and space-saving monitor attachment.
Thanks to the integrated QuickRelease function, the arm enables quick and tool-free mounting of monitors. The standardized VESA interface ensures high compatibility with common displays and makes the arm the ideal solution for offices, control rooms, or industrial workstations where flexibility and efficiency are required.
Technical details
- Load capacity 15 kg
- Reach 250 mm
- Tilt +/- 35°
- Swivel range +/- 90°
- VESA compatibility: 75 × 75 mm and 100 × 100 mm
- Mounting: QuickRelease system for tool-free monitor exchange
- Ball joint for flexible and precise positioning of the monitor
Does your screen or display fit the VESA mount?
We will gladly check whether your monitor is suitable for this mount. To do so, simply provide your model (manufacturer + model number) in the comment field at the end of the ordering process. We will then check for you whether the monitor or display fits the monitor mount and, if not, we will contact you.
Learn more about the VESA standard for VESA mounts here.
| Product sheet: |  [pdf] |
|---|---|

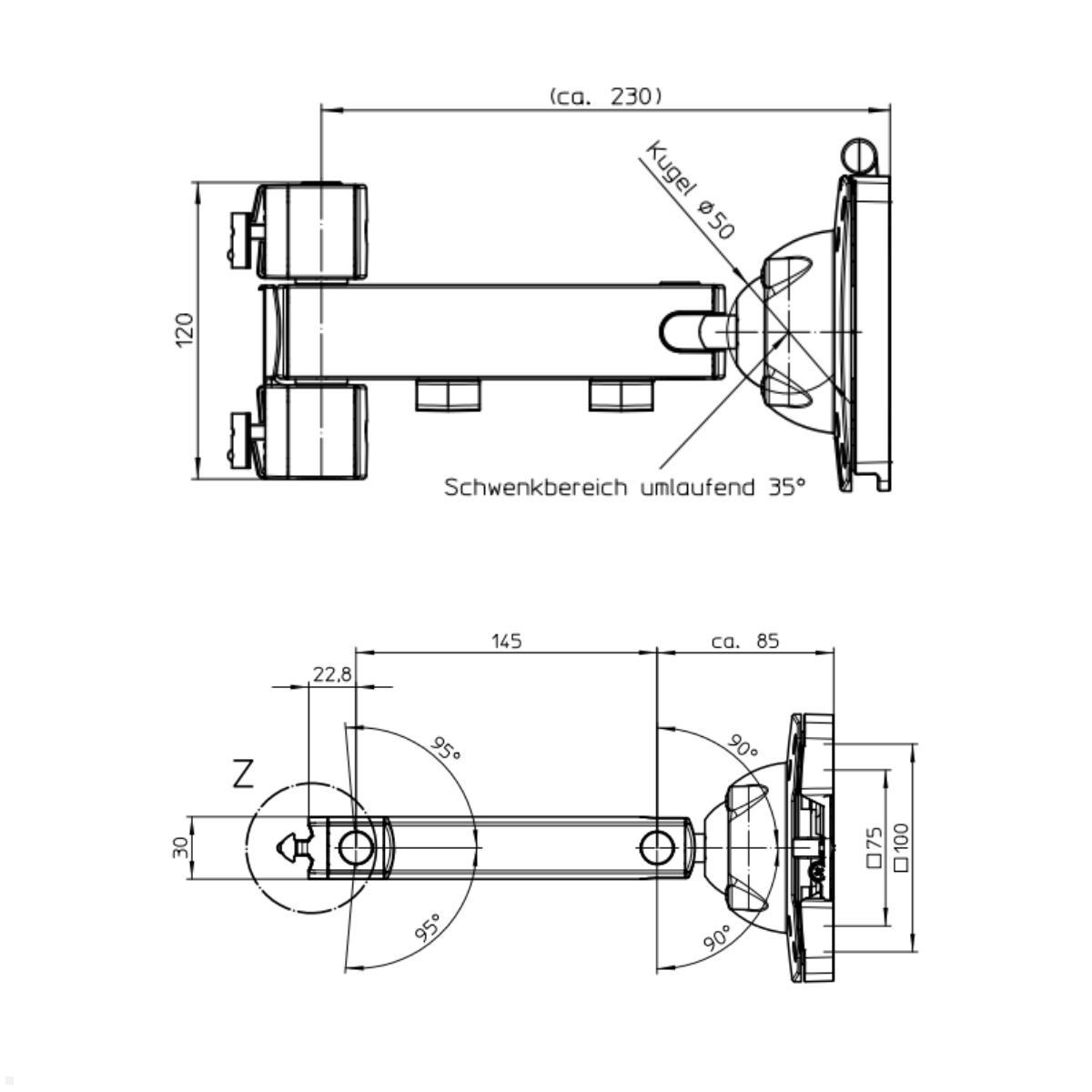

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Capacity: | 15 kg |
| Tilt: | +/- 35° |
| Rotate: | 90° |
| Swivelling range: | +/- 90° |
| Length of the swivel arm: | 250 |
| VESA Standard: | 75x75, 100x100 mm (www.vesa-standard.com) |
| Scope of delivery: | 1x TFC support arm |
| Contains installation material: | + |
| Manufacturer/Importer: | Novus Dahle GmbH, Breslauer Straße 34-38, 49808 Lingen (Ems), info@novus-dahle.com |
| Mobility: | Drehbar, swivelling, tilting |
| Multi-monitor mount: | 1 monitor |
| color: | Silber |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the Novus TFC Monitor Arm 145mm (969+1039+000)?
A high-quality, single-piece monitor arm for ergonomic positioning of displays; part of the NOVUS TFC system; can be integrated into aluminium profile systems; provides a stable and space-saving monitor mounting.
-
What is the payload capacity?
Payload capacity: 15 kg.
-
What is the reach?
Reach: 250 mm.
-
What are the tilt and swivel ranges?
Tilt: ±35°, Swivel: ±90°.
-
What is the VESA compatibility?
VESA compatibility: 75×75 mm and 100×100 mm.
-
How is it mounted?
QuickRelease system for tool-free monitor changes.
-
Can I check whether my monitor fits?
Yes — provide your monitor's model (manufacturer + model number) in the comments at the end of the order; they will check compatibility and contact you if it doesn't fit.
-
Learn more about the VESA standard?
Learn more about the VESA standard for mounts here.
Kunden kauften auch
What is the Novus TFC Support Arm I and what is it used for?
The Novus TFC Support Arm I is a high-quality, one-piece monitor support arm specifically developed for integration into the Novus TFC system (Technical Furniture Components). It is used for the secure and ergonomic mounting of monitors in a wide range of working environments – from traditional office workstations to industrial applications or control rooms. Its compact design and direct mounting to profile systems provide a space-saving yet stable solution for modern screen workstations.
The support arm has the central function of bringing monitors into the optimal position to ensure comfortable use. Especially in professional environments where efficiency and ergonomics play an important role, using a high-quality monitor arm like the Novus TFC Support Arm I is essential.
What advantages does the Novus TFC Support Arm I offer in daily use?
A key advantage of the Novus TFC Support Arm I lies in its simple and user-friendly handling. Thanks to the integrated QuickRelease system, monitors can be mounted or exchanged quickly and without additional tools. This not only saves time during installation but also significantly simplifies device changes during operation.
Furthermore, the support arm promotes ergonomic workplace design. Monitors can be flexibly aligned, ensuring an optimal viewing position for different users. This helps reduce neck and back strain and significantly increases comfort at the workplace.
Another advantage is the high stability of the system. The support arm is designed to provide reliable and secure monitor mounting even under intensive use. This makes it ideal for demanding work environments where a durable and robust solution is required.
What technical features characterize the support arm?
The Novus TFC Support Arm I impresses with a variety of technical features that make it a versatile solution for different requirements. It supports the common VESA standards of 75 x 75 mm and 100 x 100 mm, ensuring broad compatibility with almost all commercially available monitors.
With a load capacity of up to 15 kg, the support arm is suitable for both smaller displays and larger monitors used in professional settings. The arm length of approximately 250 mm provides sufficient reach to position the monitor flexibly and adapt it to individual requirements.
The QuickRelease function enables particularly simple and secure mounting, while the high-quality workmanship ensures a long service life. The silver finish also blends visually harmoniously into modern work environments and existing monitor mounting systems.
Why is the Novus TFC Support Arm I the ideal choice for monitor mounts?
The Novus TFC Support Arm I is the perfect choice for anyone seeking a reliable, flexible, and ergonomic solution for monitor mounting. Its thoughtful design allows it to integrate seamlessly into existing TFC systems while offering maximum functionality with minimal space requirements.
Especially in combination with professional monitor mounts, the support arm unfolds its full potential. It enables individual adjustment of workstations, supports ergonomic requirements, and ensures an organized and efficient working environment.
Companies benefit from the product's high quality and durability, while users gain from the easy operation and improved ergonomics. This makes the Novus TFC Support Arm I a future-proof investment for modern, flexible, and high-performance workstation solutions.
