Novus TFC Monitor holder folding arm 450 mm (969+2039+000)
Highlights
- VESA-compatible (75x75 & 100x100 mm)
- High load capacity up to 10 kg
- Compact design with approx. 450 mm reach
- QuickRelease system for tool-free monitor change
- Ideal for Novus TFC monitor mounting systems
Novus TFC Folding Arm – Flexible monitor support arm for maximum mobility
The Novus TFC Monitor Mount Folding Arm 450 mm (969+2039+000) is a high-quality, two-part monitor support arm specifically designed for flexible and ergonomic workplace solutions. Its articulated arm provides exceptional freedom of movement and can be individually adjusted to different work requirements. The folding arm is part of the Novus TFC system and is ideal for use in offices, control rooms, or industrial environments where monitors frequently need repositioning.
The integrated QuickRelease system allows particularly comfortable, tool-free mounting and dismounting of the monitor. This makes the folding arm perfect for workstations where displays are regularly changed or adjusted. The standardized VESA interface also ensures maximum compatibility with common monitors and allows easy integration into existing mounting solutions.
Technical Details
- Load capacity 10 kg
- Reach approx. 450 mm
- Tilt +/- 35°
- Swivel range +/- 90°
- VESA compatibility: 75 × 75 mm and 100 × 100 mm
- QuickRelease system for tool-free monitor changes
- 2-part joint system for flexible positioning
- Ball joint for flexible and precise monitor positioning
Does your screen or display fit the VESA mount?
We will be happy to check whether your monitor is suitable for this mount. Simply provide your model (manufacturer + model no.) for us at the end of the ordering process in the comments field. We will then check for you whether the monitor or display fits the monitor mount and, if not, we will get in touch with you.
Learn more about the VESA standard for VESA mounts here.
| Product sheet: |  [pdf] |
|---|---|

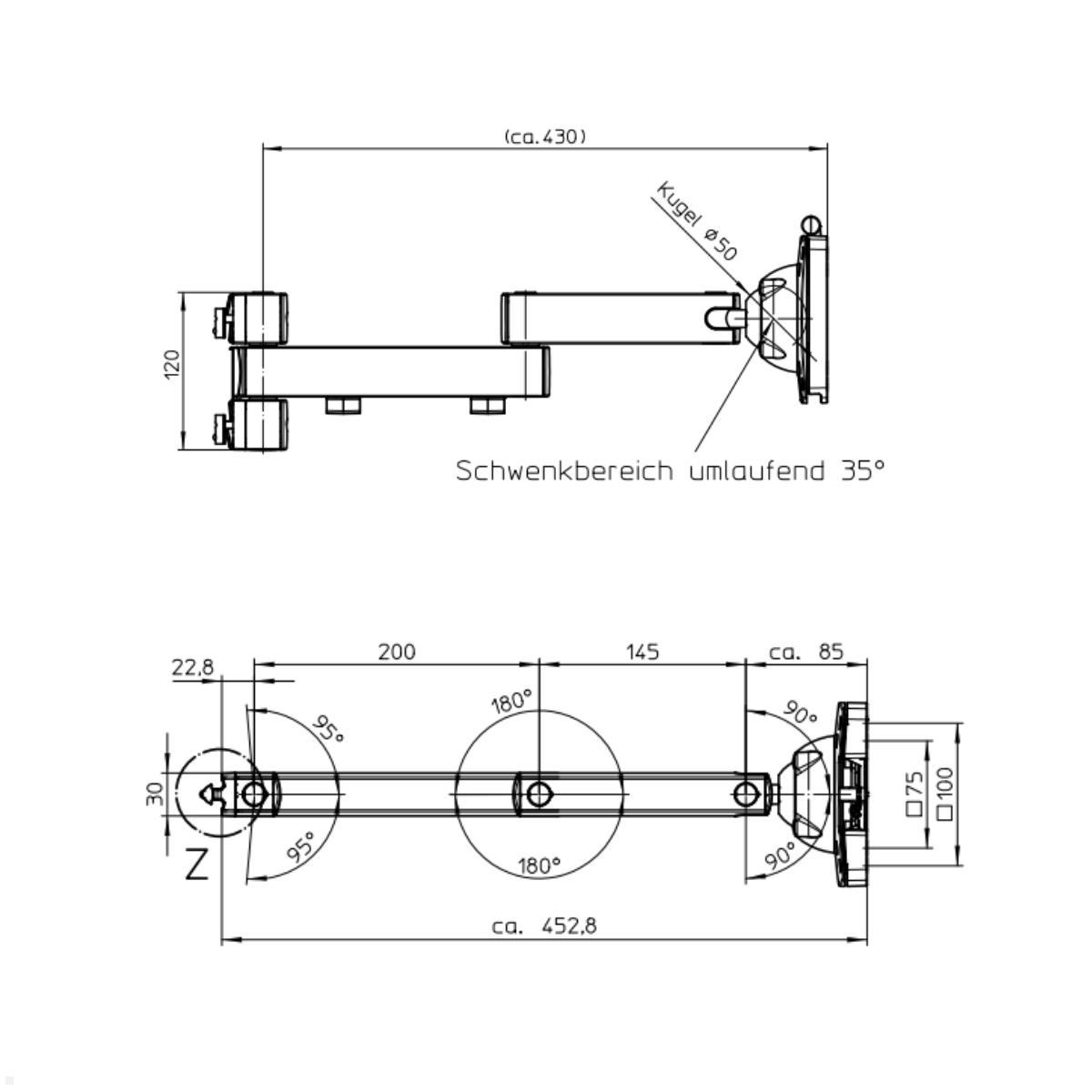

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Capacity: | 10 kg |
| Tilt: | +/- 35° |
| Rotate: | 90° |
| Swivelling range: | +/- 90° |
| Length of the swivel arm: | 450 |
| VESA Standard: | 75x75, 100x100 mm (www.vesa-standard.com) |
| Scope of delivery: | 1x TFC folding arm |
| Contains installation material: | + |
| Manufacturer/Importer: | Novus Dahle GmbH, Breslauer Straße 34-38, 49808 Lingen (Ems), info@novus-dahle.com |
| Mobility: | Drehbar, swivelling, tilting |
| Multi-monitor mount: | 1 monitor |
| color: | Silber |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the Novus TFC Monitor Arm Foldable Arm 450 mm?
The arm is a high-quality, two-part monitor arm designed for flexible and ergonomic workstation solutions; the joint arm provides a wide range of movement and can be adapted to different tasks.
-
What are the technical specifications?
Load capacity 10 kg, reach about 450 mm, tilt +/- 35°, swivel +/- 90°. VESA compatibility 75 × 75 mm and 100 × 100 mm, QuickRelease system for tool-free monitor changes, two-part joint system for flexible positioning, ball-and-socket joint for flexible and precise monitor positioning.
-
Is my monitor compatible?
We can check compatibility; please provide the monitor's manufacturer and model in the order's comment field at the end of checkout, and we will verify and contact you if it is not compatible.
-
Where is it suitable?
Ideal for offices, control rooms or industrial environments where monitors are frequently repositioned.
-
What is the QuickRelease system?
The integrated QuickRelease system enables comfortable, tool-free mounting and removal of the monitor.
-
How is the arm built?
It features a two-part joint system for flexible positioning.
-
What about VESA compatibility?
VESA compatibility is 75 × 75 mm and 100 × 100 mm.
-
What does 'foldable arm' mean?
The Foldable Arm refers to a flexible arm that can be positioned widely to enable maximum mobility.
Kunden kauften auch
What is the Novus TFC Folding Arm II and what is it used for?
The Novus TFC Folding Arm II is a high-quality, two-part monitor support arm specially developed for flexible and ergonomic workplace solutions. As part of the Novus TFC system (Technical Furniture Components), it enables easy integration into modular profile systems and provides a stable base for secure monitor mounting. The folding arm is ideal for offices, control rooms, industrial workstations, or anywhere monitors need to be repositioned regularly.
Thanks to its well-thought-out design, the Folding Arm II offers particularly high freedom of movement. Users can individually align their monitor and optimally adjust it to their seating or working position. This makes it the perfect solution for dynamic work environments where flexibility and ergonomics are the focus.
What advantages does the Novus TFC Folding Arm II offer in everyday work?
A central advantage of the Novus TFC Folding Arm II is its enormous flexibility. Thanks to the two-part joint system, the monitor can be effortlessly positioned in various ways – whether pulled closer, swung to the side, or folded back to save space. This makes the folding arm ideal for workstations used by multiple people or where requirements change regularly.
Additionally, the folding arm scores points for its particularly easy handling. The integrated QuickRelease system allows tool-free mounting and dismounting of the monitor. This saves time and ensures a smooth process when setting up or replacing devices.
Another advantage is the integrated cable management. The cable routing keeps the workstation tidy and prevents annoying or loose cables. This not only improves the appearance but also increases safety and functionality in everyday work.
Which technical features make the folding arm particularly effective?
The Novus TFC Folding Arm II convinces with its well-thought-out technical features that make it a versatile solution for a wide range of requirements. It supports the common VESA standards of 75 x 75 mm and 100 x 100 mm and is thus compatible with a variety of commercially available monitors.
With a maximum load capacity of up to 10 kg, the folding arm is suitable for many common displays in office and industrial areas. The reach of approximately 450 mm provides generous freedom of movement and ensures that the monitor can be positioned flexibly.
The robust construction ensures a secure and reliable mounting of the monitor, while the precise joint mechanics enable easy and smooth adjustment. The combination of functionality, stability, and flexibility makes the folding arm an optimal solution for professional monitor mounts.
Why is the Novus TFC Folding Arm II the ideal choice for monitor mounts?
The Novus TFC Folding Arm II is the perfect choice for those who value flexibility, ergonomics, and quality. Thanks to its modular design, it can be optimally integrated into existing TFC systems while offering high adaptability to individual work requirements.
Especially in modern work environments where requirements change quickly, the folding arm plays to its strengths. It allows quick adjustment of the monitor position, supports ergonomic working, and ensures efficient use of the available workspace.
Companies benefit from the high quality and durability of the product, while users appreciate the easy operation and increased comfort. This makes the Novus TFC Folding Arm II a future-proof solution for professional monitor workstations that is convincing both functionally and ergonomically.
