Novus TFC carriage monitor mount for aluminum profile with quick release (969+0039+000)
Highlights
- Tool-free mounting thanks to QuickRelease system
- Universal VESA compatibility (75x75 & 100x100)
- High load capacity up to 15 kg
- Ideal for ergonomic and flexible monitor workstations
- Perfectly matched to Novus TFC aluminum profiles
Monitor mount for aluminum profile
The Novus TFC carriage monitor mount with Quick Release (969+0039+000) is the ideal addition for modern monitor mounting systems and provides a secure, flexible and ergonomic attachment of screens. Specifically designed for the Novus TFC system, the carriage integrates seamlessly into existing monitor mounts and allows a stable mounting of monitors in a wide range of work environments – from the office to industrial applications. The integrated QuickRelease system enables particularly convenient, tool-free installation and removal of the monitor. This makes the carriage perfect for workstations where displays are frequently changed or adjusted. The standardized VESA mount also ensures maximum compatibility with common monitors and allows easy integration into existing mounting solutions.
Technical details for the Novus TFC carriage monitor mount
- Compatibility: For Novus TFC monitor mounting systems
- VESA standard: 75 × 75 mm and 100 × 100 mm
- Load capacity: up to 15 kg
- Swivel range +/- 90°
- Tilt +/- 35°
- Reach approx. 108 mm
- Mounting: QuickRelease function for tool-free monitor changes
- Ball joint for flexible and precise positioning of the monitor
Does your screen or display fit the VESA mount?
We will gladly check whether your monitor is suitable for this mount. To do so, simply provide your model (manufacturer + model number) in the comment field at the end of the ordering process. We will then check for you whether the monitor or display fits the mount and, if not, will contact you.
Learn more about the VESA standard for VESA mounts here.
| Product sheet: |  [pdf] |
|---|---|

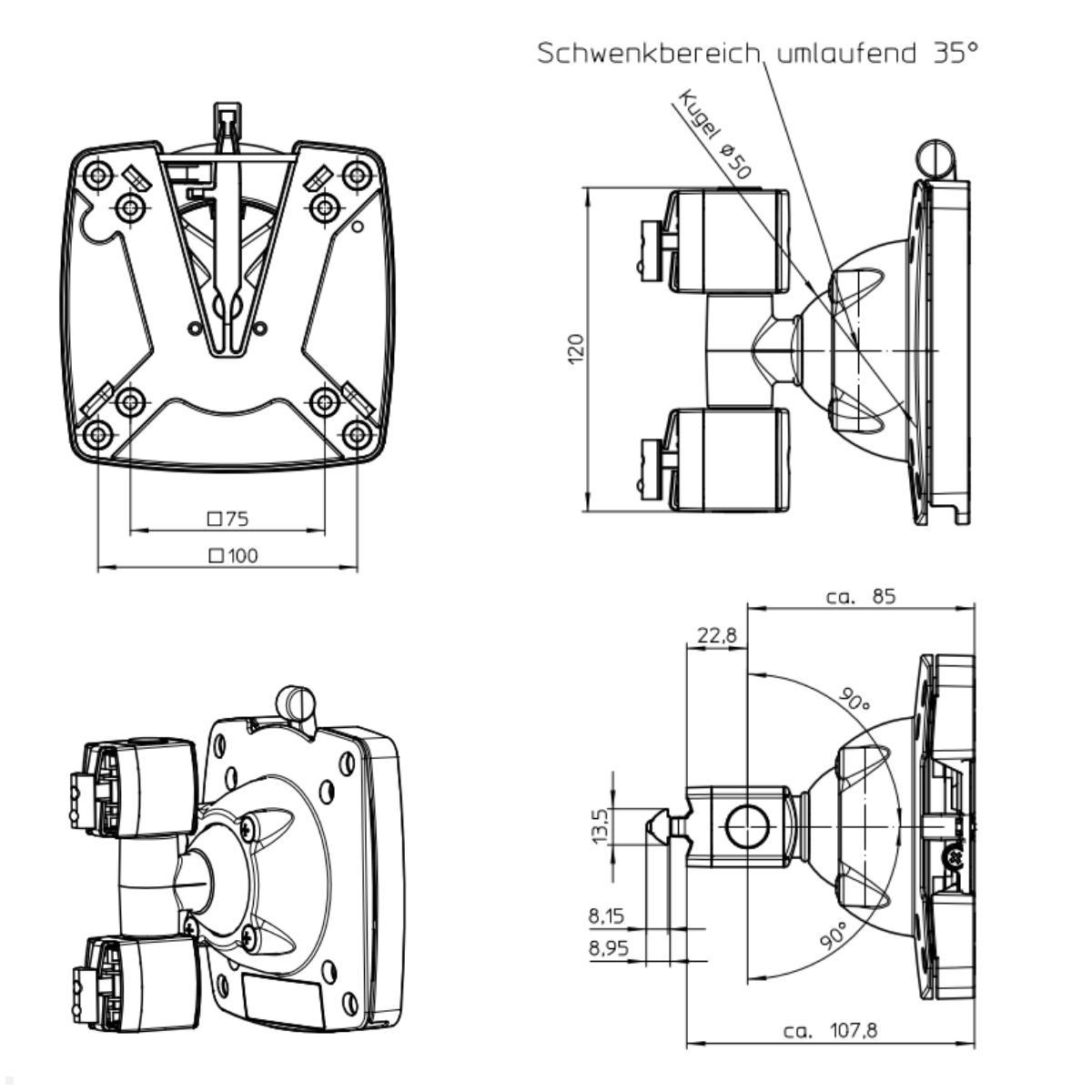

| Technical drawing: | [pdf] |
| Others: | [pdf - German] |
| Installation manual: | [pdf] |
| Capacity: | 15 kg |
| Tilt: | +/- 35° |
| Rotate: | 360° |
| Swivelling range: | +/- 90° |
| Length of the swivel arm: | 108 |
| Screen size: | bis max. 49 Zoll |
| VESA Standard: | 75x75, 100x100 mm (www.vesa-standard.com) |
| Packaging dimensions (LxWxH in mm): | 195 x 145 x 125 |
| Scope of delivery: | 1x TFC carrying sled |
| Contains installation material: | + |
| Warranty: | 5 years |
| Manufacturer/Importer: | Novus Dahle GmbH, Breslauer Straße 34-38, 49808 Lingen (Ems), info@novus-dahle.com |
| Inch size: | 14 inch, 15 inch, 17 inch, 18 inch, 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch, 28 inch, 29 inch, 30 inch, 31 inch, 32 inch, 33 Zoll, 34 inch, 35 inch, 37 inch, 38 inch, 40 inch, 42 inch, 43 inch, 44 Zoll, 45 Zoll, 46 inch, 47 inch, 48 inch, 49 inch |
| Mobility: | Drehbar, swivelling, tilting |
| Mounting type: | Aluminium profile |
| Multi-monitor mount: | 1 monitor |
| color: | Silber |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
1 review
9 August 2026 06:33
Alles top: Lieferung, lief reibungslos
Hochwertige Verarbeitung, sieht edel aus. Sehr kulant und hilfsbereit.
Questions & Answers
-
What is the Novus TFC carriage slider monitor mount with Quick Release (969+1039+000)?
It is a flexible monitor mounting accessory for the Novus TFC system that provides secure, flexible and ergonomic mounting. The built-in QuickRelease function enables tool-free mounting and removal.
-
Which VESA standards does the carriage support?
VESA standards 75 × 75 mm and 100 × 100 mm.
-
How much weight can the carriage support?
Up to 15 kg.
-
What are the movement ranges?
Swivel ±90°, tilt ±45°, reach approx. 108 mm.
-
Is tool-free monitor swapping possible?
Yes, thanks to the QuickRelease function for tool-free monitor changes.
-
How does it integrate with existing monitor mounts?
Specifically designed for the Novus TFC system; can be seamlessly integrated into existing monitor mounting solutions.
-
Will my screen fit the VESA mount? How do I check?
We check compatibility; please provide the manufacturer and model number in the order's comment field; we will confirm compatibility and contact you if not.
-
What environments is it suitable for?
From office to industrial environments; it provides secure, flexible and ergonomic mounting.
Zubehör
What is the Novus TFC VESA Carrier Sled and what is it used for?
The Novus TFC VESA carrier sled is a high-quality system component for securely mounting monitors within professional monitor mounting systems. It was specially developed for the Novus TFC system (Technical Furniture Components) and is used wherever flexible, ergonomic, and stable screen workstations are required. Typical applications include offices, control rooms, production environments, or technical workstations where monitors need to be positioned optimally. Thanks to its well-thought-out design, the carrier sled provides a reliable connection between the monitor and the mounting system. At the same time, it allows clean integration into existing solutions without compromising functionality or stability. Especially in modular work environments, the carrier sled offers an ideal basis for individual monitor solutions.
What advantages does the Novus TFC VESA Carrier Sled offer in everyday work?
A key advantage of the Novus TFC carrier sled is its high flexibility combined with easy handling. Thanks to the integrated QuickRelease system, monitors can be mounted or exchanged without tools. This saves time and makes daily use significantly easier, especially in dynamic work environments. In addition, the carrier sled supports ergonomic workstation design. Monitors can be quickly adjusted or replaced, ensuring an optimal viewing position for different users. This not only increases comfort but can also boost productivity and reduce physical strain. Another advantage is the robust construction. The sturdy metal design ensures long-lasting use even under heavy use. At the same time, precise workmanship ensures a secure and wobble-free monitor attachment — an important factor in professional work environments.
What technical specifications characterize the carrier sled?
The Novus TFC VESA carrier sled impresses with its well-considered technical specifications, making it a versatile solution for different requirements. It supports the common VESA standards of 75 x 75 mm and 100 x 100 mm, ensuring broad compatibility with numerous monitors. With a maximum load capacity of up to 15 kg, the carrier sled is suitable for a variety of displays — from smaller office screens to larger monitors used in professional settings. The QuickRelease function enables quick and secure fastening without additional tools. The high-quality choice of materials and solid workmanship underline the product's professional standards. The silver finish also blends harmoniously into modern work environments and visually matches many monitor mounting systems.
Why is the Novus TFC VESA Carrier Sled the right choice for monitor mounts?
If you are looking for a reliable and flexible solution for monitor mounting, the Novus TFC VESA carrier sled is an excellent choice. It combines ease of use, high stability, and maximum compatibility in a compact component. Especially in combination with professional monitor mounts, the carrier sled reaches its full potential. It allows quick adaptation of workstations, supports ergonomic requirements, and ensures long-term safe use. Due to its thoughtful design and integration into the TFC system, the carrier sled is suitable for both standardized and individually configured workstations. This makes it the ideal solution for companies that value quality, flexibility, and efficiency when designing their monitor workstations.
