Novus TFC Monitor holder Telescopic arm 327-426 mm (969+3049+000)
Highlights
- VESA-compatible (75x75 & 100x100 mm)
- High load capacity up to 10 kg
- Compact design with approx. 327 - 426 mm reach
- QuickRelease system for tool-free monitor exchange
- Ideal for Novus TFC monitor mounting systems
Novus TFC Telescopic Arm – Flexible Monitor Support Arm with Variable Reach
The Novus TFC monitor mount telescopic arm 327-426 mm (969+3049+000) is a high-quality monitor support arm for flexible and ergonomic positioning of screens in professional work environments. As part of the Novus TFC system (Technical Furniture Components) the telescopic arm can be integrated directly into aluminium profile systems and offers a particularly space-saving and adaptable solution for modern workstations.
Thanks to the telescopic design the reach can be adjusted individually, allowing the monitor to be optimally adapted to different working positions. The integrated QuickRelease system enables quick, tool-free mounting of the monitor, while VESA compatibility ensures easy integration with common displays. The telescopic arm is ideal for offices, industrial workplaces and control rooms where flexibility and ergonomics play a central role.
Technical details
- Load capacity: 10 kg
- Reach: 327-426 mm
- Tilt: +/- 45 degrees
- Swivel range: +/- 90°
- Height adjustable: stepless
- VESA mount: 75x75 mm, 100x100 mm
- Ball joint for flexible and precise positioning
- QuickRelease for quick monitor changes
Does your screen or display fit the VESA mount?
We will gladly check whether your monitor is suitable for this mount. To do so, simply provide your model (manufacturer + model no.) at the end of the order process in the comments field. We will then check for you whether the monitor or display fits the monitor mount and if not, we will get in touch with you.
Learn more about the VESA standard for VESA mounts here.
| Product sheet: |  [pdf] |
|---|---|

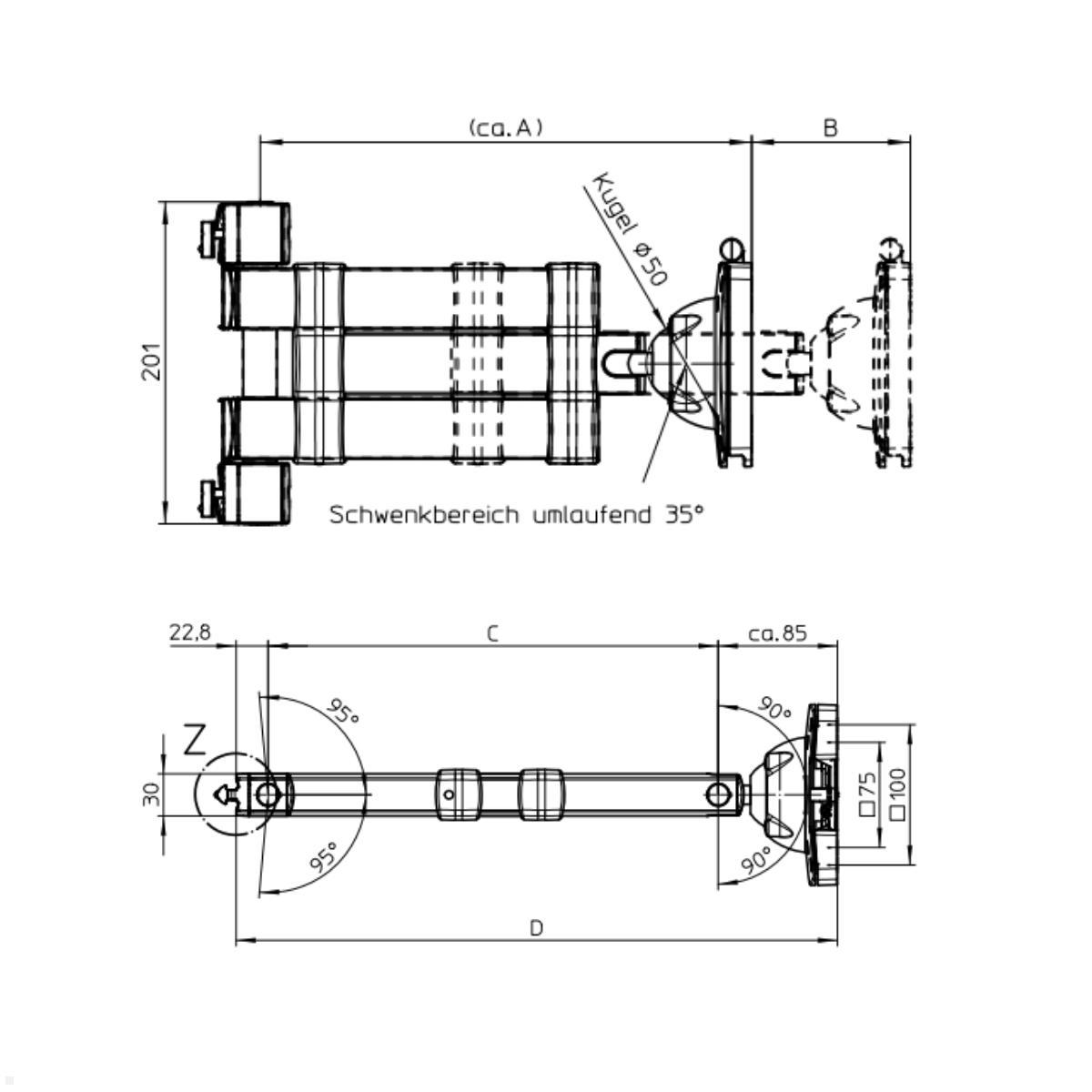

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Capacity: | 10 kg |
| Tilt: | +/- 35° |
| Rotate: | 90° |
| Swivelling range: | +/- 90° |
| Length of the swivel arm: | 426 |
| VESA Standard: | 75x75, 100x100 mm (www.vesa-standard.com) |
| Scope of delivery: | 1x TFC telescopic arm |
| Contains installation material: | + |
| Manufacturer/Importer: | Novus Dahle GmbH, Breslauer Straße 34-38, 49808 Lingen (Ems), info@novus-dahle.com |
| Mobility: | Drehbar, swivelling, tilting |
| Multi-monitor mount: | 1 monitor |
| color: | Silber |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the Novus TFC Telescopic Monitor Arm 327-426 mm?
The Novus TFC Telescopic Arm is a high-quality monitor arm for flexible and ergonomic positioning of displays and can be integrated into aluminium profile systems as part of the Novus TFC system.
-
What is the reach?
Reach: 327–426 mm.
-
What is the load capacity?
Load capacity: 10 kg.
-
What are the tilt and swivel ranges?
Tilt: ±45°, Swivel: ±90°.
-
Is the height adjustable?
Height adjustment is stepless.
-
Which VESA mounting standards are supported?
VESA mounting: 75×75 mm and 100×100 mm.
-
What does QuickRelease do?
QuickRelease enables quick and tool-free mounting of the monitor.
-
Will my monitor fit the mount?
We can check if your monitor is suitable; simply provide the manufacturer and model number in the order notes, and we will confirm compatibility or contact you if it does not fit.
Kunden kauften auch
What is the Novus TFC telescopic arm and what is it used for?
The Novus TFC telescopic arm is a high-quality monitor support arm specifically designed for use in professional and modular work environments. As part of the Novus TFC system (Technical Furniture Components) it enables flexible and ergonomic mounting of monitors to profile systems. The telescopic arm is ideal for offices, industrial workplaces, control rooms or monitoring centers where monitors need to be individually positioned and frequently adjusted.
Due to its telescopic design, the monitor arm offers particularly high adaptability. Users can adjust the arm's reach individually and position the monitor exactly where it is needed. This makes the telescopic arm an optimal solution for modern workplaces where ergonomics, efficiency and flexibility are a priority.
What advantages does the Novus TFC telescopic arm offer in everyday work?
A key advantage of the Novus TFC telescopic arm is its variable reach. With the extendable arm, the monitor can be flexibly pulled closer or positioned further away. This is especially useful in work environments with changing requirements or multiple users, as the screen can be quickly adapted to different needs.
Furthermore, the telescopic arm impresses with its ease of use. The integrated QuickRelease system allows tool-free mounting and dismounting of the monitor. This enables screens to be installed or swapped quickly, saving time and optimizing workflow.
Another advantage is the space-saving design. The monitor can be brought close to the mount when needed, freeing up more workspace. At the same time, the sturdy construction ensures a secure and reliable attachment, even with regular adjustments.
What technical features characterize the telescopic arm?
The Novus TFC telescopic arm stands out for its well-thought-out technical specifications, making it a versatile solution for a wide range of requirements. It is compatible with the common VESA standards 75 x 75 mm and 100 x 100 mm and is therefore suitable for a variety of commercially available monitors.
With a load capacity of up to 10 kg, the telescopic arm is ideal for many common displays in office and industrial environments. The telescopically adjustable reach of approximately 327 to 426 mm offers particularly great flexibility in positioning the monitor.
In addition, the integrated mechanism allows for easy and precise alignment of the screen. Combined with the high-quality workmanship, this ensures long-lasting and reliable use in everyday work. The silver finish also blends visually harmoniously into modern workplace environments.
Why is the Novus TFC telescopic arm the ideal choice for monitor mounts?
The Novus TFC telescopic arm is the ideal choice for anyone seeking a flexible, ergonomic and space-saving solution for monitor mounting. Through its integration into the TFC system, it can be easily incorporated into existing workplace concepts while offering maximum adaptability.
Especially in modern work environments where requirements change quickly, the telescopic arm plays to its strengths. It allows individual adjustment of the monitor position, supports ergonomic working and ensures efficient use of the workspace.
Companies benefit from the product's high quality and durability, while users appreciate the ease of use and increased comfort. The Novus TFC telescopic arm is thus a future-proof solution for professional monitor workspaces that combines flexibility, stability and functionality.
