Novus TFC accessories folding arm II shelf 175-230 mm (969+2029+000)
Highlights
- Flexible, two-part folding arm for maximum mobility
- Ergonomic positioning of keyboard and laptop trays
- Folds away to save space when not in use
- Robust metal construction
- Perfectly compatible with the NOVUS TFC system
NOVUS TFC Folding Arm II Shelf - Maximum Flexibility and Ergonomics for Professional Workplaces
The Novus TFC accessory Folding Arm II Shelf 175-230 mm (969+2029+000) in silver is a high-quality and well-thought-out extension for ergonomic workstation systems and is ideal for use in office, industrial, or control room environments where flexibility, efficiency and a healthy way of working are paramount. Thanks to its stable, two-part folding-arm construction it allows particularly variable positioning of keyboard or notebook trays and ensures that work equipment can always be placed within optimal reach and line of sight. This supports an ergonomically correct body posture, reduces strain on the back, shoulders and wrists and at the same time increases productivity in everyday work. The folding mechanism also allows the shelf to be folded away or swiveled to the side when not in use, keeping the workstation flexible and quickly adaptable to changing requirements. Thanks to the robust metal construction and high-quality workmanship, the folding arm is designed for long-term, professional use and impresses with durability as well as a modern, technical silver look that integrates seamlessly as an accessory into existing NOVUS TFC systems and functionally extends them.
Technical Details
- Load capacity: up to 10 kg
- Reach: up to approx. 400 mm
- Swivel range: 180°
- Rotation range: 360°
- Module length 1: 230 mm
- Module length 2: 175 mm
- Foldable
- Accepts keyboard or notebook trays
- Material: Metal
- Color: Silver
| Product sheet: |  [pdf] |
|---|---|

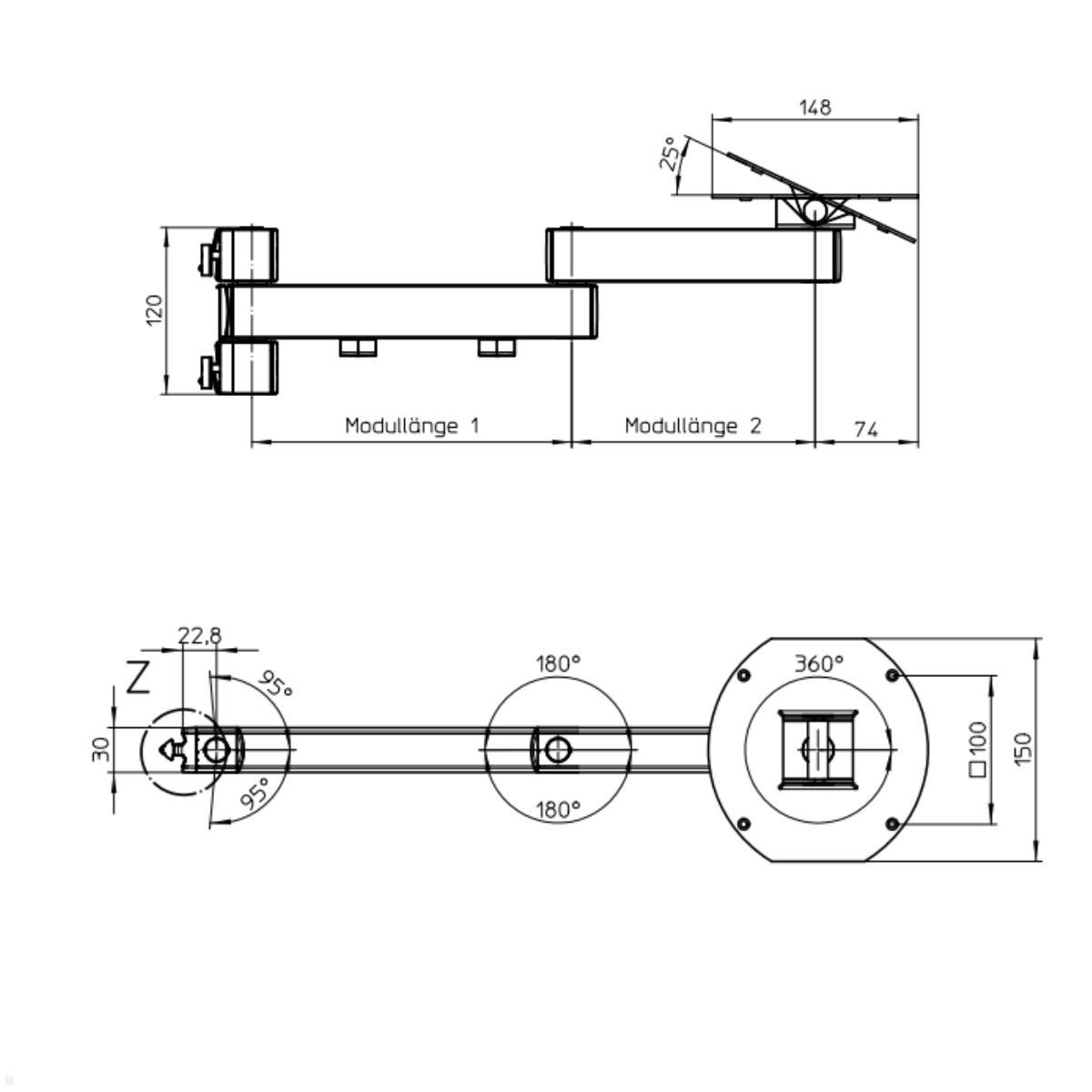

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Capacity: | 10 kg |
| Rotate: | 360° |
| Swivelling range: | +/- 180° |
| Length of the swivel arm: | 400 |
| Scope of delivery: | 1x TFC tray folding arm |
| Contains installation material: | + |
| Manufacturer/Importer: | Novus Dahle GmbH, Breslauer Straße 34-38, 49808 Lingen (Ems), info@novus-dahle.com |
| Mobility: | Drehbar, swivelling |
| color: | Silber |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the load capacity of the NOVUS TFC Folding Arm II Shelf?
Load capacity up to 10 kg.
-
How far does the arm reach?
Reach up to about 400 mm.
-
What are the folding and rotation ranges?
Swivel range 180°, rotation range 360°.
-
What module lengths are available?
Module length 1 is 230 mm and module length 2 is 175 mm.
-
What material is it made from and what does it look like?
Made of metal in silver; robust construction with a modern, technical appearance.
-
How does the folding mechanism work?
The folding mechanism allows the shelf to fold away or swing aside when not in use.
-
Is it compatible with NOVUS TFC systems?
It integrates as an accessory into existing NOVUS TFC systems and expands them functionally.
-
What environments is it suitable for?
Suitable for office, industrial or control-room environments where flexibility, efficiency and ergonomic working are prioritized.
Kunden kauften auch
What makes the NOVUS TFC Tray Folding Arm II an optimal solution for ergonomic workstations?
The NOVUS TFC Tray Folding Arm II in silver is a professional extension for modern workstation systems and was specially developed for the requirements of ergonomic workstations. As a high-quality accessory for monitor mounts and workstation systems, it enables the flexible integration of keyboard or notebook trays and thus contributes significantly to the optimization of work processes. Especially at a time when ergonomic working and health in the workplace are becoming increasingly important, this folding arm offers a well-thought-out solution to position work equipment individually and ergonomically. Through the combination of stability, flexibility and high-quality workmanship, the NOVUS TFC Tray Folding Arm II is an ideal choice for anyone who wants to sensibly expand their monitor mount and upgrade their workstation ergonomically.
How does the NOVUS TFC Tray Folding Arm II support ergonomic workstation design?
Ergonomic workstation design is essential to prevent long-term health complaints and to increase productivity. The NOVUS TFC Tray Folding Arm II makes it possible to set keyboards or notebooks precisely to the optimal working height and reach. This promotes a natural posture and significantly reduces strain on the back, shoulders and wrists. Especially in combination with a monitor mount or a modular support arm system, a fully adjustable workstation is created that can be flexibly adapted to different users and work requirements. This makes the folding arm an indispensable component of modern ergonomic workstation solutions, both in the office and in industrial environments.
What advantages does the flexible and space-saving folding-arm technology offer?
The particular strength of the NOVUS TFC Tray Folding Arm II lies in its intelligent, two-part folding-arm construction. This provides exceptionally high maneuverability and makes it possible to position the tray flexibly or to fold it away completely when needed. Especially in work environments with limited space or frequently changing requirements, this feature is a major advantage. The workstation remains tidy at all times and can be quickly adapted to new tasks. At the same time, the robust construction ensures safe and reliable use even with frequent operation. As an accessory for monitor mounts and support arm systems, the folding arm significantly expands functionality and offers a space-saving solution for efficient work.
For which application areas is the NOVUS TFC Tray Folding Arm II particularly suitable?
The NOVUS TFC Tray Folding Arm II is versatile and suitable both for classic office workstations and for demanding industrial applications. In control rooms, monitoring centers or technical workstations it enables a structured and ergonomic arrangement of input devices. Also in production environments or laboratories where flexibility and robustness are required, the folding arm impresses with its durable metal construction and high load capacity. Through seamless integration into existing NOVUS TFC systems, the workstation can be extended modularly and configured individually. Those looking for a professional solution to supplement their monitor mount while valuing ergonomics, quality and flexibility will find a reliable and future-proof solution in the NOVUS TFC Tray Folding Arm II.
