Novus TFC Accessories Universal Folding-Arm Shelf 700 mm for Aluminum Profile (969+4029+001)
Highlights
- High load capacity up to 18 kg
- Compact design with approx. 700 mm reach
- Flexible positioning of trays and work equipment
- Ergonomic support for efficient working
- Easy integration into the NOVUS TFC system
NOVUS TFC Shelf Folding Arm – Maximum Flexibility for Ergonomic Workstations

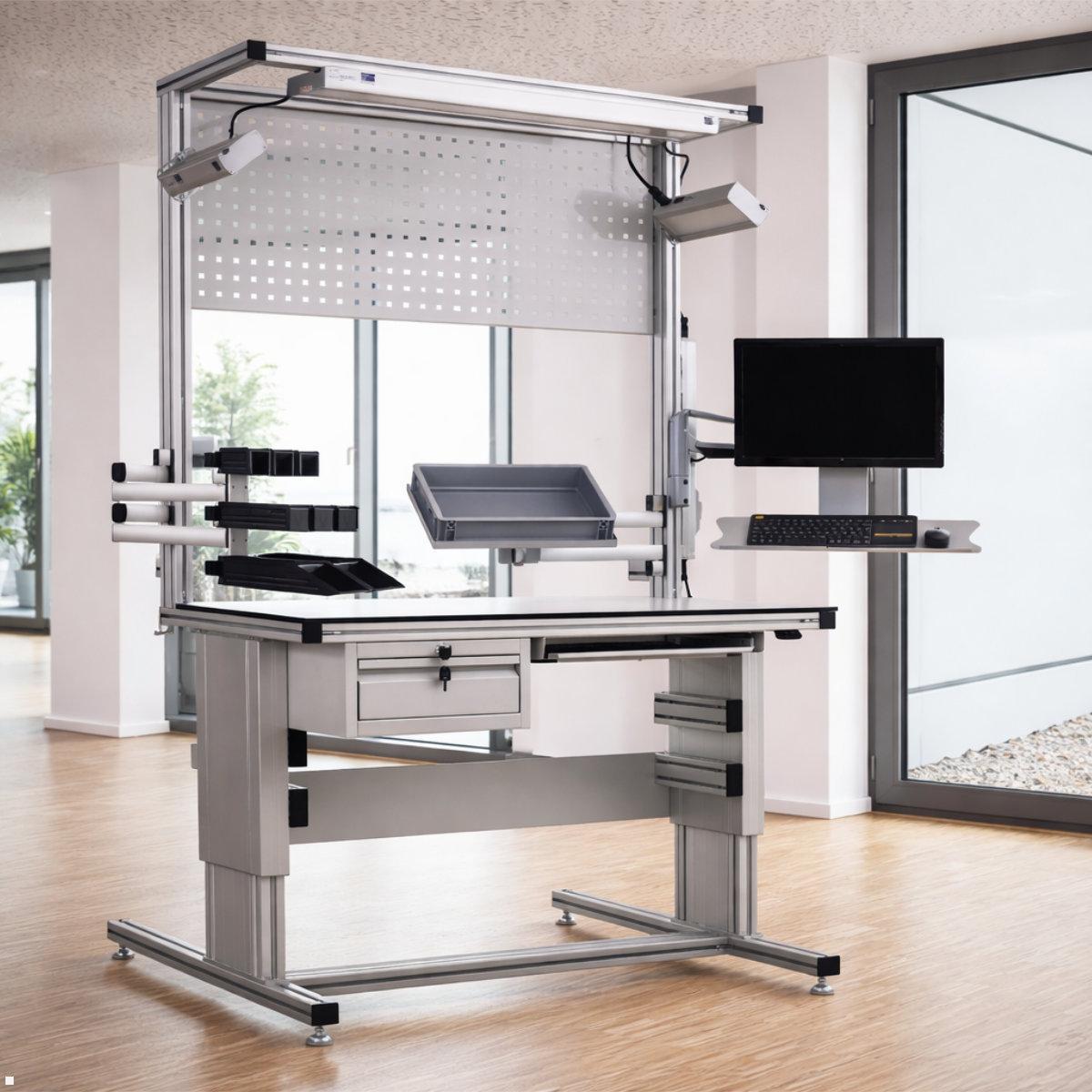

The Novus TFC accessory folding arm shelf 700 mm for aluminum profile (969+4029+001) is a high-quality and particularly flexible extension for modern workstation systems and is ideally suited for use in office, industrial and control-room environments where efficiency, order and ergonomics are decisive. As part of the modular NOVUS TFC system, it is used to hold shelves and enables optimal positioning of work tools directly within the work area.
Thanks to its 2-piece construction, the folding arm offers a high degree of mobility and adaptability. Work items can be individually aligned to the desired position and folded away space-saving when needed. This keeps the workstation flexible and allows it to be adapted at any time to changing requirements – ideal for dynamic work environments.
The ergonomic design ensures that materials and work tools are always positioned within optimal reach and line of sight. This reduces unnecessary movements, relieves the back, shoulders and arms, and contributes to healthy posture. At the same time, workflows are made more efficient and everyday productivity is sustainably increased.
With a load capacity of up to 18 kg and an arm length of 700 mm, the NOVUS TFC folding arm shelf provides a stable and reliable solution for material provision. The three fixed positions (0° , 15° and 30°) allow precise adjustment to different requirements and ensure maximum flexibility in use.
The robust metal construction and high-quality workmanship guarantee a long service life even under intensive use. At the same time, the folding arm convinces with its modern, functional design in silver, which integrates seamlessly into existing TFC systems and underscores the professional appearance of workstations.
With the NOVUS TFC folding arm shelf you create an ergonomic, space-saving and future-proof workstation solution that adapts flexibly to your individual requirements and boosts efficiency in everyday work.
Technical Details
- Load capacity: up to 18 kg
- Reach: up to 700 mm
- Swivel range: +/- 95°
- Rotation range: +/- 180°
- 3 fixed positions: 0° - 15° - 30°
- 2-piece folding arm for mounting shelves
- Color: Silver
| Product sheet: |  [pdf] |
|---|---|

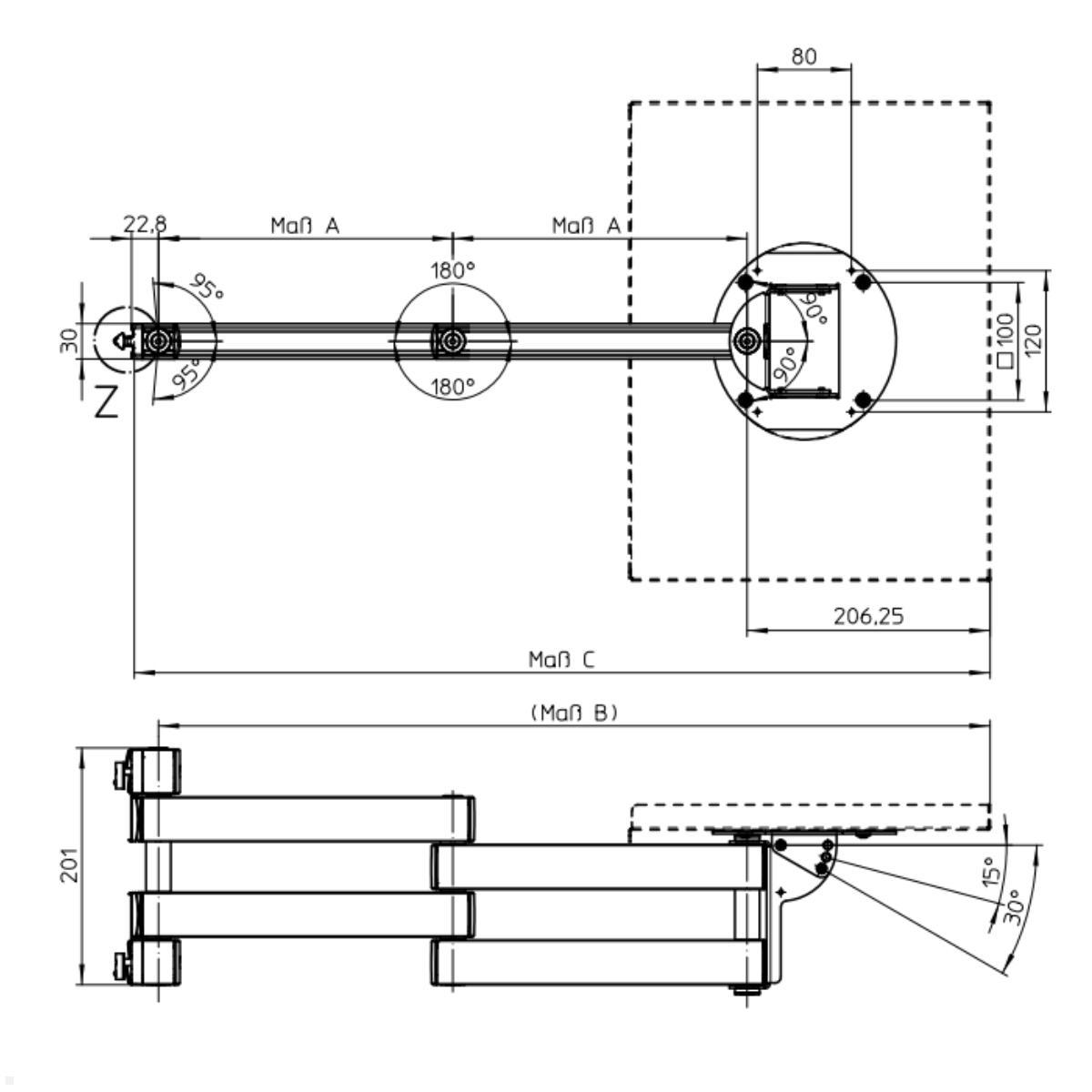

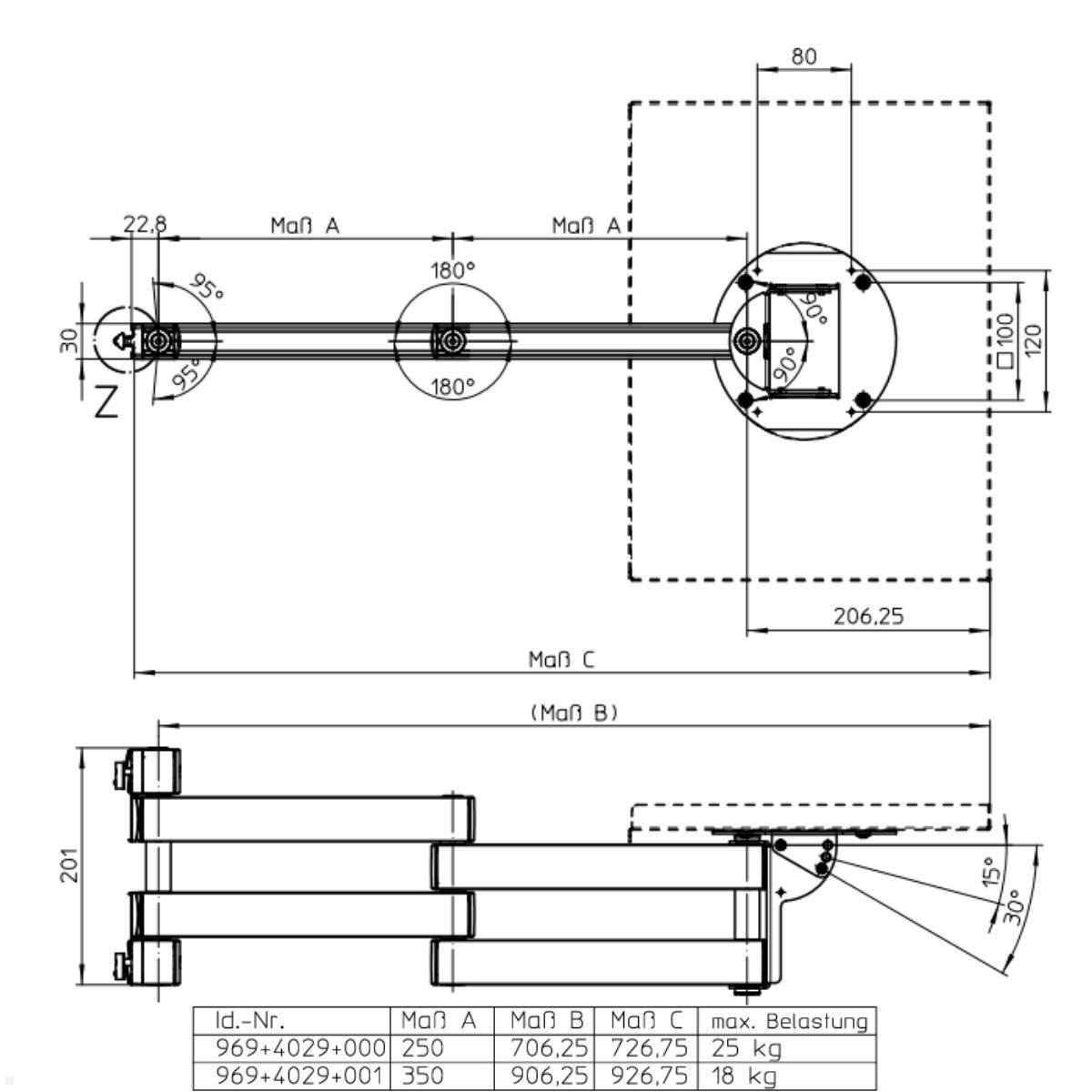

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Capacity: | 18 kg |
| Rotate: | 180° |
| Swivelling range: | +/- 95° |
| Length of the swivel arm: | 700 |
| Scope of delivery: | 1x TFC tray Faltgarm |
| Contains installation material: | + |
| Manufacturer/Importer: | Novus Dahle GmbH, Breslauer Straße 34-38, 49808 Lingen (Ems), info@novus-dahle.com |
| Mobility: | Drehbar, swivelling |
| color: | Silber |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
What is the NOVUS TFC tray folding arm and what is it used for?
The NOVUS TFC tray folding arm is an innovative extension for ergonomic workstation systems and was specially developed for professional use in office, industrial and control room environments. As part of the modular NOVUS TFC system, it allows the flexible mounting of trays and ensures that work equipment can be positioned optimally within direct reach. This not only improves organization at the workplace but also supports a structured and efficient workflow.
Especially in work areas with limited space or frequently changing requirements, the folding arm offers an ideal solution. Its foldable design allows it to be easily folded away when needed, freeing up valuable workspace. This makes the tray folding arm excellently suited for dynamic workstations that must be used flexibly.
What advantages does the tray folding arm offer in everyday work?
In daily use, the NOVUS TFC tray folding arm convinces with its high functionality and adaptability. Work items can be positioned individually at the desired height and reach, reducing unnecessary movements and optimizing work processes. This leads to noticeable increases in efficiency and supports more productive work.
A particular advantage is the space-saving folding function. When the tray is not needed, the folding arm can be simply swung to the side or folded in. This keeps the workstation tidy and flexibly usable. At the same time, the ergonomic positioning of work items helps reduce physical strain and promotes healthy posture.
How flexible is the NOVUS TFC system?
The tray folding arm is fully integrated into the NOVUS TFC system and benefits from its modular design. This means it can be easily combined with other components and expanded individually. Workstations can thus be precisely tailored to the specific requirements.
This flexibility is particularly advantageous in modern work environments where processes and requirements regularly change. The folding arm can be quickly adjusted or repositioned without extensive reconstruction. This ensures the workstation remains future-proof and optimally organized at all times.
Why are material and workmanship important?
The NOVUS TFC tray folding arm impresses with a robust metal construction designed specifically for long-term use in professional environments. High-quality workmanship ensures high stability and reliability even under intensive use.
In addition to functionality, design also plays an important role. The modern silver finish blends harmoniously into various work environments and underscores the system’s professional character. At the same time, the well-thought-out construction ensures the folding arm is easy to assemble and comfortable to operate. Overall, the product combines durability, flexibility and ergonomics into an optimal solution for efficient workstations.
