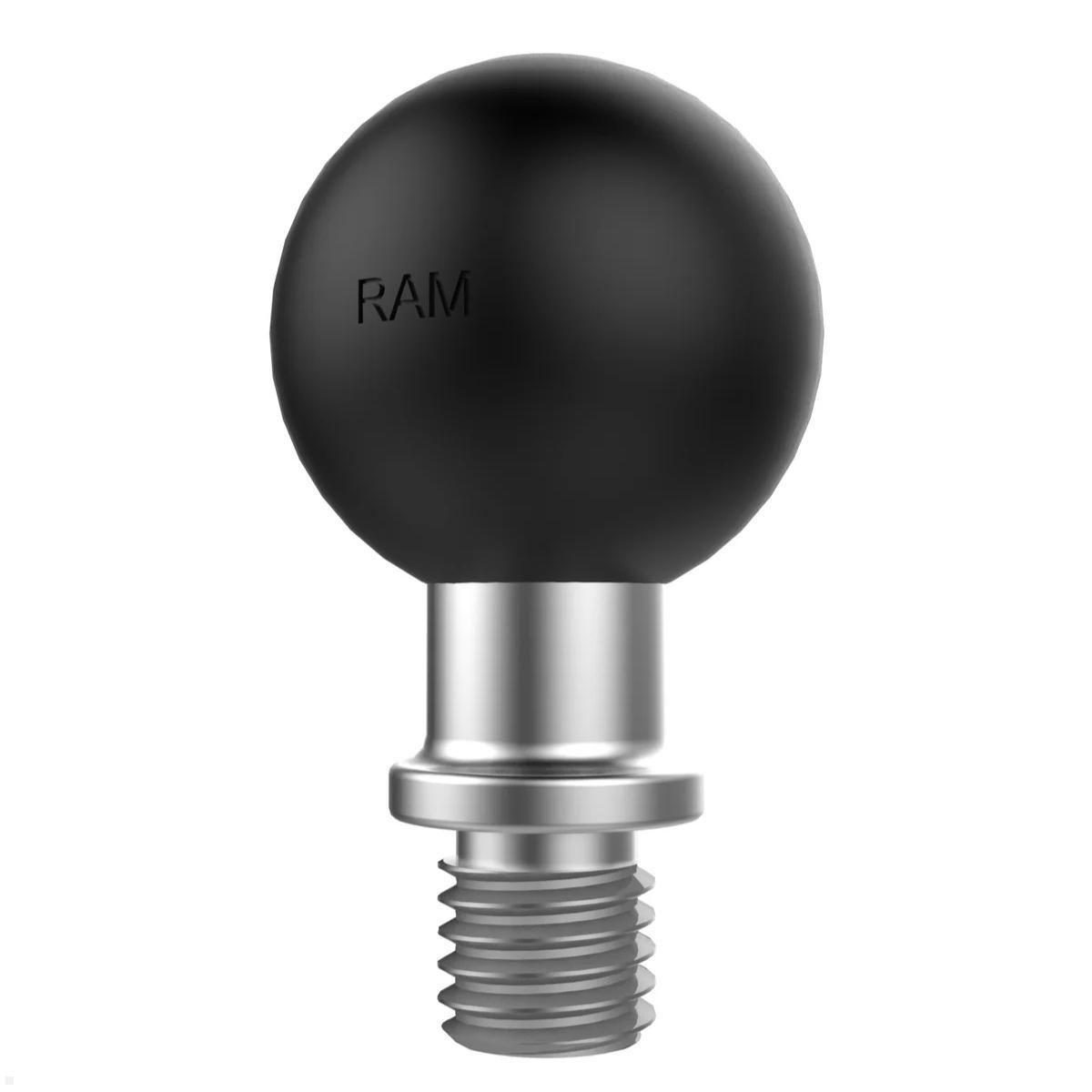

RAM Mounts base ball with M10-1.25mm threaded stud B-ball (RAM-B-349U)
Highlights
- M10-1.25 mm set screw, 10.15 mm
- Powder-coated aluminum and steel
- B-ball with 25.4 mm diameter
- Flexible mounting solution
- Weight only approx. 32 g

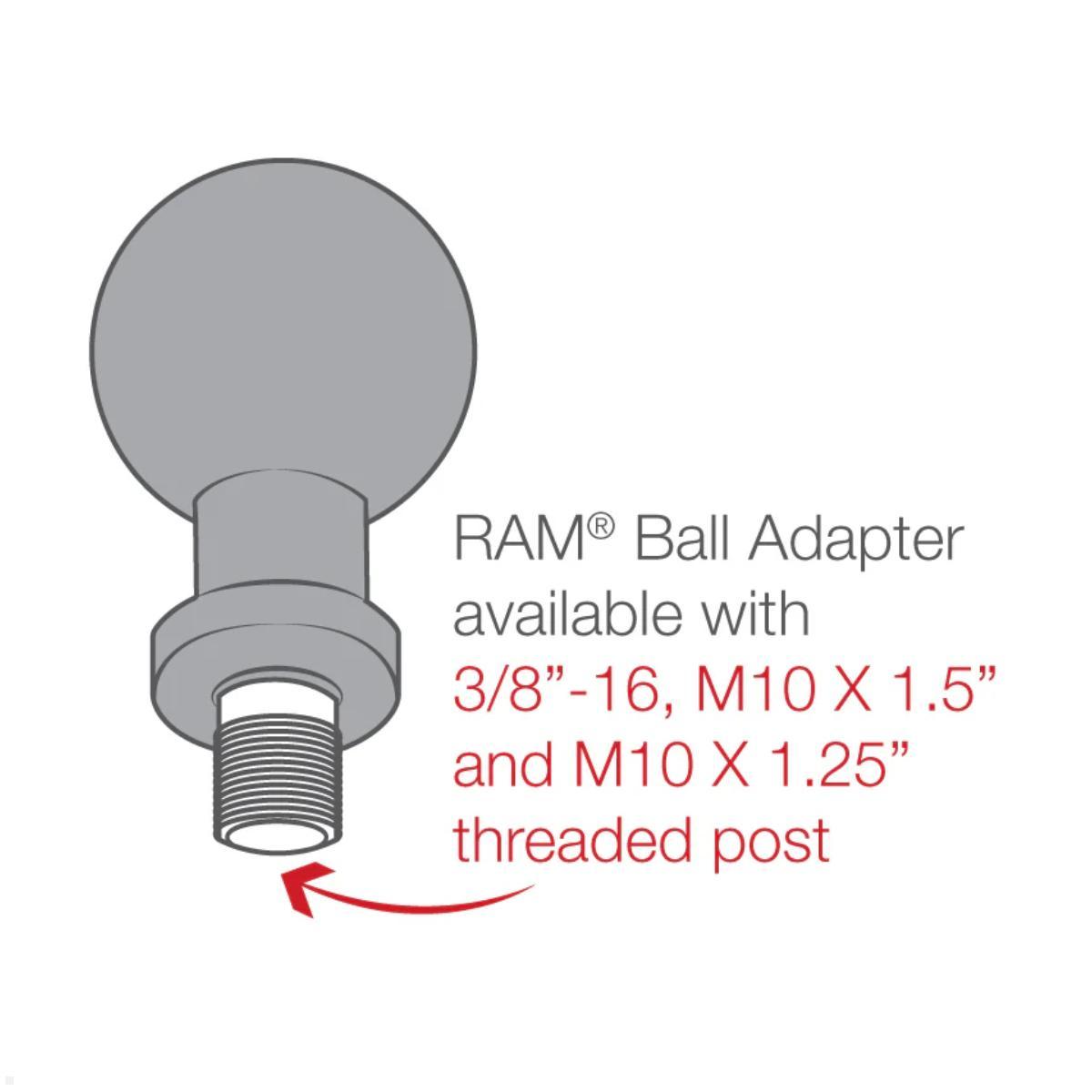

Ball adapter with M10-1.25 mm threaded stud for flexible mounting
The RAM Mounts base ball with M10-1.25mm threaded stud B-ball (RAM-B-349U) offers a reliable screwed connection via the M10-1.25 mm threaded stud. The diameter above the thread is 14.5 mm and the stud has a length of 10.15 mm. In combination with a suitable ball arm, it creates a custom adjustable mounting solution.

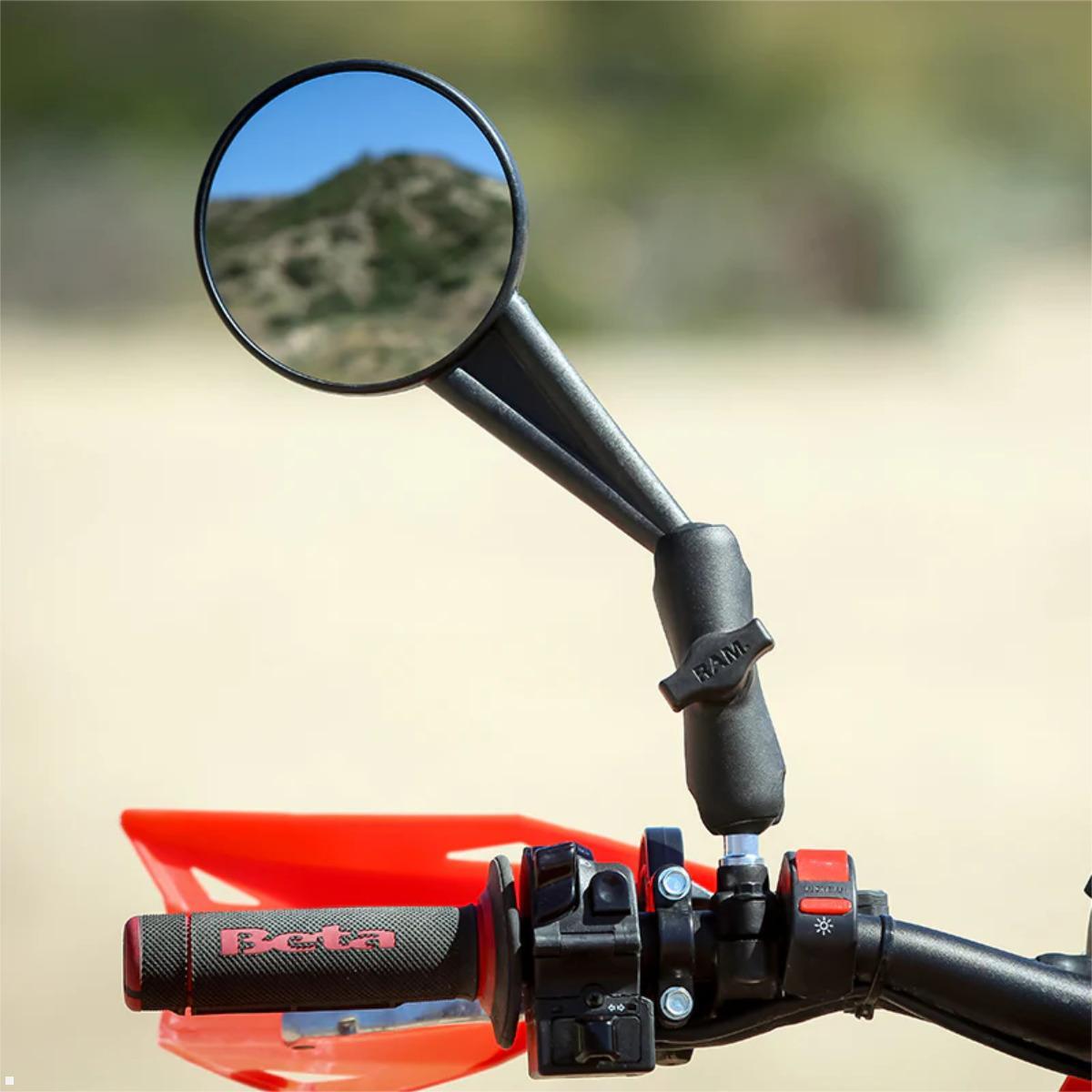

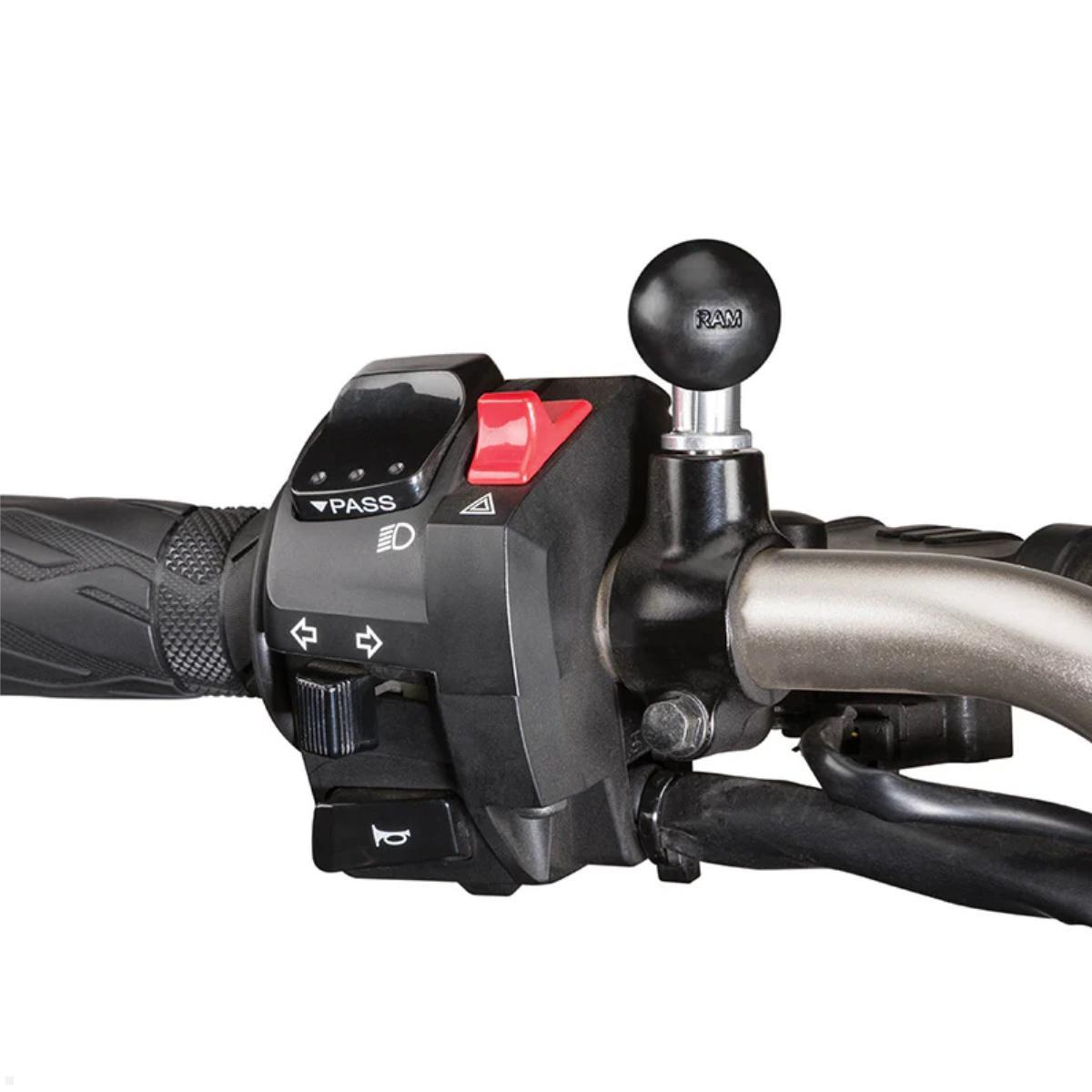

The base ball is made of powder-coated aluminum and steel and belongs to the B-ball series with a 25.4 mm ball diameter. Weighing only approx. 32 g, it is compact and lightweight. The versatile ball base is suitable for use in vehicles, on machinery, in industry or outdoors.
Technical details RAM Mounts base ball M10-1.25 mm
- Ball diameter: 25.4 mm (1 inch, B-ball)
- Thread: M10-1.25 mm threaded stud, 10.15 mm long
- Diameter above thread: 14.5 mm
- Material: powder-coated aluminum, steel
- Color: black
- Weight: approx. 32 g
| Material: | pulverbeschichtetes Aluminium, Stahl |
|---|---|
| Warranty: | 30 Jahre |
| Manufacturer/Importer: | RAM Mounts Germany GmbH, Alexander-Meissner-Str. 42, 12526 Berlin, info@rammounts.de |
| Mounting type: | Car mount |
| color: | Black |
| RAM Mounts Kugel: | B-Kugel |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is RAM-B-349U?
RAM Mounts Base Ball with M10-1.25 mm threaded stud, B-ball RAM-B-349U, is a ball adapter with M10-1.25 mm threaded stud for flexible mounting.
-
What are the dimensions of the base ball?
Ball diameter: 25.4 mm (1 inch, B-ball); Threaded stud: M10-1.25 mm, 10.15 mm long; Diameter above thread: 14.5 mm.
-
What material is it made of?
Made from powder-coated aluminium and steel.
-
What colour is it?
Color: black.
-
How much does it weigh?
Weight: approx. 32 g.
-
What applications is it suitable for?
Suitable for use in vehicles, on machines, in the industry or outdoors.
-
What is the purpose of the threaded stud?
The M10-1.25 mm threaded stud provides a reliable screw connection.
-
How can you achieve an adjustable mounting?

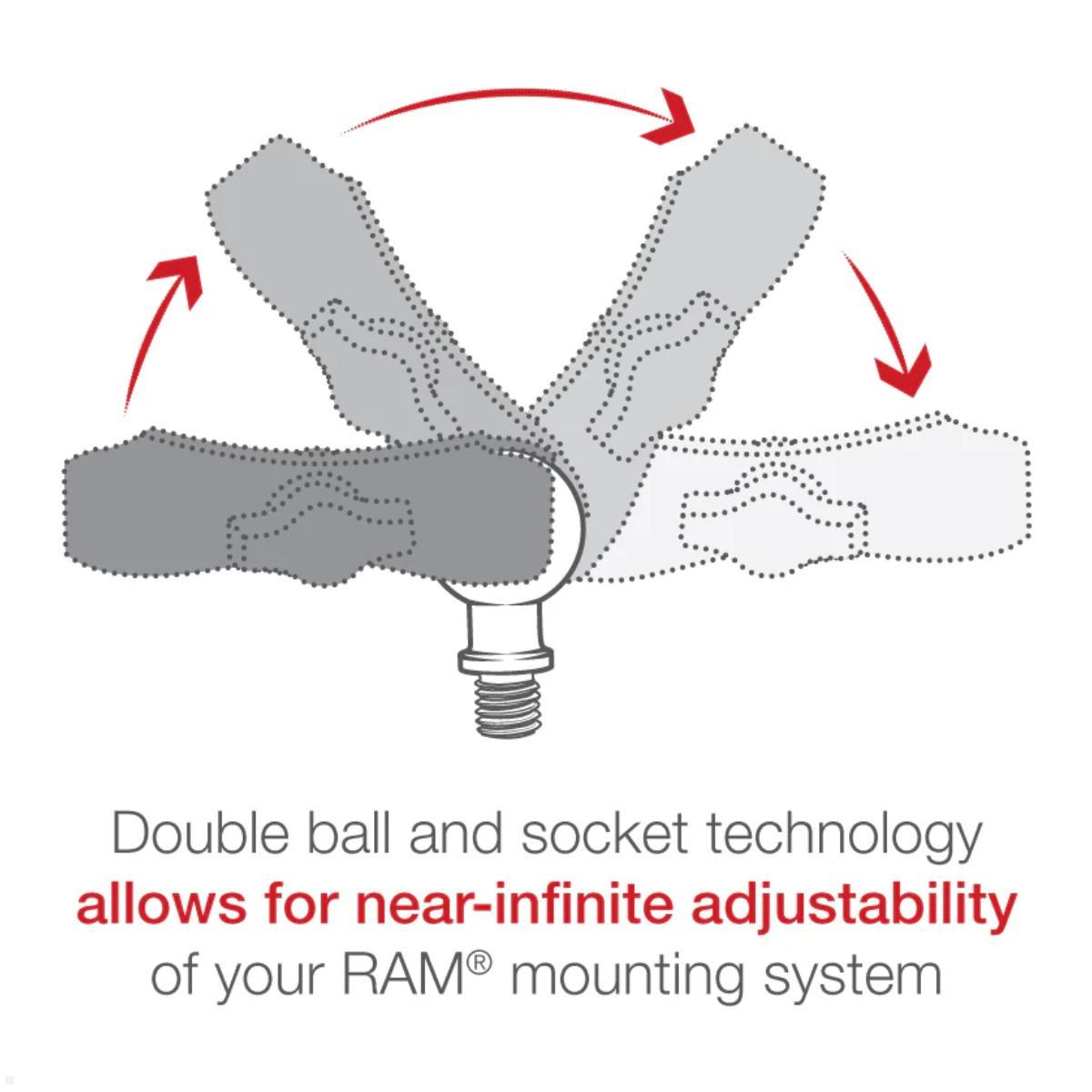

In combination with a suitable ball arm, it creates an individually adjustable mounting solution.
