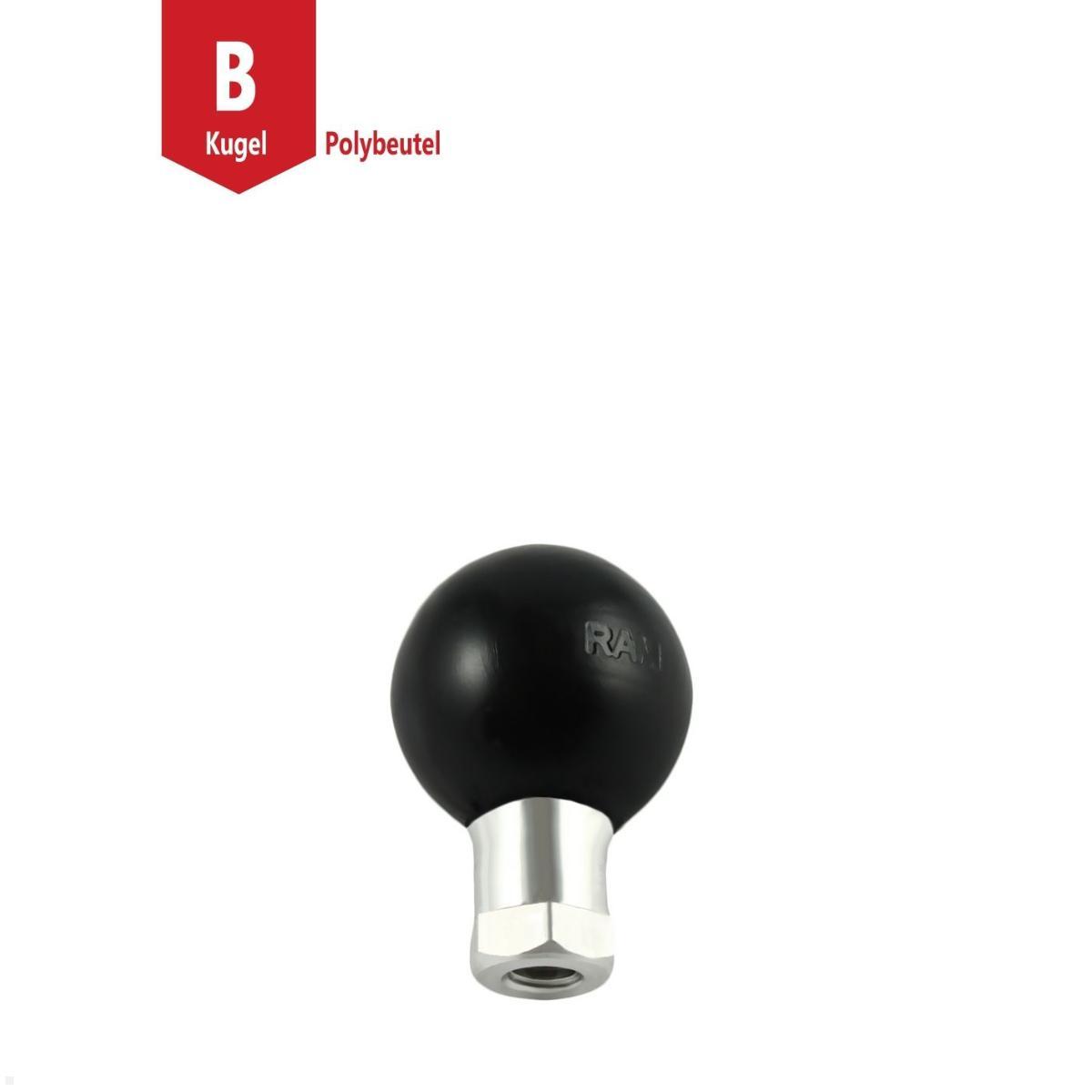

RAM Mounts base ball with M6-1 inch internal thread B-ball hexagonal (RAM-B-273-M6U)
Highlights
- B-ball with M6 internal thread
- Hex connection for secure hold
- Powder-coated aluminium, black
- Ball diameter 25.4 mm (1 inch)
- Weight approx. 32 g
Base Ball with M6 Internal Thread for the RAM Ball-Arm System
The RAM Mounts base ball with M6-1 inch internal thread B-ball hex (RAM-B-273-M6U) forms the starting point for numerous mounting solutions of the patented RAM ball-arm system. The base ball features an M6 internal thread with a depth of 6 mm as well as a hex connection for secure hold. In combination with a suitable set screw, the ball can be used as a flexible mounting base.
The ball adapter is made of powder-coated aluminum in black and belongs to the B-ball series with a diameter of 25.4 mm. With a weight of only approx. 32 g, the compact base ball is ideal for use in vehicles, on machines, or in industrial settings.
Technical Details RAM Mounts Base Ball M6 Internal Thread
- Ball diameter: 25.4 mm (1 inch, B-ball)
- Thread: M6 internal thread, 6 mm deep
- Connection: hexagonal
- Material: powder-coated aluminum
- Color: black
- Weight: approx. 32 g
| Material: | pulverbeschichtetes Aluminium |
|---|---|
| Warranty: | 30 Jahre |
| Manufacturer/Importer: | RAM Mounts Germany GmbH, Alexander-Meissner-Str. 42, 12526 Berlin, info@rammounts.de |
| Mounting type: | Car mount |
| color: | Black |
| RAM Mounts Kugel: | B-Kugel |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the RAM Mounts Base Ball with M6 internal thread?
The base ball features an M6 internal thread (6 mm deep) and is part of the RAM ball-and-arm system. It provides a flexible mounting base.
-
What is the ball diameter?
Ball diameter is 25.4 mm (1 inch, B-ball).
-
What thread and connection does it have?
It has an M6 internal thread (6 mm deep) with a hex drive connection.
-
What material and finish is it made from?
Made from powder-coated aluminium; colour black.
-
How much does it weigh?
Weight is approximately 32 g.
-
What is it primarily used for?
It forms the starting point for numerous RAM ball-and-arm mounting solutions and is suitable for use in vehicles, machines, or industry.
-
Can it be used with a threaded pin?
In combination with a suitable threaded pin, it can be used as a flexible mounting base.
-
Which RAM series does it belong to?
It belongs to the B-ball series.
