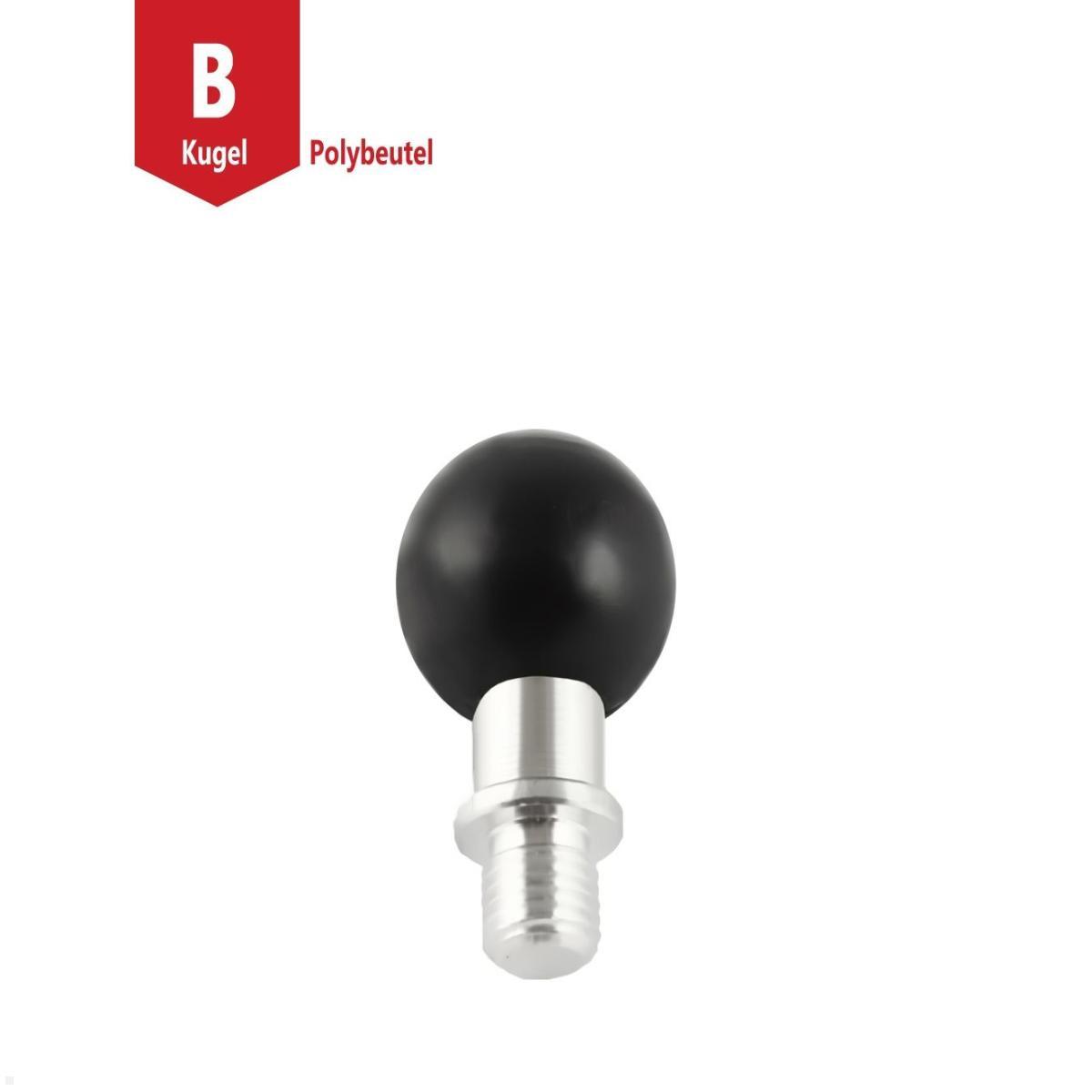

RAM Mounts base ball with M10-1.5 inch threaded stud B-ball (RAM-B-349-1U)
Highlights
- M10-1.5 set screw, approx. 15 mm long
- Powder-coated aluminum and steel
- B ball with 25.4 mm diameter
- Robust screw connection
- Weight only approx. 36 g
Base ball with M10-1.5 threaded stud for secure mounting
The RAM Mounts base ball with M10-1.5 threaded stud B-ball (RAM-B-349-1U) is suitable for applications that require a firm screw connection with an M10-1.5 thread. The diameter above the thread is 14.3 mm, the distance from the ball to the thread is 10.5 mm. The threaded stud itself has a length of approx. 15 mm and allows secure fastening.
Made of powder-coated aluminum and steel, the base ball combines high stability with low weight. With a ball diameter of 25.4 mm (1 inch) it belongs to the B-ball series and is compatible with all RAM Mounts B-ball arms. The ball is suitable for use on machines, vehicles, or industrial workplaces.
Technical details RAM Mounts base ball M10-1.5 threaded stud
- Ball diameter: 25.4 mm (1 inch, B-ball)
- Thread: M10-1.5 threaded stud, approx. 15 mm long
- Diameter above thread: 14.3 mm
- Distance from ball to thread: 10.5 mm
- Material: powder-coated aluminum, steel
- Color: black
- Weight: approx. 36 g
| Material: | pulverbeschichtetes Aluminium, Stahl |
|---|---|
| Warranty: | 30 Jahre |
| Manufacturer/Importer: | RAM Mounts Germany GmbH, Alexander-Meissner-Str. 42, 12526 Berlin, info@rammounts.de |
| Mounting type: | Car mount |
| color: | Black |
| RAM Mounts Kugel: | B-Kugel |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the RAM Mounts Base Ball with M10-1.5 stud RAM-B-349-1U?
It is a base ball with an M10-1.5 stud for a fixed connection, part of the RAM Mounts B-ball series, with a 25.4 mm (1 inch) ball diameter.
-
What are the key dimensions?
Ball diameter 25.4 mm (1 inch); M10-1.5 stud about 15 mm long; diameter above the thread 14.3 mm; distance from ball to thread 10.5 mm.
-
What is the thread specification?
M10-1.5 thread stud, approximately 15 mm long.
-
What is it made of and what colour is it?
Made from powder-coated aluminium and steel; colour black.
-
How heavy is it?
Approximately 36 g.
-
What is it used for?
For applications requiring a fixed screw connection with M10-1.5 threads; suitable for machines, vehicles, or industrial workplaces.
-
What is it compatible with?
Compatible with all RAM Mounts B-ball arms; part of the B-ball series.
-
Which ball size does it belong to?
It belongs to the B-ball series with a 25.4 mm (1 inch) ball.
