RAM Mounts Torque Pipe Clamp B-Ball for Diameter 28.58-38.1 mm (RAM-B-408-112-15U)
Highlights
- For tubes with diameters of 28.58-38.1 mm
- Includes plastic inner ring
- Powder-coated aluminum, black
- B-ball with 25.4 mm diameter
- Weight approx. 127 g
Torque pipe clamp with B-ball for rods up to 38.1 mm

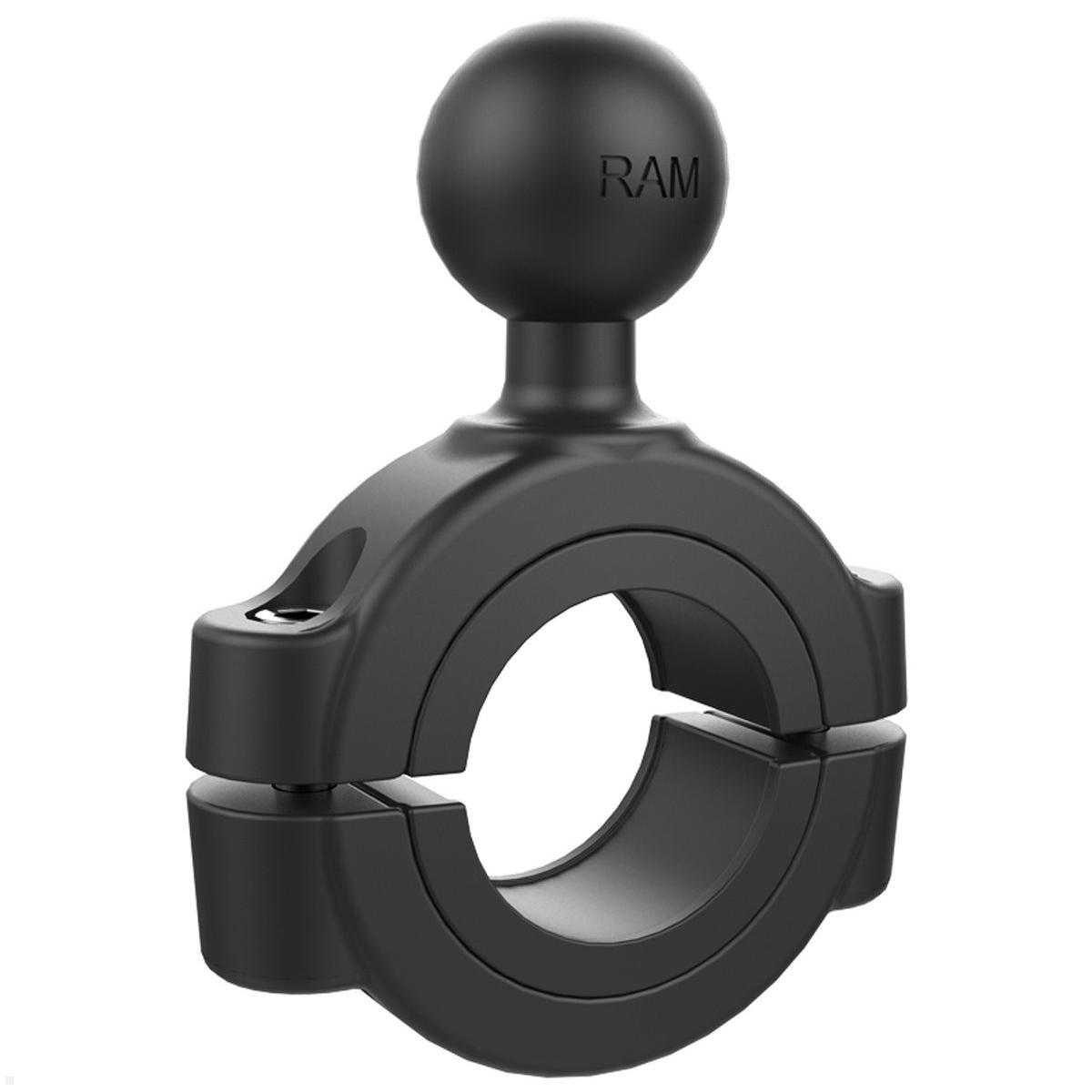

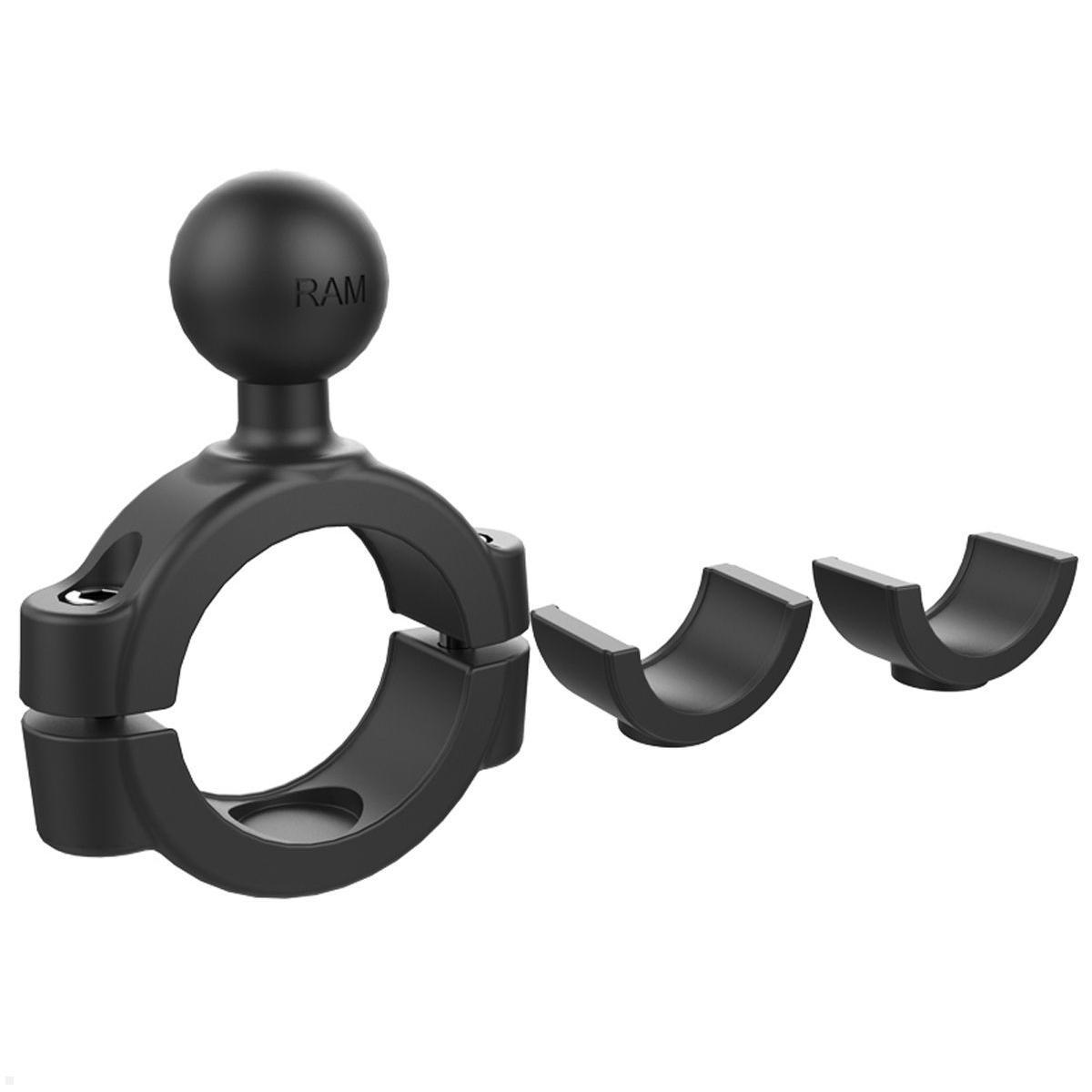

The RAM Mounts Torque pipe clamp B-ball for diameters 28.58-38.1 mm (RAM-B-408-112-15U) is ideal for mounting on round bars and pipes with a diameter of 28.58 to 38.1 mm. The Torque pipe clamp is delivered with a plastic inner ring that protects the mounting tube and ensures a secure fit.
The base mount consists of powder-coated aluminum in black and features a B-ball with a diameter of 25.4 mm. Weighing approx. 127 g, the clamp is robust yet lightweight. It is suitable for use on bicycles, motorcycles, boats, or industrial pipe frames.
Technical details RAM Mounts Torque pipe clamp B-ball
- Suitable for pipe diameters: 28.58 to 38.1 mm
- Ball diameter: 25.4 mm (1 inch, B-ball)
- Material: powder-coated aluminum
- Color: black
- Weight: approx. 127 g
- Scope of delivery: Torque pipe clamp, plastic inner ring
- Mounting: clamp
| Material: | pulverbeschichtetes Aluminium |
|---|---|
| Warranty: | 30 Jahre |
| Manufacturer/Importer: | RAM Mounts Germany GmbH, Alexander-Meissner-Str. 42, 12526 Berlin, info@rammounts.de |
| Mounting type: | Car mount |
| color: | Black |
| RAM Mounts Kugel: | B-Kugel |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the RAM Mounts Torque Tube Clamp with B-Ball for?
A clamp with a B-Ball for rods up to 38.1 mm in diameter (model RAM-B-408-112-15U).
-
What tube diameter does it fit?
Fits tubes with diameters from 28.58 to 38.1 mm.
-
What is the ball diameter?
Ball diameter is 25.4 mm (1 inch).
-
What material and colour is it?
Made of powder-coated aluminium; colour is black.
-
How much does it weigh?
Approximately 127 g.
-
What is included in the package?
Package includes the torque tube clamp and a plastic inner ring.
-
Where can it be used?
Suitable for bicycles, motorcycles, boats or industrial pipe frames.
-
What is the mounting method?
Mounting is by a clamp.
Which tubes is the RAM Mounts Torque tube clamp suitable for?
The RAM Mounts Torque tube clamp 28-38mm RAM-B-408-112-15U is a robust clamping mount for round bars and tubes. The clamping mechanism is designed for tube diameters from 28.58 to 38.1 mm and comes with a plastic inner sleeve that protects the mounting tube from damage while ensuring a secure fit. The integrated B-ball with a diameter of 25.4 mm enables connection to the modular RAM ball-arm system. The tube clamp is made of powder-coated aluminum in black and weighs approx. 127 g.
What mounting options does the Torque base mount RAM-B-408-112-15U offer?
The Torque tube clamp can be attached to a variety of round profiles. Typical applications include handlebar and frame tubes of motorcycles and bicycles, rails and pipe guardrails on boats, as well as tube frames in workshops and warehouses. Matching tube diameters are also found on wheelchairs, fitness equipment, or industrial machines. The supplied plastic inner sleeve prevents scratching of the tube surface and compensates for slight diameter variations within the specified range. After clamping, a RAM B-ball arm is attached and the desired device holder mounted.
How is the Torque tube clamp correctly installed?

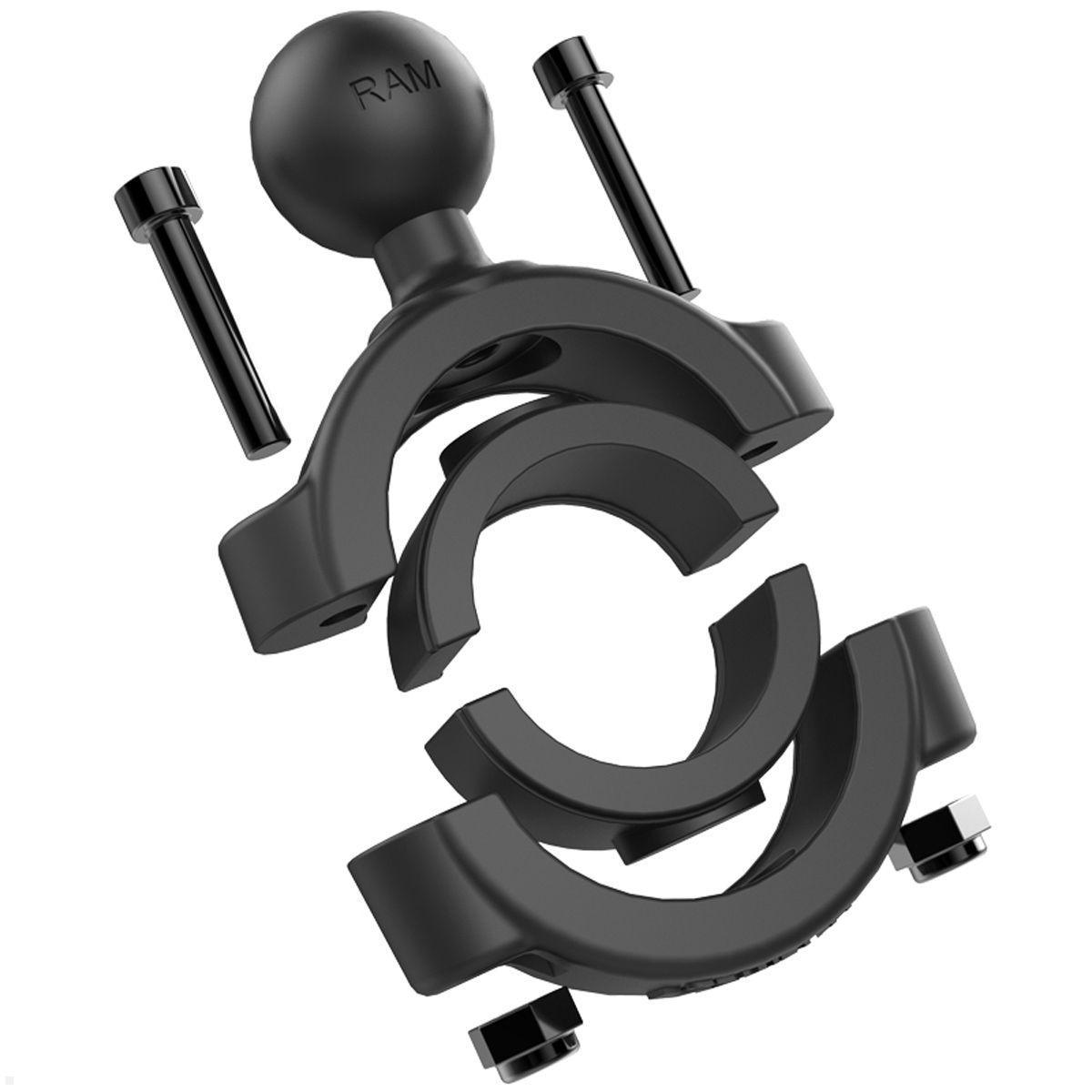

Installation of the Torque tube clamp is tool-free via the integrated clamping mechanism. First, insert the plastic inner sleeve into the clamp, then place the tube clamp around the desired tube and tighten it with the twist-lock. The Torque mechanism produces an even clamping force and can be quickly released if necessary. The chosen double-ball arm is then mounted onto the B-ball and fixed in the desired position with the knurled knob. This combination allows stepless angle adjustment and quick repositioning of the mounted device.
