RAM Mounts Tab-Tite Universal holder up to 8 inches (RAM-HOL-TAB2U)
Highlights
- Universal cradle for tablets up to 8 inches
- Spring-loaded construction for quick insertion and removal
- AMPS 4-hole mount for flexible mounting options
- Open end-cap design for different tablet sizes
- Full access to all device ports

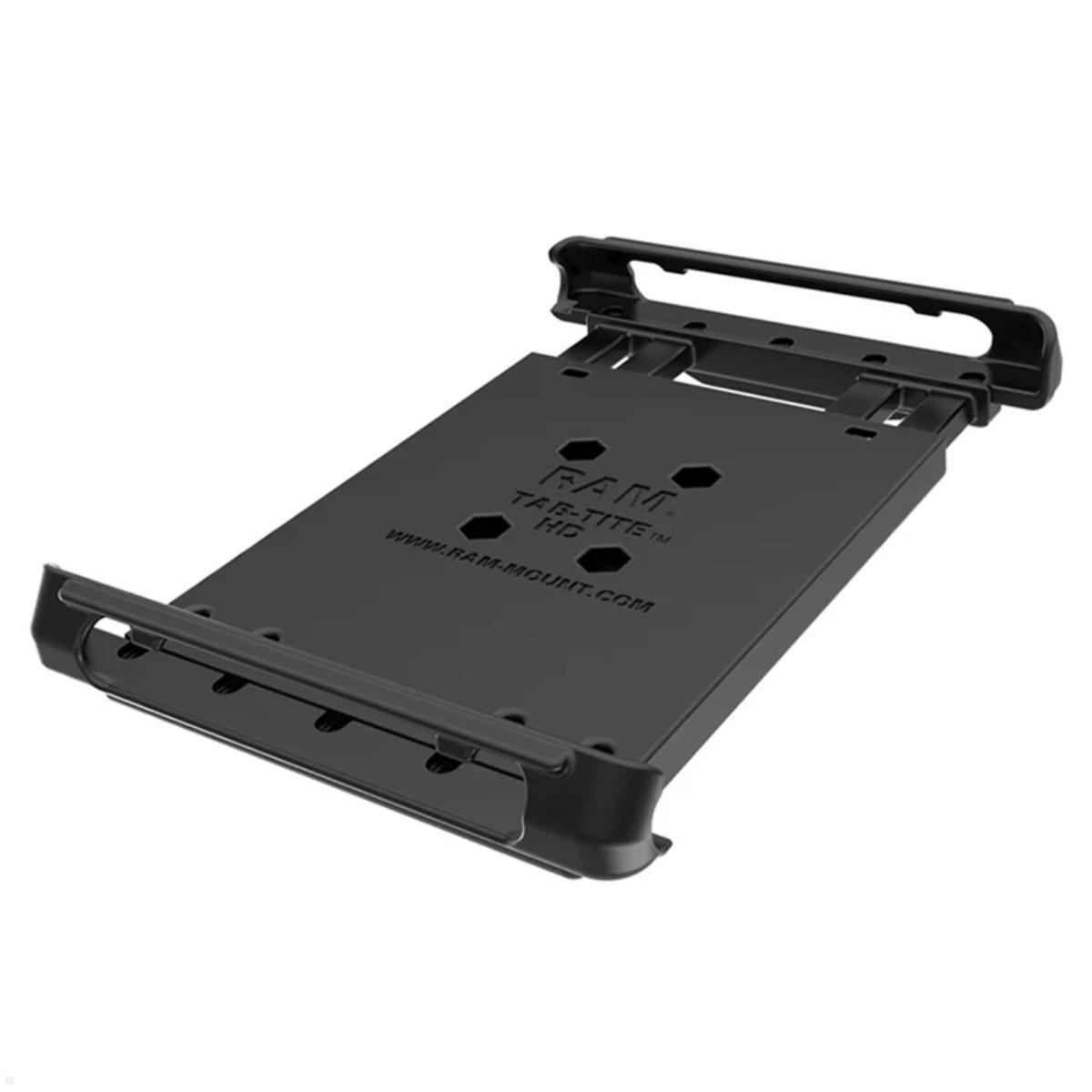

Universal Tablet Cradle with Spring-Loaded Mechanism
The RAM Mounts Tab-Tite Universal Cradle for tablets up to 8 inches (RAM-HOL-TAB2U) offers a secure and convenient solution for holding tablets. To insert the device, pull the upper part of the cradle apart, place the appropriate tablet in, and carefully release the top end. Thanks to the spring-loaded design, the tablet sits firmly and securely in the cradle. The open end-cap design adapts to various tablet sizes and provides full access to all device ports.

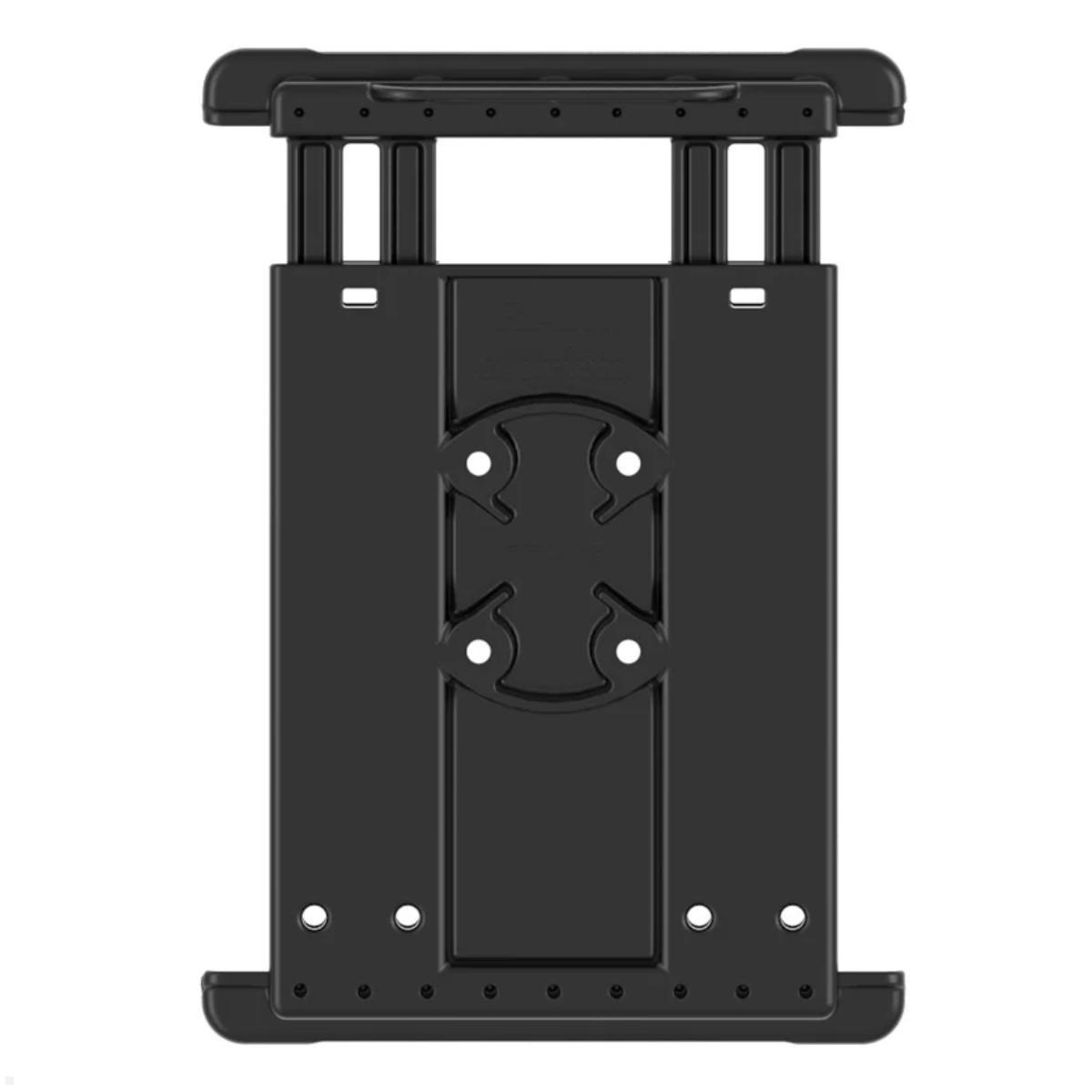

The back of the device cradle is prepared to accept a round base plate and features an AMPS 4-hole mounting plate that is compatible with the entire RAM Mounts mounting system. The Tab-Tite cradle is compatible with most tablets within the listed dimensions: 177.8 – 244.47 mm height, 101.6 – 134.87 mm width and 3.3 – 14.22 mm depth. A screw set for mounting is included.
Ideal for use in vehicles, on construction sites, in warehouses or in the field service – anywhere tablets need to be mounted securely and within easy reach.
Technical details of the RAM Mounts tablet holder RAM-HOL-TAB2U
- Suitable for tablets up to 8 inches
- Compatible tablet height: 177.8 – 244.47 mm
- Compatible tablet width: 101.6 – 134.87 mm
- Compatible tablet depth: 3.3 – 14.22 mm
- Hole pattern: AMPS 4-hole
- Mounting: Screw set included
- Material: High-strength composite
- Spring-loaded construction
- Open end-cap design
- Full access to all device ports
Additional notes: Devices shown are for illustration purposes only and are not included. Only the Tab-Tite™ cradle (RAM-HOL-TAB2U) is supplied.
| Others: |  [pdf] |
|---|---|
| Suitable for: | FürTablets bis 8 ZollTablets bis 8 Zoll (Höhe: 177,8-244,47 mm, Breite: 101,6-134,87 mm, Tiefe: 3,3-14,22 mm) |
| Scope of delivery: | 1x Tab-Tite Retaining Cup, Screw-Set |
| Contains installation material: | + |
| Manufacturer/Importer: | RAM Mounts Germany GmbH, Alexander-Meissner-Str. 42, 12526 Berlin, info@rammounts.de |
| Mounting type: | Car mount |
| color: | Black |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the RAM Mounts Tab-Tite Universal Tablet Holder up to 8 inches (RAM-HOL-TAB2U)?
It is a universal tablet holder with a spring-loaded mechanism that securely grips the tablet.
-
Which tablets fit?
Suitable for tablets up to 8 inches; compatible tablet height 177.8–244.47 mm; width 101.6–134.87 mm; depth 3.3–14.22 mm.
-
What features does it have?
Spring-loaded construction; open-end-cap design; full access to all device interfaces.
-
How is it mounted and what about the back?
The back is prepared for a round base plate and features an AMPS 4-hole mounting pattern, compatible with the RAM Mounts system.
-
What’s included in the package?
A mounting screw set is included; the pictured devices are for illustration only; only the Tab-Tite shell RAM-HOL-TAB2U is supplied.
-
What is it ideal for?
Ideal for use in a vehicle, on site, in a warehouse or in field service—anywhere tablets need to be safely mounted and readily accessible.
-
What material is it made from?
Made from a high-strength composite.
Why is the RAM Mounts Tab-Tite cradle the ideal choice for mobile tablet use?
In professional everyday life, tablets are no longer used only at the desk. Whether in field service, in a vehicle or on a construction site – a securely mounted tablet is the foundation for efficient work. The RAM Mounts Tab-Tite Universal Cradle up to 8 inches (RAM-HOL-TAB2U) offers precisely this security. To insert the device, simply pull the top part of the cradle apart, place the tablet in, and release the top end. The spring-loaded construction reliably secures the tablet while allowing quick removal with just one hand. The open end-cap design ensures that different tablet models up to 8 inches can be used without issues. The cradle is equipped with the proven AMPS 4-hole system and can thus be combined with a wide variety of RAM Mounts mounting components. Whether suction cup mount, tube clamp or vehicle console – the possible applications are virtually unlimited. Thanks to the high-quality composite, the Tab-Tite cradle also stands up to demanding conditions and impresses with a long service life.
Which tablets fit in the Tab-Tite Universal Cradle RAM-HOL-TAB2U?
The RAM Mounts Tab-Tite cradle is designed for tablets with a height of 177.8 to 244.47 mm, a width of 101.6 to 134.87 mm and a depth of 3.3 to 14.22 mm. This makes it compatible with a wide range of common tablets up to 8 inches. Tablets with protective cases can also be accommodated in many cases, provided the overall dimensions are within the stated measurements. The universal fit makes the Tab-Tite cradle a flexible solution for companies that have different tablet models in their inventory and are seeking a uniform mounting solution.
How can the cradle be integrated into existing RAM Mounts systems?
Integration into existing RAM Mounts mounting systems is particularly easy thanks to the standardized AMPS receptacle on the back. For mounting, a round base plate is required (available separately) and is connected to the cradle using the screw set. The cradle can then be attached to any RAM Mounts ball arm. This allows flexible positioning of the tablet in almost any desired orientation. Whether on the dashboard, on a rail or on the wall – RAM Mounts' modular system permits individual configurations for every application. The robust construction and well-designed mechanics guarantee a secure hold even under vibration or jolting while driving.
