RAM Mounts assembly set - round base plate, short connecting arm, diamond base plate, B-ball (RAM-B-138U-A)
Highlights
- Round and diamond base plate
- Short connecting arm included
- Compatible with AMPS hole pattern
- Powder-coated aluminum
- Load capacity up to approx. 0.91 kg
Mounting set with round and diamond base plate, short arm

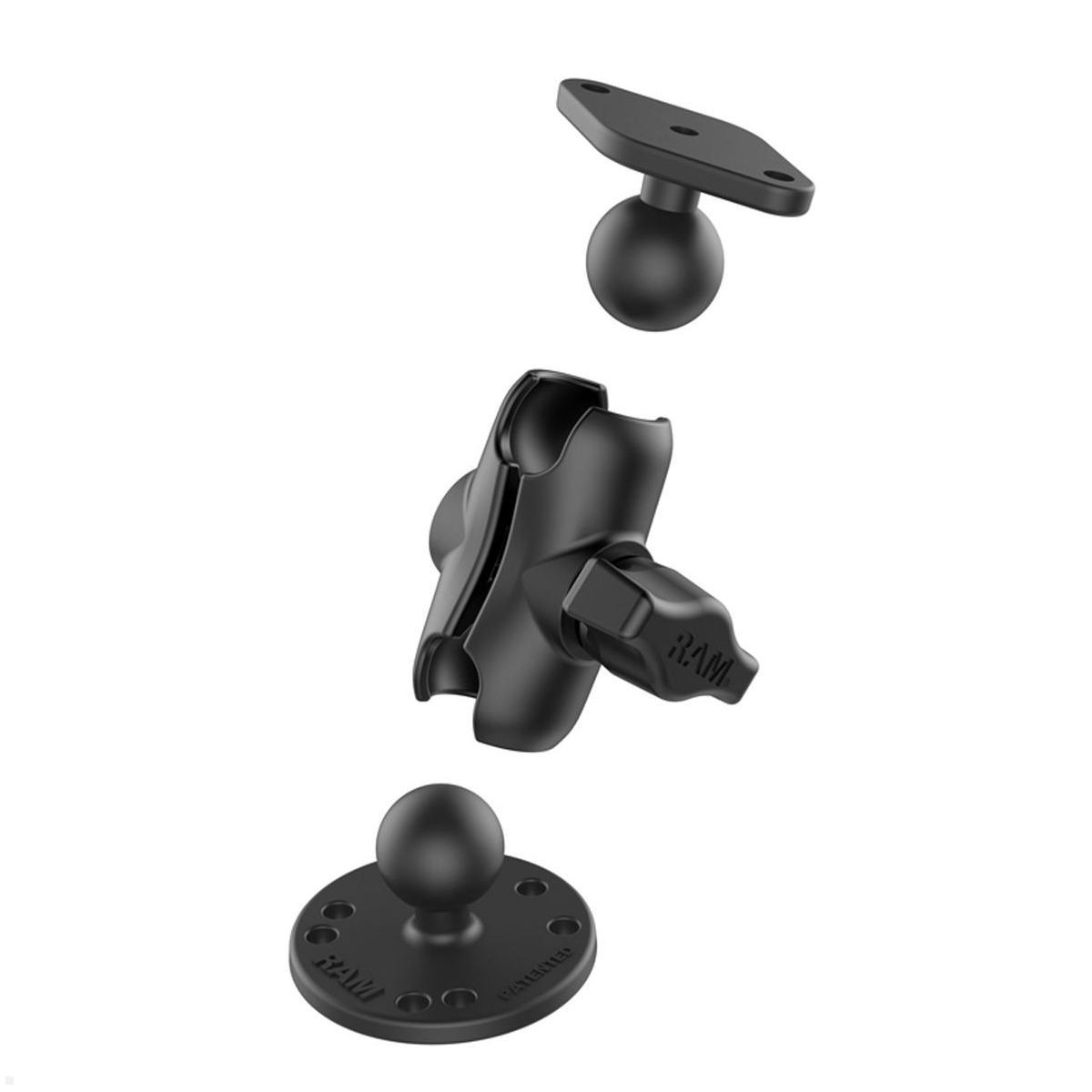

The RAM Mounts mounting set - round base plate, short connecting arm, diamond base plate, B-ball (RAM-B-138U-A) consists of a round base plate with AMPS 4-hole pattern, a short connecting arm and a trapezoid base plate with AMPS 2-hole pattern. The set is compatible with numerous RAM Mounts device cradles and can be flexibly mounted on almost any surface.
Thanks to the ball-and-arm system, the holder can be adjusted continuously to provide perfect viewing and operating angles. The robust construction of powder-coated aluminum ensures long service life even under tough conditions. With a load capacity of up to 0.91 kg, the set is ideal for vehicles, boats, industry or logistics. Perfect for securely mounting cradles, tablets, monitors, GPS or radio devices.

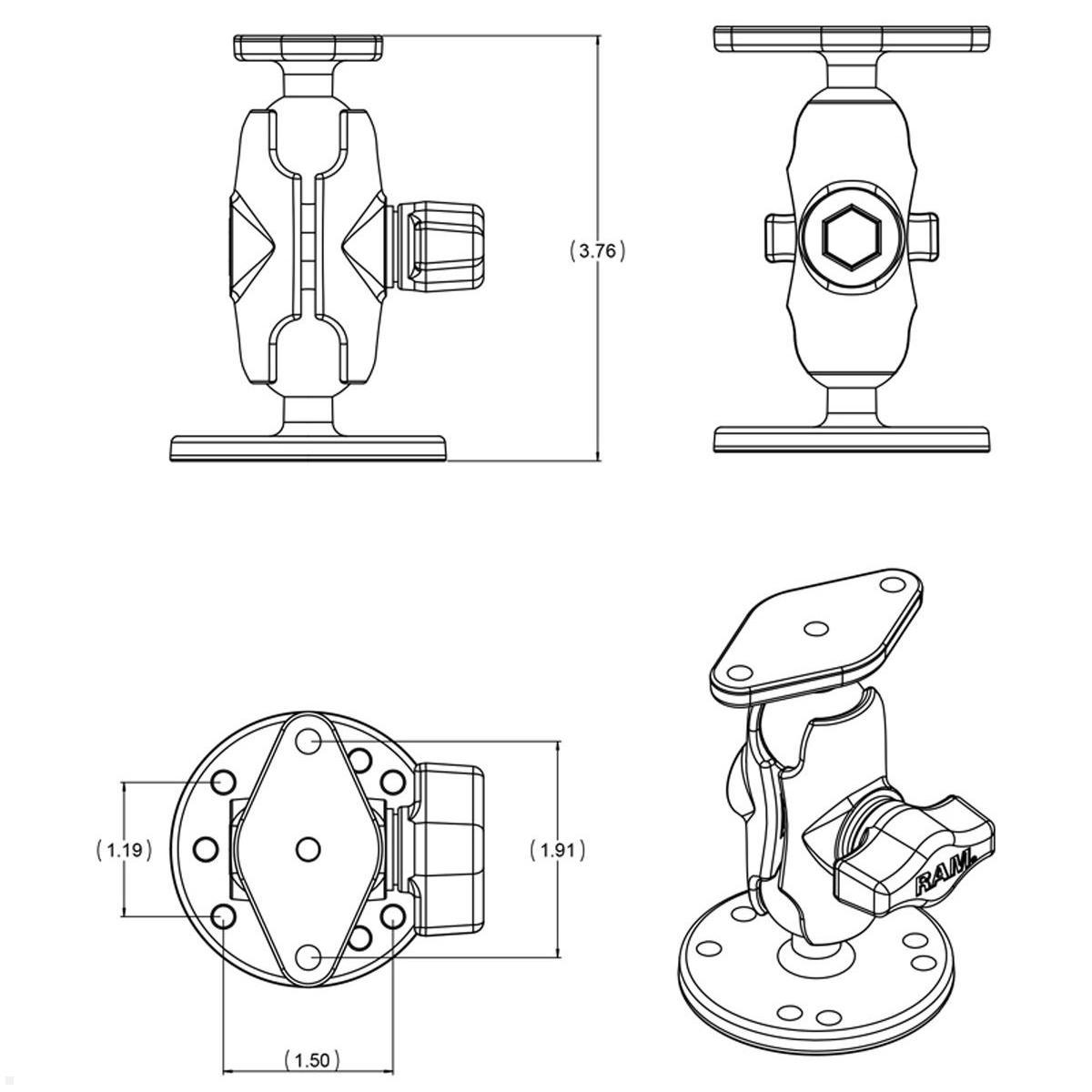

Technical details RAM Mounts mounting set RAM-B-138U-A
- Material: Powder-coated aluminum
- Overall dimension: approx. 95.25 mm
- Ball diameter: 25.4 mm (1 inch, B-ball)
- Dimensions round base plate: 63.5 mm diameter (AMPS 4-hole and 3-hole at 120°)
- Dimensions trapezoid base plate: approx. 61.7 x 33.3 mm (AMPS 2-hole, 48.56 mm)
- Dimensions connecting arm: approx. 61.46 mm total length, 45.45 mm base-to-base
- Load capacity standard applications: up to approx. 0.91 kg
- Load capacity high load: up to approx. 0.45 kg
- Color: black
- Weight: approx. 190 g
| Material: | Pulverbeschichtetes Aluminium |
|---|---|
| Scope of delivery: | 1x mounting kit consisting of a round base plate, a short connecting arm and a Diamond base plate (RAM-B-138U-A) |
| Warranty: | 30 Jahre |
| Manufacturer/Importer: | RAM Mounts Germany GmbH, Alexander-Meissner-Str. 42, 12526 Berlin, info@rammounts.de |
| Mounting type: | Car mount |
| color: | Black |
| RAM Mounts Kugel: | B-Kugel |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What does the RAM Mounts mounting kit RAM-B-138U-A include?
It comprises a round base plate (AMPS 4-hole), a short mounting arm, a Diamond base plate (trapezoid, AMPS 2-hole) and a B-ball.
-
What is the weight and load rating?
Standard applications up to about 0.91 kg; high-load up to about 0.45 kg.
-
What material is it made of?
Made from powder-coated aluminium.
-
What are the dimensions?
Overall dimensions about 95.25 mm; ball diameter 25.4 mm; round base about 63.5 mm Ø (AMPS 4-hole); Diamond base about 61.7 x 33.3 mm (AMPS 2-hole); arm length about 61.46 mm; weight about 190 g.
-
What applications is it suitable for?
Can be mounted on a wide range of surfaces and is ideal for vehicles, boats, industry or logistics.
-
How adjustable is the mount?
The ball-and-socket system allows continuous adjustment for a perfect viewing and operating angle.
-
What RAM Mounts compatibility does it offer?
Compatible with a broad range of RAM Mounts device holders.
What makes the RAM Mounts assembly kit RAM-B-138U-A special?
The RAM Mounts assembly kit RAM-B-138U-A combines a round base plate with an AMPS 4-hole pattern, a short connecting arm and a trapezoid base plate with an AMPS 2-hole pattern. This combination enables particularly flexible mounting because the different base plates offer various fastening options. The round base plate with a diameter of 63.5 mm is suitable for flat-surface mountings, while the compact trapezoid base plate also fits in confined spaces. The entire set is made of powder-coated aluminium and weighs only approx. 190 g.
Which devices can be mounted with the RAM-B-138U-A?
Thanks to the AMPS hole patterns, the set is compatible with numerous RAM Mounts device cradles. It is ideal for mounting smartphones, tablets, GPS devices, radios and monitors. The short connecting arm with an overall length of approx. 61.46 mm provides a compact and space-saving installation. Typical applications include vehicles, boats, industrial plants and logistics operations. Thanks to the ball-arm system, the position can be continuously adjusted to achieve the optimal viewing angle.
Why is the diamond base plate a good choice?
The diamond base plate, also called a trapezoid base plate, offers a space-saving mounting solution due to its compact dimensions of approx. 61.7 x 33.3 mm. With an AMPS 2-hole spacing of 48.56 mm, it fits many device holders and enables quick mounting with screw fastenings. The RAM Mounts assembly kit RAM-B-138U-A offers a load capacity of up to 0.91 kg for standard applications and up to 0.45 kg under heavy load. The B-ball connection with a 25.4 mm diameter is fully compatible with the entire RAM Mounts range and allows flexible expansion of the system.
