RAM Mounts assembly kit - round base plate, medium connecting arm, Diamond base plate B-Ball (RAM-B-138U)
Highlights
- Round and diamond base plate
- Middle connecting arm included
- Compatible with AMPS hole pattern
- Powder-coated aluminum
- Load capacity up to approx. 0.91 kg

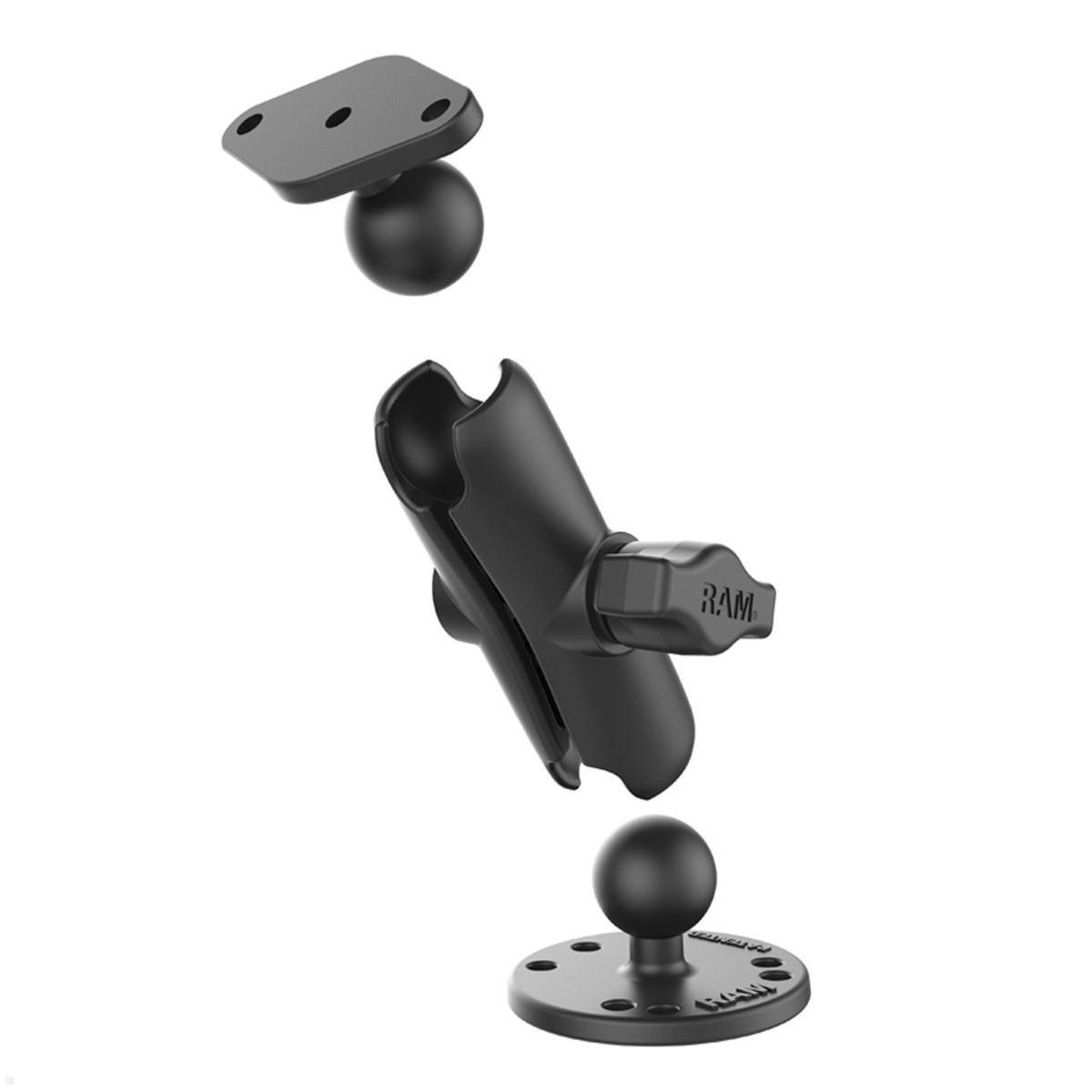

Assembly kit with round and Diamond base plate, medium arm
The RAM Mounts assembly kit - round base plate, medium extension arm, Diamond base plate B-ball (RAM-B-138U) consists of a round base plate with AMPS 4-hole pattern, a medium extension arm and a trapezoid base plate with AMPS 2-hole pattern. The set is compatible with numerous RAM Mounts device cradles and can be flexibly mounted on almost any surface.
Thanks to the ball-and-arm system the mount can be continuously adjusted and provides perfect viewing and operating angles. The robust construction of powder-coated aluminum ensures long service life even under tough operating conditions. With a load capacity of up to 0.91 kg the set is ideal for vehicles, boats, in industry or logistics. Perfect for securely attaching cradles, tablets, monitors, GPS or radio devices.
Technical details RAM Mounts assembly kit RAM-B-138U
- Material: Powder-coated aluminum
- Overall dimensions: approx. 127 mm
- Ball diameter: 25.4 mm (1 inch, B-ball)
- Dimensions round base plate: 63.5 mm diameter (AMPS 4-hole and 3-hole at 120°)
- Dimensions trapezoid base plate: approx. 61.7 x 33.3 mm (AMPS 2-hole, 48.56 mm)
- Dimensions connecting arm: approx. 94.74 mm total length, 76.2 mm base-to-base
- Load capacity standard applications: up to approx. 0.91 kg
- Load capacity high load: up to approx. 0.45 kg
- Color: black
- Weight: approx. 235 g
| Material: | Pulverbeschichtetes Aluminium |
|---|---|
| Scope of delivery: | 1x assembly set consisting of round base plate, medium connecting arm and Diamond base plate (RAM-B-138U) |
| Warranty: | 30 Jahre |
| Manufacturer/Importer: | RAM Mounts Germany GmbH, Alexander-Meissner-Str. 42, 12526 Berlin, info@rammounts.de |
| Mounting type: | Car mount |
| color: | Black |
| RAM Mounts Kugel: | B-Kugel |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is included in the RAM Mounts assembly set?
It comprises a round base plate with AMPS 4-hole pattern, a medium connecting arm, and a trapezoidal base plate with AMPS 2-hole pattern (Diamond base plate with B-ball).
-
Which RAM Mounts device holders are compatible?
The set is compatible with numerous RAM Mounts device holders.
-
How adjustable is the mount?
The ball-and-socket system allows stepless adjustment for perfect viewing and operating angles.
-
What is it made of?
The robust construction is made of powder-coated aluminium.
-
What is the load capacity?
Standard applications up to about 0.91 kg; high-load up to about 0.45 kg.
-
Where can it be used?
Ideal for vehicles, boats, industry or logistics; suitable for securely mounting holders, tablets, monitors, GPS or radio devices.
-
What are the dimensions and weight?
Overall dimensions are ca. 127 mm; ball diameter 25.4 mm; round base plate ca. 63.5 mm Ø; trapezoidal base ca. 61.7 × 33.3 mm; connecting arm ca. 94.74 mm total length, 76.2 mm socket-to-socket; weight ca. 235 g; colour: black.
What advantages does the RAM Mounts assembly kit RAM-B-138U offer?
The RAM Mounts assembly kit RAM-B-138U combines a round base plate with AMPS 4-hole pattern, a medium connecting arm and a trapezoid base plate with AMPS 2-hole pattern in a practical set. The medium connecting arm with an overall length of approx. 94.74 mm offers more reach than the short arm and is particularly suitable for applications where a greater distance between base plate and device is required. The entire set is made of powder-coated aluminum and is therefore particularly robust and corrosion-resistant.
What applications is the RAM Mounts RAM-B-138U suitable for?
The RAM-B-138U assembly kit is ideal for mounting device cradles, tablets, GPS units and radios in vehicles, boats and industrial facilities. Thanks to the ball-arm system, the mount can be infinitely adjusted in all directions and provides the perfect viewing angle. The base-to-base distance of 76.2 mm on the medium connecting arm allows flexible positioning of the mounted device. The round base plate with a diameter of 63.5 mm provides a stable mounting base on flat surfaces.
How can the RAM-B-138U be integrated into the RAM Mounts system?
The assembly kit is fully compatible with the RAM Mounts ball-arm system. The B-ball with a diameter of 25.4 mm fits all connecting arms and cradles of the B-ball size. The trapezoid base plate with AMPS 2-hole pattern is compatible with many standard device holders. With a load capacity of up to 0.91 kg in standard applications, the set also reliably supports heavier devices. The weight of approx. 235 g makes the set a lightweight yet stable mounting solution for mobile use.
