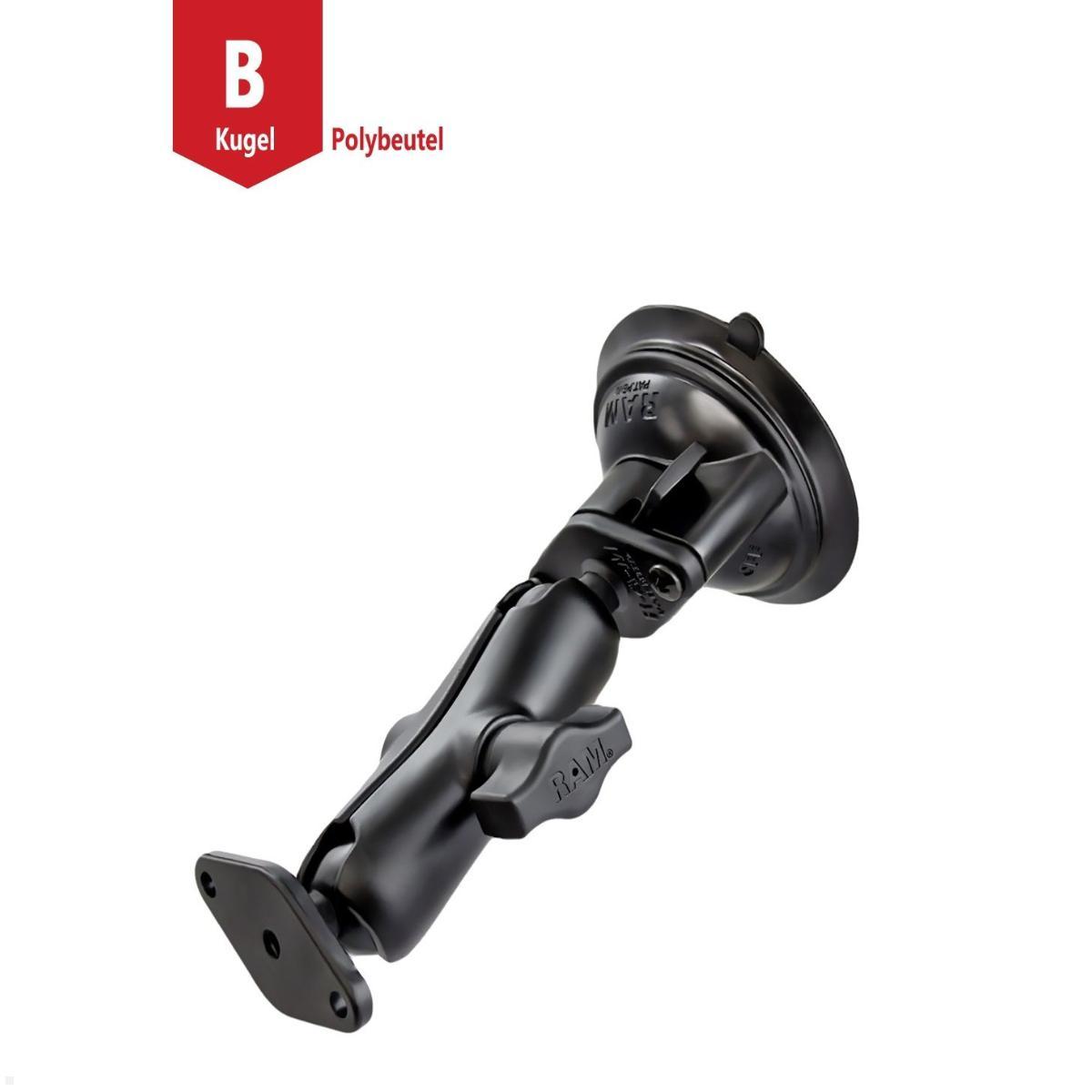

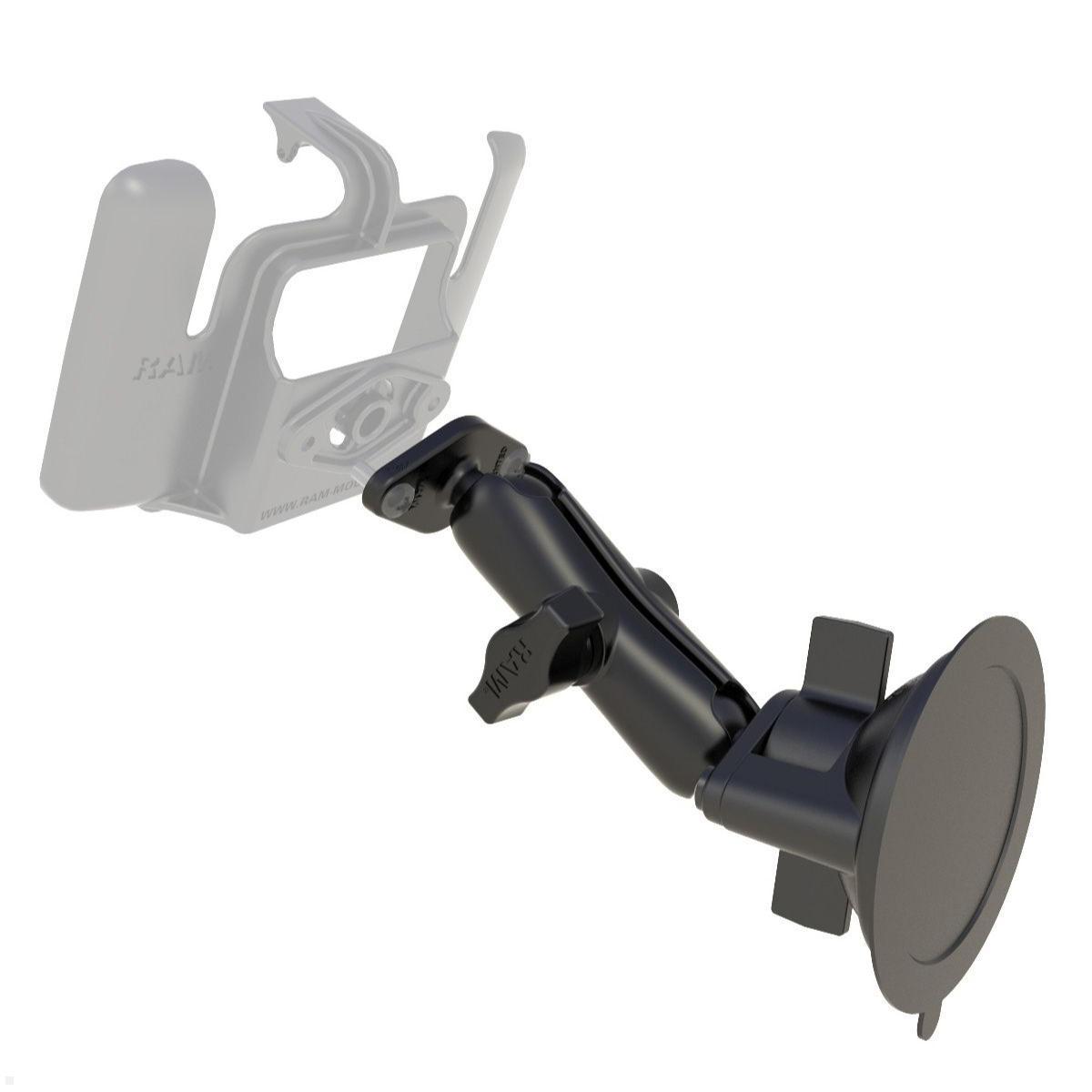

RAM Mounts Suction Cup Set - medium connecting arm, 2x Diamond base plate B-ball (RAM-B-166U)
Highlights
- Suction cup base with twist lock
- Middle connecting arm included
- 2x Diamond base plate (trapezoid)
- B-ball 25.4 mm connection
- Weight approx. 285 g
Suction Cup Mount with Medium Connecting Arm and Diamond Attachment
The RAM Mounts suction cup kit - medium connecting arm, 2x diamond base plate B-ball (RAM-B-166U) enables the secure mounting of electronic devices to windshields or smooth surfaces. The diamond base plates fit most RAM Mounts GPS device cradles and provide maximum compatibility within the RAM Mounts system.
The suction cup base with twist lock ensures a stable hold, while the medium connecting arm allows flexible mounting. The kit is ideal for attaching GPS devices, smartphones, or tablets in vehicles, boats, or industrial settings. The robust construction of powder-coated aluminum and high-strength composite ensures durability and reliability. The suction cup mount with trapezoid connection also fits many RAM Mounts and non-RAM device holders.

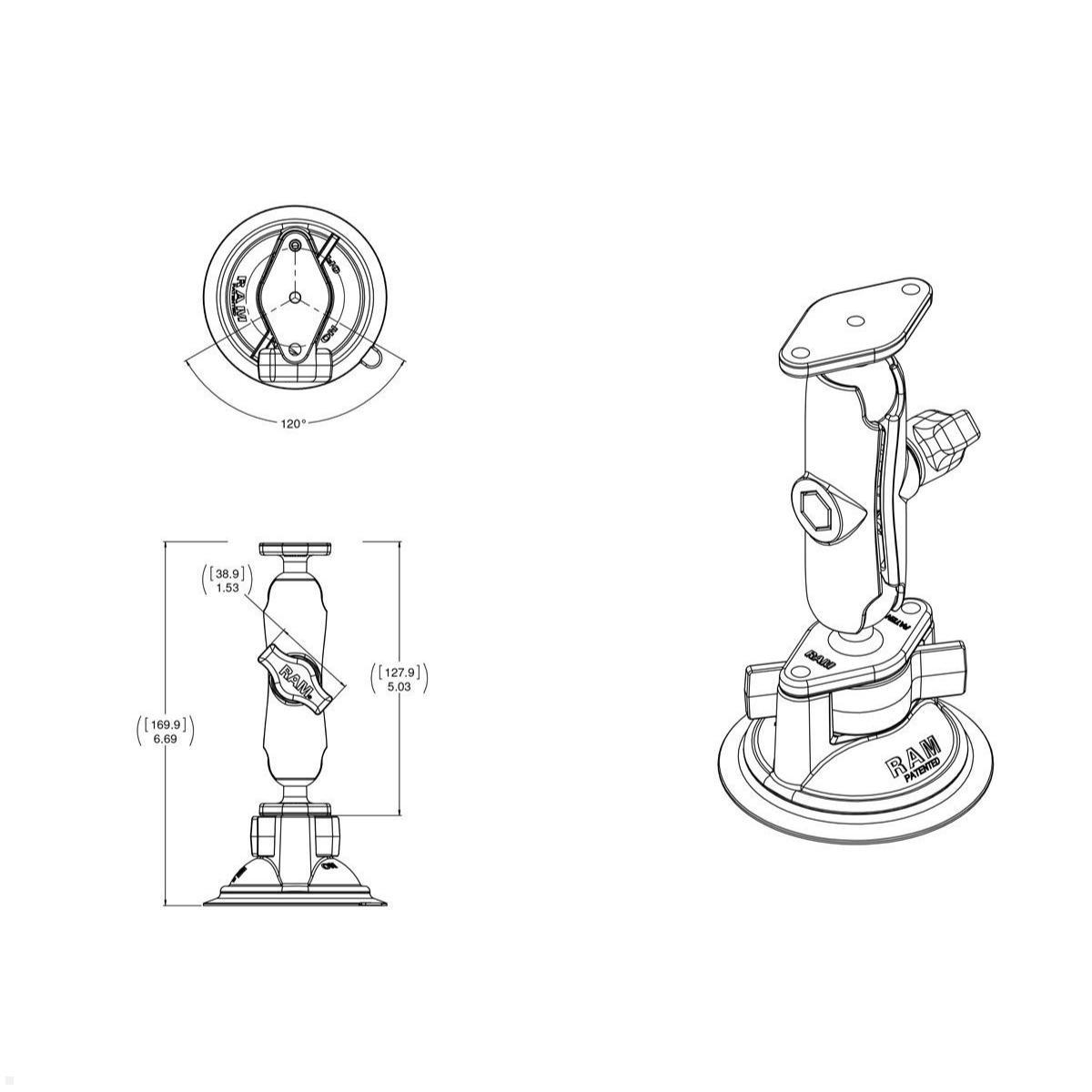

Technical Details RAM Mounts Suction Cup Kit RAM-B-166U
- Material: powder-coated aluminum, high-strength composite, rubber
- Ball diameter: 25.4 mm (1 inch, B-ball)
- Suction cup base: diameter approx. 84 mm with twist lock
- Connecting arm: approx. 93.73 mm overall length, 76.2 mm base-to-base
- 2x trapezoid base plate (Diamond)
- Color: black
- Weight: approx. 272 g
- Warranty: 30 years (suction cup 3 years)
| Material: | Pulverbeschichtetes Aluminium, Hochfestigkeits-Verbundstoff, Gummi |
|---|---|
| Scope of delivery: | 1x suction-foot set consisting of suction-foot base, middle connecting arm and 2x Diamond base plate (RAM-B-166U) |
| Warranty: | 30 Jahre |
| Manufacturer/Importer: | RAM Mounts Germany GmbH, Alexander-Meissner-Str. 42, 12526 Berlin, info@rammounts.de |
| Mounting type: | Car mount |
| color: | Black |
| RAM Mounts Kugel: | B-Kugel |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the RAM Mounts Suction Foot Set RAM-B-166U?
Suction foot mount with a medium connecting arm and Diamond mounting, for securely attaching electronic devices to windscreens or smooth surfaces. The Diamond base plates fit most RAM Mounts GPS device cradles and provide maximum compatibility within the RAM Mounts system.
-
What parts are included in the set?
2x Diamond trapezoid base plates, a suction foot base with twist lock, and a medium connecting arm.
-
What surfaces can it be mounted to?
Windscreens or other smooth surfaces.
-
What is the ball size?
Ball diameter: 25.4 mm (1 inch, B-ball).
-
What are the dimensions of the suction foot and arm?
Suction foot base diameter approx. 84 mm; connecting arm overall length approx. 93.73 mm; base-to-base distance approx. 76.2 mm.
-
What materials is it made from?
Powder-coated aluminium, high-strength composite and rubber.
-
What is the weight and colour?
Weight approx 272 g; colour black.
-
Which devices can be mounted and what is the warranty?
Suitable for securing GPS devices, smartphones or tablets in vehicles, boats or industrial settings; warranty 30 years (suction foot 3 years).
What does the RAM Mounts suction base set RAM-B-166U include?
The RAM Mounts suction base set RAM-B-166U is a complete mounting kit for attaching electronic devices to windshields and smooth surfaces. The set consists of a suction base with twist lock, a medium-length extension arm, and two diamond baseplates in trapezoid format. The medium-length arm offers a balanced mix of compact design and sufficient reach. The suction base, with a diameter of approx. 84 mm, provides a stable and reliable hold on smooth surfaces.
What are the advantages of the medium-length extension arm?
The medium-length arm of the RAM-B-166U provides an ideal length for most vehicle applications. It allows flexible positioning of the mounted device without protruding too far into the vehicle interior. Thanks to the ball-and-socket arm system, the mount can be adjusted steplessly in all directions. The trapezoid baseplates are compatible with many RAM Mounts and also non-RAM device holders, offering a wide range of applications. The entire set is made of powder-coated aluminum and high-strength composite for maximum durability.
For which vehicles and devices is the RAM-B-166U suitable?
The suction base set RAM-B-166U is suitable for almost all vehicle types with a windshield or smooth surface. Whether car, truck, van, boat or aircraft – the suction mount provides a secure hold everywhere. Ideal for mounting GPS devices, smartphones, tablets and radios. With the B-ball connection of 25.4 mm diameter, the set is fully compatible with the RAM Mounts system. The weight of approx. 272 g makes it a lightweight yet stable solution for daily use in logistics, trades or private settings.
