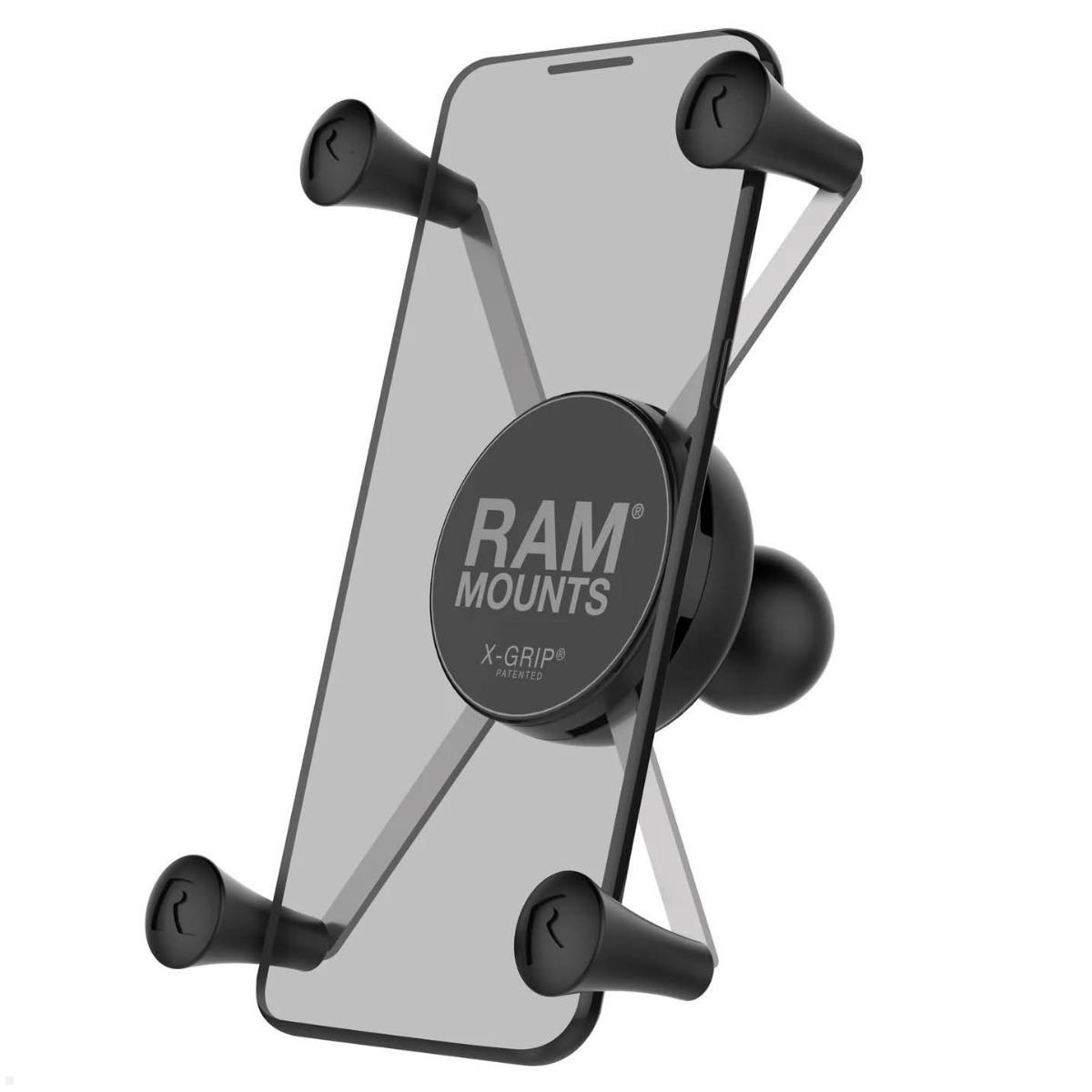

RAM Mounts X-Grip smartphone holding clamp, B-ball (RAM-HOL-UN10BU)
Smartphone Holder for Motorcycle or Bicycle

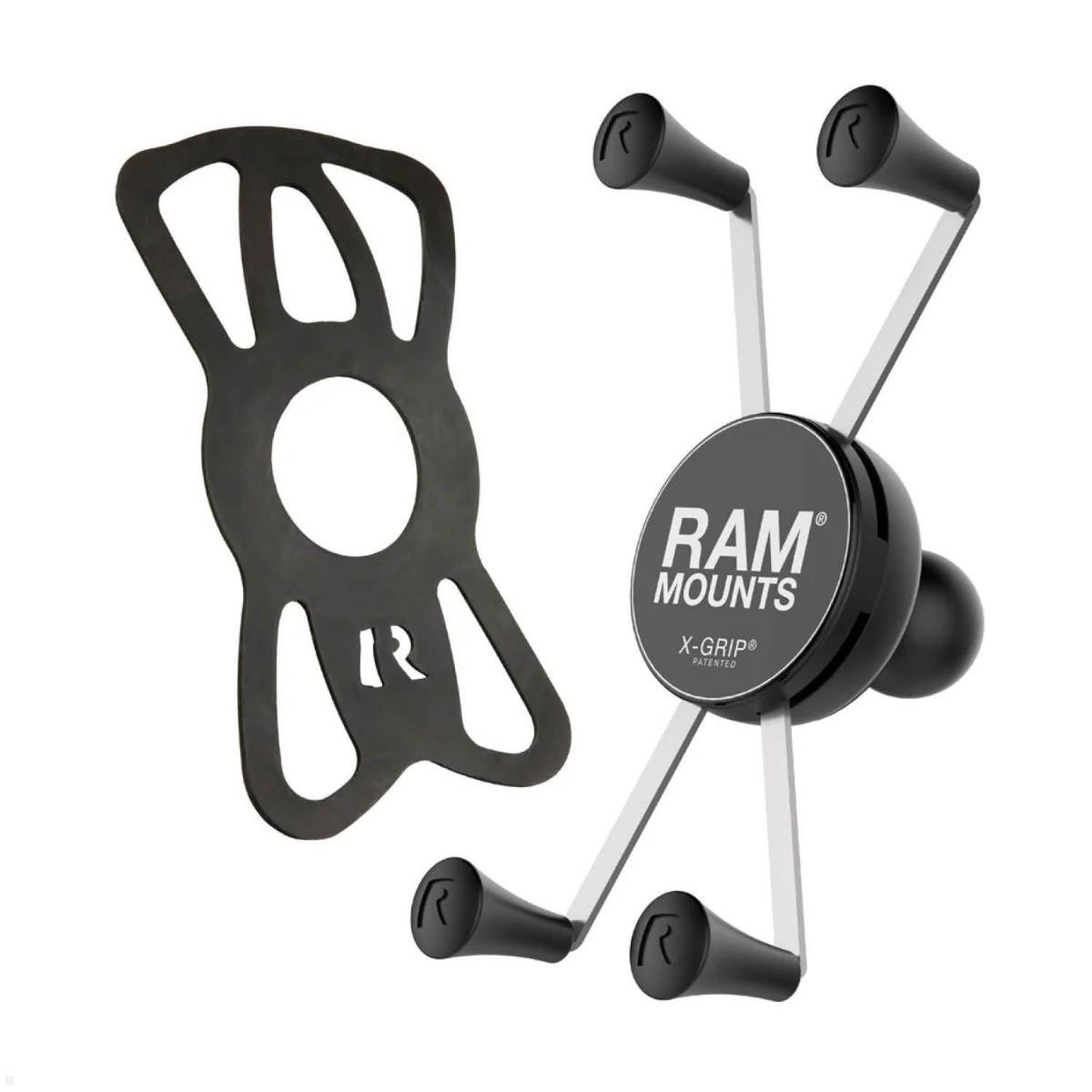

The RAM Mounts X-Grip Universal Holder offers an extremely robust and flexible way to securely mount smartphones of various sizes. The rubberized end caps provide additional protection and a firm grip without damaging the device. Thanks to its versatile applications, the holder is ideal for motorcycles, bicycles, cars, boats, and many other mobile uses. For particularly demanding conditions – such as off-road riding – an additional security rubber strap is included to further enhance device retention.

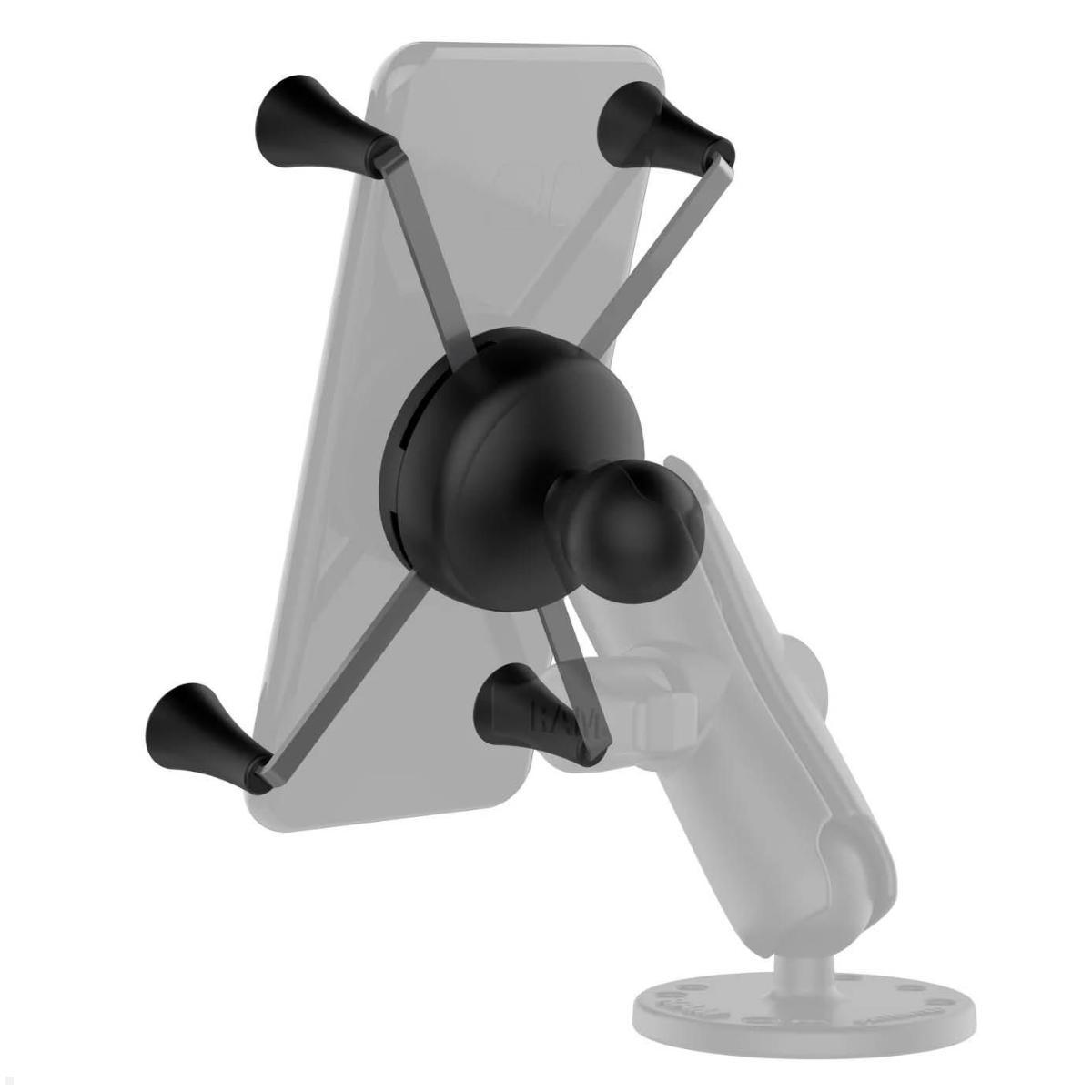

The open design of the X-Grip allows unrestricted access to all buttons, ports, and the camera, ensuring that the smartphone remains fully functional during use. The integrated spring mechanism allows quick insertion and removal of the device. In addition, the holder is fully compatible with a wide range of RAM Mounts components, making it easy to integrate into existing systems. On the back, the X-Grip is equipped with a B-ball, allowing the holder to be combined directly with suitable RAM Mounts connection arms.
Key features RAM Mounts Phone Holder (RAM-HOL-UN10BU)
- Universal holder for smartphones
- Spring-loaded tension of the holding arms
- Holding fingers coated with rubber
- Min. device width: 44.45 mm (min. height: 139.7 mm)
- Max. device width: 114.3 mm (min. height: 82.55 mm)
- Max. device depth: 22.23 mm
- Ball size: B-ball 2.54 cm (1 inch)
- Material: High-strength composite and rubber (suction base), powder-coated aluminum (base plate, connection arm), high-strength composite / steel / rubber (X-Grip clamp)
- Max. load capacity: 0.91 kg
- Load capacity under high-stress use: up to approx. 0.45 kg
- Compatible with RAM Mount arms:
- RAM-B-201U
- RAM-B-201U-A
- RAM-B-201U-C
- RAP-B-200-12U
- RAP-B-201U-A
- RAP-B-201U
- RAM-B-201-201U
- RAM-B-201-SU
- RAM-B-201LU
- Compatible with RAM Mounts bases:
- RAM-B-202U
- RAM-B-238U
- RAP-B-354U-TRA1
- RAP-B-400U
- RAM-B-224-1U
- RAM-B-231ZU
- RAM-B-108BU
- RAP-B-379U-252025
- Color: Black
| Product sheet: |  [pdf] |
|---|---|
| Others: | [pdf] |
| Installation manual: | [pdf] |
| Capacity: | 0,9 kg |
| Material: | High-strength composite material, rubber, powder-coated aluminum |
| Suitable for: | For smartphones / mobile phonesSmartphones with a maximum width of 114.3 mm | a maximum depth of 22.23 mm |
| Scope of delivery: | 1x RAM-HOL-UN10BU X-Grip |
| Manufacturer/Importer: | RAM Mounts Germany GmbH, Alexander-Meissner-Str. 42, 12526 Berlin, info@rammounts.de |
| Mounting type: | Car mount |
| color: | Black |
| RAM Mounts Kugel: | B-Kugel |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Kunden kauften auch
RAM Mounts X-Grip Universal Holder – maximum flexibility for any application
The RAM Mounts X-Grip Universal Holder RAM-HOL-UN10BU is one of the most popular smartphone holders worldwide and impresses with its exceptional combination of stability, versatility, and secure grip. Designed for users who want to mount their smartphone reliably – whether on a motorcycle, bicycle, in a car, boat, or other mobile environments – the X-Grip offers maximum flexibility and safety.
The innovative X-design with its rubberized end caps ensures that the device is securely held without damaging the surface. At the same time, the smartphone remains fully accessible: buttons, ports, and the camera are not covered, allowing for easy use of navigation apps, music control, or video recording.
Robust construction for demanding environments
The X-Grip holder is specifically designed to withstand high loads and function reliably even in challenging situations. Thanks to its open, pressure-balanced construction, the smartphone is held securely without being clamped or excessively compressed.
Especially practical: An additional safety rubber strap is included. This provides even more stability in extreme situations – for example during off-road rides, steep angles, or high speeds. This makes the RAM-HOL-UN10BU holder ideal for adventure bikes, mountain bikes, and other outdoor applications.
For maritime use or in vehicles, the extremely robust build quality of RAM Mounts shines. The integrated B-ball (1 inch) ensures optimal compatibility with countless RAM Mounts system components and enables flexible mounting options.
Easy to use – insert smartphone and ride
Thanks to the integrated spring mechanism, the smartphone can be inserted or removed within seconds. The X-Grip automatically adapts to different device sizes while still keeping the phone absolutely secure.
The universal fit covers smartphones with the following dimensions:
- Minimum width: 44.45 mm
- Maximum width: 114.3 mm
- Maximum depth: 22.225 mm
This makes the holder suitable for almost any modern smartphone – including most models from Apple, Samsung, Google, Xiaomi, Sony, and other brands.
Please note: Strong engine vibrations from powerful motorcycles may affect the camera of certain smartphones (especially iPhones). This is a general advisory and not a defect of the holder.
Technical data and scope of delivery
The load capacity is:
- up to 0.91 kg in standard applications
- up to 0.45 kg in high-stress environments
The delivery includes only the RAM-HOL-UN10BU X-Grip holder. Devices shown in images are for illustration purposes only and are not included.
