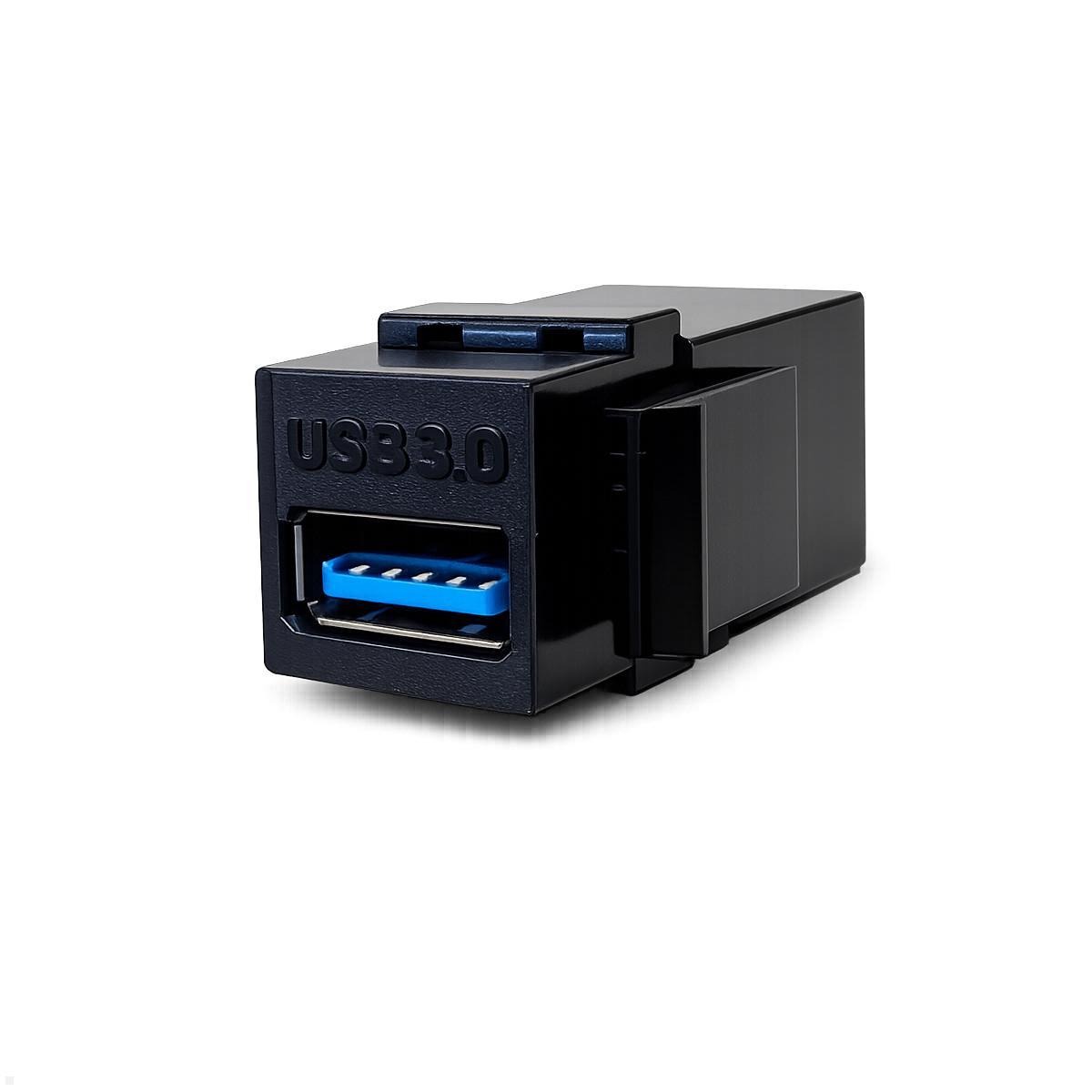

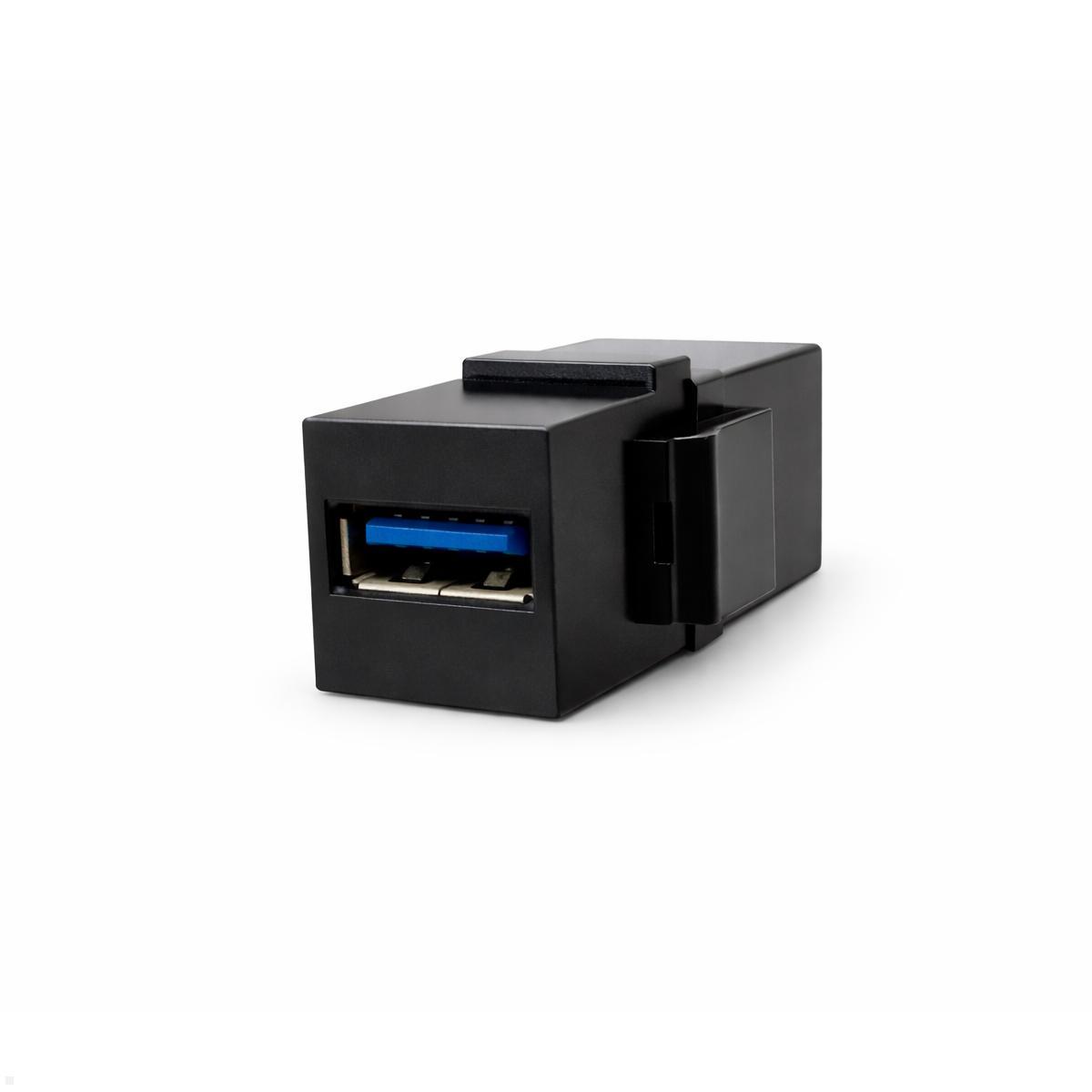

TecLines TKM005B Keystone USB 3.0 A/A
The TecLines Custom Module TKM005 1x USB 3.0 A/A Keystone is suitable for individual outfitting of table installation panels.
Keystone USB 3.0 A/A
The TecLines TKM005 Custom Module Keystone USB 3.0 A/A is a high-quality and versatile solution for modern video, audio, and network connections. As a central component in professional media installations, these Keystone modules enable a structured, clean, and flexible integration of USB 3.0 ports into a wide range of environments – from offices and conference rooms to industrial and IT infrastructures. Thanks to their standardized keystone format, the TecLines USB 3.0 keystone modules can be easily integrated into keystone panels, patch panels, wall outlets, or media connection plates. This makes them ideal for facility systems, rack installations, and electrical installations where future-proof cabling and scalable infrastructure are required. Especially in professional network environments, they offer an efficient way to integrate USB interfaces neatly and accessibly.
A major advantage of the USB 3.0 A/A keystone coupler is the simple and quick installation. The module can be retrofitted, replaced, or expanded at any time with minimal effort, without the need for complex modifications. This flexibility saves time and costs and makes the system particularly attractive for dynamic work environments. With support for USB 3.0 high-speed data transfer, the TecLines keystone module provides a reliable and high-performance connection. It is ideal for use with modern peripherals, presentation equipment, or data interfaces where speed and stability are critical. Due to its modular design and high compatibility, the TecLines TKM005 Keystone Module is a future-proof solution for professional cabling systems and the perfect choice for a powerful and flexible infrastructure.
Technical Details USB 3.0 A/A Keystone
- Keystone mounting
- Front: USB-A 3.0 socket
- Rear: USB-A 3.0 socket
- Mounting in Bachmann Keystone frame 917.000 or 917.001
- Approx. 85 mm required installation depth
Please note!
Compared to USB 2.0 cables, USB 3.0 cables have, in addition to an extra ground connection, two additional pairs of signal wires:
- SSTX+ and SSTX- are used for data transmission from the host to the device
- SSRX+ and SSRX- for data transmission from the device to the host
| Suitable for: | Bachmann module 2x Keystone black (917.000), Bachmann module 1x Keystone black (917.001) |
|---|---|
| Contains installation material: | + |
| Warranty: | 3 years |
| Manufacturer/Importer: | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| color: | Black |
| USB-Charger: | USB A/A |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
