Legrand Raritan iX Rack-PDU 0U with 12xC13 / 12xCx, single-phase 230V 32A, Outlet Metered (PX4-4161-E7)
€1,959.93*
delivery time: 1 - 5 working days
Highlights
- 24 lockable outlets, 7.4 kVA
- Single-phase 230V 32A, IEC input
- Billing-grade measurement, Class 0.5
- Power Quality Monitoring
- Hot-swappable controller, color LCD
Precise energy measurement per outlet for professional server racks

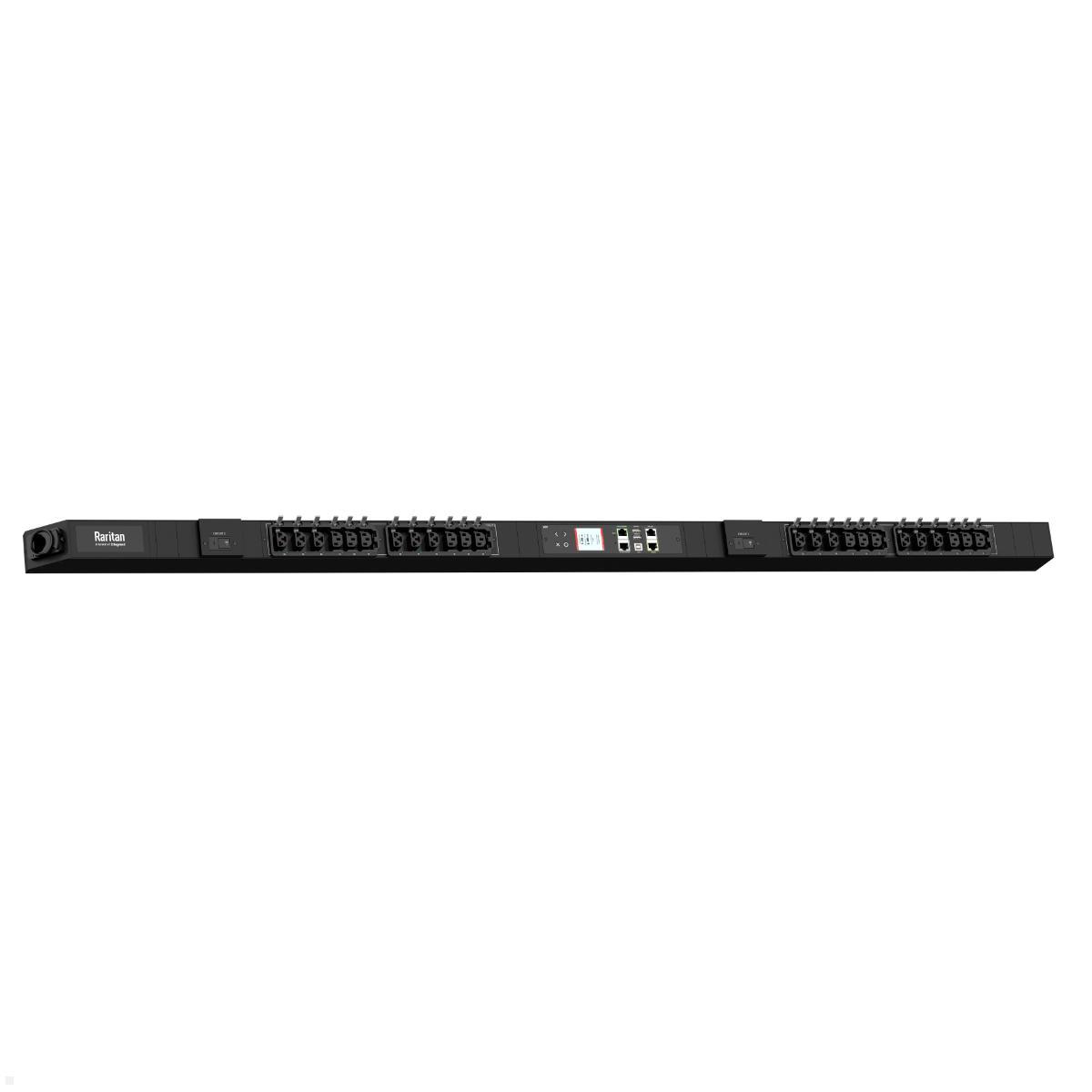

The Legrand Raritan iX Rack-PDU (PX4-4161-E7) is a powerful, vertically mountable 0U power distribution unit for professional data center use. With 24 lockable outlets (12x C13 and 12x Combo C13/C19) and a capacity of 7.4 kVA, it provides reliable power distribution for demanding server and network infrastructures. The single-phase PDU is fed via an IEC 230V/32A input and, thanks to billing-grade energy metering class 0.5, delivers precise consumption data for voltage, current, active power, apparent power, energy consumption and power factor. Measurements are taken per input line, per circuit breaker and per individual outlet. In addition, the PDU monitors power quality with parameters such as harmonic distortion, voltage sags, voltage swells, neutral current, inrush current and crest factor.
Intelligent rack PDU for transparent energy management
The hot-swappable controller with integrated color display allows replacement during operation without interrupting power. The LCD displays voltage, current and active power per line, per circuit breaker and per outlet and automatically adjusts its orientation. Remote management is supported via HTTP(S), SSH, Telnet, SNMP v2/v3, JSON-RPC API, MODBUS-TCP and Redfish API. Up to 8 PDUs can be linked via the PDU-Link function, with the primary PDU centrally managing all power data of the connected units. In cascade mode up to 32 PDUs can be operated over an Ethernet port or 16 PDUs via USB. Redundant dual Ethernet connectivity (10/100/1000 Base-T) with optional WLAN (802.11 a/b/g/n) ensures a highly available network connection. The PDU supports extensive environmental sensors for temperature, humidity, airflow, differential pressure, dust, water leak detection, motion, vibration and contact closure.
Technical details Legrand Raritan iX Rack-PDU 0U with 12xC13 / 12xCx, 1-phase 230V 32A, Outlet Metered (PX4-4161-E7)
- Input: IEC 230V/32A 2P+PE 6h
- Nominal input voltage: 230V
- Maximum input current: 32A
- Power capacity: 7.4 kVA
- Outlets: 12x C13, 12x Combo C13/C19
- Overload protection: 2 circuit breakers
- Energy metering: Billing-grade, Class 0.5
- Measurement per input line, per circuit breaker, per outlet
- Power Quality Monitoring
- No remote outlet switching
- Hot-swappable controller with color LCD display
- PDU linking: up to 8 PDUs
- Cascading: up to 32 PDUs (Ethernet) / 16 PDUs (USB)
- Dual Ethernet 10/100/1000 Base-T, optional WLAN
- Remote management: HTTP(S), SSH, Telnet, SNMP v2/v3, JSON-RPC, MODBUS-TCP, Redfish API
- Environmental sensors: temperature, humidity, airflow, differential pressure and more
- Dimensions (W x D x H): 56 x 65 x 1539 mm
- Weight: 4.5 kg
- Operating temperature: up to 60 °C
- Power cord: 3 m
- Certification: CE
- Warranty: 2 years
| Product sheet: |  [pdf - Englisch] |
|---|---|

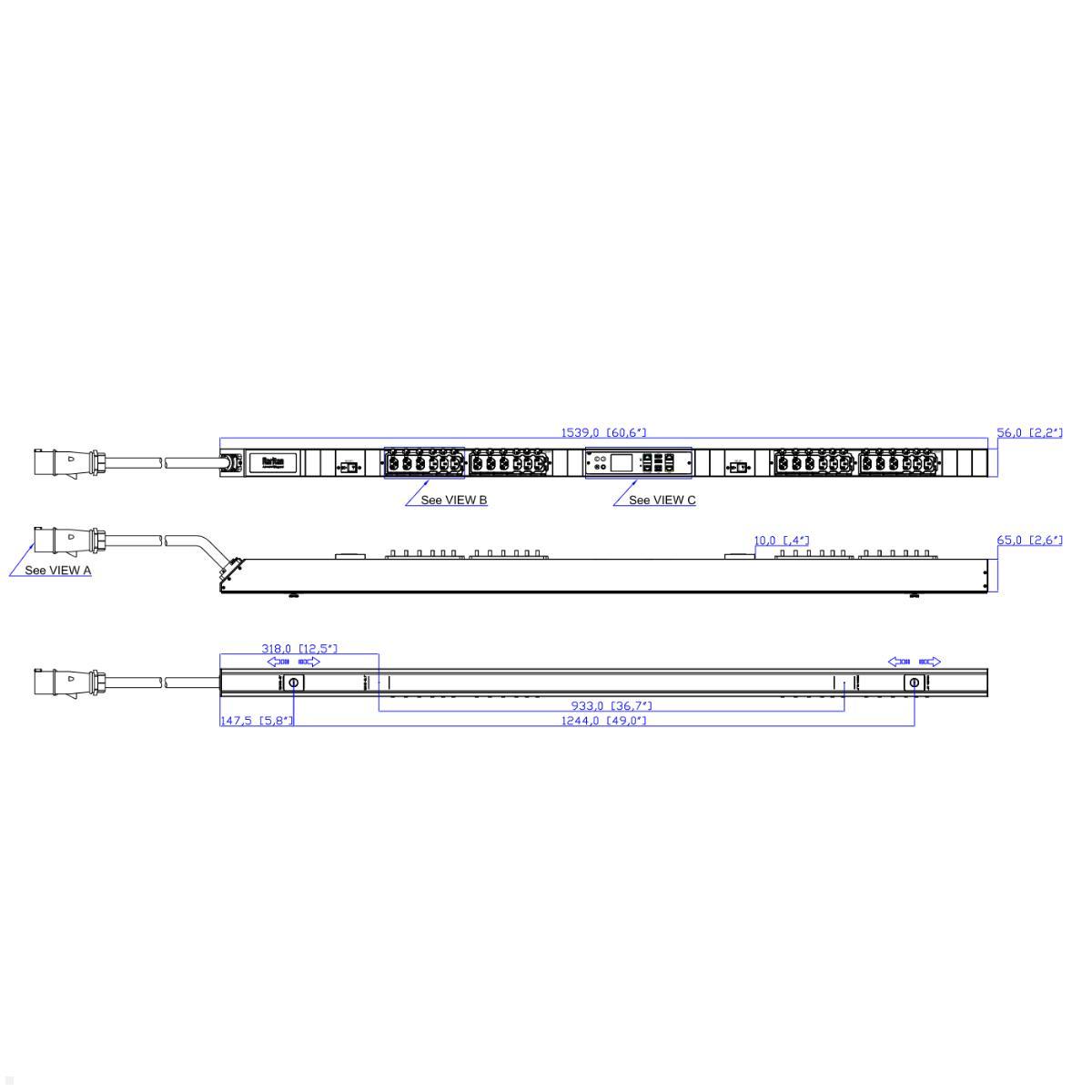

| Technical drawing: | [pdf] |
| Packaging dimensions (LxWxH in mm): | 1700 x 255 x 125 |
| Contains installation material: | + |
| Warranty: | 2 years |
| Manufacturer/Importer: | Legrand AV Netherlands B.V. / Chief, Franklinstraat 14, 6003 DK Weert NL, deutschland.verkauf@av.legrand.com |
| Einspeisung: | 32A |
| FI switch: | No |
| Fuse: | Yes |
| Mains filter: | No |
| Messen: | pro Port |
| Number of sockets: | 24 Outlets |
| Overvoltage protection: | No |
| Phasen: | 1-phasig |
| RCM-Differenzstrommessung: | Nein |
| Schalten: | Nein |
| Steckerart: | C13, Combosocket |
| Strommessung / Überwachung: | Ja, online |
| color: | Black |
| Größe PDU: | Vertikal, 42 HE |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
What is a 0U Rack PDU with Billing-Grade Outlet Metering used for?

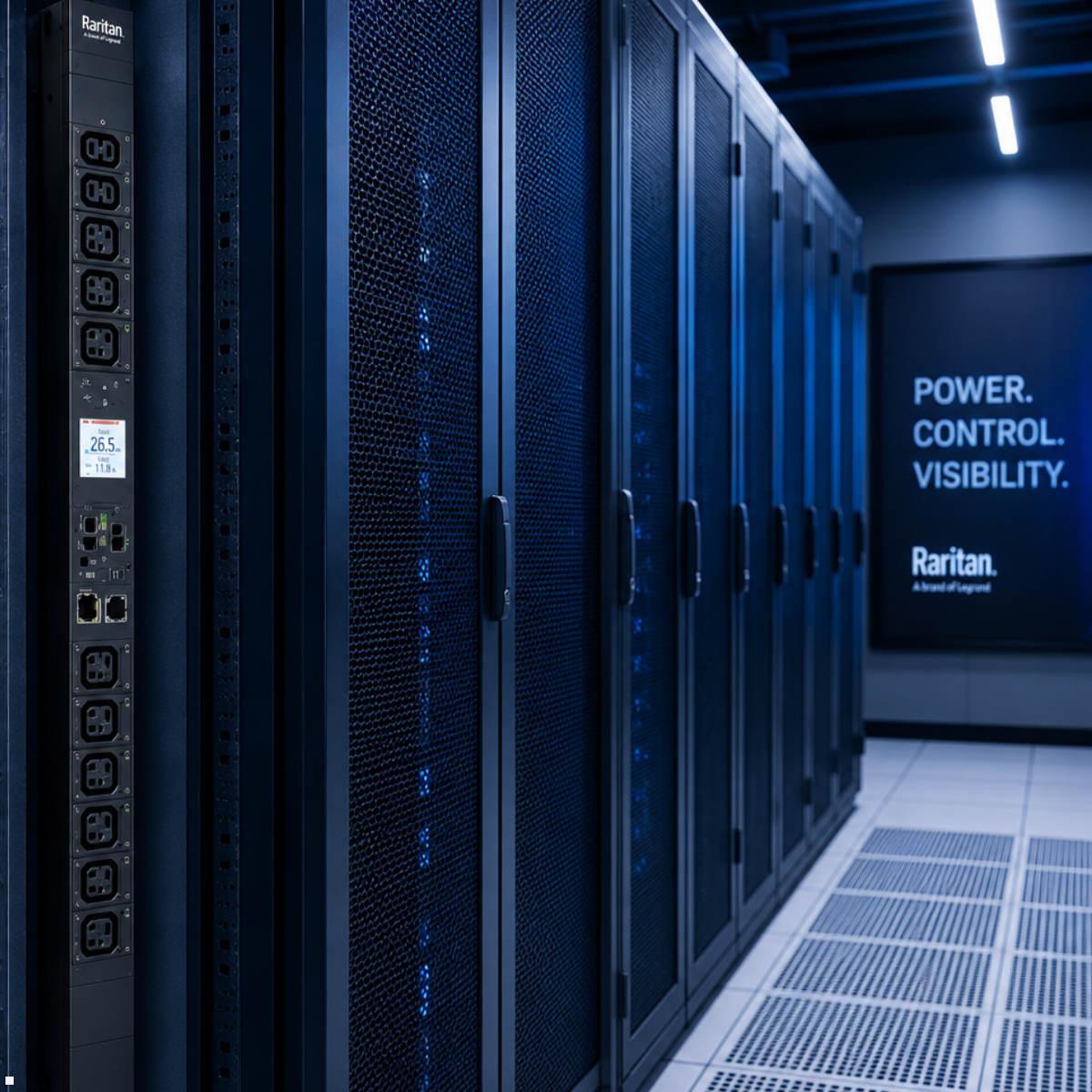

A rack PDU with outlet metering like the Legrand Raritan iX (PX4-4161-E7) enables precise measurement of power consumption at the level of each individual outlet. Billing-grade energy measurement (class 0.5) provides highly accurate data for voltage, current, active power, apparent power, energy consumption and power factor. These granular consumption data are indispensable for usage-based billing in colocation data centers as well as for capacity planning and efficiency optimization in enterprise-owned server rooms. Unlike switched PDUs, this model deliberately omits remote outlet switching and focuses solely on measurement and monitoring. Power quality monitoring with parameters such as harmonic distortion, voltage sags, and crest factor allows early detection of power supply issues before they lead to equipment failures. The hot-swappable controller ensures that firmware updates and hardware replacements can be performed without interrupting power delivery.
How does PDU linking and cascading improve infrastructure management?

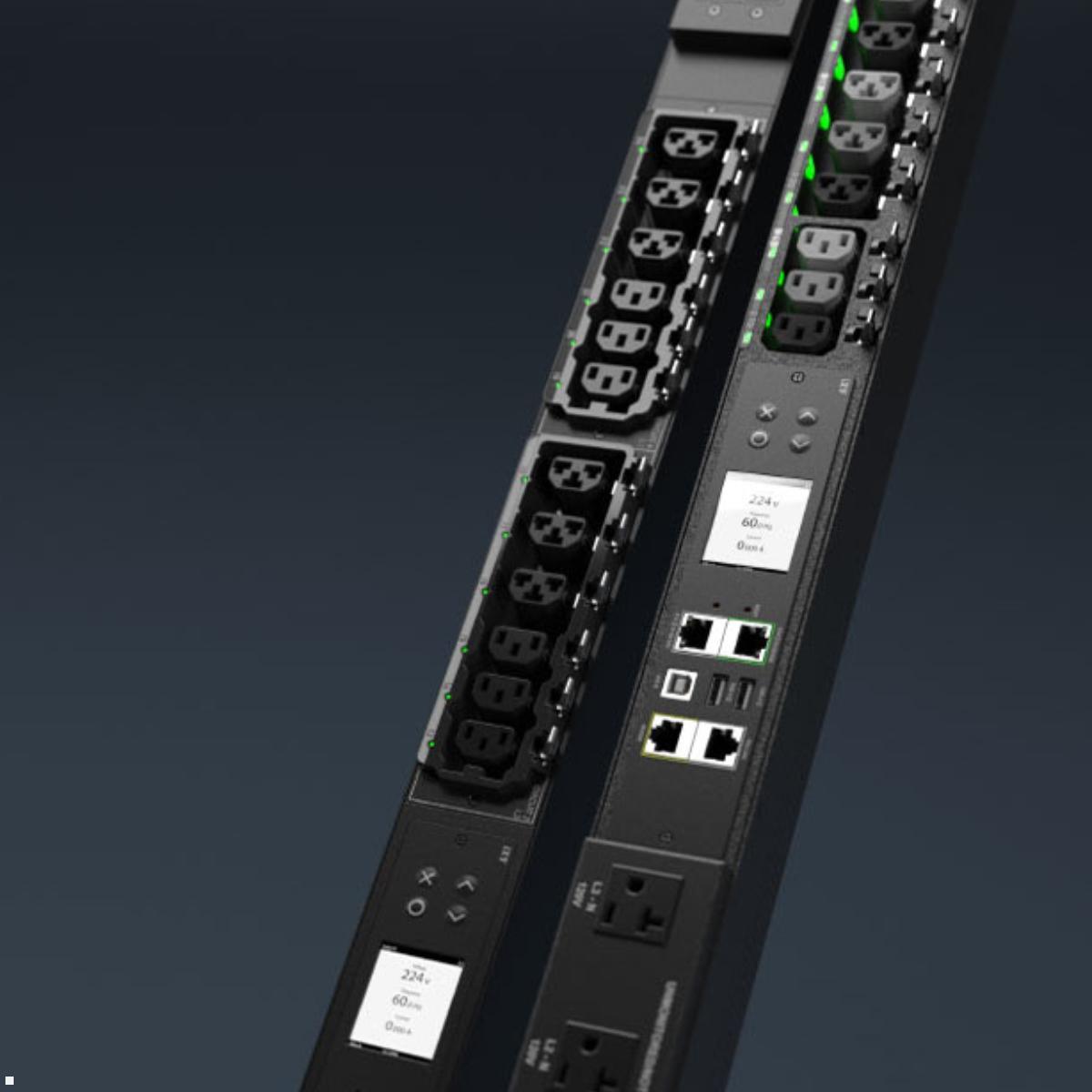

The PDU-Link function allows chaining of up to 8 PDUs, with a primary PDU centrally collecting the power data of all connected units and making it accessible via a common user interface. In the event of a power failure of the primary PDU, the first expansion PDU takes over redundant power supply and thus ensures availability. In cascade mode up to 32 PDUs can be linked over a single Ethernet port or 16 PDUs via USB. Through port forwarding, multiple PDUs can be managed under a single IP address, significantly reducing the need for network ports and IP addresses. Redundant dual-Ethernet connectivity with optional Wi‑Fi provides a highly available network connection, while extensive remote management via protocols such as SNMP v3, JSON-RPC API and Redfish API enables seamless integration into existing DCIM and monitoring systems.
What role do environmental sensors play in data center monitoring?
The Legrand Raritan iX rack PDU supports a variety of environmental sensors that can be connected via the integrated sensor interface. Temperature and humidity sensors monitor the rack climate and trigger alarms when defined thresholds are exceeded. Airflow and differential pressure sensors help optimize cooling, while water leak sensors provide early warning of liquid ingress. Motion and proximity sensors enhance physical security by detecting unauthorized access to the rack. Vibration sensors can indicate mechanical issues in the infrastructure. All sensor data are centrally collected by the PDU, logged and can be forwarded via SNMP, HTTP or MQTT to higher-level management systems. This comprehensive environmental monitoring, together with precise energy measurement, forms a holistic monitoring system for modern data centers.
