Legrand Raritan iX Rack-PDU 0U with 12xC13 / 12xCX, single-phase 230V 32A, Input Metered (PX4-1161-E7)
Highlights
- 24 outputs: 12x C13, 12x CX (locking)
- Billing-grade energy measurement Class 0.5
- Hot-swap controller, 0U form factor
- PDU linking up to 8 units
- Dual 10/100/1000 Ethernet, Wi-Fi capable
Legrand Raritan iX Rack-PDU PX4-1161-E7 – intelligent power distribution for data centers
The Legrand Raritan iX Rack-PDU 0U with 12xC13 / 12xCX, single-phase 230V 32A, Input Metered (PX4-1161-E7) is a powerful, single-phase power distribution unit in a compact 0U form factor for professional use in data centers. With 24 outlets (12xC13, 12xCX locking), a feed of 230V/32A via IEC 60309 2P+E and a power capacity of 7.4 kVA, the 24-outlet PX4-1161-E7 provides reliable and high-density power delivery. The billing-grade energy metering (Class 0.5) accurately measures voltage, current, active power, apparent power, energy consumption and power factor – both per input feed and per circuit.
The hot-swappable iX controller allows replacement without interruption of operation, ensuring maximum availability. The PDU supports linking of up to 8 PDUs via the PDU-Link port and physical cascading of up to 32 PDUs under a single Ethernet port. Through dual 10/100/1000 Ethernet, optional Wi‑Fi (802.11 a/b/g/n), SSH, SNMP v2/v3, JSON‑RPC API, MODBUS‑TCP and Redfish API, comprehensive remote management is provided. The color LCD display clearly shows voltage, current and active power. Up to 32 sensor functions for temperature, humidity, water leak and other environmental parameters can be connected. The PX4-1161-E7 is ideal for use in data centers, server rooms and critical IT infrastructures.
Technical details Legrand Raritan iX Rack-PDU Input Metered 0U (PX4-1161-E7)
- Input: IEC 60309 2P+E 32A (230V)
- Nominal input voltage: 230V
- Maximum input current: 32A
- Power capacity: 7.4 kVA
- Cable length: 3 m

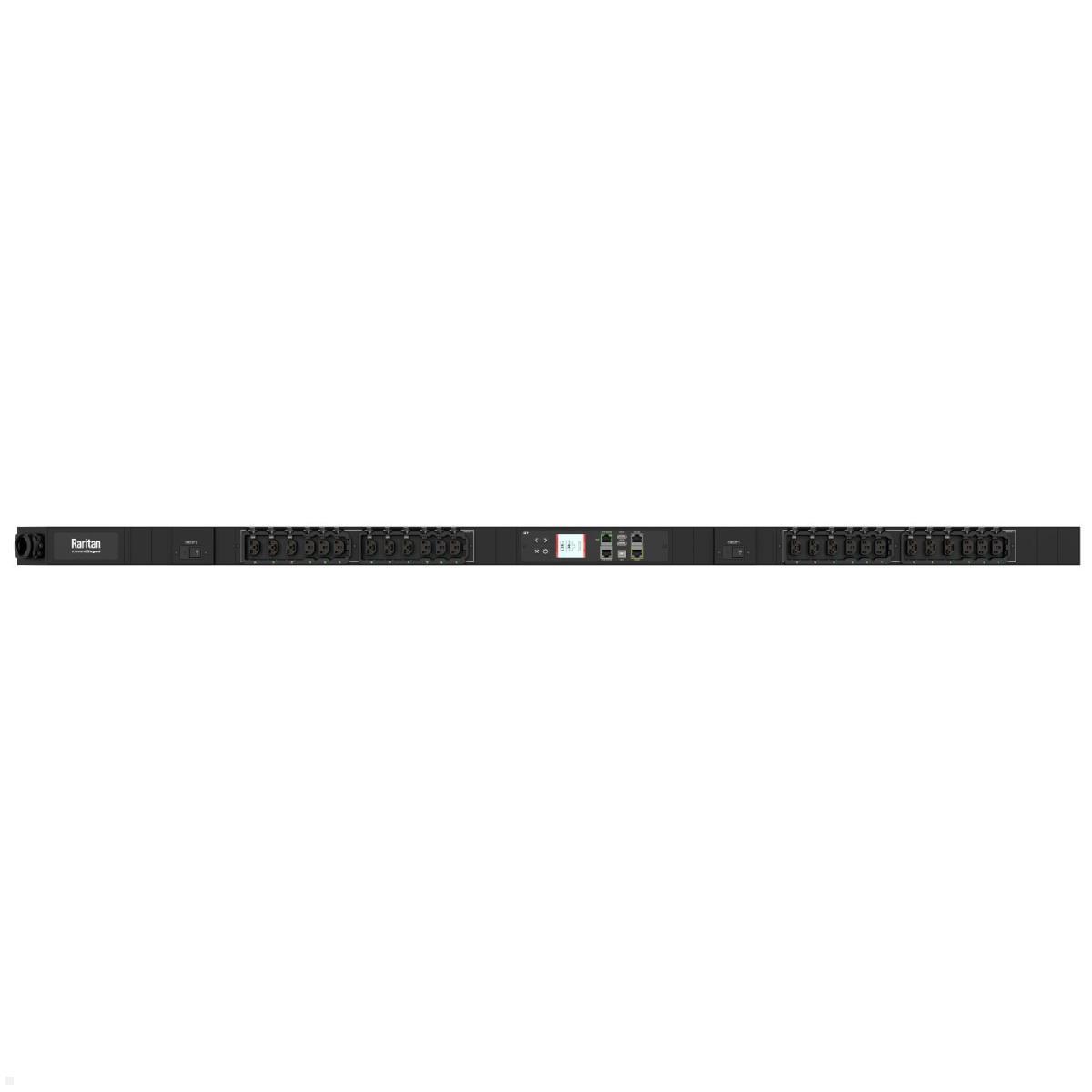

- Outlets: 12xC13, 12xCX (locking) – total 24
- Surge protection: 2x 16A circuit breakers (10 kAIC)
- Form factor: 0U vertical

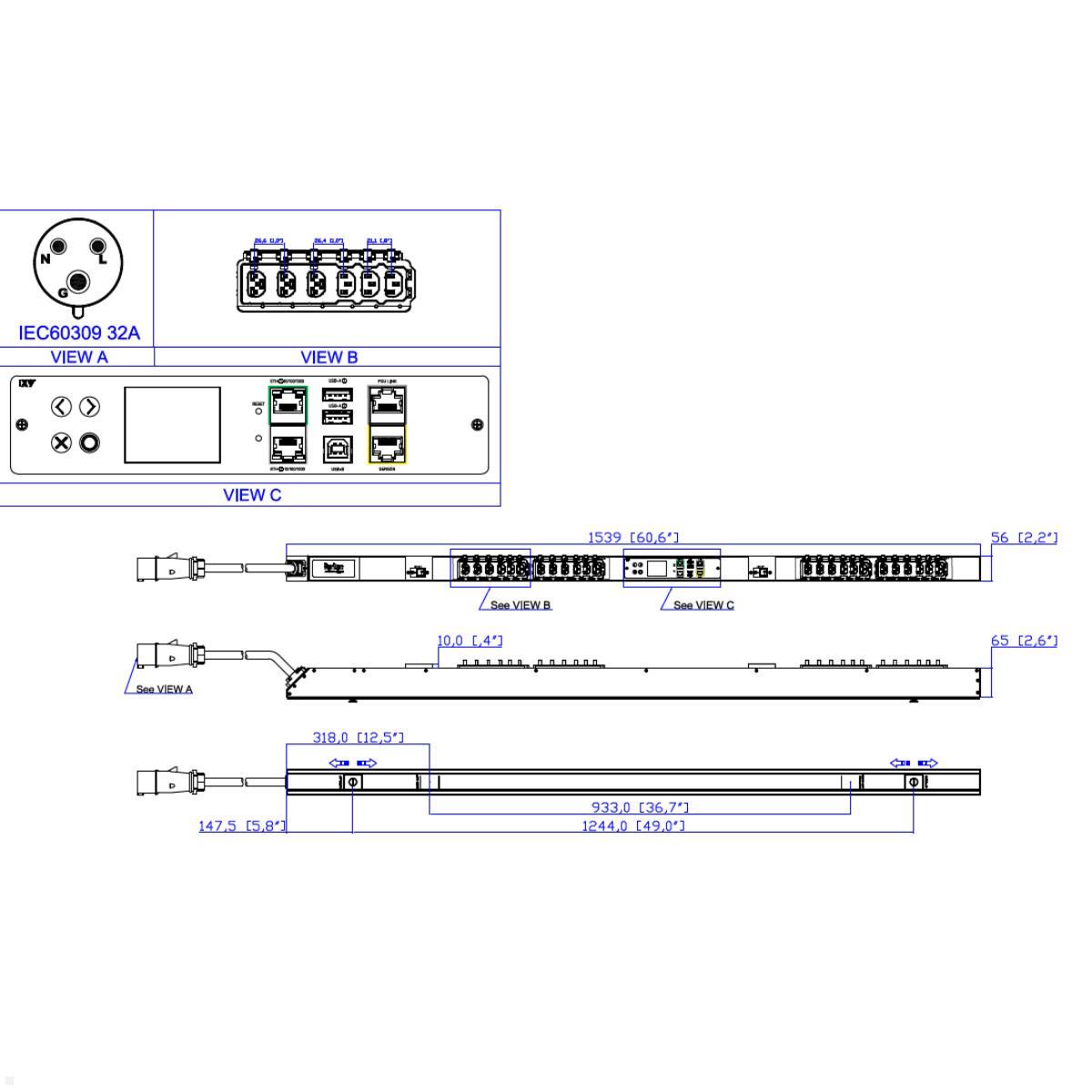

- Dimensions (W×D×H): 56 × 65 × 1539 mm
- Weight: approx. 4.1 kg
- Energy measurement: Class 0.5 (billing-grade) per input feed and circuit
- Network: Dual 10/100/1000 Ethernet, optional Wi‑Fi (802.11 a/b/g/n)
- Remote management: HTTP(S), SSH, Telnet, SNMP v2/v3, JSON‑RPC API, MODBUS‑TCP, Redfish API
- PDU linking: up to 8 PDUs
- Cascading: up to 32 PDUs over a single Ethernet port
- Controller: hot-swappable
- Environmental sensors: up to 32 sensor functions (temp., humidity, water leak, etc.)
- USB: 2x USB-A, 1x USB-B
- Display: color LCD (voltage, current, power per feed/circuit)
- Operating temperature: up to 60°C
- Operating humidity: up to 85% RH
- Approvals: CE
- Warranty: 2 years
| Product sheet: |  [pdf - Englisch] |
|---|---|
| Technical drawing: | [pdf - Englisch] |
| Contains installation material: | + |
| Manufacturer/Importer: | Legrand AV Netherlands B.V. / Chief, Franklinstraat 14, 6003 DK Weert NL, deutschland.verkauf@av.legrand.com |
| Einspeisung: | 32A |
| FI switch: | No |
| Mains filter: | No |
| Messen: | pro Phase |
| Number of sockets: | 24 Outlets |
| Overvoltage protection: | No |
| Phasen: | 1-phasig |
| RCM-Differenzstrommessung: | Nein |
| Schalten: | Nein |
| Steckerart: | C13, Combosocket |
| Größe PDU: | Vertikal, 40 HE |
| USB-Charger: | USB A |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Legrand Raritan iX Rack-PDU PX4-1161-E7 – precise energy measurement for professional data centers
In modern data centers, reliable and precise power distribution is indispensable. The Legrand Raritan iX Rack-PDU PX4-1161-E7 offers an ideal solution for high-density server environments as a single-phase metered power distribution unit in a 0U form factor. With 24 outlets (12x C13, 12x CX Locking), an input of 230V/32A and a power capacity of 7.4 kVA, the PX4-1161-E7 reliably supplies servers, switches and storage systems with power. Billing-grade energy measurement to class 0.5 enables precise recording of voltage, current, active power, apparent power and energy consumption – both per input line and per circuit breaker. This makes the PDU ideal for companies that require accurate energy billing and efficient power management. The compact 0U form factor allows space-saving vertical mounting in the rack without occupying valuable rack units.
What are the advantages of the hot-swappable iX Controller of the PX4-1161-E7?
A special feature of the Legrand Raritan PX4-1161-E7 is the hot-swappable iX Controller, which allows the controller to be replaced during operation – without interrupting power to connected devices. This minimizes downtime and significantly increases the availability of IT infrastructure. The controller has an integrated processor with at least 536 MHz clock speed, 16 MB SPI flash and 64 MB DDR2 RAM and supports automated provisioning via TFTP, DHCP, SSH (CLI) or USB sticks. Via dual 10/100/1000 Ethernet, optional Wi-Fi (802.11 a/b/g/n) and a variety of management protocols – including HTTP(S), SSH, SNMP v2/v3, JSON-RPC API, MODBUS-TCP and Redfish API – the PDU can be fully integrated into existing data center management systems. Linking of up to 8 PDUs via the PDU-Link port as well as cascading of up to 32 PDUs under one Ethernet port enable centralized management of large PDU installations.
For which applications is the Legrand Raritan iX Rack-PDU PX4-1161-E7 suitable?

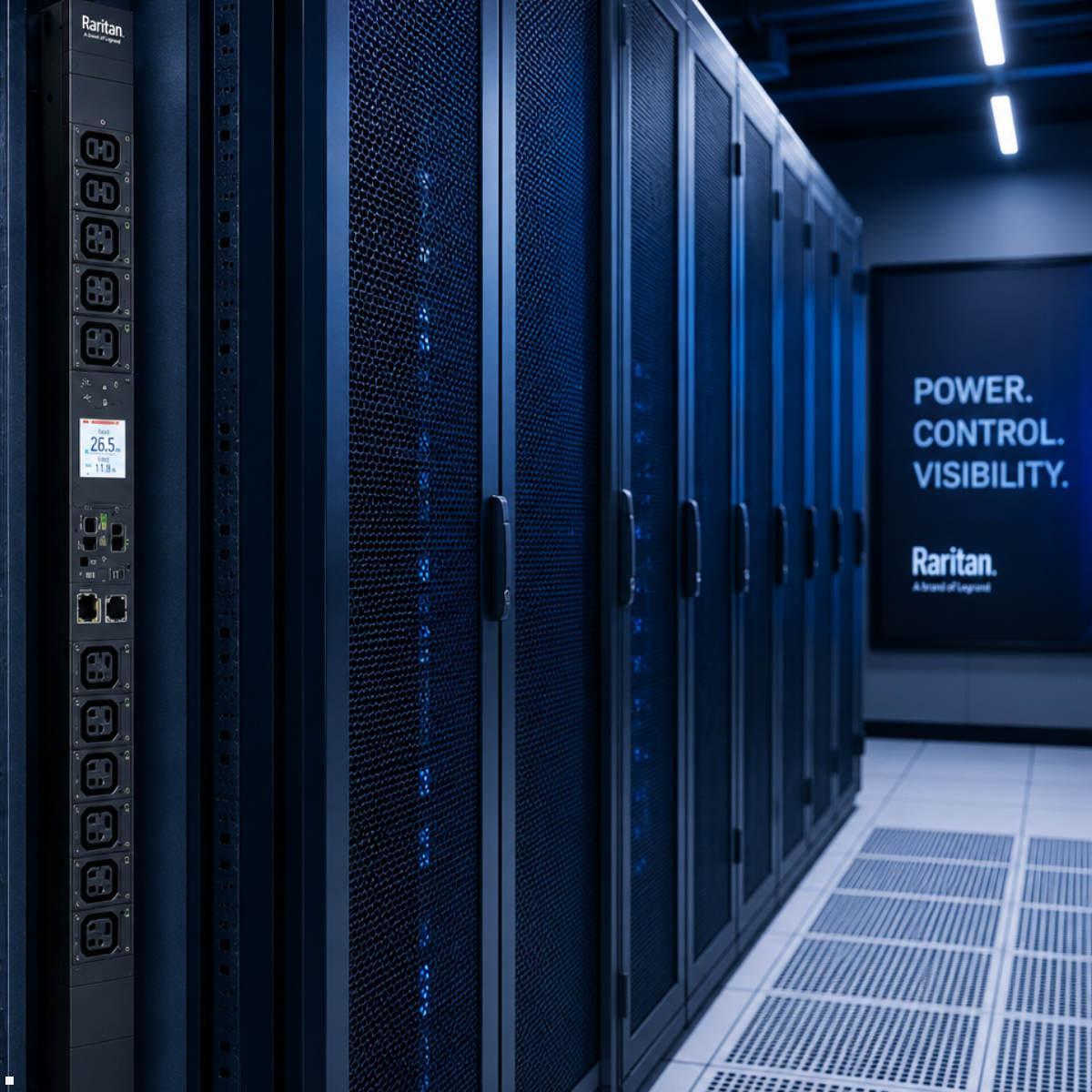

The Legrand Raritan iX Rack-PDU PX4-1161-E7 is the ideal choice for professional data centers, server rooms and critical IT infrastructures where precise energy measurement, high availability and comprehensive remote management are required. Thanks to support for up to 32 environmental sensors – for temperature, humidity, water leak, airflow and other parameters – the rack’s physical environment can be monitored seamlessly. The mechanical locking of the outlets prevents accidental unplugging of power cords and increases operational safety. With CE approval, IPv6 support, ISO 27001 compliance and a passed VAPT test, the PX4-1161-E7 meets the highest security requirements for professional use.
