Legrand Raritan iX Rack-PDU 0U with 12xHDOT C13 / 12xCx, single-phase 230V 32A, Outlet Metered/Switched (PX4-5161-E7)
€2,477.58*
delivery time: 1 - 5 working days
Highlights
- 24 lockable outlets, 7.4 kVA
- Single-phase 230V 32A, IEC input
- Billing-grade measurement, Class 0.5
- Remote outlet switching
- Hot-swappable controller, color LCD
Intelligent power distribution with remotely controlled switching function in the server rack

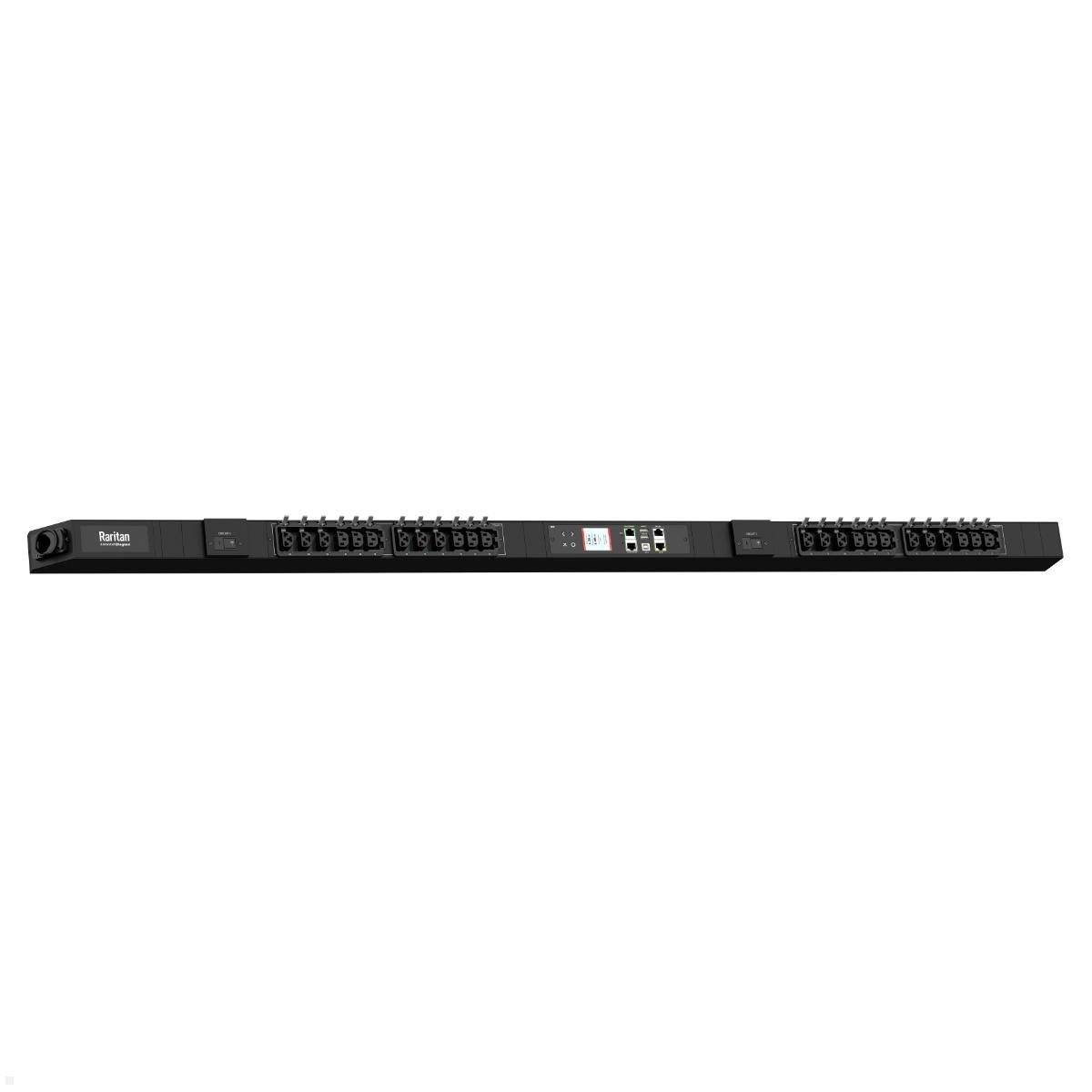

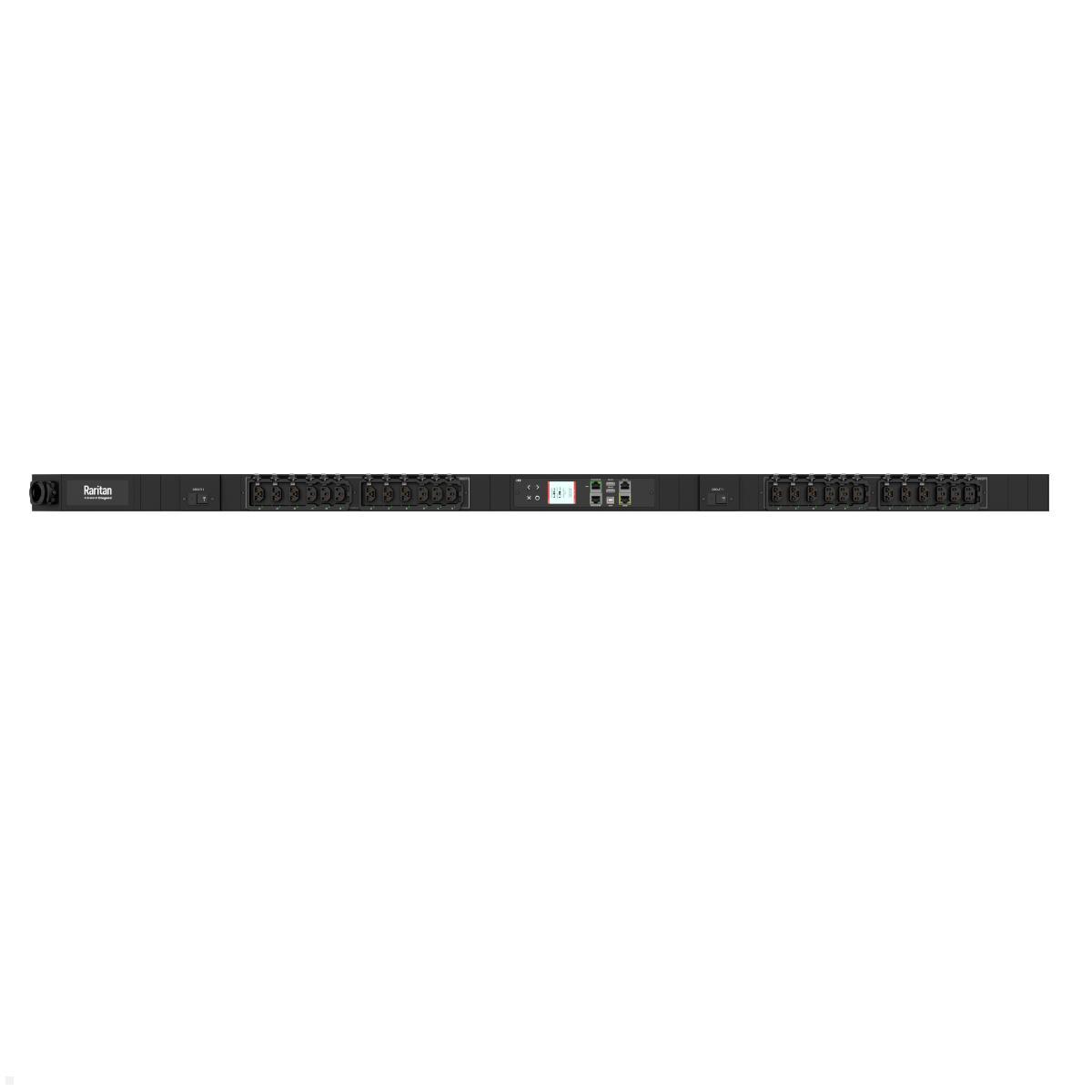

The Legrand Raritan iX Rack-PDU (PX4-5161-E7) is a high-performance, vertically mountable 0U power distribution unit for professional use in the data center. With 24 locking outlets (12x HDOT C13 and 12x Combo C13/C19) and a capacity of 7.4 kVA, it provides reliable power distribution for demanding server and network infrastructures. The single-phase PDU is powered via an IEC 230V/32A input and—thanks to Remote Outlet Switching—allows selective switching on and off of individual outlets over the network. Billing-grade energy metering class 0.5 delivers precise consumption data for voltage, current, active power, apparent power, energy consumption and power factor. Measurements are performed per input feed, per circuit breaker and per individual outlet. In addition, the PDU monitors power quality with parameters such as harmonic distortion, voltage sags, voltage swells, neutral current, inrush current and crest factor.
Intelligent Rack PDU for professional infrastructure management
The hot-swappable controller with integrated color display allows replacement during operation without interrupting power. The LCD display shows voltage, current and active power per feed, per circuit breaker and per outlet and automatically adjusts its orientation. Remote management is available via HTTP(S), SSH, Telnet, SNMP v2/v3, JSON-RPC API, MODBUS-TCP and Redfish API. Up to 8 PDUs can be linked via the PDU-link function, with the primary PDU centrally managing all power data of the connected units. In cascading mode up to 32 PDUs can be operated over one Ethernet port or 16 PDUs over USB. Redundant dual-Ethernet connectivity (10/100/1000 Base-T) with optional Wi‑Fi (802.11 a/b/g/n) ensures a highly available network connection. The PDU supports extensive environmental sensing for temperature, humidity, airflow, differential pressure, dust, water leak, motion, vibration and contact closure.
Technical details Legrand Raritan iX Rack-PDU 0U with 12x HDOT C13 / 12x Combo C13/C19, 1-phase 230V 32A, Outlet Metered/Switched (PX4-5161-E7)
- Input: IEC 230V/32A 2P+PE 6h
- Nominal input voltage: 230V
- Maximum input current: 32A
- Power capacity: 7.4 kVA
- Nominal output voltage: 200 - 240V
- Outlets: 12x HDOT C13, 12x Combo C13/C19
- Overcurrent protection: 2 circuit breakers
- Energy metering: Billing-grade, Class 0.5
- Measurement per input feed, per circuit breaker, per outlet
- Remote Outlet Switching
- Power Quality Monitoring
- Hot-swappable controller with color LCD display
- PDU linking: up to 8 PDUs
- Cascading: up to 32 PDUs (Ethernet) / 16 PDUs (USB)
- Dual Ethernet 10/100/1000 Base-T, optional Wi‑Fi
- Remote management: HTTP(S), SSH, Telnet, SNMP v2/v3, JSON-RPC, MODBUS-TCP, Redfish API
- Environmental sensors: temperature, humidity, airflow, differential pressure, etc.

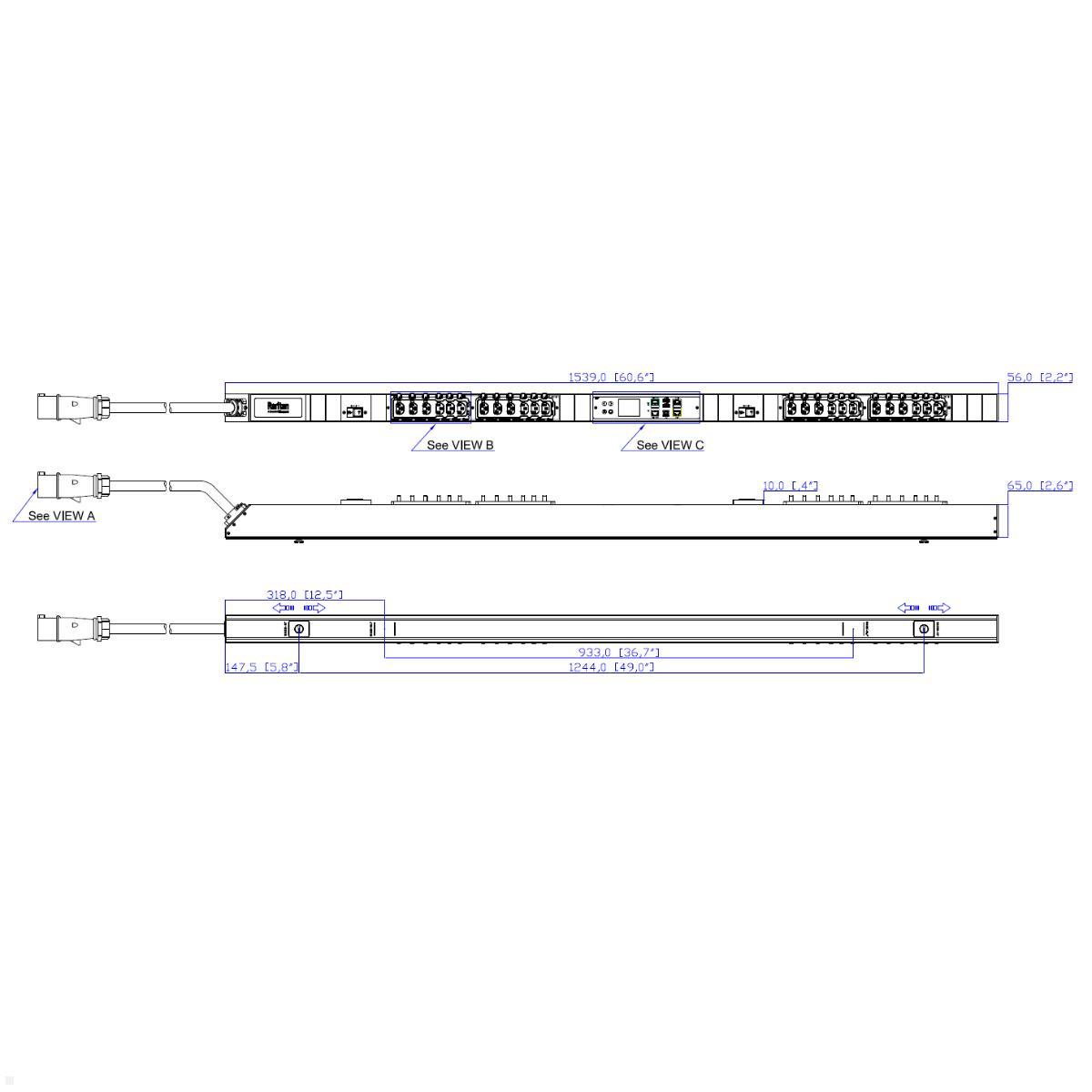

- Dimensions (W×D×H): 56 x 65 x 1539 mm
- Weight: 5.0 kg
- Operating temperature: up to 60 °C
- Power cord: 3 m
- Certification: CE
- Warranty: 2 years
| Product sheet: |  [pdf - Englisch] |
|---|---|
| Technical drawing: | [pdf] |
| Packaging dimensions (LxWxH in mm): | 1700 x 255 x 125 |
| Contains installation material: | + |
| Warranty: | 2 years |
| Manufacturer/Importer: | Legrand AV Netherlands B.V. / Chief, Franklinstraat 14, 6003 DK Weert NL, deutschland.verkauf@av.legrand.com |
| Einspeisung: | 32A |
| FI switch: | No |
| Fuse: | Yes |
| Mains filter: | No |
| Messen: | pro Port |
| Number of sockets: | 24 Outlets |
| Overvoltage protection: | No |
| Phasen: | 1-phasig |
| RCM-Differenzstrommessung: | Nein |
| Schalten: | Ja |
| Steckerart: | C13, Combosocket |
| Strommessung / Überwachung: | Ja, online |
| color: | Black |
| Größe PDU: | Vertikal, 42 HE |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
What can an intelligent 0U rack PDU with remote outlet switching do?
A modern 0U rack PDU such as the Legrand Raritan iX (PX4-5161-E7) goes far beyond mere power distribution. By enabling each individual outlet to be remotely switched on and off over the network, servers and network devices can be selectively rebooted without a technician having to be physically on site. Billing-grade energy metering with Class 0.5 accuracy enables precise measurement of power consumption per outlet, per circuit breaker and per input feed. These granular consumption data are indispensable for consumption-based billing in colocation data centers as well as for capacity planning and efficiency optimization in enterprise-owned server rooms. Monitoring of power quality with parameters such as harmonic distortion, voltage sags and crest factor allows early detection of problems in the power supply before they lead to equipment failures. The hot-swappable controller ensures that firmware updates and hardware replacement can be carried out without interrupting power delivery.
How do PDU linking and cascading improve infrastructure management?

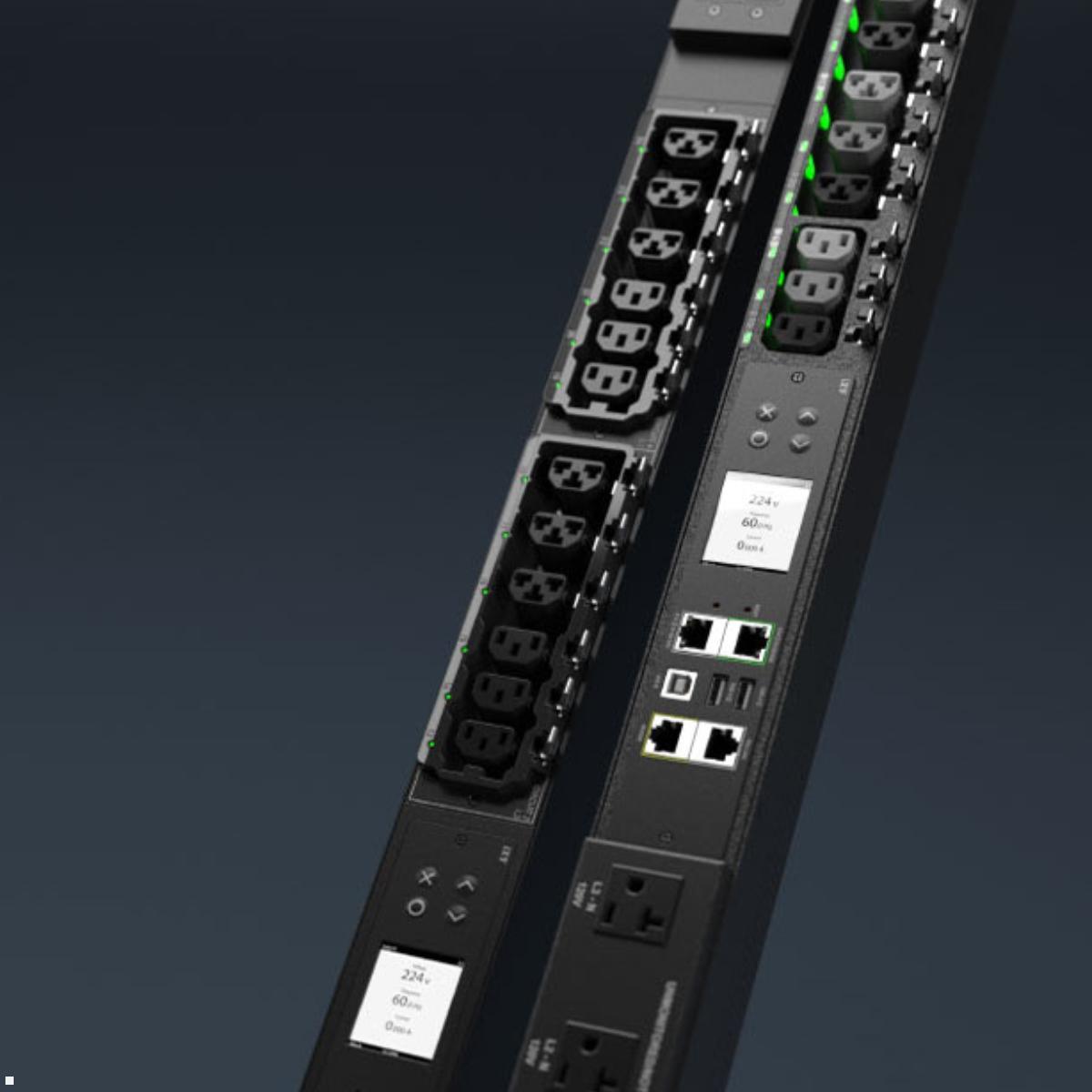

The PDU-Link feature allows daisy-chaining of up to 8 PDUs, with a primary PDU centrally collecting the power data of all connected units and making it accessible through a single user interface. In the event of a power failure of the primary PDU, the first expansion PDU takes over redundant power delivery, thereby ensuring availability. In cascade mode, up to 32 PDUs can be linked via a single Ethernet port or 16 PDUs via USB. Using port forwarding, multiple PDUs can be managed under a single IP address, significantly reducing the need for network ports and IP addresses. Redundant dual-Ethernet connectivity with optional Wi‑Fi provides a highly available network connection, while extensive remote management via protocols such as SNMP v3, JSON-RPC API and Redfish API enables seamless integration into existing DCIM and monitoring systems.
What role do environmental sensors play in data center monitoring?
The Legrand Raritan iX rack PDU supports a variety of environmental sensors that can be connected via the integrated sensor interface. Temperature and humidity sensors monitor the cabinet climate and automatically trigger alarms when predefined thresholds are exceeded. Airflow and differential pressure sensors help optimize cooling, while water leak sensors provide early warning of liquid ingress. Motion and proximity sensors enhance physical security by detecting unauthorized access to the rack. Vibration sensors can indicate mechanical issues in the infrastructure. All sensor data are centrally collected and logged by the PDU and can be forwarded to higher-level management systems via SNMP, HTTP or MQTT. This comprehensive environmental monitoring, together with precise energy metering and intelligent switching, forms a holistic monitoring system for modern data centers.
